NPK/Compound Fertilizer Double Roller Press Granulator Machine
- Category: >>>
- Supplier: Jiangyin Junzhuo Machinery Manufacturing Co. Ltd.
Share on (60689910131):
Product Overview
Description
Product Description
GK-120 Pharmaceutical roll compactor
By the use of crystal water in the material, the powder is made directly into the particles. Highly stable granules can be obtained .It is a new and popular equipment in pharmacy, food, chemical and other industries. Especially when the material is not suitable for wet granulation. The final product can be made of tablet, filling capsules and so on.
Normal type: Feeding, tabletting and granulating systems are inner structure. With simple structure, stable performance, large capacity, a vertical type is optional.
Technical Parameter
Model | GK-30 | GK-80 | GK-100 | GK-120 |
Output of sheet(kg/h) | 3~10 | 80~150 | 120~200 | 150~250 |
Output of granule(kg/h) | 0.5~2 | 20~50 | 40~100 | 75~100 |
Granules diameter(mm) | 0.5~3 | 0.5~4 | 0.5~4 | 0.5~4 |
Total power(kw) | 2.5 | 8.5 | 12.5 | 12.5 |
Feed Screw Speed(r/min) | 6~33 | 6~60 | 6~60 | 6~60 |
Roll speed(r/min) | 4~25 | 4~25 | 4~25 | 4~25 |
Overall size(mm) | 880*550*1300 | 1600*1000*2300 | 1800*900*2300 | 1880*1020*2300 |
Approx. weight(kg) | 750 | 1800 | 2000 | 2300 |
Working Principle

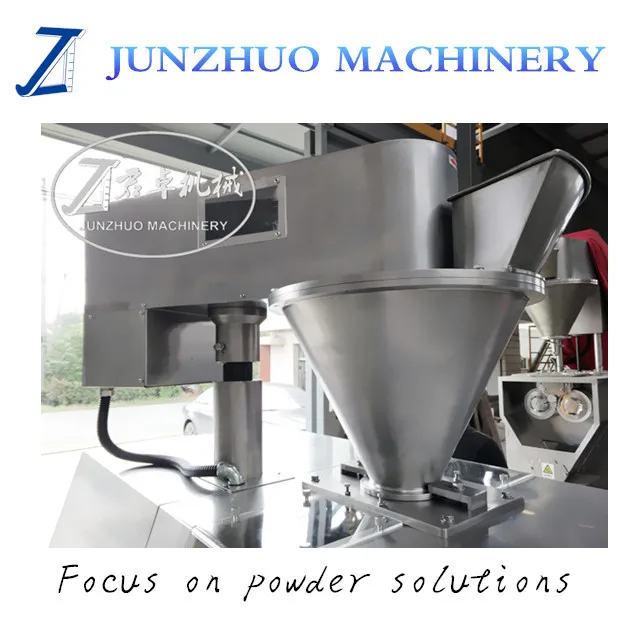

1.Feeding Hopper
As product is being fed into the compaction zone through the tapered screw feeding system, the powder is pre-compacted and entrapped air is forced out along the side walls of the product hopper.

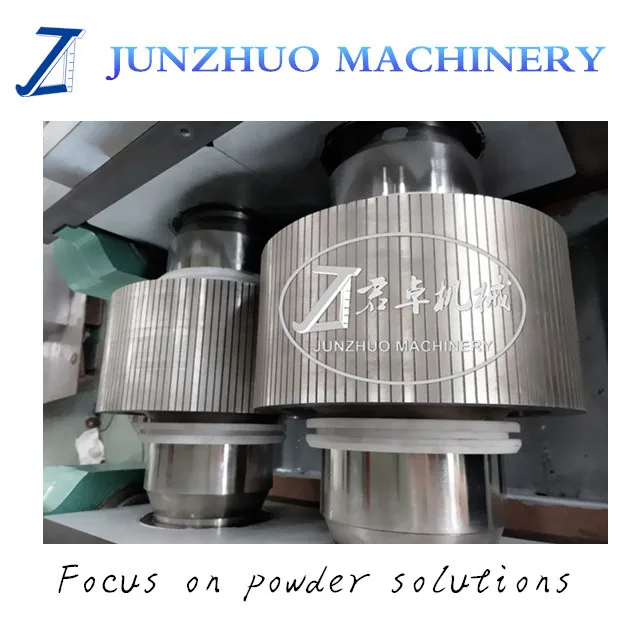

2.Two Pressure Rolls
Roll compactor utilizes a unique roll system to compact powders into sheets or briquettes. The compacted sheets are milled to produce granules of a specific size.

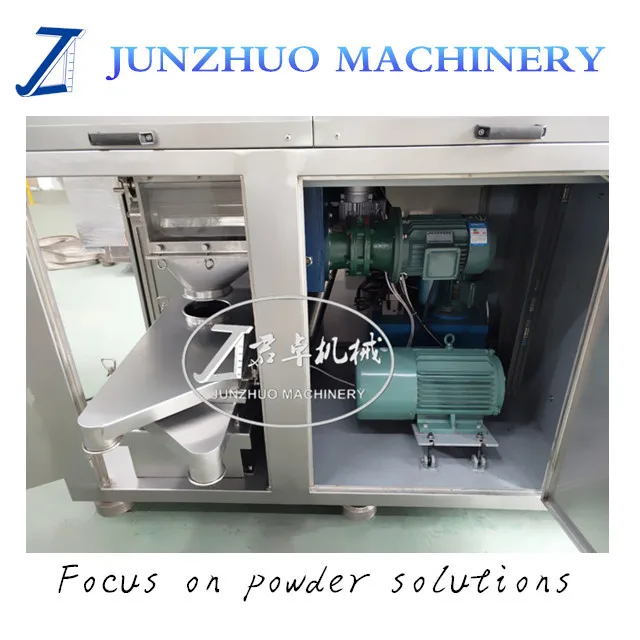

3.Size Reduction
With oscillating granulator to break powder ribbon and co- mill that's make them integrated.The screen mesh can be replaced.

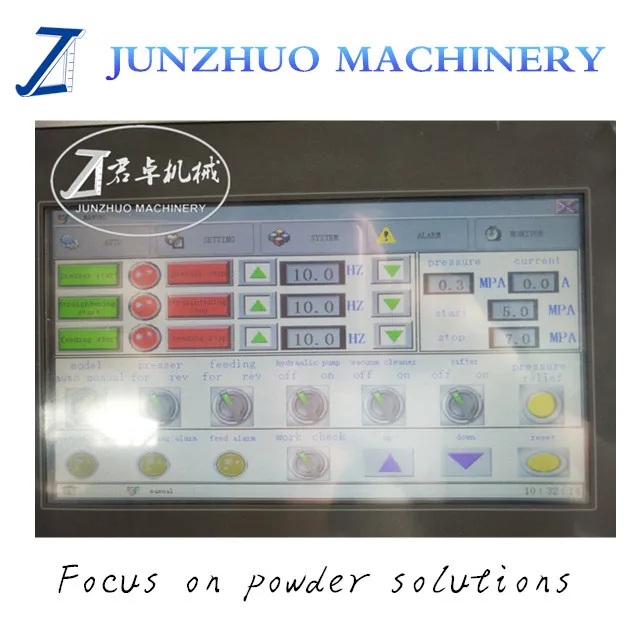

4.Control Panel
By Button.
5.Other part

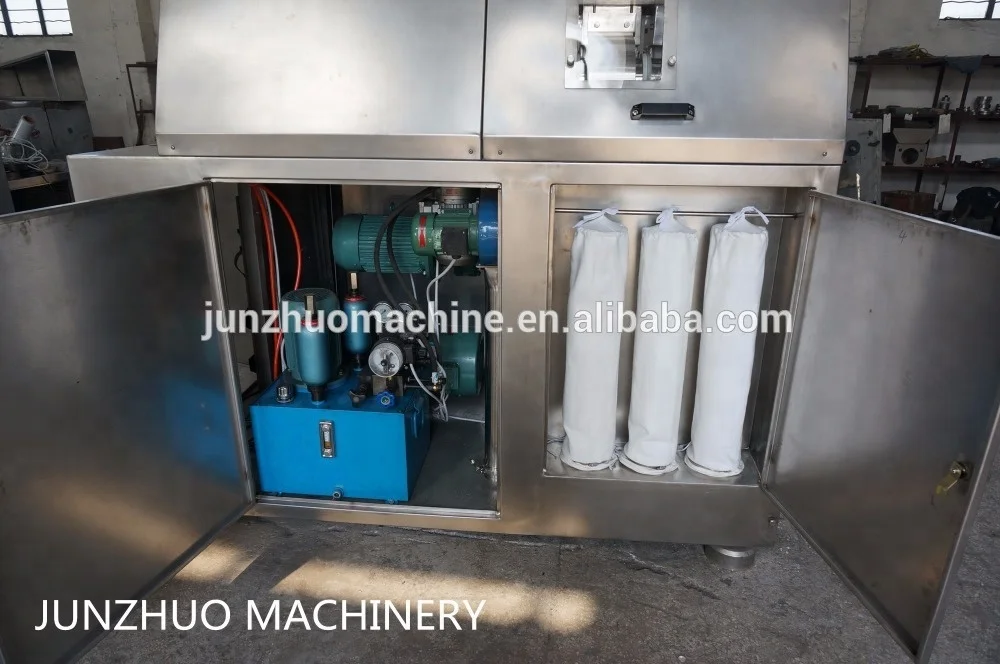

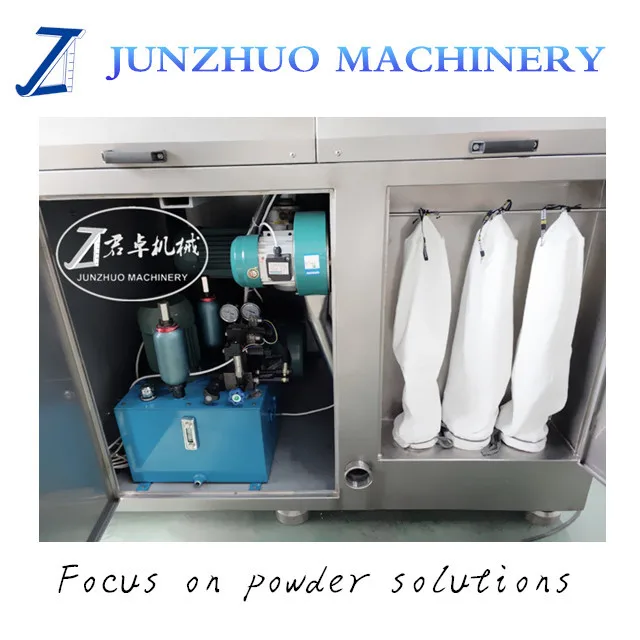

Optional:Dust collector & vibrating sifter
Gear Reducer:SEW
Stainless Steel:SS304 or 316L
Bearings optional:NSK or SKF
Motor optional:ABB or SIEMENS
Electric Device:SIEMENS or Schneider
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-45 days if the goods are not in stock, it is according to quantity.
Q: Do you provide material test ? is it free or extra ?
A: Yes, we could offer the testing for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 50% T/T in advance ,balance before shippment.
Company Profile
Since 2008
JUNZHUO MACHINERY was set up to 2008 with the objective to develop & provide process technology offering of international standards. We keep the mission of staying committed to innovation and by consistently exceeding customer expectations, helping companies do business more efficiently and profitably. Our customers range from small family run operations to famous companies. Regardless of customer size, our philosophy for each is the same, to achieve a creative process solution that efficiently and economically meets the requirements of the application with a smiling service.
Our dry granulation system comprising of roll compactor and cone mill, wet granulation system including of oscillating granulator,basket extruder and screw granulator. All of the products have scale up capability from lab to production equipment, we make over 90% of our machine parts in-house, ensuring stringent quality control. JUNZHUO MACHINERY also provide mixing machine, crushing machine, grinding machine, sifting machine and other machines. The main motto of the company is to deliver best quality products at most economic price & excellent customer service after delivery.
Product packaging
Spare Parts
It will be packed into a wodden case, such as motor, screen sieves, O-ring and so on.
