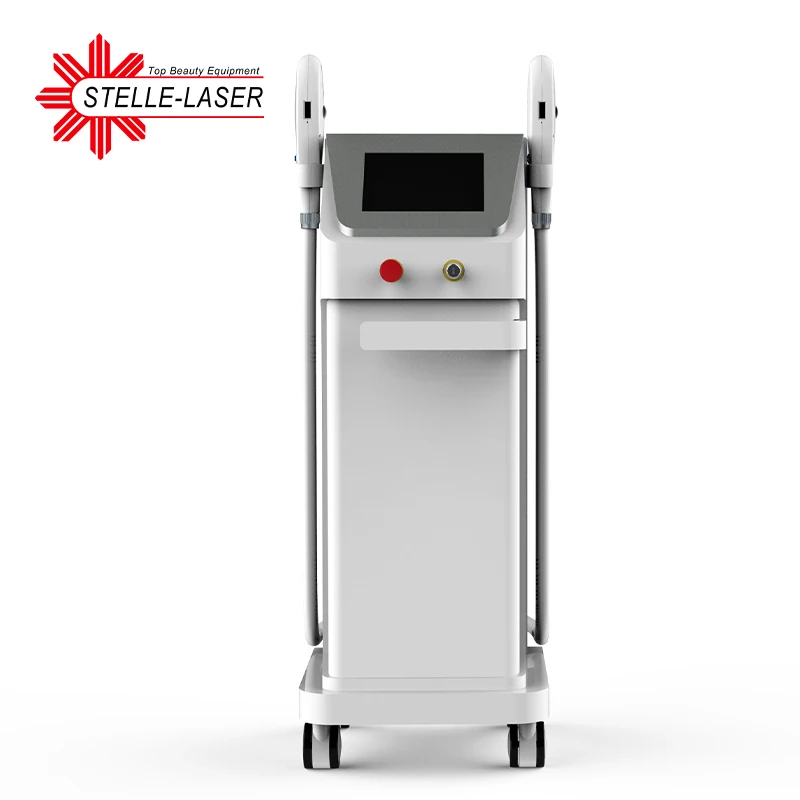

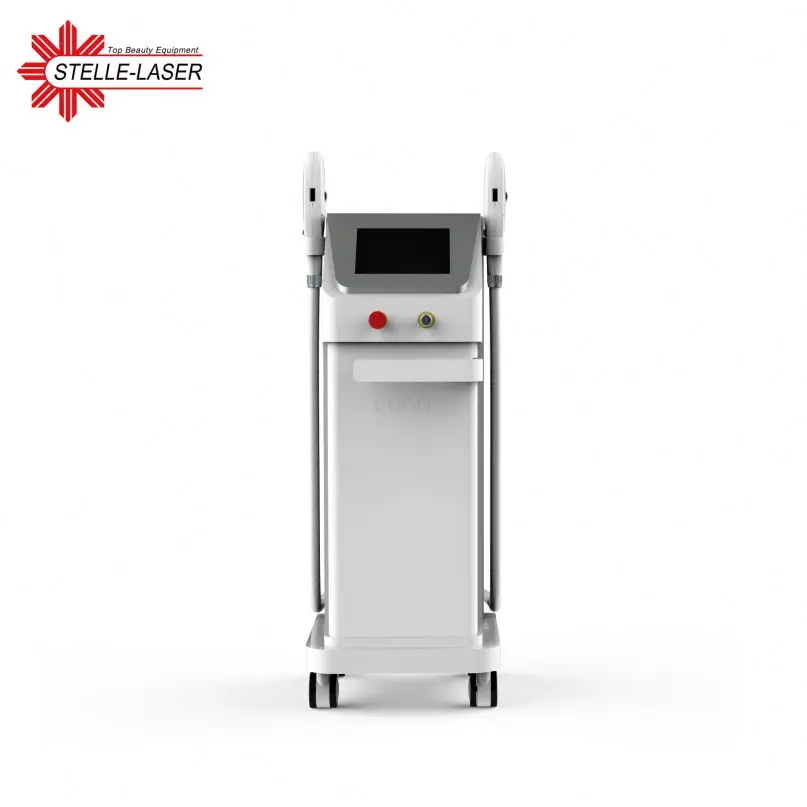

Beauty spa clinic used UK lamp 2 million shots super hair removal and skin rejuvenation ipl opt elight machine
- Category: >>>
- Supplier: Beijing Stelle Laser Technology Co. Ltd.Beijing Ltd.
Share on (60689914525):
Product Overview
Description
Products Description
Principle
IPL is a wide-spectrum light filtered by a filter, and different filters obtain light of different wavelengths. Shorter
wavelengths are used for pigmented and vascular lesions; longer wavelengths are used for hair removal and skin rejuvenation.
wavelengths are used for pigmented and vascular lesions; longer wavelengths are used for hair removal and skin rejuvenation.
Application
1. 480nm~1200nm: Treatment of acne and vascular lesions.
2. 530nm~1200nm: Treatment of vascular (superficial small blood vessels) and pigmented lesions.
3. 590nm~1200nm: Skin rejuvenation,Wrinkle treatment for pigmented and vascular lesions (deep blood vessels).
4. 640nm~1200nm: Hair removal, deep red removal.
5. 690nm~1200nm: Dark skin hair removal.
2. 530nm~1200nm: Treatment of vascular (superficial small blood vessels) and pigmented lesions.
3. 590nm~1200nm: Skin rejuvenation,Wrinkle treatment for pigmented and vascular lesions (deep blood vessels).
4. 640nm~1200nm: Hair removal, deep red removal.
5. 690nm~1200nm: Dark skin hair removal.

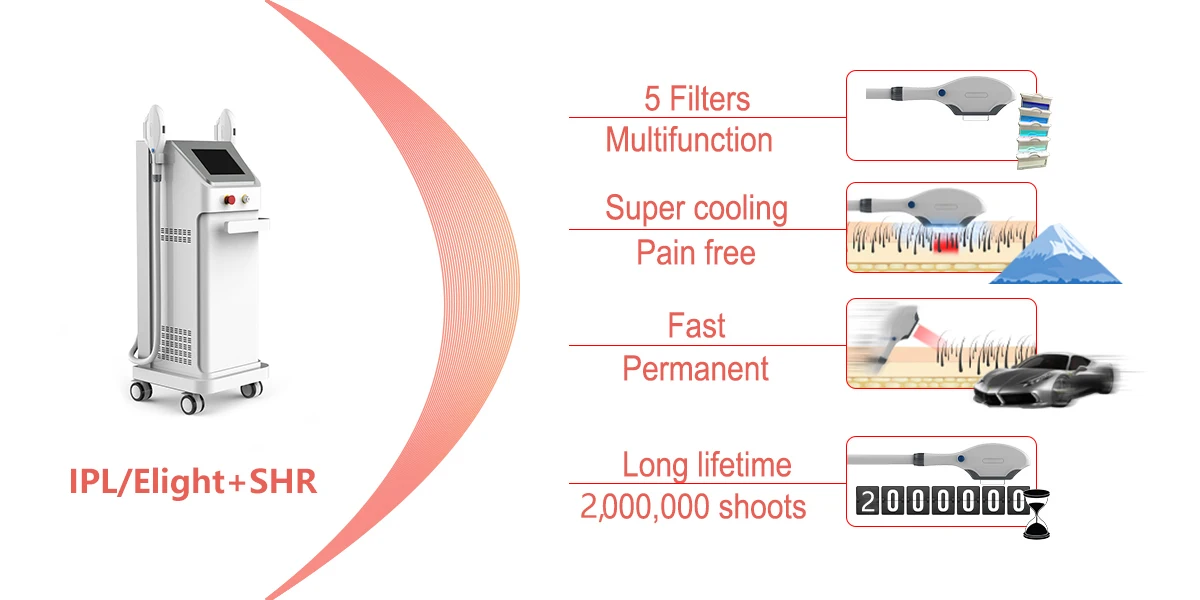

Product Advantages

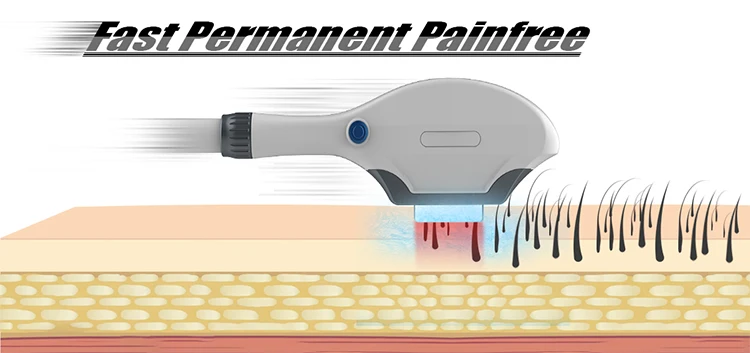

Fast,Permanent,Painless

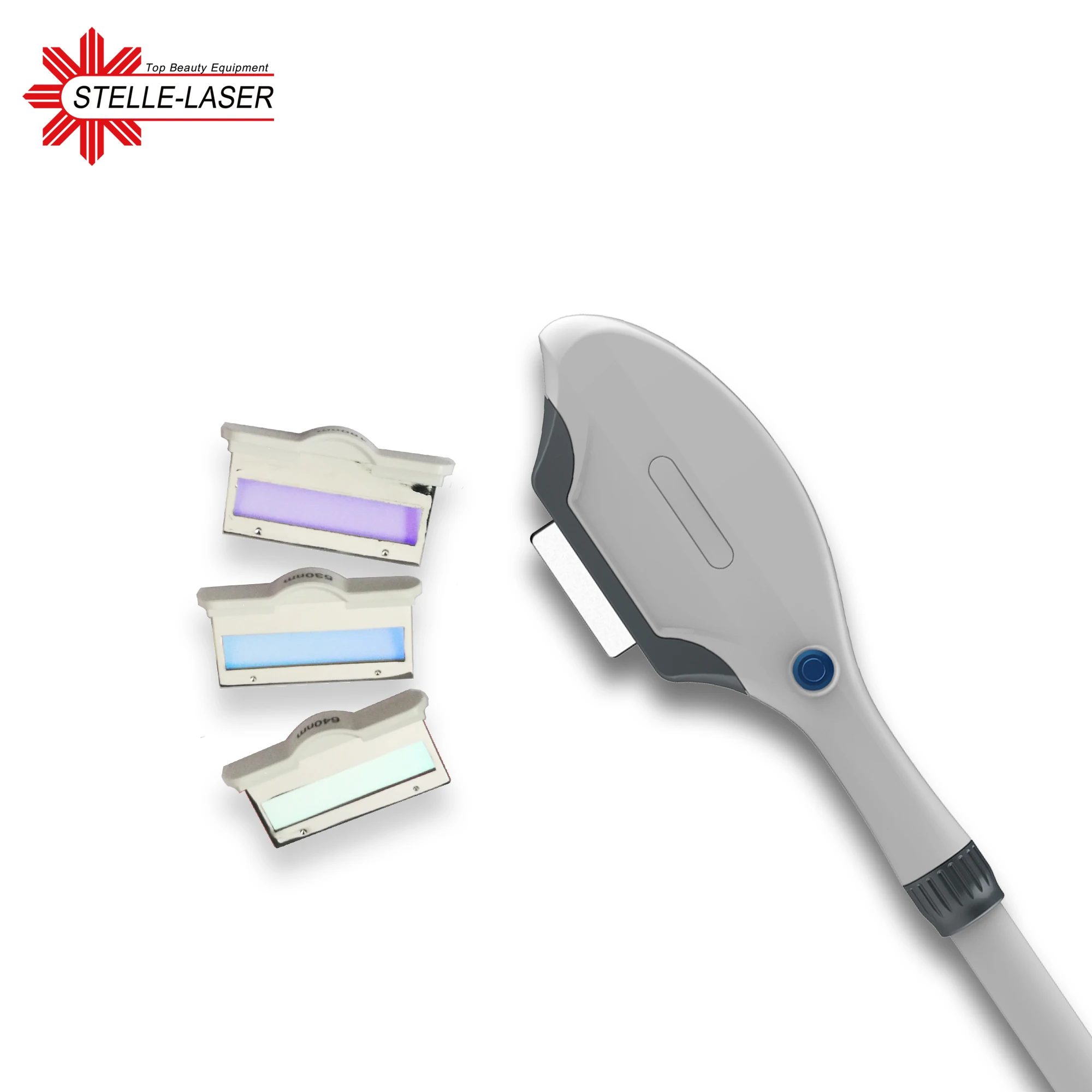

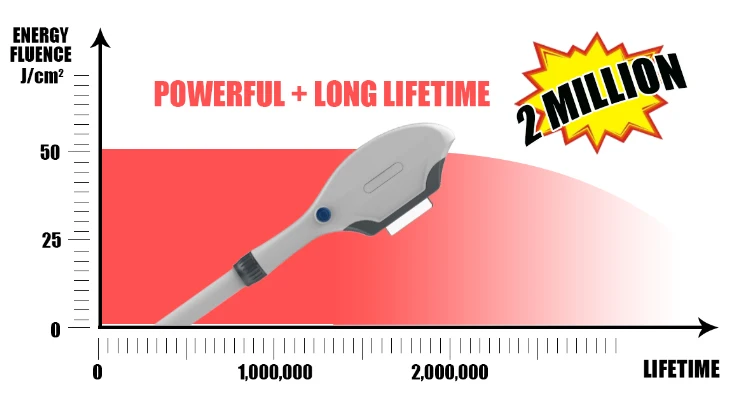

Powerful handle with long lifetime.
IPL/SHR/SSR/E-LIGHT(Common parameter) | ||
IPL Power Supply | 1000w/1600w/2000w | |
Spot Size | 15*50mm2 | |
12*30mm2 (Optional) | ||
RF Frequency/Power | 1MHz/100W | |
IPL Shots | 1,000,000 (1 million) | |

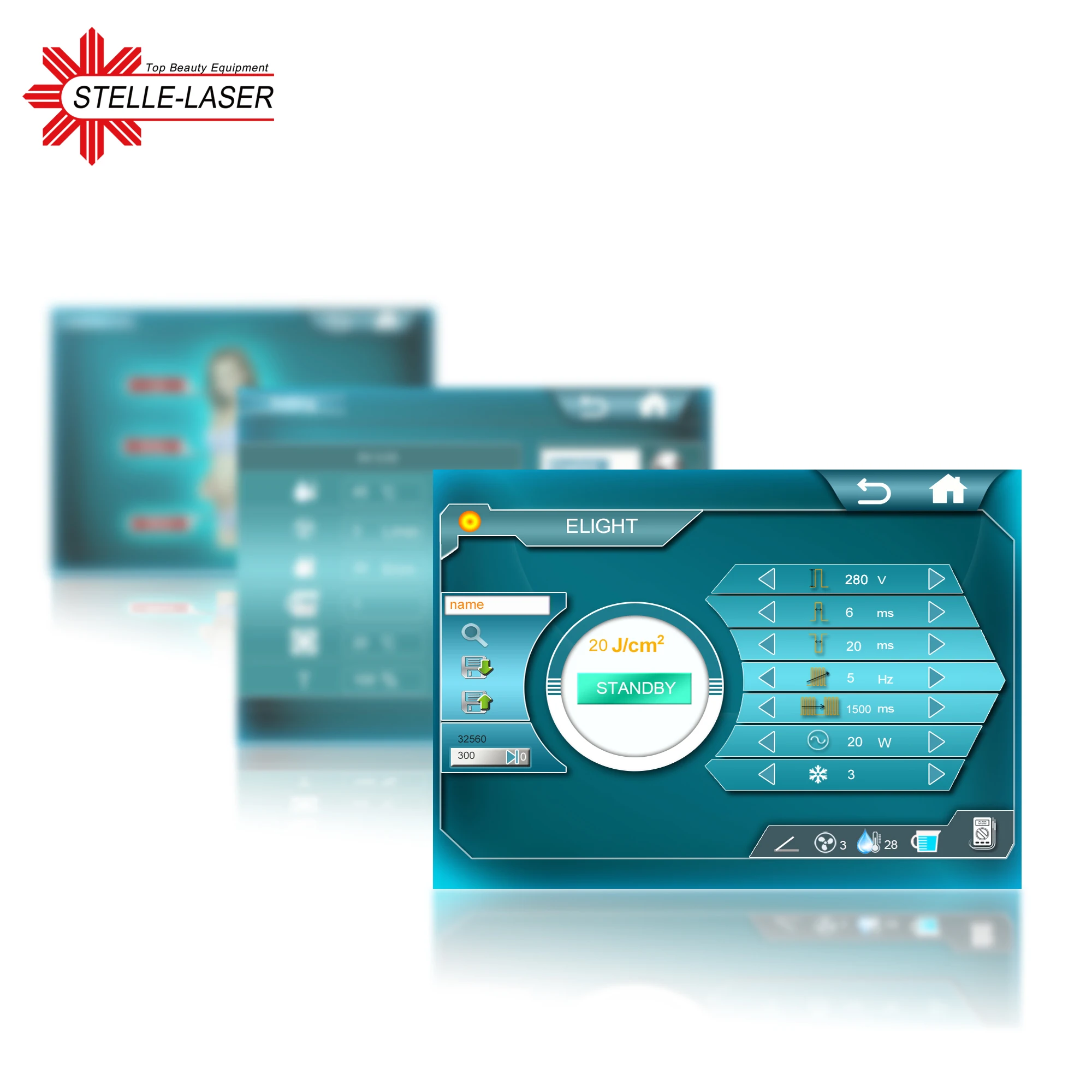

Display | 10” TFT True Color Touch Screen | |
Machine Cooling | Water circulation cooling + Condensor with air fans | |
Handpiece Cooling | TEC + Sapphire contact cooling | |
Stand-by Working | Continuously stand-by working for 18 hours | |
Electrical Requirements | 90-130V, 50/60HZ or 200-260V, 50HZ | |
IPL/Elight mode parameter | ||

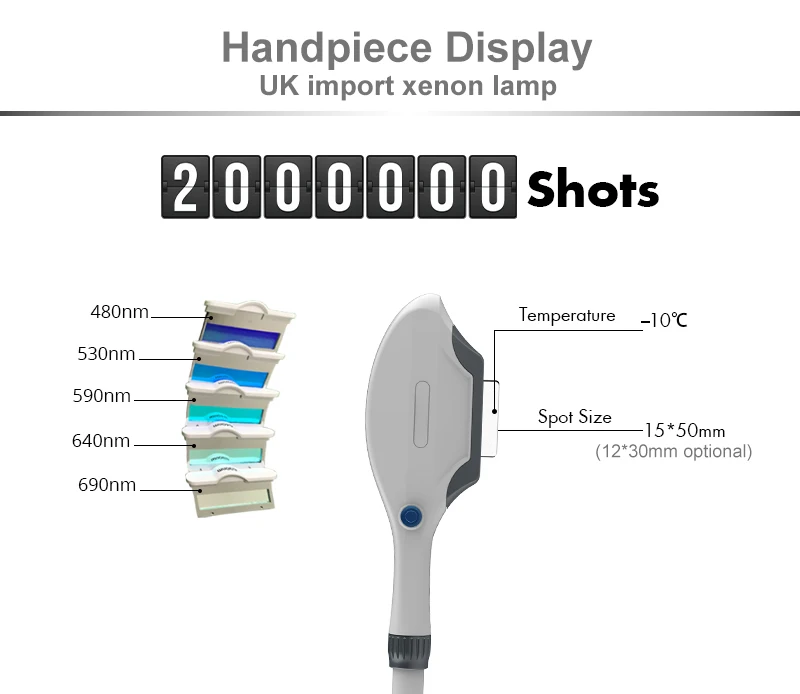

Wavelength(filter) | 480/530/590/640/690--1200nm (standard) | |
Energy Fluence | 1-50J/cm2 (50J/cm2,only 480nm-1200nm filter) | |
Pulse Number | 1-6pulses | |
Pulse Duration | 1-12ms | |
Pulse Interval | 5-150ms | |
Pulses Delay | 1000-3000ms | |
SHR/SSR mode parameter | ||
Wavelength(filter) | SHR:640-950nm/SSR:570-950nm | |
Pulse Frequency | 1-10Hz (Depending on the single pulse output energy) | |
Pulse Duration | 2-15ms | |
Energy Fluence | 1-26J/cm2 (26J/cm2,Frequency:2Hz,1000W IPL power supply) | |
1-26J/cm2 (26J/cm2,Frequency:3Hz,1600W IPL power supply) | ||
1-26J/cm2 (26J/cm2,Frequency:5Hz,2000W IPL power supply) | ||
Detailed Images
IPL power supply from China's best laser power supply manufacturers.
Two 450v*22000uf large capacity capacitors
Powered by the world's most famous Schneider switching power supply.
The core control board is completely self-designed, using a 32-bit processor chip based on the cortex-M3 ARM core, with high-quality peripheral chips, powerful, stable and reliable.
Two filters for making laser ultrapure water are used. When the filter fails, the system self-test function will remind you to replace.
High quality transparent acrylic water tank for water cooling.
Our Advantages
Provide customers with OEM and ODM services, free design service include software and shell. (Inquiry us get the details)
Provide customers with the best after-sales service, including documentation and video support, online video support, etc.
Professional technology, advanced development, and manufacturing processes, as well as the most stringent quality standards, creating a high quality machine.
Packing & Delivery
Machine is packed in aviation aluminum boxes to ensure the safe delivery of goods.Support DHL, TNT, UPS, FEDEX, and othershippingmethods.
