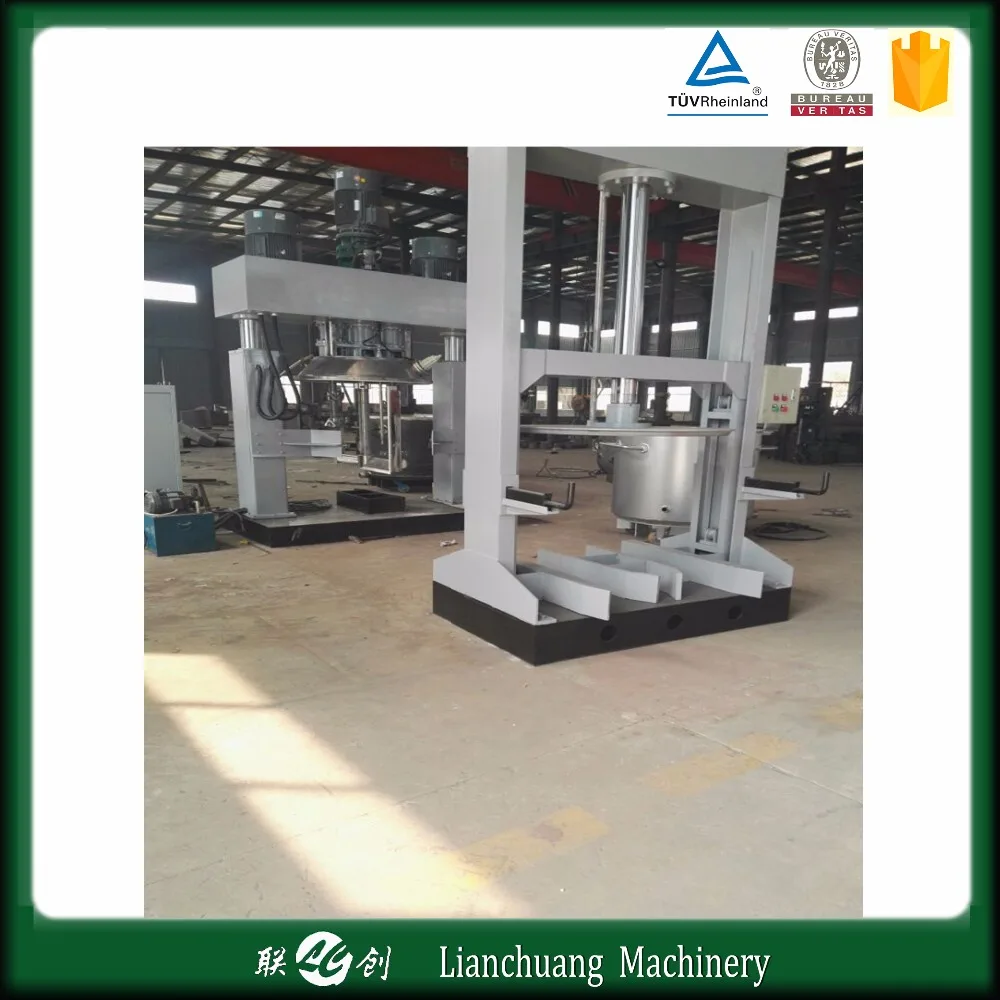

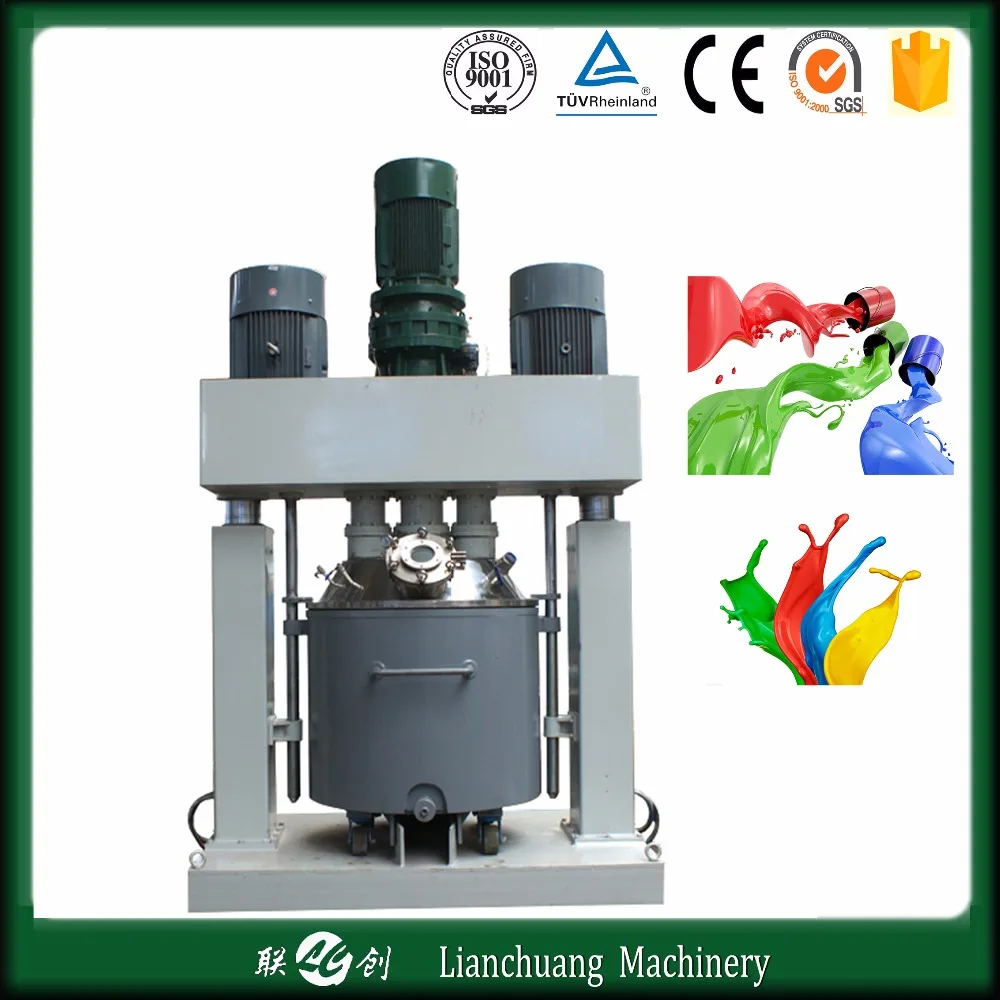

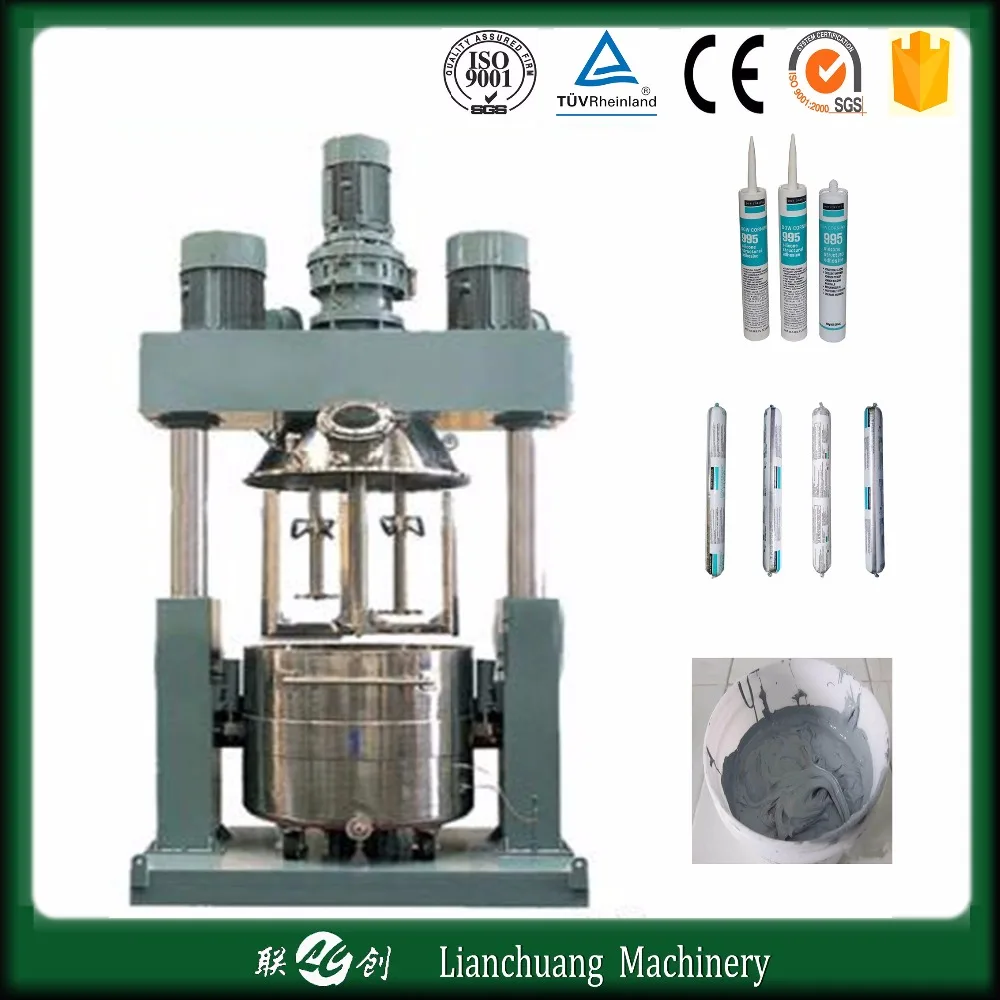

(1) High Dispersing Machine is high efficient, multi-functional, and powerful, made of the based frame, cover, hydraulic lifting and with drums moving into and out.

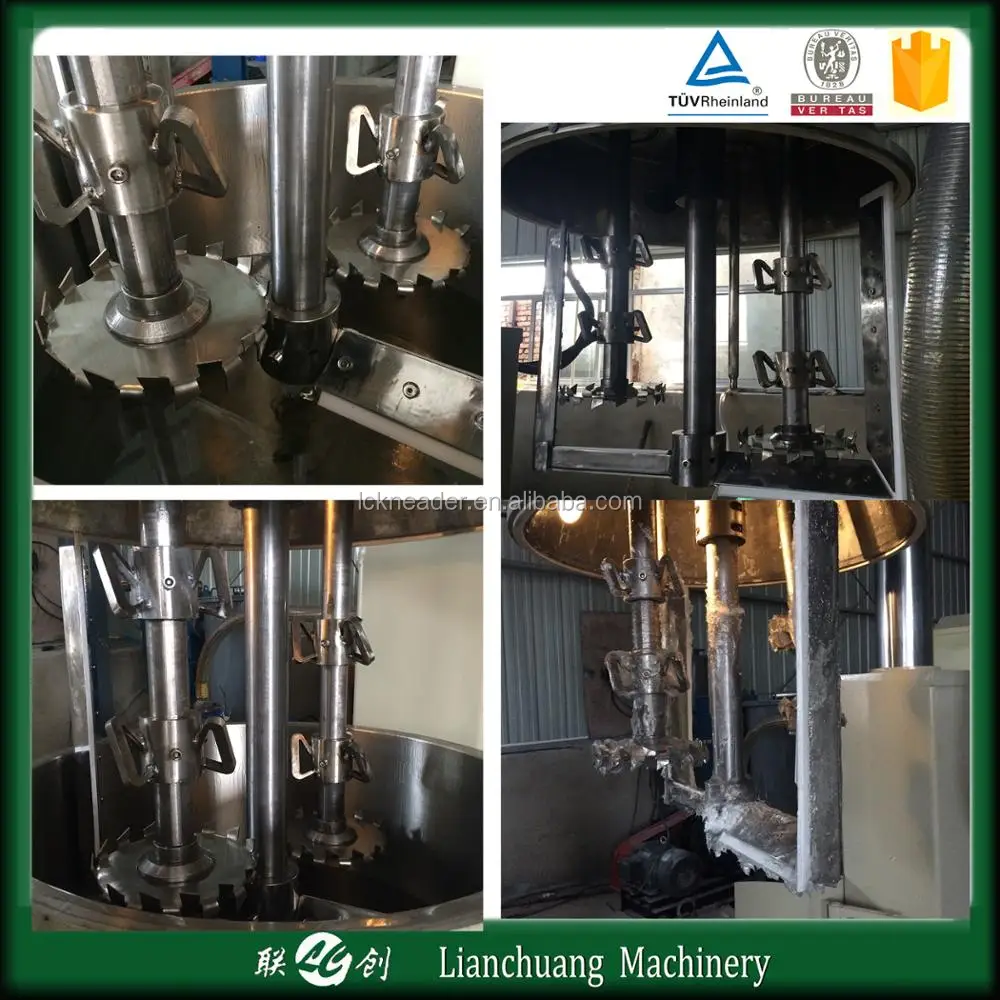

(2) High Dispersing Machine is made of 3 motors to control the 3 paddles, driven by three inverters in PLC for controlling
(3) High Dispersing Machine is made by the thick steel plates and special sealing structure for the vacuum and pressure.

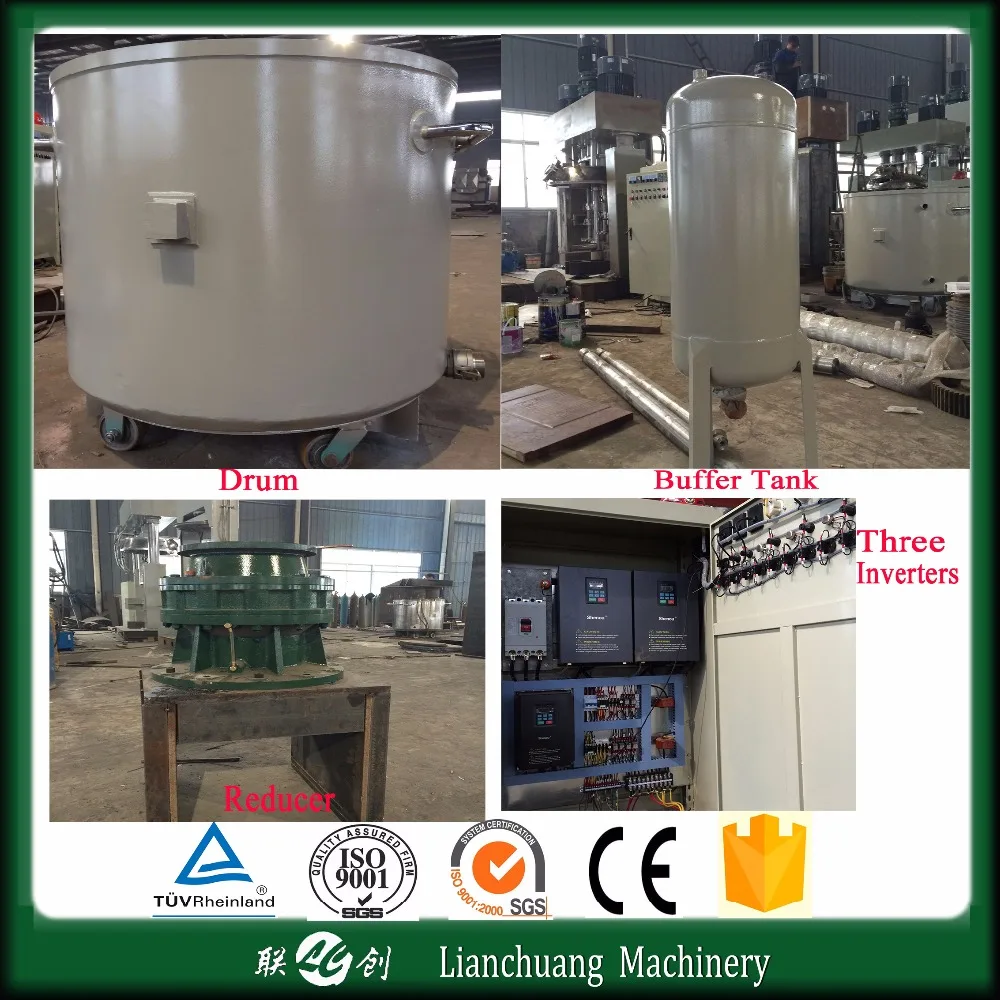

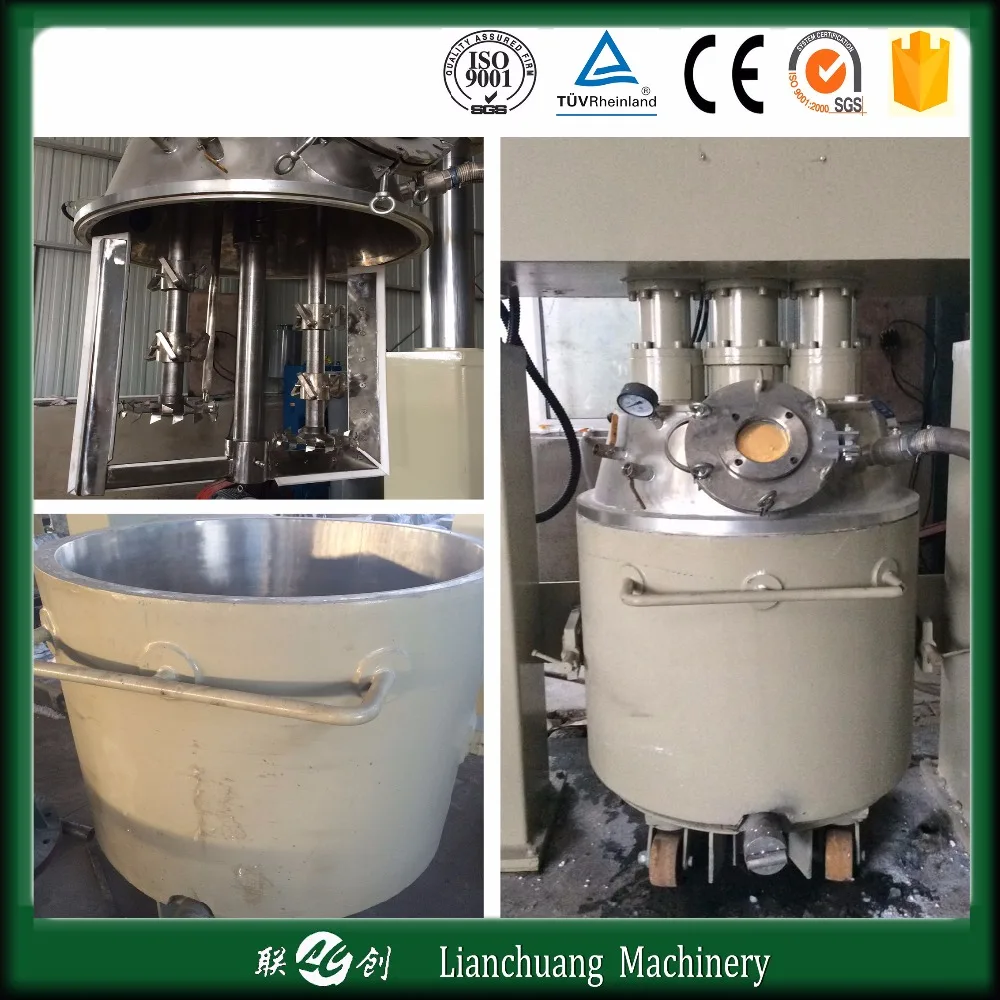

(4) High Dispersing Machine can be equipped with several drums for usages between the dispersing machine and pressing machine. Drums made as the jacketed for heating and cooling
(5) High Dispersing Machine combines with the YLJ Pressing Machine, which extrudes the finished material out of the outlet of drums.
Model
Working Volume
(L)
Motor Power(KW)
Low Speed
(rpm)
High Speed
(rpm)
Note
Low Speed
High Speed
QF-5L
3
1.1
1.1*2
33
0~1000
The Parameter is for reference.
The actual data is designed by the concrete technical requirement and material viscosity.
