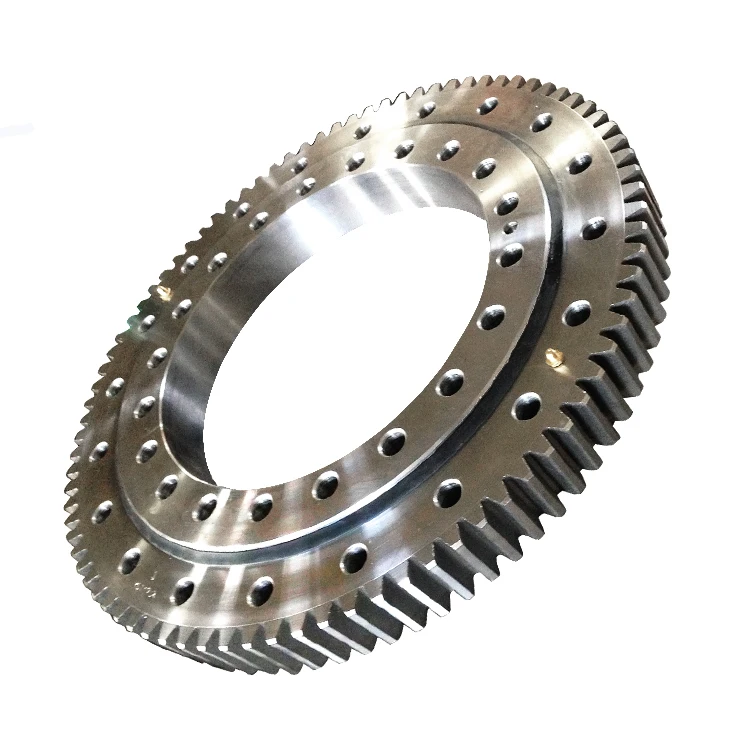

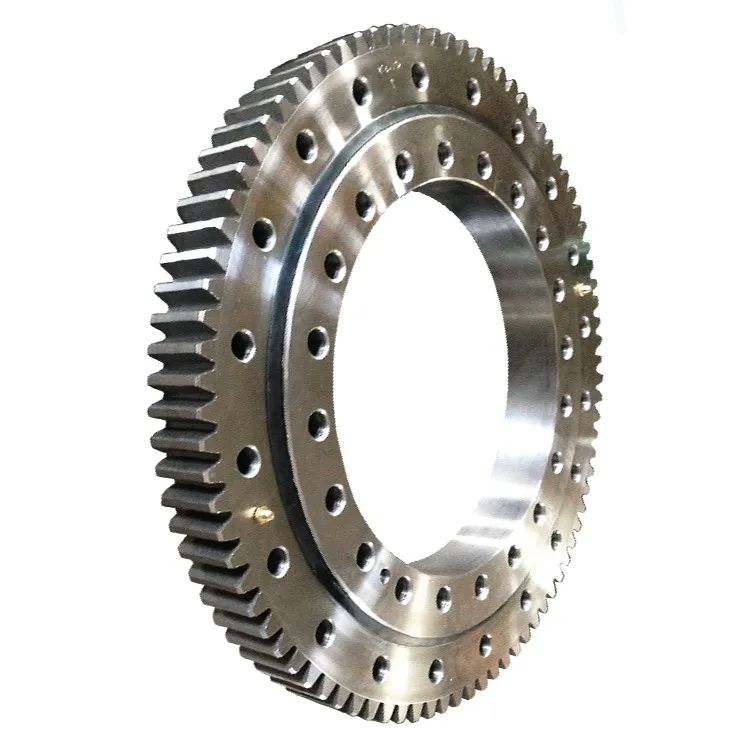

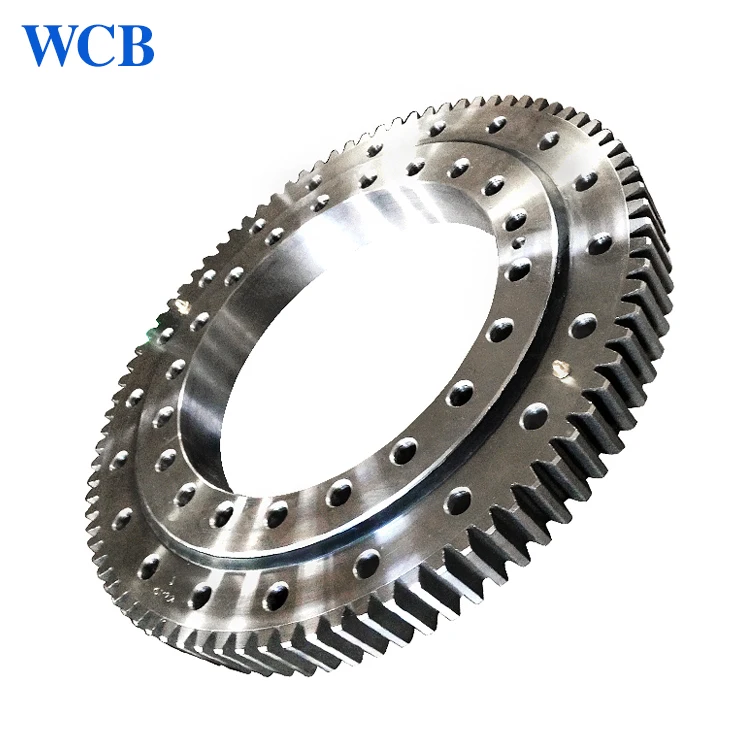

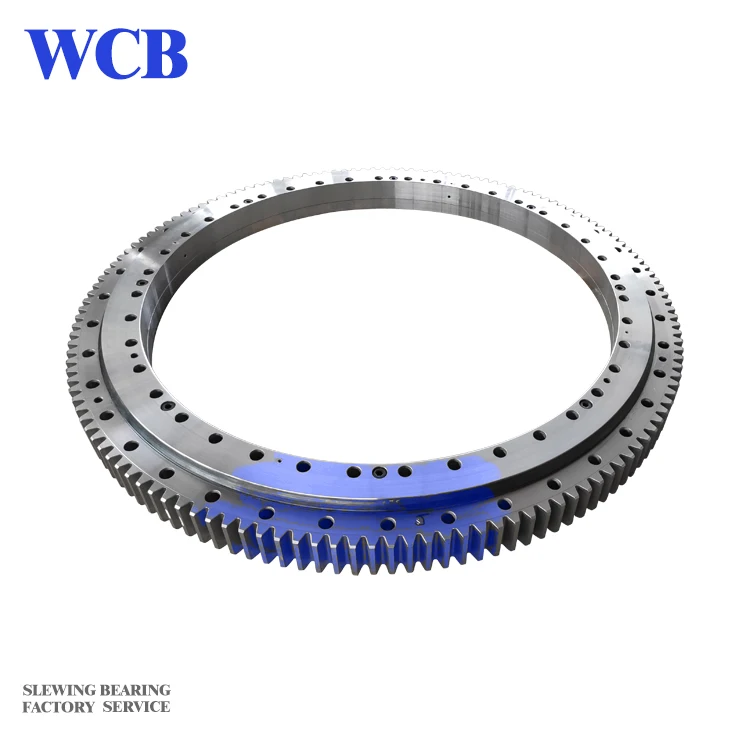

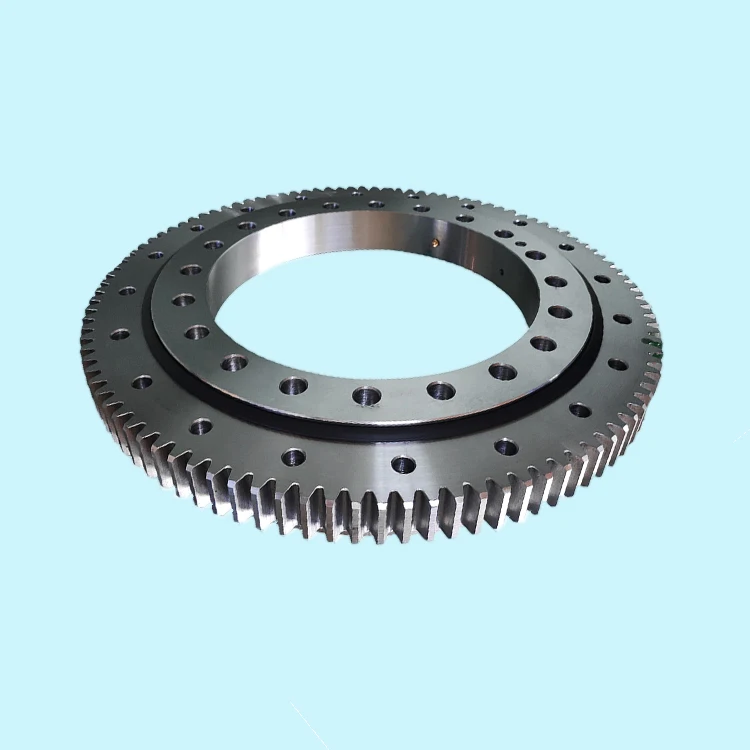

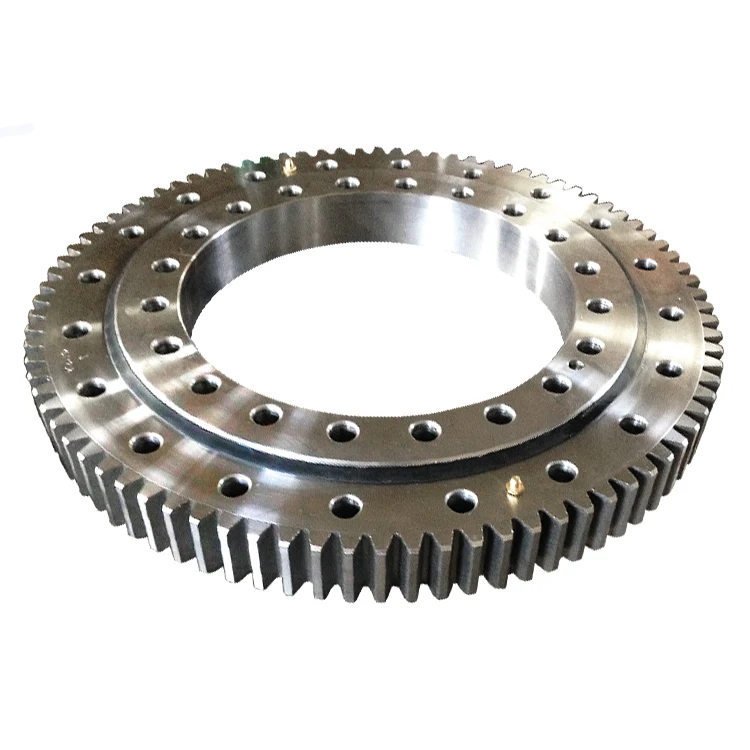

061.20.0414 Wind Turbine Yaw Single Row Ball Slewing Ring Bearing
061.20.0414 Wind Turbine Yaw Single Row Ball Slewing Ring Bearing
061.20.0414 Wind Turbine Yaw Single Row Ball Slewing Ring Bearing
061.20.0414 Wind Turbine Yaw Single Row Ball Slewing Ring Bearing
061.20.0414 Wind Turbine Yaw Single Row Ball Slewing Ring Bearing
061.20.0414 Wind Turbine Yaw Single Row Ball Slewing Ring Bearing
061.20.0414 Wind Turbine Yaw Single Row Ball Slewing Ring Bearing

061.20.0414 Wind Turbine Yaw Single Row Ball Slewing Ring Bearing

Share on (60689927982):


Price:

Quantity:


Product Overview

Description



Recommend Products




Product Paramenters




VSA200414-N

Four point contact bearings
standard series 20, external gear teeth, lip seals on both sides


di
342 mm
Tolerance: +0,5/0
Da
503.3 mm
Di
415.5 mm
Tolerance: +0,5/0
Di ZT
417 mm
Valid for bearings with centring (suffix ZT)
Centring lengths (T, t) (see dimension drawing)
Tolerance: +IT8
d0
495 mm
da
412.5 mm
Tolerance: 0/-0,5
di ZT
344 mm
Valid for bearings with centring (suffix ZT)
Centring lengths (T, t) (see dimension drawing)
Tolerance: +IT8
H
56 mm
La
455 mm
Li
368 mm
m
5 mm
Tooth modulus
na
20
Number of fixing holes in outer ring
ni
24
Number of fixing holes in inner ring
z
99
Number of teeth
m
31 kg
Mass
Fr per
82600 N
Maximum permissible radial load against friction lock
Fz norm
15900 N
Maximum permissible tooth force (dedendum fatigue strength)
Fz max
23600 N
Max. permissible tooth force against tooth fracture in dedendum
Ca
139000 N
Basic dynamic load rating, axial
C0a
660000 N
Basic static load rating, axial
Cr
126000 N
Basic dynamic load rating, radial
C0r
300000 N
Basic static load rating, radial
4
Taper type lubrication nipples, DIN 71412-A S8x1, spaced uniformly on circumference


Materials




Ring Material: 50Mn/42CrMo/C45 Tempering treatment HB220-260

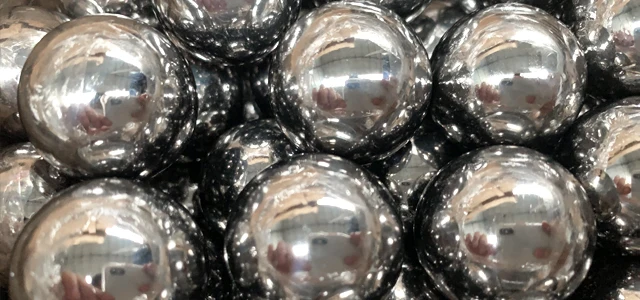

Ball: Gcr15

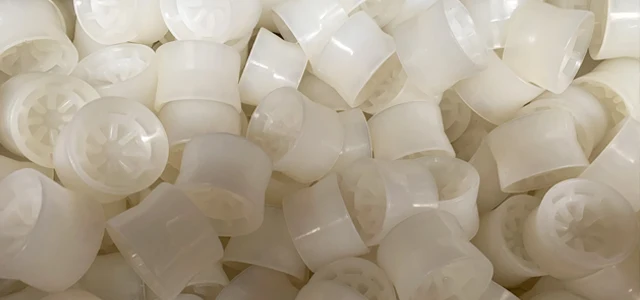

Spacer: nylon 1010

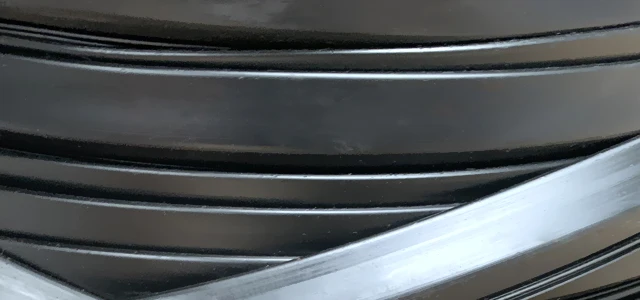

Seal: Rubber
Quality: High quality
Warranty: 1-2 year
Delivery time:15-35 days
MOQ: 1pcs

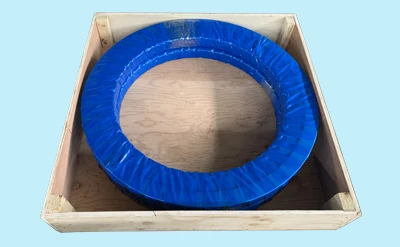

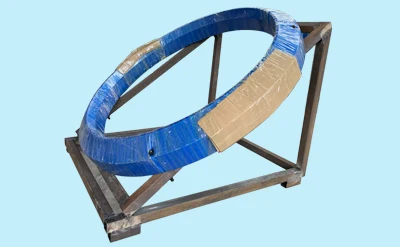

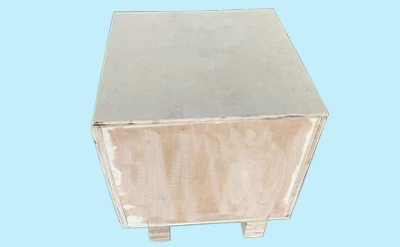

Packing & Delivery





Shipping Terms: EXW FCA CIF DDU DDP DAP


Air & Express: 7-10 days (>100KG&<68KG)


Land Transportation & Railway: 15-30 days


Sea Shipping: 20-45 days(LCL size<2.1*2.4*12m)


Provide certificate of origin

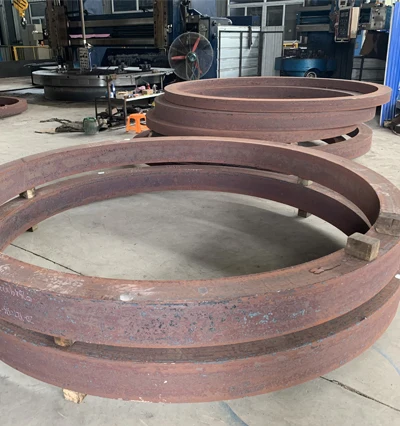

Our Factory




XuZhou Youlite Rotary Bearing Manufacturing Co.,Ltd


Year Founded: 2006

Employees: 50+
Revenue: $30 million USD
Location: XuZhou City Jiangsu Province China
Zip code:221000

Description
More than 15 years slewing Bearing mamufacturer, Our factory provides all kinds of high-quality and high-precision slewing ring products.






Installation Instructions




FAQ




Q1: How to order

please refer to the help under the single payment


Q2: How to contact you when not online?

Email: wenchen@wcbearing.com

phone:+8617702586093

skype: youlite2016 QQ:2940894886

Wechat & whatsApp:+8617702586093


Q3.What are the shipping methods?


Ocean shipment to the port close to your city;
Air shipment to the airport close to your company;
Door to door service by international express.


Q4. What about the payment options?

PayPal, Escrow, West Union and other payment as request.
T/T(30%deposit, 70% before shipment)


Q5.When can I get the price?

We usually quote within 12 hours after we get your inquiry. If urgent to get the price,
please call us or tell us by email , we will regard your inquiry priority.

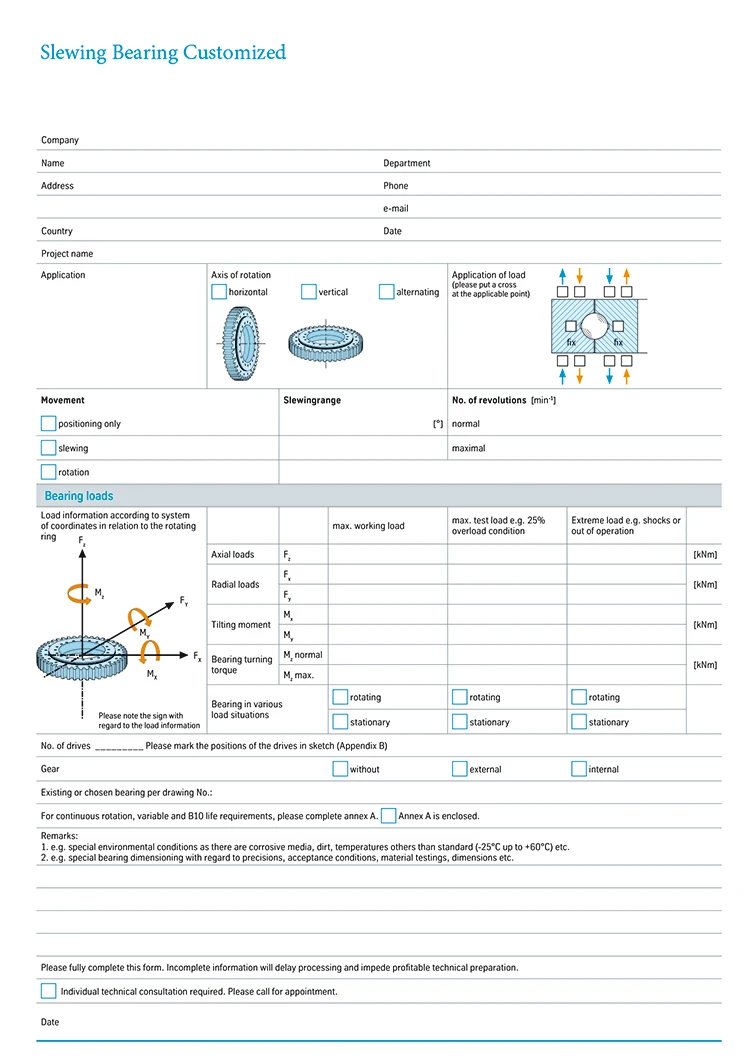

Q5.How to customize?

Please fill in the table below or contact us directly.
