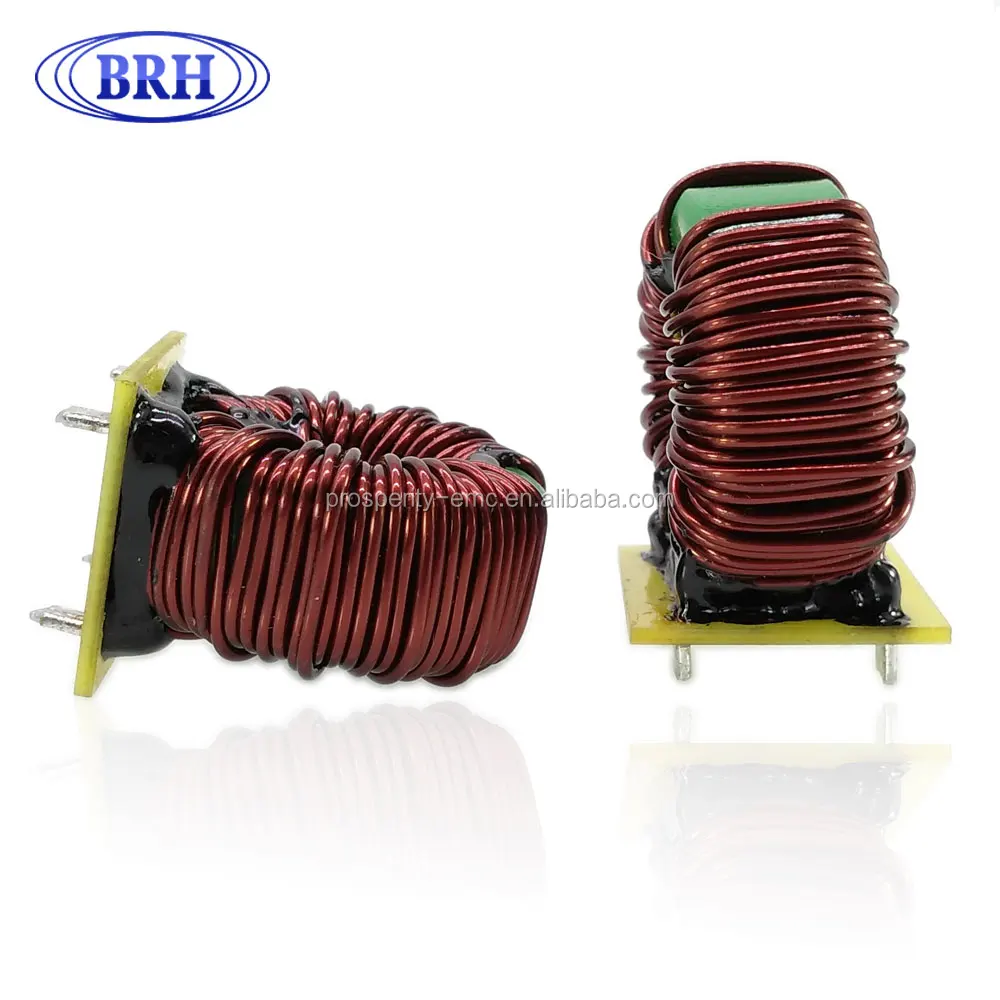

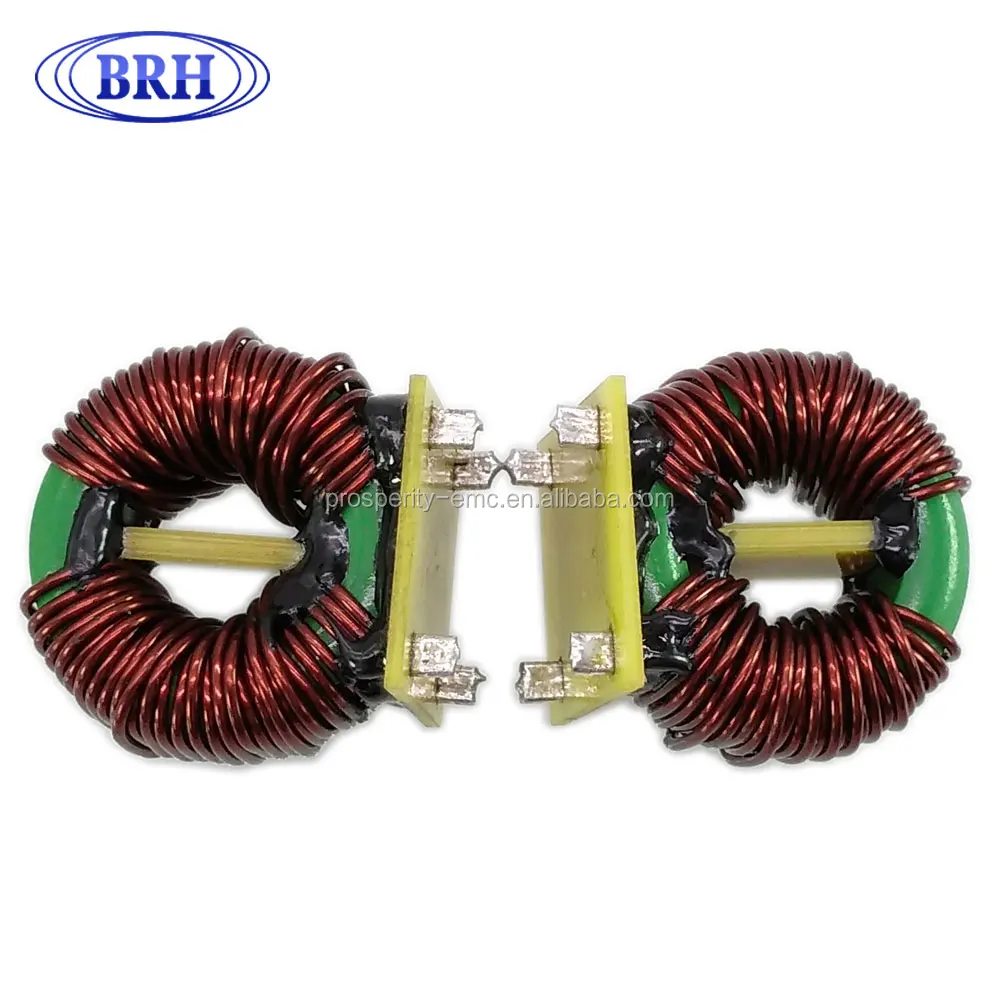

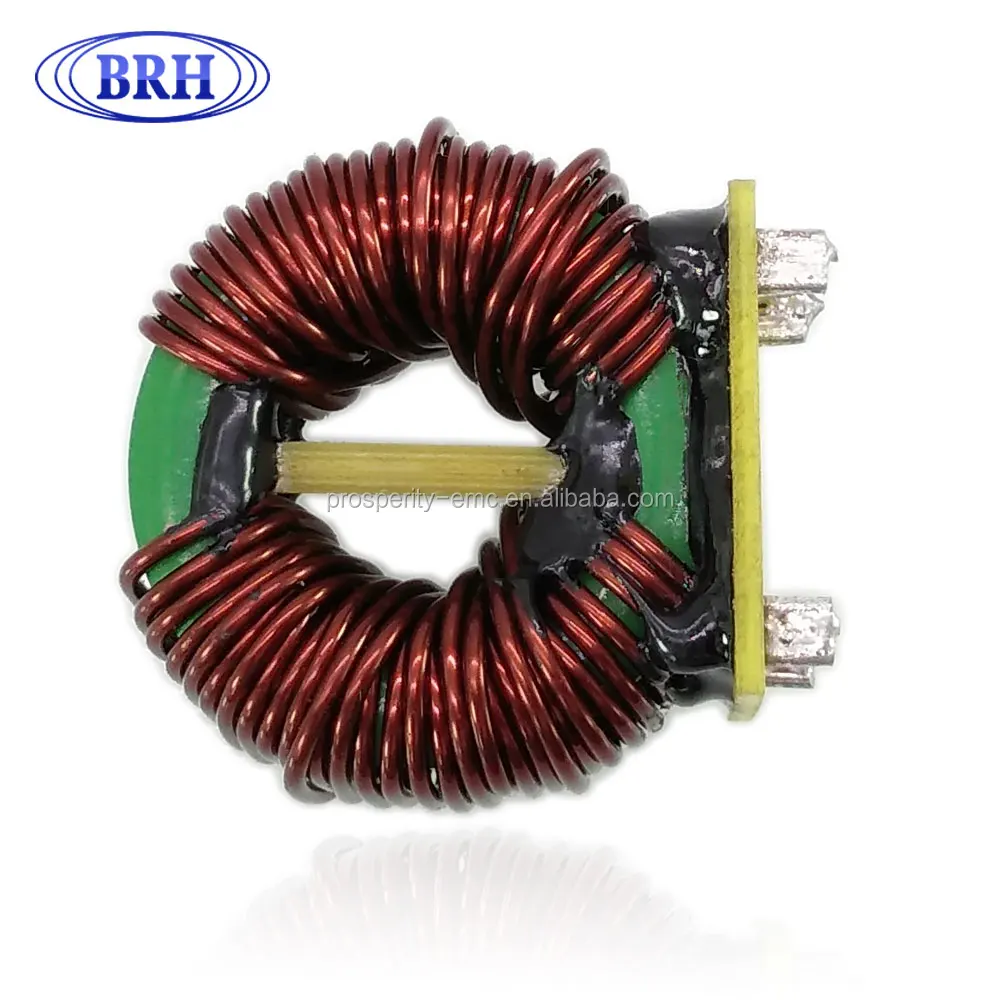

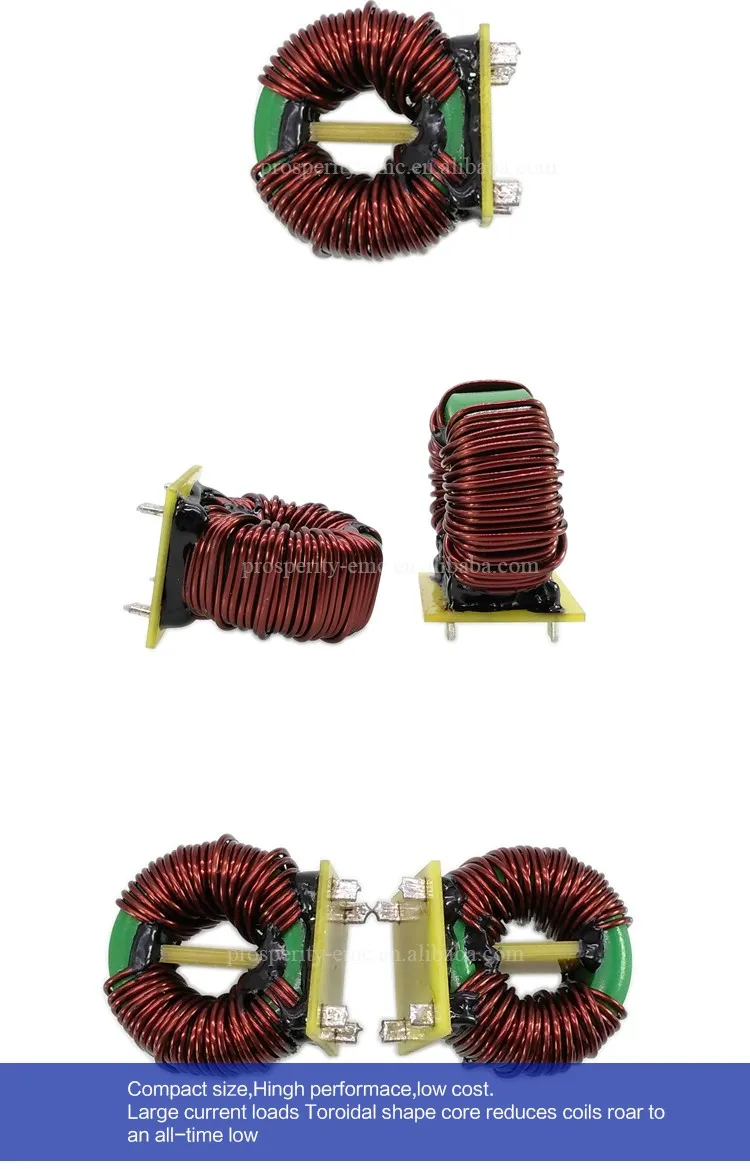

Sales common mode choke coil toroid inductor 2mH
Sales common mode choke coil toroid inductor 2mH
Sales common mode choke coil toroid inductor 2mH
Sales common mode choke coil toroid inductor 2mH
Sales common mode choke coil toroid inductor 2mH

Sales common mode choke coil toroid inductor 2mH

Share on (60689948767):


Price:

Quantity:


Product Overview

Description


Description
\t

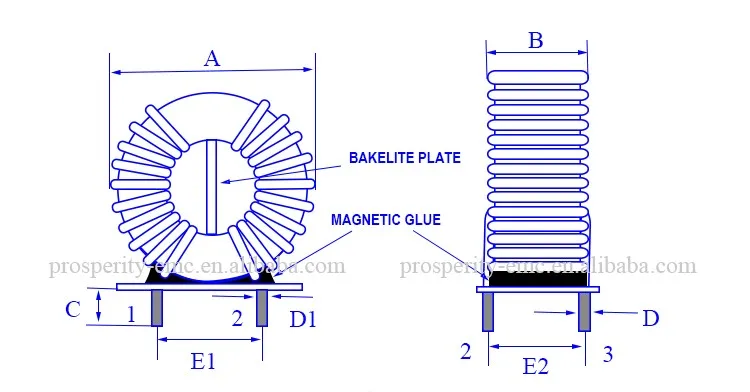

DIMENSIONS(mm)
\t
A
\t
B
\t
C
\t
D
\t
D1
\t
E1
\t
E2
\t
TII36*23*15-202P
\t
48 MAX
\t
29.5MAX
\t
5 ± 1
\t
1.3±0.5
\t
4 REF
\t
22 ±1
\t
18±1
\t
MATERIAL
\t
CORE
\t
WIRE
\t
T36*23*15
\t
¢1.3mm×3P*2N*9.5TS
Parameter
\t
ELECTRICAL CHAR ACTERISTIC
\t
ITEM
\t
SPEC
\t
TEST  EQUIPMENT
\t
TEST CONDITION
\t
L (1-4)
\t
2.0mH MIN
\t
TH2828
\t
1KHz/1V
\t
L(2-3)
\t
2.0mH MIN
\t
TH2828
\t
1KHz/1V
\t
DCR (1-4)
\t
15(mΩ) MAX
\t
502BC
\t

\t
DCR (2-3)
\t
15(mΩ) MAX
\t
502BC
\t

\t
TEST DATA FOR PRE PRODUCTION SAMPLES
\t
ITEM
\t
L(mH)
 (1-4)
\t
L(mH)
 (2-3)
\t
DCR(mΩ)
 (1-4)
\t
DCR(mΩ)
 (2-3)
\t
SPEC
\t
2.0MIN
\t
2.0MIN
\t
3MAX
\t
3MAX
\t
1
\t
2.670
\t
2.670
\t
2.080
\t
2.100
\t
2
\t
2.750
\t
2.760
\t
2.050
\t
2.090
\t
3
\t
2.210
\t
2.220
\t
2.090
\t
2.100
\t
4
\t
2.580
\t
2.580
\t
2.090
\t
2.080
\t
5
\t
2.140
\t
2.140
\t
2.090
\t
2.070
\t
6
\t
2.300
\t
2.300
\t
2.100
\t
2.090
\t
7
\t
2.420
\t
2.410
\t
2.110
\t
2.100
\t
8
\t
2.550
\t
2.540
\t
2.060
\t
2.070
\t
9
\t
2.590
\t
2.600
\t
2.120
\t
2.110
\t
10
\t
2.680
\t
2.690
\t
2.050
\t
2.060
\t

\t

\t

\t

\t

\t
X-bar
\t
2.489
\t
2.491
\t
2.084
\t
2.087
\t
R
\t
0.610
\t
0.620
\t
0.070
\t
0.050
\t
RELIABILITY TEST
\t
STORAGE TEMPERATURE:
\t
-40℃~85℃
\t
OPERATING TEMPERATURE RANGE :
\t
-40℃~+85℃(CONTAIN HEATING COIL)
\t
EXTERNAL APPEARANCE :
\t
NO EXTERNAL DEFECTS CAN BE FOUND IN THE VISUAL INSPECTION.
\t
TERMINAL STRENGTH:
\t
FIXED INDUCTORS,ONE END OF THE ELECTRODE WITH 0.45KG PULLING FORCE,GUIDED THE NEEDLE DOES NOT FALL OFF.
\t
INSULATING RESISTANCE:
\t
THE INSULATION RESISTANCE SHOULD BE OVER 1000MΩ WHEN D.C.100V IS APPLIED TO THE WINDING –CORE. MEANWHILE NO STRUCTURE AND ELECTRIC DEFECTS SHOULD BE FOUND FOR 1 MINUTE.
\t
HUMIDITY TEST :
\t
INDUCTANCE DEVIATION IS WITHIN ±10.0% AND NO STRUCTURE AND ELECTRIC DEFECTS CAN BE FOUND AFTER 96±2hours TEST UNDER THE CONDITIONOF RELATIVE HUMIDITY OF 90~95% AND TEMPERATURE OF 40±5℃. AND 1 HOUR STORAGE UNDER ROOM AMBIENT CONDITIONS AFTER THE DEVICE IS WIPED WITH DRY CLOTH.
\t
VIBRATION TEST :
\t
INDUCTANCE DEVIATION IS WITHIN ±10.0% AFTER 1 HOUR SWEEPING VIBRATION IN EACH THREE DIRECTIONS. NAMELY, FREQUENCY IS10~55Hz ANDTHE AMPLITUDE OF 1MINUTE CYCLE IS 1.5mm .
