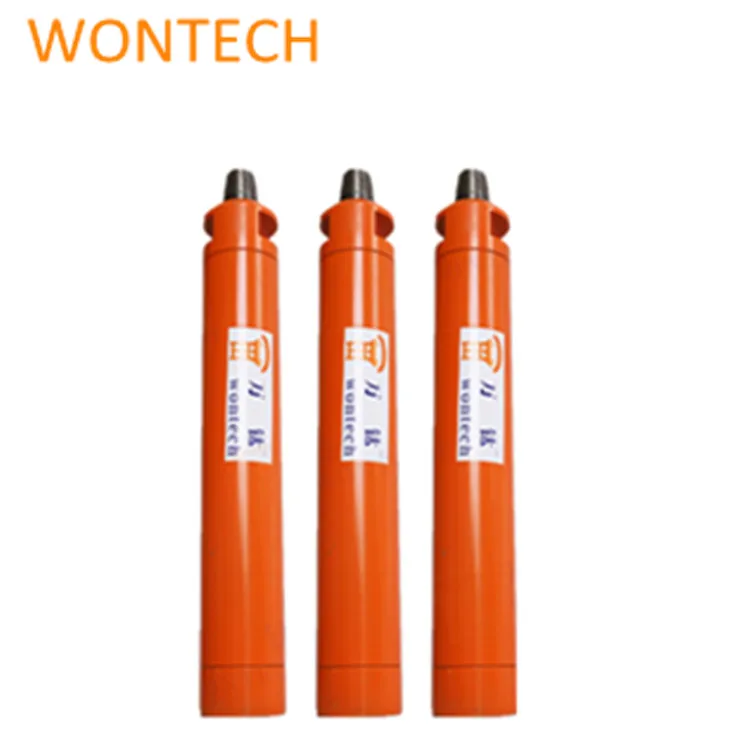

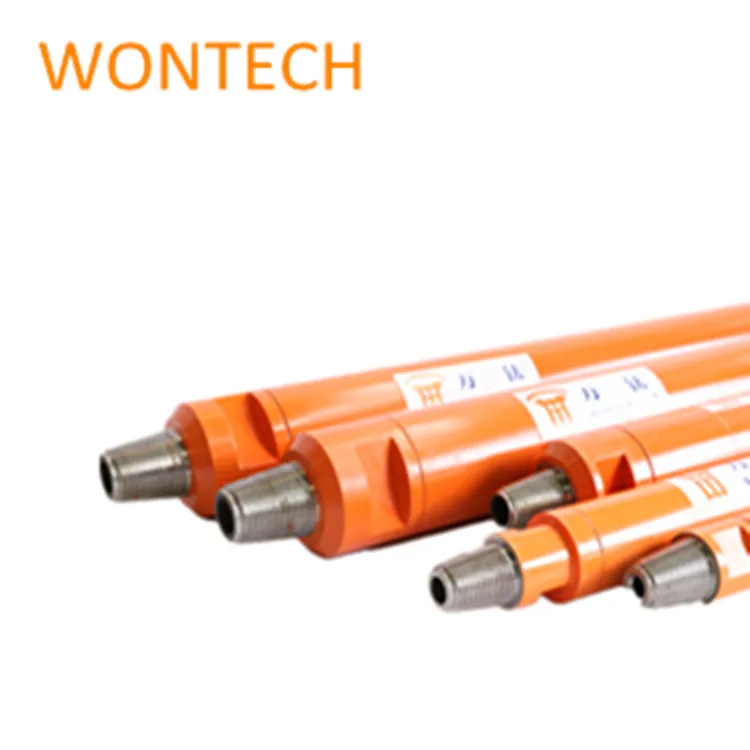

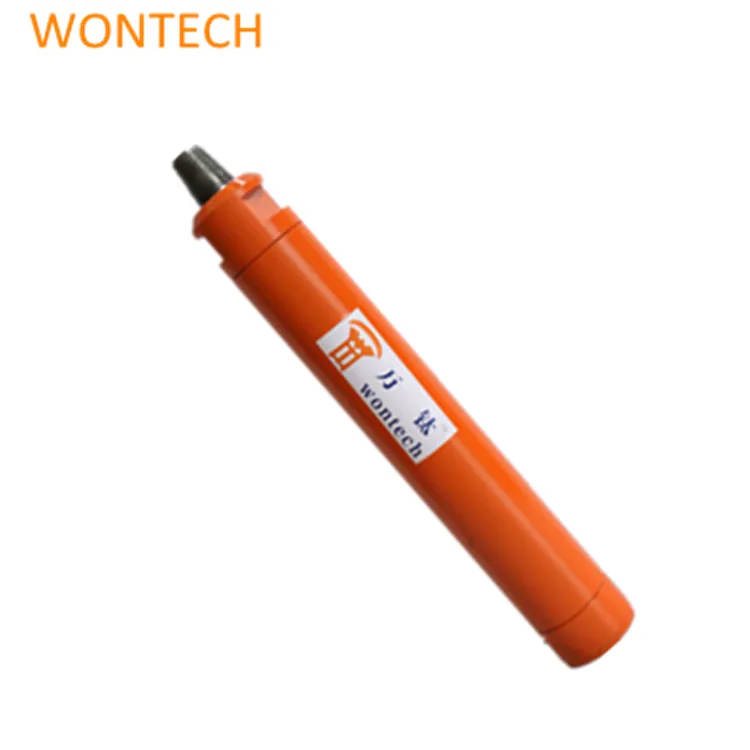

QL50 ATLAS COPCO Hammer Drill Down The Hole Hammer For Sale

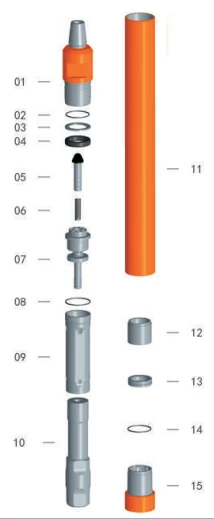

Components

Weight (kg)

Part No.

01.Top Sub

15.1

WQL50R-1

02.O-Rings

0.02

WQL50R-2

03.Washer

0.15

WQL50R-3

04.Bearing Pad

0.1

WQL50R-4

05.Check Valve Dart

1.0

WQL50R-5

06.Spring

0.1

WQL50R-6

07.Air Distributor

3.5

WQL50R-7

08.O-Rings

0.02

WQL50R-8

09.Internal Cylinder

4.1

WQL50R-9

10.Piston

19.6

WQL50R-10

11.External Cylinder

24.5

WQL50R-11

12.Guided Sleeve

0.9

WQL50R-12

13.Bit Retainer

0.4

WQL50R-13

14.O Rings

0.01

WQL50R-14

15.Driver Sub

4.5

WQL50R-15

Bit shank

QL50R

Bit Dia

φ135-φ155

Spline No.

12

External diameter(mm)

Weight(kg)

Length(mm)

Air consumption(m³/min)

φ125

73.2

1155

9-23

Work pressure(Mpa)

Recommended Speed (r/min)

Connection

Impact rate at 1.7Mpa

1.0-2.5

25-40

API 3 1/2" Reg

25Hz
