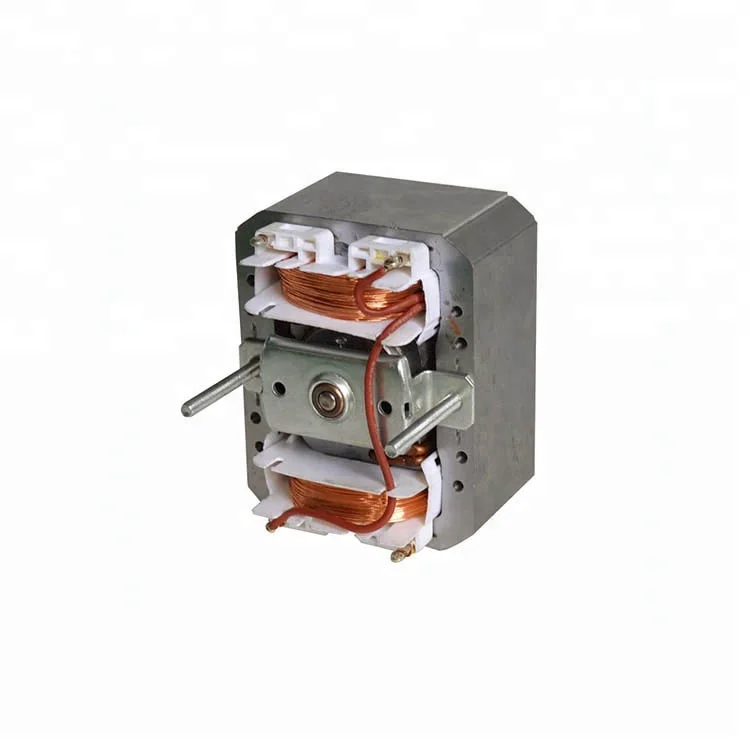

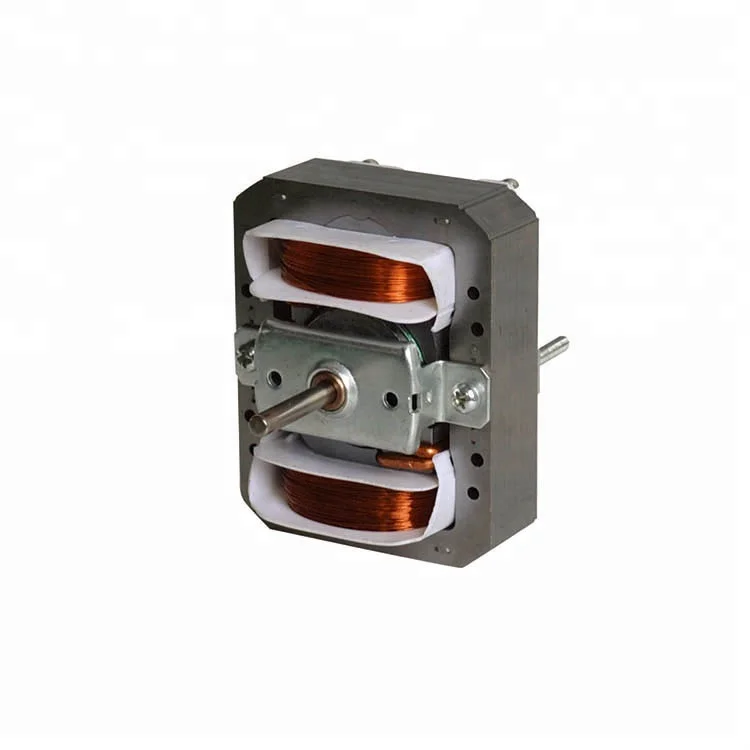

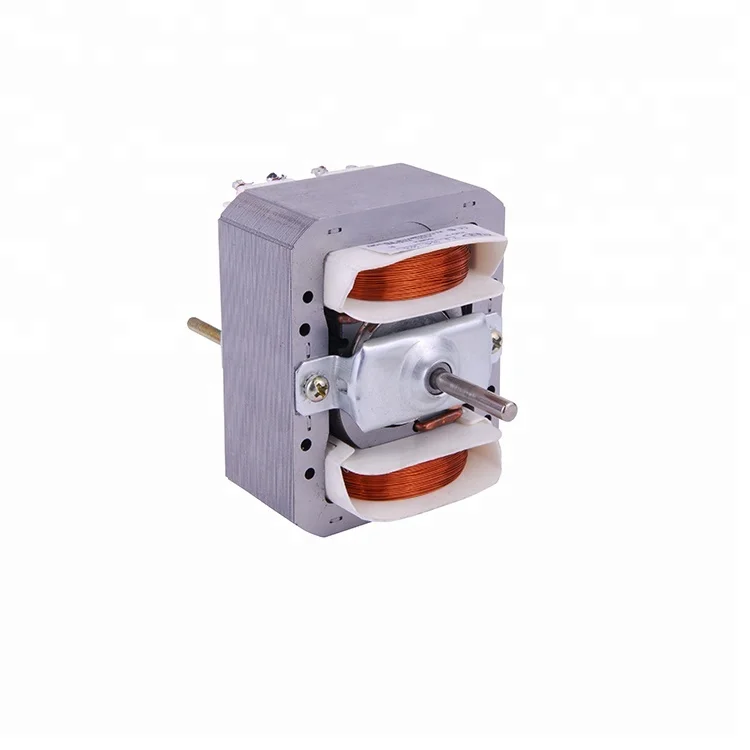

Mini Ac Motor 230v 50hz
- Category: >>>
- Supplier: Zhejiang Yixiong M&E Manufacturing Co. Ltd. [Zhejiang China]Zhejiang
Share on (60690070055):
Product Overview
Description
Product Description

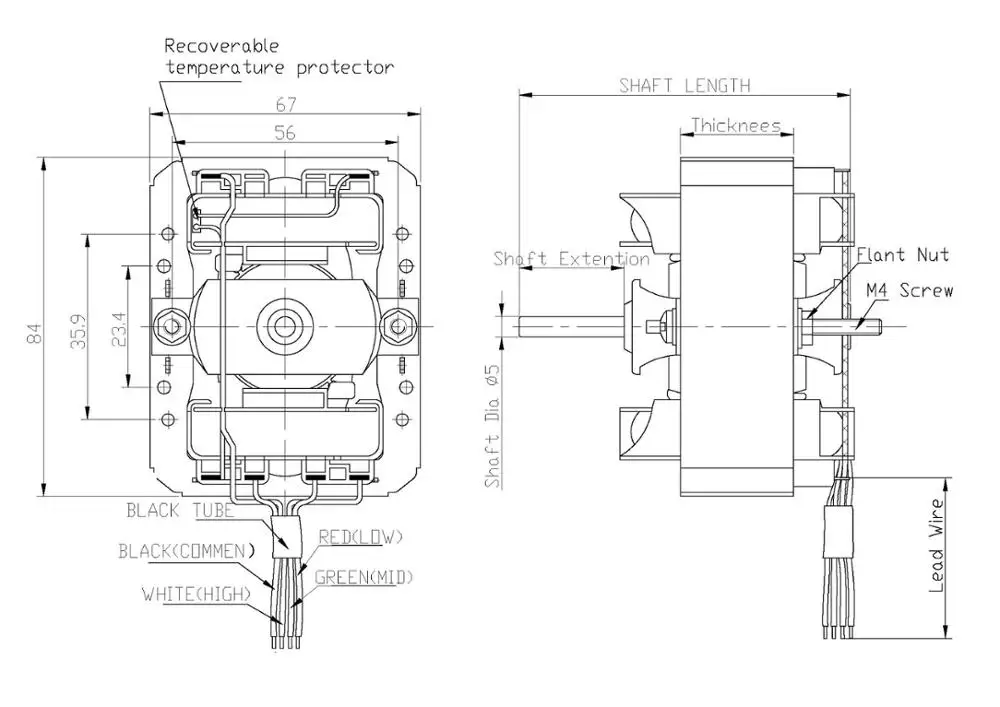

Outline Drawing:
Mini Ac Motor 230v 50hz Date:
| Model | Voltage (V AC) | Frequency (HZ) | Current (AMP) | Power (WATT) | Speed (R/MIN) | Insulation |
| YJ8420 | 110~240 | 50~60HZ | 0.46 | 60 | 1800 | A/E/B/F |
| YJ8422 | 110~240 | 50~60HZ | 0.65 | 68 | 1300 | A/E/B/F |
| YJ8425 | 110~240 | 50~60HZ | 0.72 | 76 | 1600 | A/E/B/F |
| YJ8428 | 110~240 | 50~60HZ | 0.86 | 85 | 1500 | A/E/B/F |
| YJ8430 | 110~240 | 50~60HZ | 0.92 | 90 | 1800 | A/E/B/F |
| YJ8433 | 110~240 | 50~60HZ | 0.97 | 110 | 1500 | A/E/B/F |
| YJ8438 | 110~240 | 50~60HZ | 1.10 | 150 | 1600 | A/E/B/F |
Product Feature:
1.Voltage:110-240V AC; 50-60HZ; 110/220V 50-60HZ;
2.Shaft Dia.:5 mm, Shaft length as your request;
3.Rotation:CW or CCW;
4.Bearing:SB or BB or both can be available;
5.Insulation: A E B F;
6.Insulation resistance:cold≥50mΩ,hot≥20mΩ;
7.Noise:≤45dB(A);
Delivery Term:
1.T/T in advance will be our popular payment terms.
2.We'd like to send you same samples for you for you close inspection.
3.We have detailed specification,if you are intetesd in it,please email to me or talk me on skype.
Packaging & Shipping
Our Services
Application:
1.Safe and reliable,low noice, characteristics hard,good starting,long life,etc.
2.It is used in Fan heater,Exhaust fan,air freshener,hand drier,etc.
3.This fan motor can be designde and producted as you request.
