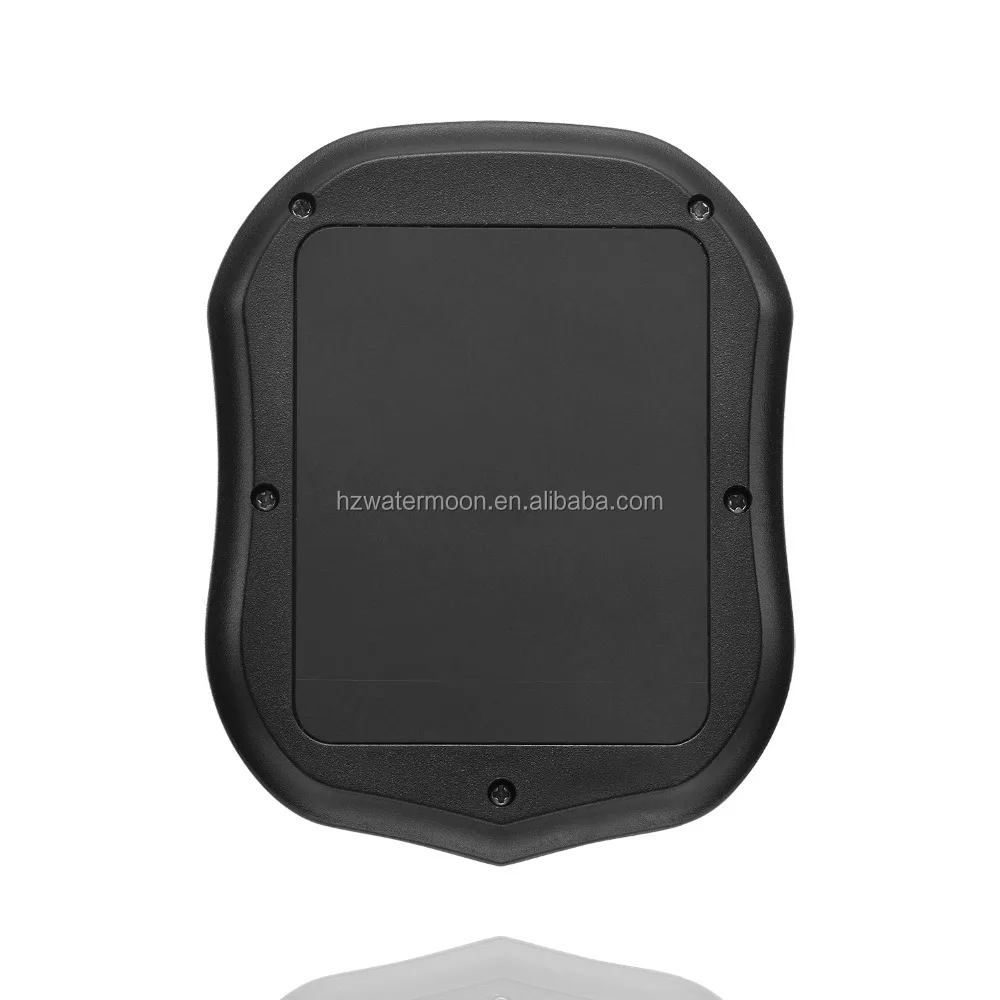

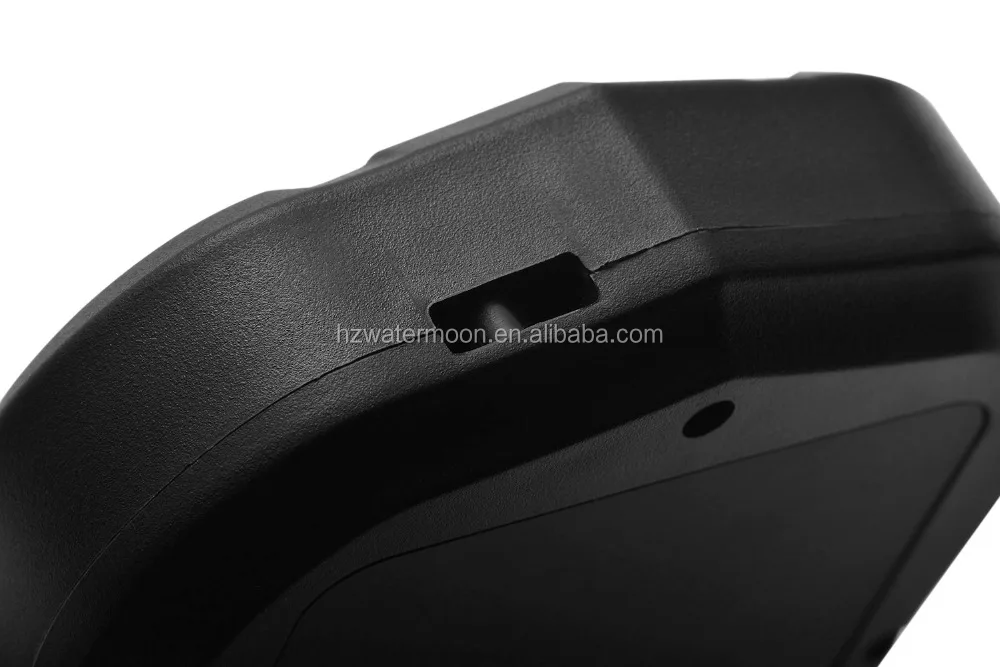

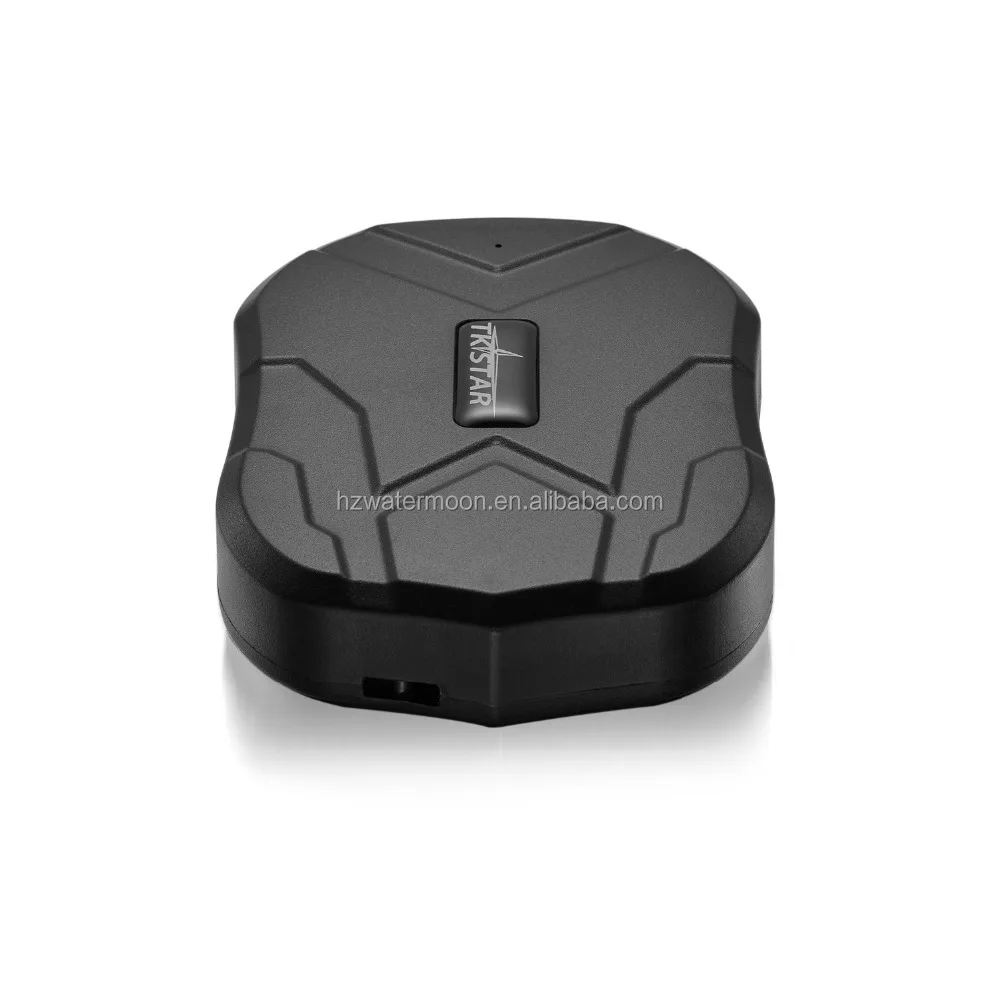

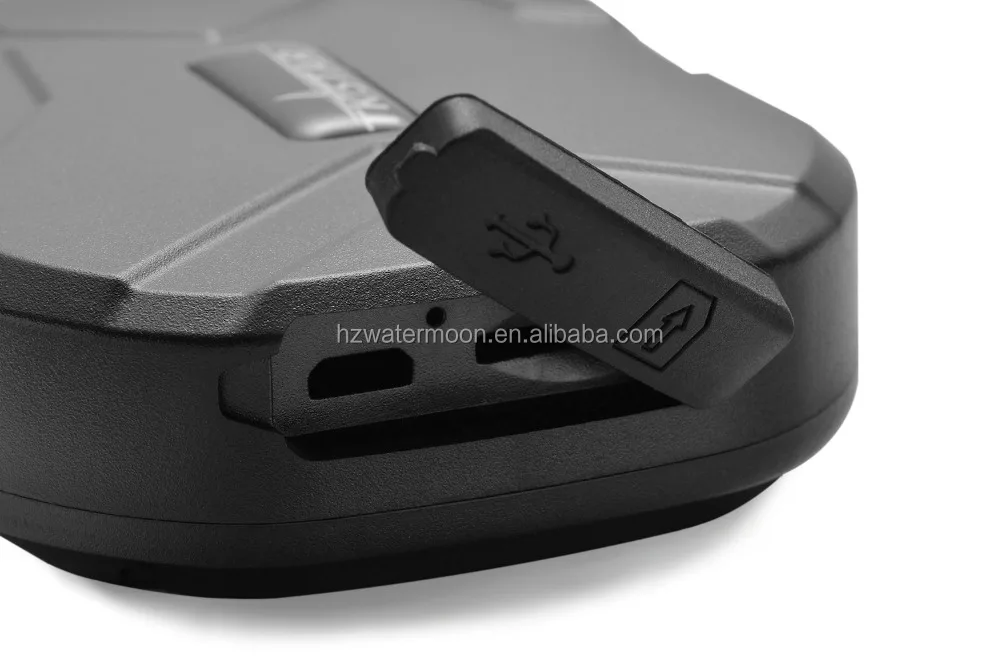

SY-5-GPS03 Environmental Protection GPS Tracker For Bike
1. Accessories
Working based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS, APP and Internet. It adopts the most advanced technology of GPS and AGPS dual positioning.
Content | Specs. |
Dim. | 90mm x 72mm x 22mm(3.5”*2.8”*0.8”) |
Weight | 168g |
Network | GSM/GPRS |
Band | 850/900/1800/1900Mhz |
GPS sensitivity | -159dBm |
GPS accuracy | 5m |
Wall charger | 110-220V input 5V-1A output |
Battery | |
Stand by | 90days |
Time To First Fix | Cold status 45s Warm status 35s Hot status 1s |
Storage Temp. | -40°C to +85°C |
Operation Temp. | -20°C to +55°C |
Humidity | 5%--95% non-condensing |

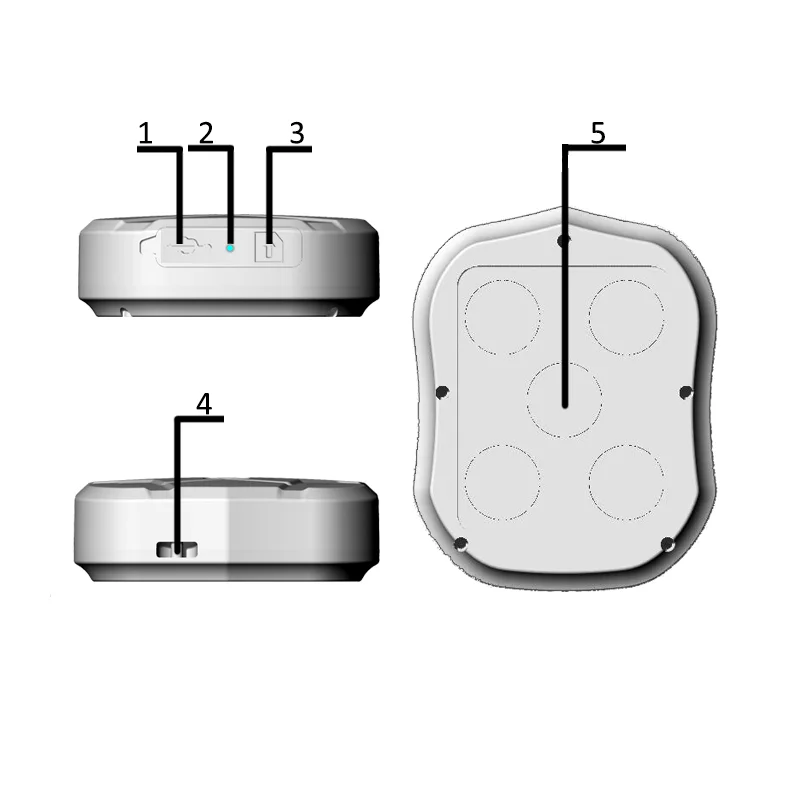

2. Hardware Description
![]() |
1. USB port
2. Indicator light
3. SIM card slot
4. Lanyard hole
5. Strong Magnet
Shuiyue Technologies Co., LTD engaged in designing, developing and our workshop covers an area of 9000 square meters with 50 employees, is fully certified to ISO9001 and well equipped with advanced facilities from abroad, including machines for printing, vacuum forming, mould making and production workshop, etc so that our daily capacity is up to 1000 pcs.
In 2012,we started our own manufacture besides helmet mould developing. now our products have been sold to more than 20 countries and regions around the world. We adhere the philosophy of product-centered,quality-guaranteed,service-aimed,market-oriented,brand-developed,only for better, stronger, superior.
Through our efforts, we believe we could be one of the leading enterprises among the helmet producing industry in the coming future! For your dedicated service, welcome new and old customers to negotiate!

FAQ | Instructions/Solutions |
Fail to turn it on | Please check if battery is charged
|
No GSM signal | l Please check if SIM card installed correctly. l Please check if SIM card is GSM network. l Don’t turn on the PIN code l no calls can be diverted l Please check if voltage of the power is normal |
No GPS | A more open view of the sky is recommended to make sure the device can receive the GPS signal normally.
|
No reply to SMS command | Password wrong or the format is wrong. |
No reply to calling & No alarm message | Authorized / admin phone number is incorrect or has not setup |
SMS position OK, cannot use the APP and web platform | Pls check if APN is correctly set. And pls find out the correct APN content of the SIM card. (Pls refer to 6.3 setting.) |
Platform position is difference from the actual position. | No uploading position time or no GPS signal: call the device phone number and receive the position message. If it shows like Pic 2, it means no GPS signal. The position is the last GPS positioning location; If it shows like Pic 1, it means the device doesn’t reach the uploading time. |
