315mm/90mm hdpe pipe thermofusion welding machine

Application

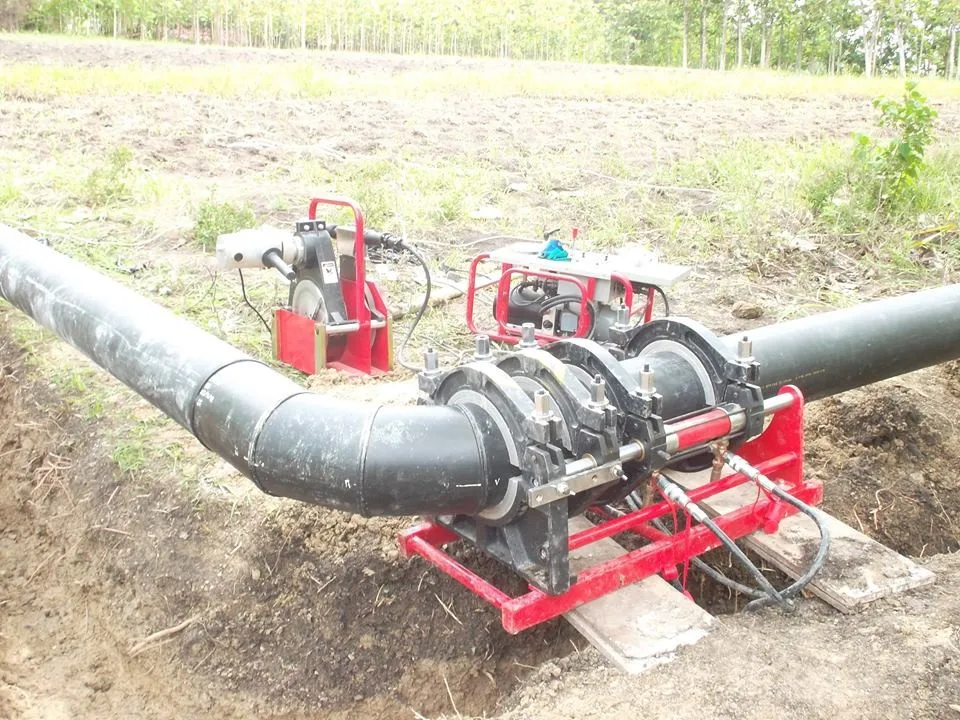

Suitable for butt welding of plastic pipes and / or fittings made of PE,PP, and PVDF in worksite or workshop.

Features

Removable PTFE coated heating plate with separate temperature control system.

Electrical planning tool;

Be made of lightweight and high strength material; simple structure, small and delicate user friendly;

Low starting pressure ensures reliable welding quality of small pipes;

Separate two-channel timer shows time in soaking and cooling phases;

High-accurate and shockproof pressure meter in indicates clear readings.

Technical specifications

u Welding ranges: plastic pipes:90mm-315mm

(90mm-110mm-125mm-140mm-160mm-180mm-200mm-225mm-250mm-280mm-315mm)

u Ranges of application: PE,PP and PVDF

u Working voltage: ~220V ±10%,50/60Hz

Total power: 4.95 kW, including: planning tool:1.1 kW, heating plate:3.1 kW, hydraulic unit motor: 0.75 kW;

u PTFE coated heating plate, adjustable knob for temperature control, difference in heating plate surface temperature ≤±7°.

u Environment temperature: -10° ~ 45°

u Electronic count-down timer for heating and cooling time.

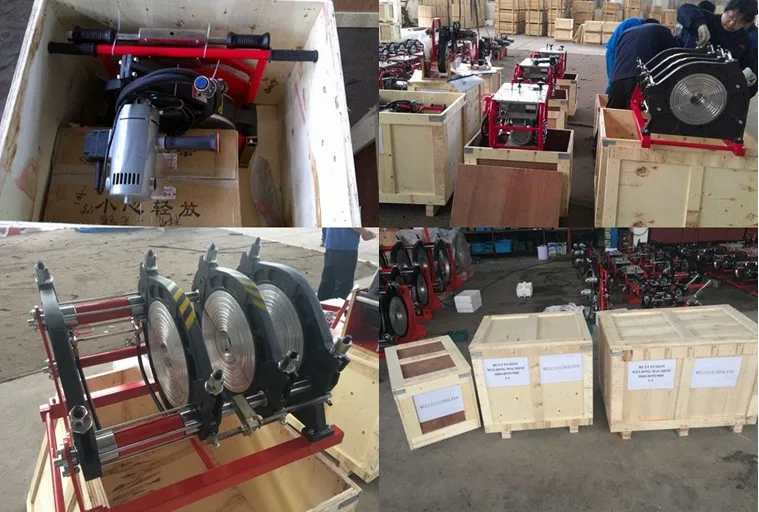

Whole machine consists of basic frame, heating plate, planning tool, hydraulic  unit and  support (for planning tool & heating plate)

3: Easy to use.

The machine with simple structure can be operated by one person, it is suitable for use under complex conditions.

 1. One year warranty, life-long maintenance.

 2. In warranty time, if non-artificial reason damaged can take old change new for free. Out of warranty time, we can Offer maintenance service (charge for material cost).
