Cutting board planer

Share on (60690125086):


Price:$2,500.00 - $2,600.00

Quantity:


Product Overview

Description


Product Description

Product Features and functions:

DGYuan su Hardware Co Ltd,has more than 12 years' experience in manufactuering and exporting planer machines,
under the group of ALEMENT TECHNOLOGY CO.LTD,is mainly to produce plastic cutting boars ,HDPE sheets ,etc .

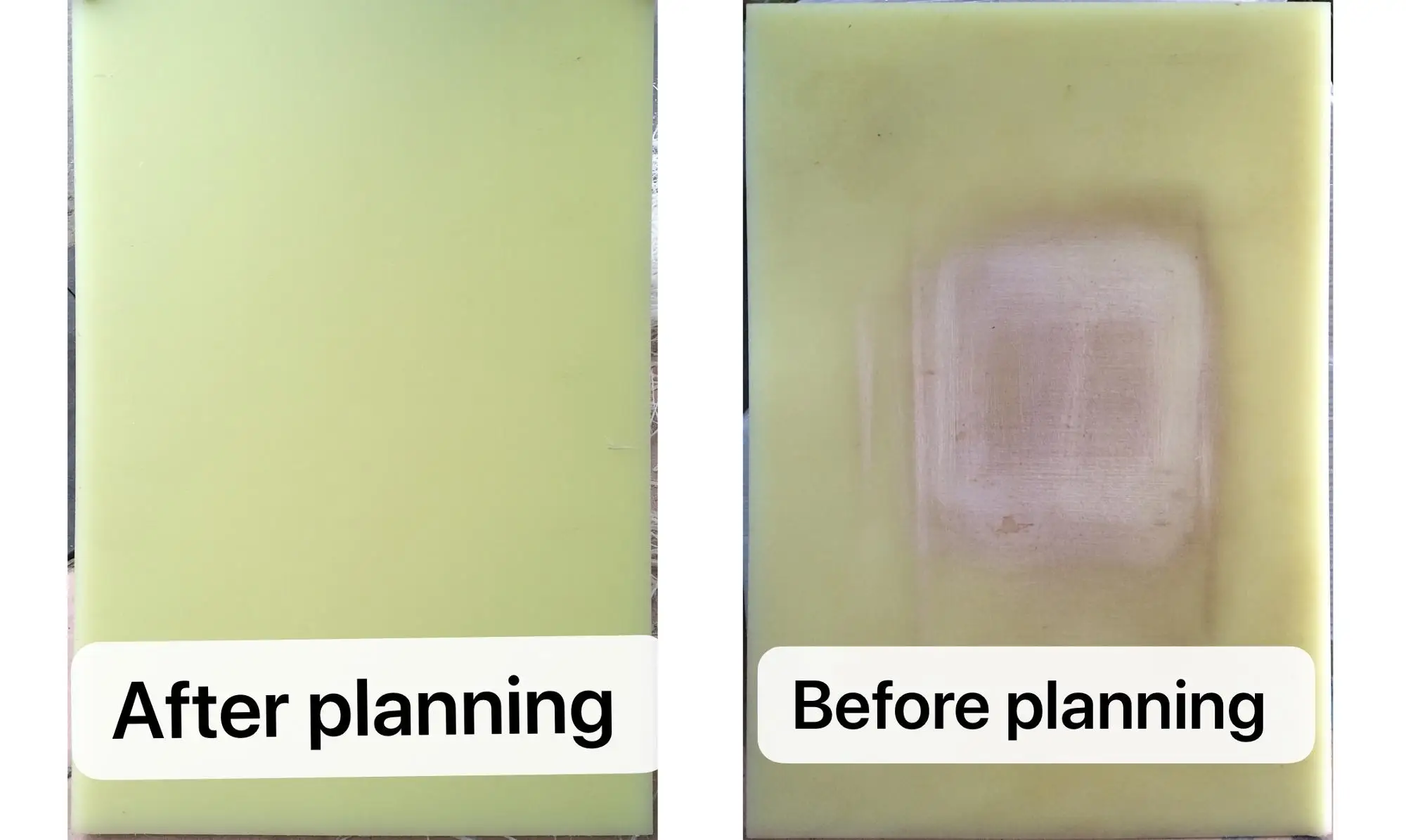

Our cutting board planer machine, is widely used in footwear manufactuers,leather manufactuers,gloves manufactuers,chocolate manufactuers,hotel and so on, which is ideal for planning the uneven plastic cutting board into glossy surface,and can save the end-users significant expenses to by the new cutting boards frequently.

1) AL-640 Four-Roller Cutting Board Planer has solved the problems of smoothing uneven surfaces due to daily commercial usage.

2)The Planer can save users significant expense due to the otherwise frequent purchase of new cutting boards.

3)The Planer has additional safety features in which the four steel rollers firmly secure bent the uneven cutting boards on the work table when feeding cutting boards into the blade unit.

4) AL- 640 Cutting Board Planer not only returns uneven cutting boards into usable condition, but also prevents other common pressing problems such as hairy edges and incomplete cuts caused by uneven cutting boards during the pressing processes .

5)The Planer is an ideal tool for planing old cutting boards and we are confident that you will satisfy with it

SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR

Engine
Machine type
Two rollers
Four rollers
Motor
380V/220V
380V/220V
Output
5.5KW
7.5KW

Machine specification
Dimension
900*970*1100mm
900*970*1100mm
Net weight
460.00KGS
470.00KGS
Gross weight
530.00KGS
540.00KGS

Working data
Max planing width
610mm
630mm
Max planing depth
0.8mm
1.0mm
Return rollers
Two
Four
Certifications

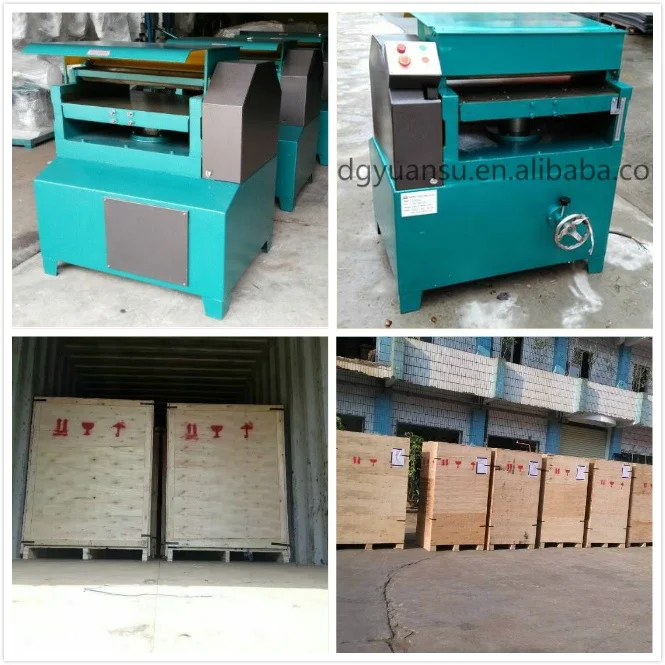

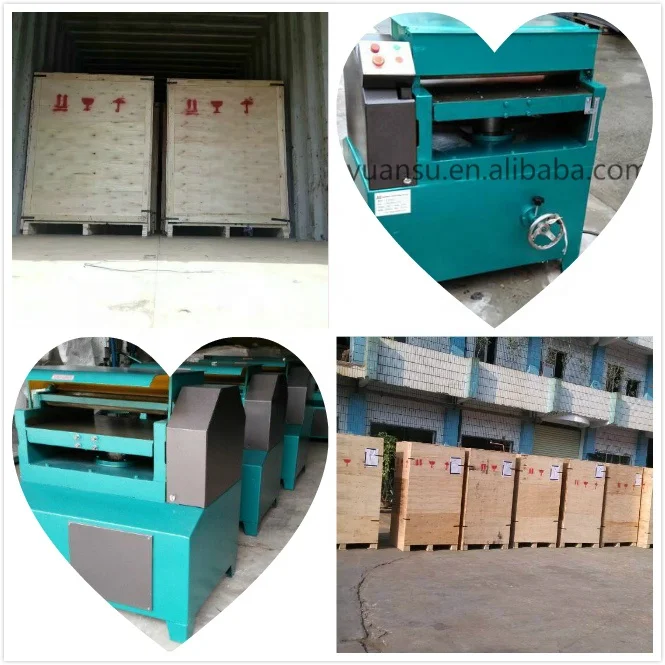

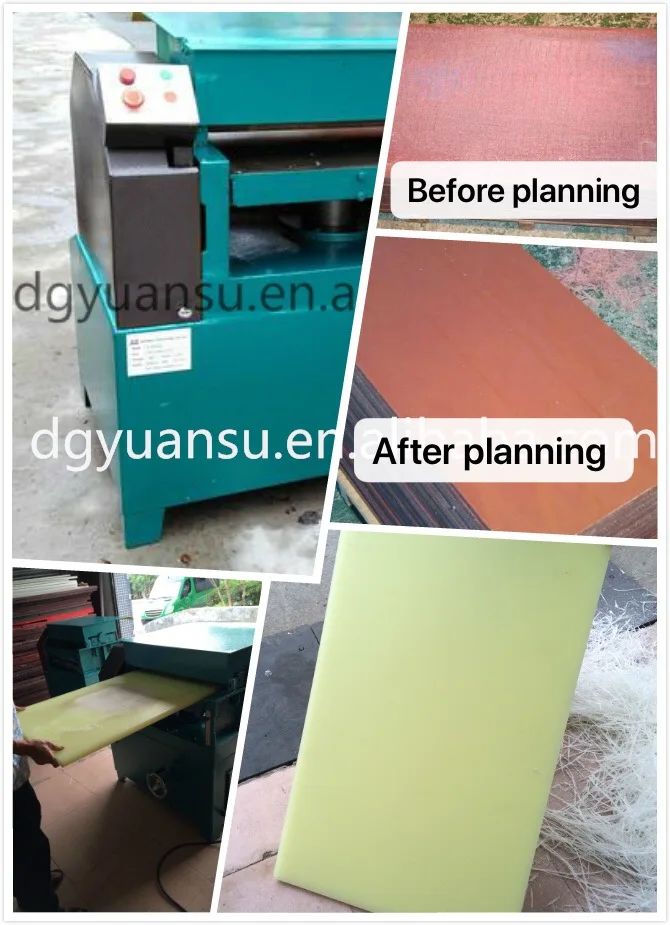

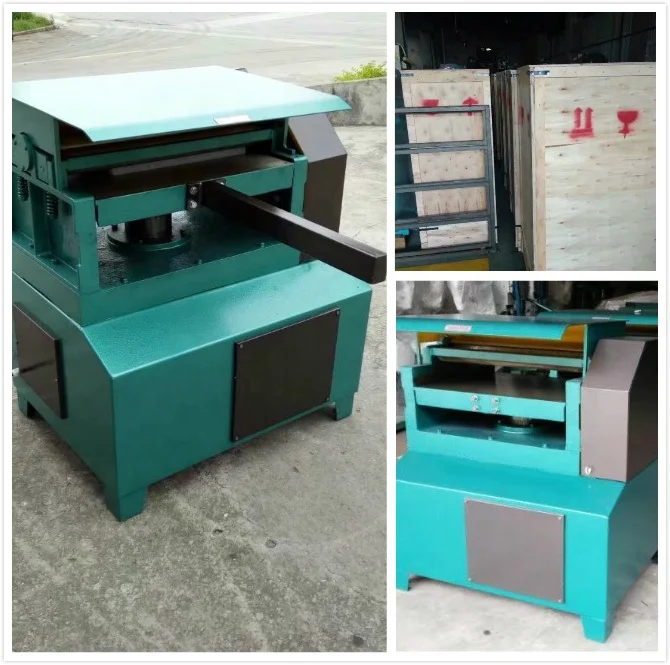

Detailed Images

Machine Parts

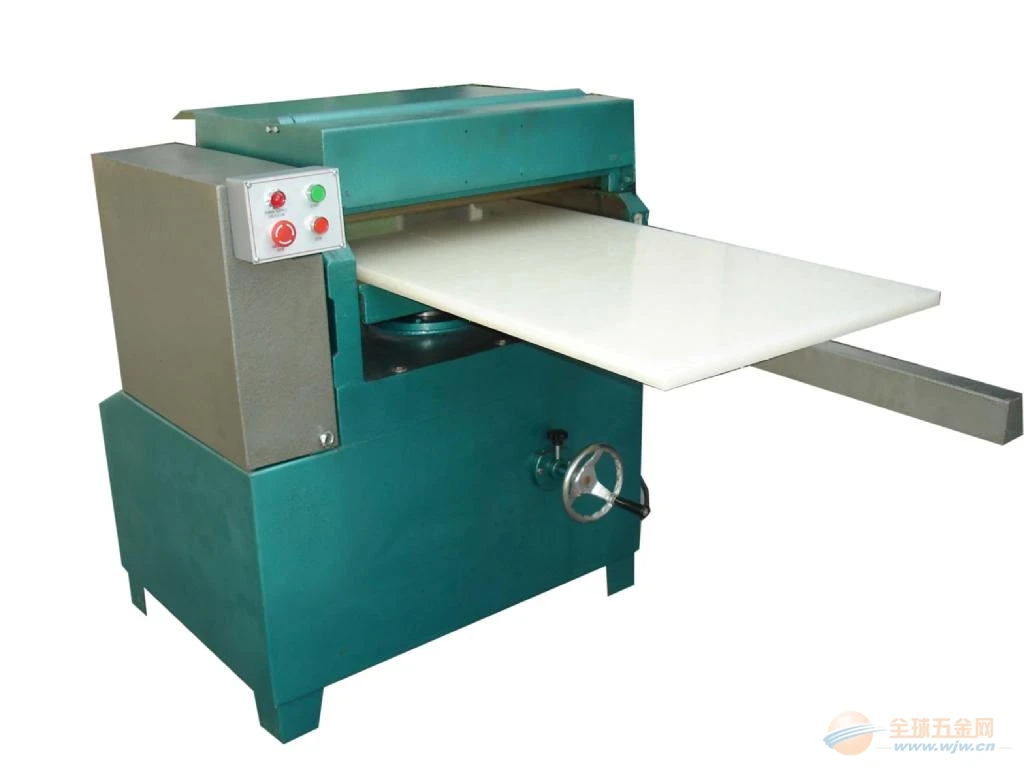

Name: Four roller cutting board planer machine
Brand: Alement
Original: China
Domestic famous engines, strong driving force, low electrorical consumption, high economic benefits

Function: to plan the uneven cutting board into usable conditions.
Application: Hotel,Restaurants,shoe / gloves / leather factories,etc.

Main Features

Name: Two roller cutting board planer
Brand: Alement
Original: China
Function: to plan the uneven cutting board into usable conditions.
Application: Hotel,Restaurants,shoe / gloves / leather factories,etc.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, and offer the working vedio for better understanding.

* Engineers available to service machinery overseas.

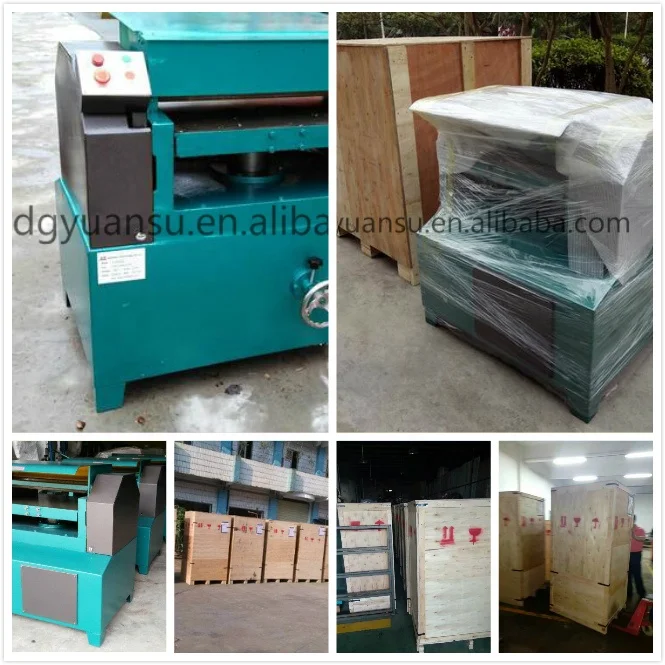

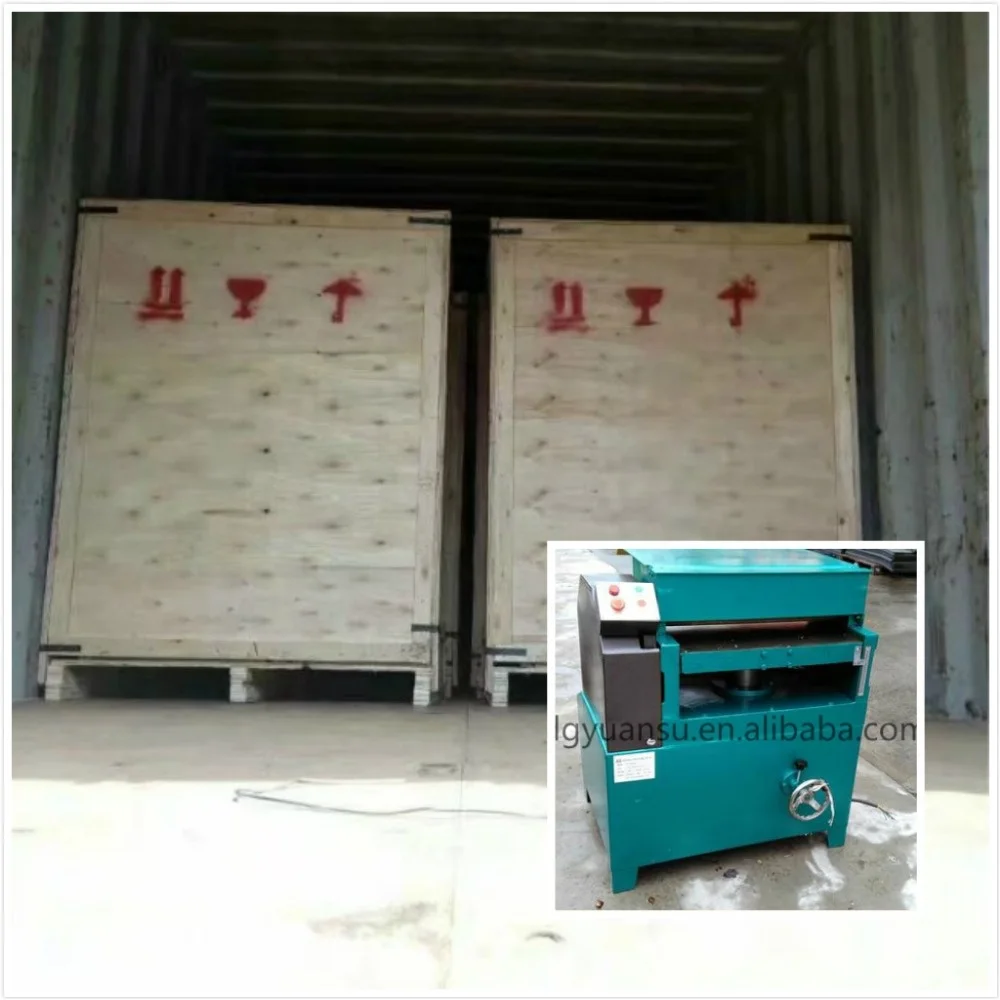

Packing & Delivery
Packaging
Size
960W * 1050 L *1200H
Weight
530.00KGS



Packaging Details
 If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
960W * 1050 L *1200H
Weight
540.00KGS (Four rollers)



Packaging Details
The normal package is wooden box(Size: 960*1050*1200). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
