Reactor Lamination 3 Phase Transformer EI Lamination EI 500B (3UI300)
- Category: Silicon Steel >>>
- Supplier: Jiangyin Centersky Electrical Appliance Co. Ltd.
Share on (60690150351):
Product Overview
Description
Product Description

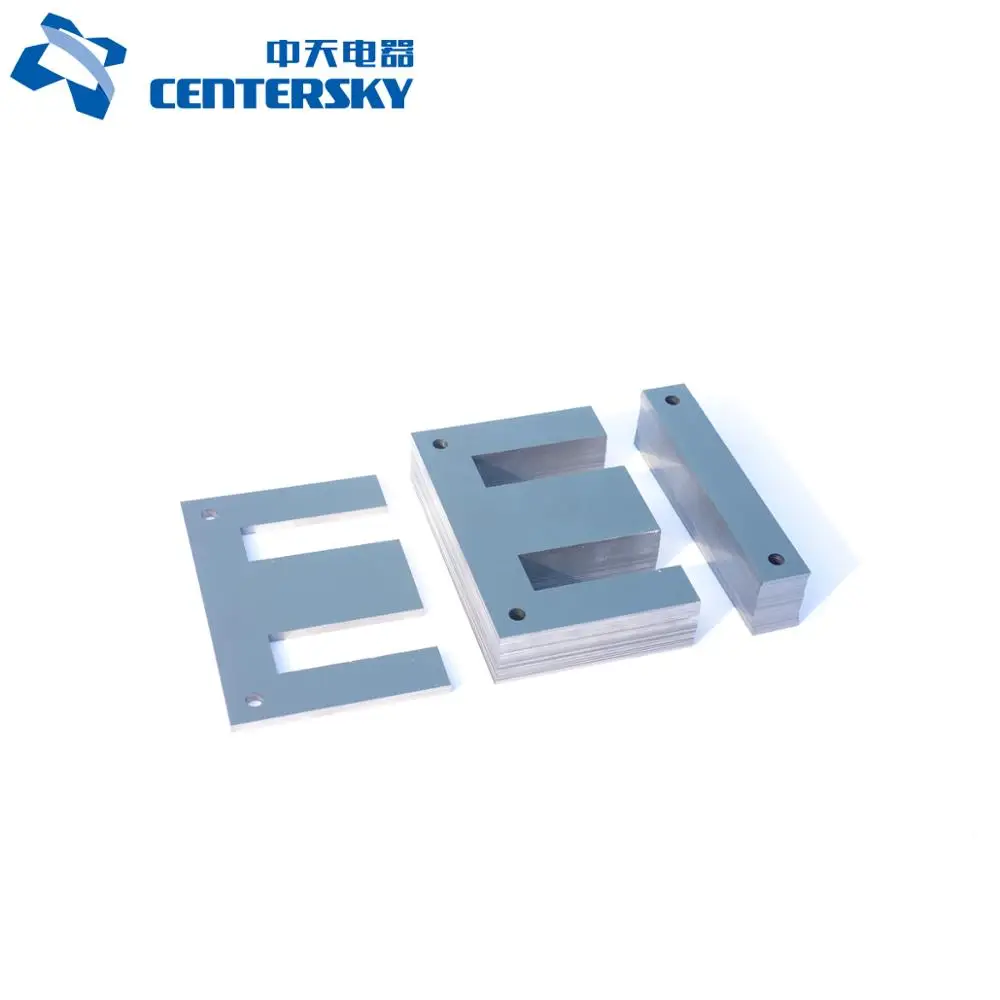

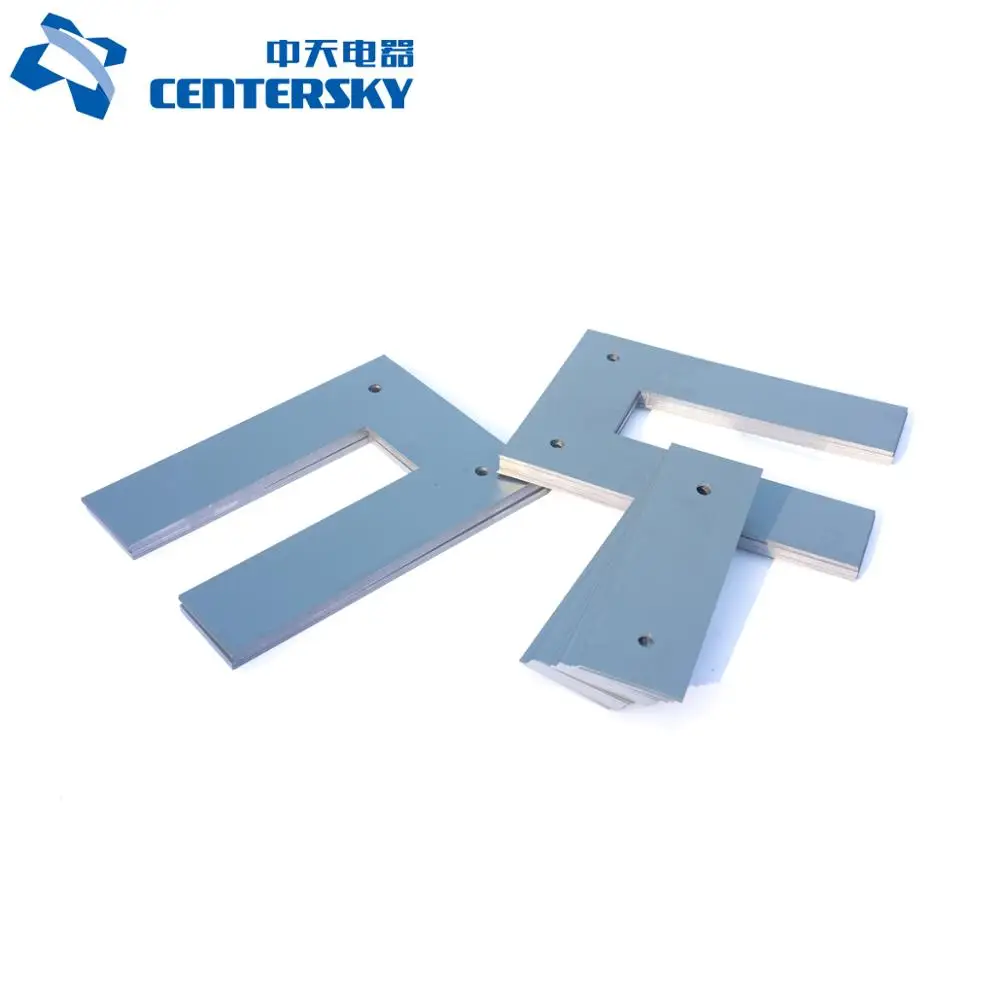

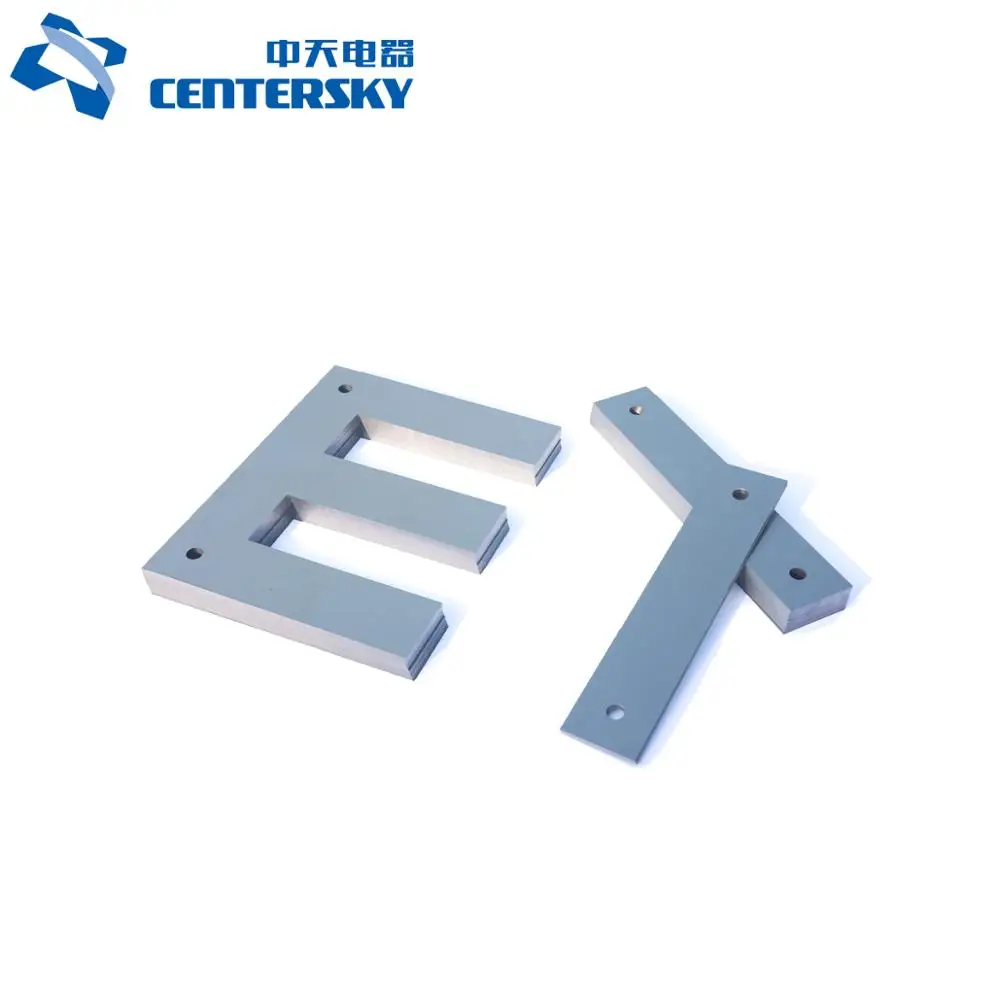

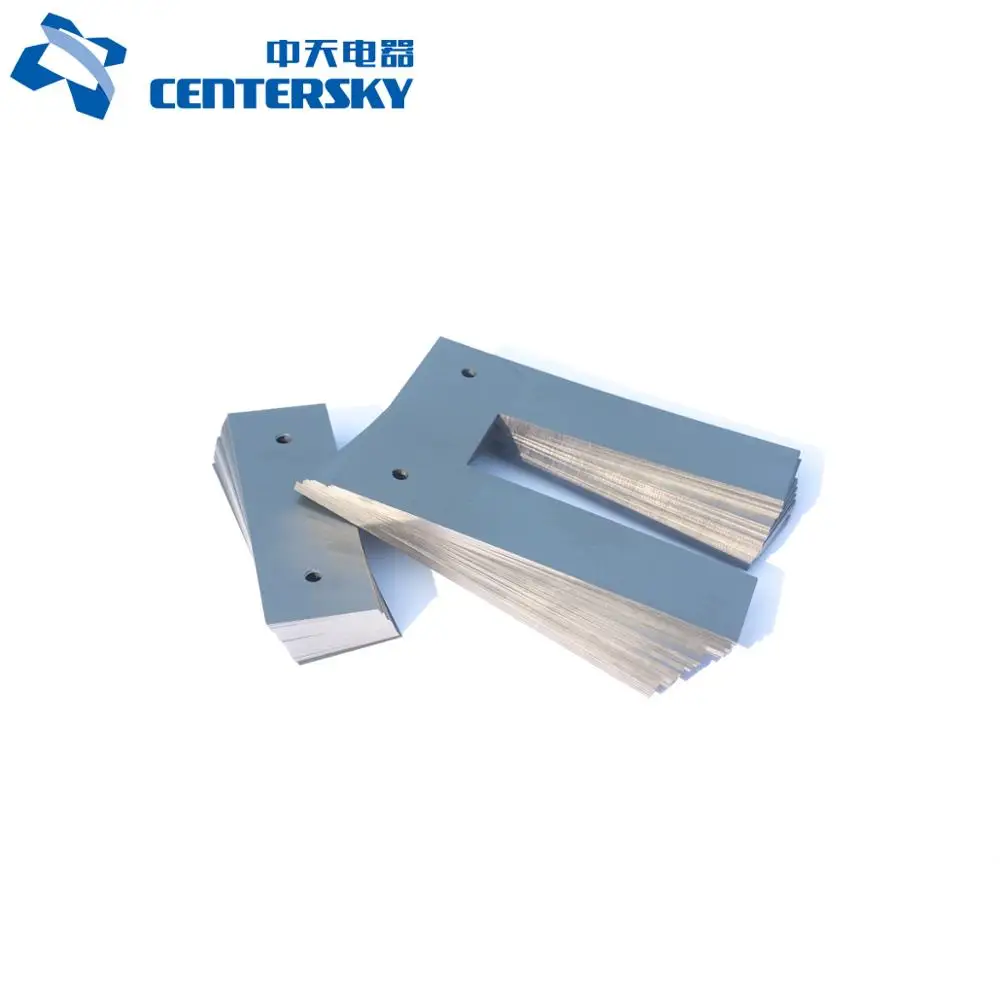

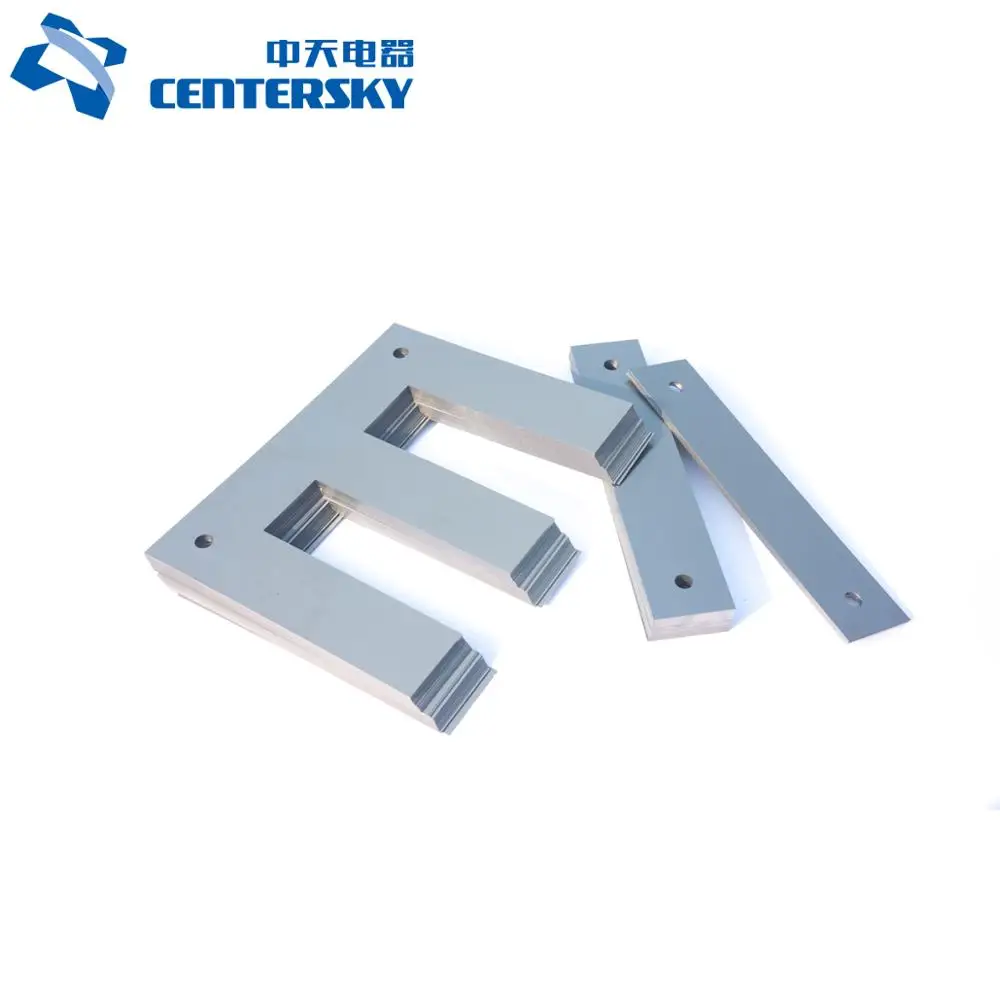

Reactor Lamination 3 Phase Transformer EI Lamination EI 500B (3UI300)
CENTERSKY is a manufacturer who produce single phase / three phase lamination: EI, UI, 3PEI.etc. The thickness can be from 0.23-0.5mm,CRNGO and CRGO from famous steel factory.
Any comments are welcome.
| SIZE | EI-35 to EI-360 3PEI-17.5-3PEI-100 |
THCIKNESS | 0.23-0.35MM (CRGO) 0.35-0.5MM (CRNGO) |
MATERIAL | M3, M4, M5, M6 (CRGO) 35W250, 35W300, 35W400 (0.35MM) 50W250, 50W310, 50W400, 50W470, 50W600, 50W800 (0.5MM) |
FREQUENCY | 50HZ-60HZ |
COATING | T2 Inorganic ( CRGO ) T4 Semi-organic (CRNGO) |
PROCESS TECHNOLOGY | ANNEALLING & WITHOUT ANNEALLING |
APPLICATION | CONTROL TRANSFORMER, AUTO TRANSFORMER, ISOLATION TRANSFORMER, POWER TRANSFORMER; BALLAST, REACTOR,INDUCTOR,INVERTER POWER, VOLTAGE STABILIZERS.etc |
| Type | a | b | c | d | e | Holes | Aperture(Φ) |
| 3PEI-17.5 | 87.5 | 17.5 | 17.5 | 17.5 | 52.5 | 4 | 6 |
| 3PEI-20 | 100 | 20 | 20 | 20 | 50 | 6 | 6 |
| 3PEI-20* | 100 | 20 | 20 | 20 | 60 | 4,6 | 6 |
| 3PEI-22 | 110 | 22 | 22 | 22 | 66 | 4 | 8 |
| 3PEI-22.2 | 122 | 22 | 28 | 22.2 | 61 | 4 | 6 |
| 3PEI-25 | 125 | 25 | 25 | 25 | 75 | 4 | 8 |
| 3PEI-27 | 135 | 27 | 27 | 27 | 81 | 4 | 8 |
| 3PEI-28 | 140 | 28 | 28 | 28 | 84 | 4 | 8 |
| 3PEI-29 | 145 | 29 | 29 | 29 | 72.5 | 4 | 8 |
| 3PEI-30 | 150 | 30 | 30 | 30 | 90 | 6 | 7 |
| 3PEI-30.5 | 152 | 30.5 | 30.5 | 30.5 | 76.25 | 6 | 6 |
| 3PEI-32 | 160 | 32 | 32 | 32 | 80 | 4 | 8 |
| 3PEI-32* | 160 | 32 | 32 | 32 | 96 | 4 | 8 |
| 3PEI-35 | 175 | 35 | 35 | 35 | 105 | 4 | 8 |
| 3PEI-36 | 180 | 36 | 36 | 36 | 90 | 6 | 8 |
| 3PEI-38 | 190 | 38 | 38 | 38 | 95 | 4,6 | 8,10.5 |
| 3PEI-38* | 190 | 38 | 38 | 38 | 114 | 6 | 8 |
| 3PEI-40 | 200 | 40 | 40 | 40 | 100 | 4 | 10.5 |
| 3PEI-40* | 200 | 40 | 40 | 40 | 120 | 4,6 | 10 |
| 3PEI-44 | 220 | 44 | 44 | 44 | 132 | 6 | 8,10.5,12.5 |
| 3PEI-45 | 225 | 45 | 45 | 45 | 135 | 4 | 10 |
| 3PEI-50 | 250 | 50 | 50 | 50 | 150 | 4,6 | 8,10.5 |
| 3PEI-56 | 280 | 56 | 56 | 56 | 168 | 4 | 12 |
| 3PEI-60 | 300 | 60 | 60 | 60 | 180 | 6 | 12 |
| 3PEI-61 | 288 | 61.3 | 52 | 61.3 | 144 | 4,6 | 12 |
| 3PEI-61 | 305 | 61 | 61 | 61 | 152.5 | 4,6 | 14 |
| 3PEI-70 | 350 | 70 | 70 | 70 | 210 | 6 | 13 |
| 3PEI-80 | 400 | 80 | 80 | 80 | 240 | 6 | 14 |
| 3PEI-90 | 450 | 90 | 90 | 90 | 270 | 6 | 14 |
| 3PEI-100 | 500 | 100 | 100 | 100 | 300 | 6 | 16 |
Related Products
cutting and bending machine 4x8 silicon sheet metal prices
EI ei core silicon lamination galvanized iron steel sheet in coil
CRGO Stamping Silicon Steel EI Lamination transformer core in China
price of 1kg iron and steel flat rolled products
Company Information
Company Information
Packaging
FAQ
1. Q: Can I get some samples?
A:Yes,sample order is available for quality check and market test.
2. Q: What's the delivery time?
A: Sample order needs 1-2 days. Formal order needs 7-12 days.
3. Q: What's your payment terms?
A: TT, LC, and DP.
4. Q: Do you have the prodcts in stock?
A:Yes,we will keep some general ones in stock.
5.Q: Can I mix different models in one container?
A: Yes, different models can be mixed up.
6.Q:Will you deliver the right products as I ordered? How can I trust you?
A: Sure,we could accept trade assurance on Alibaba, which will protect buyer's order.
