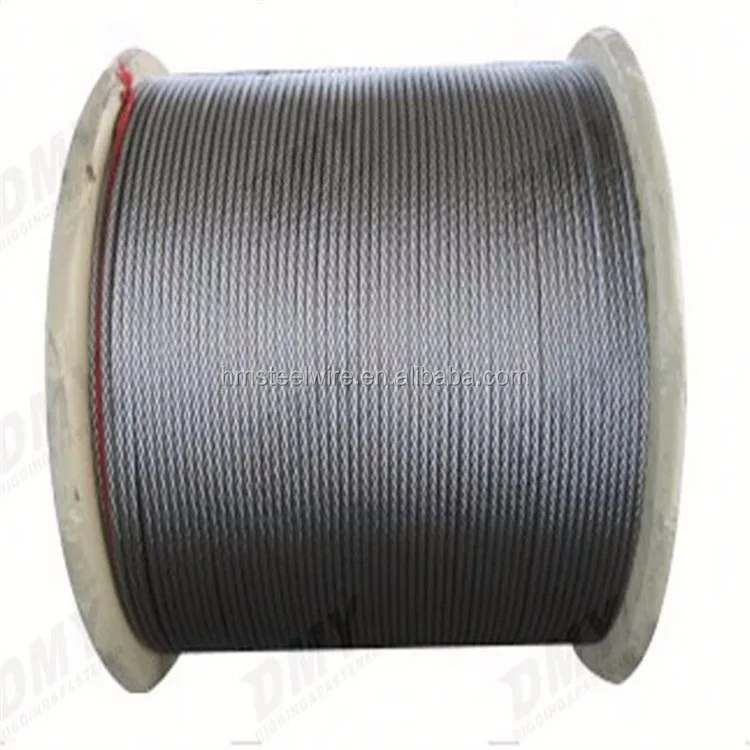

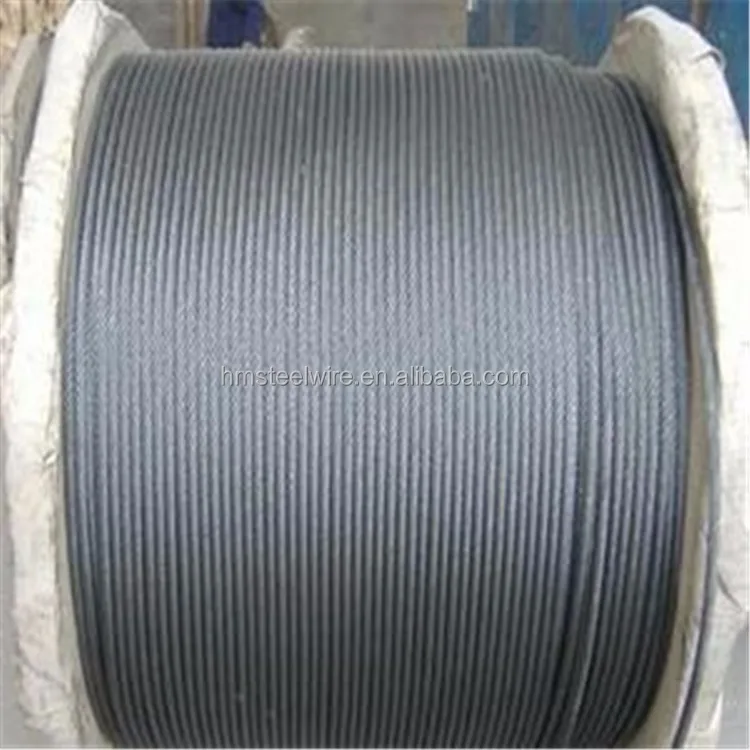

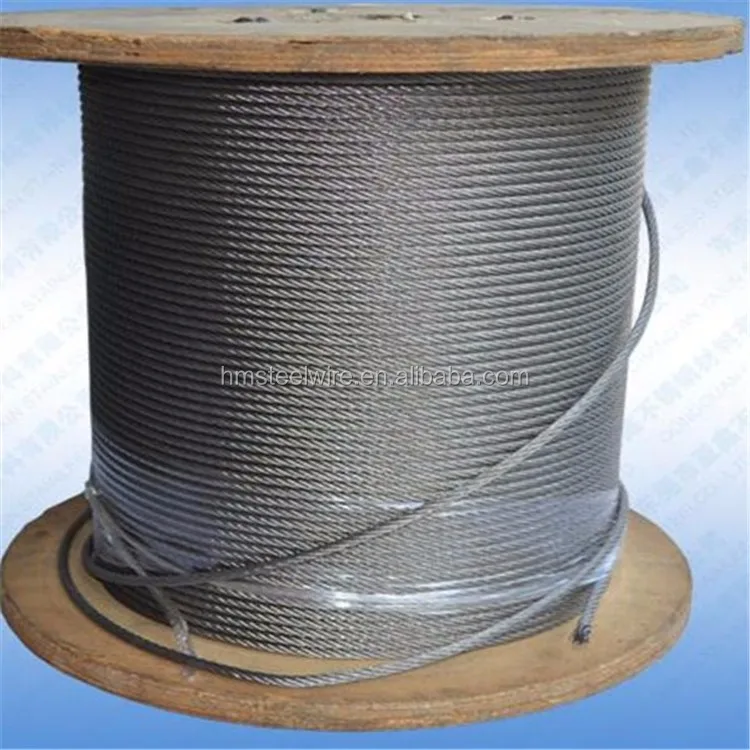

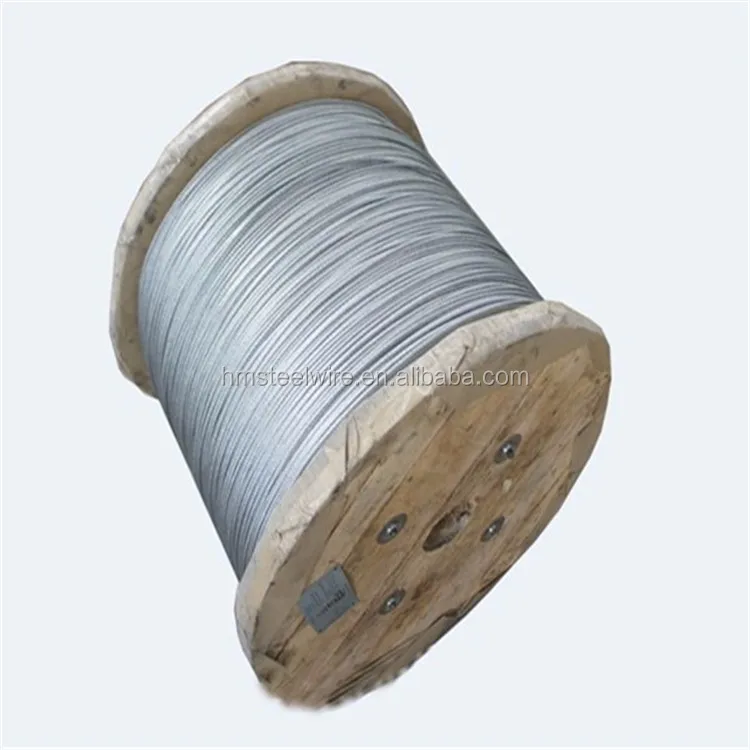

1*7 Electric Wire Cables Hot Dip Galvanized Strand Steel Wire Rope
- Category: >>>
- Supplier: Gongyi City Hengming Metal Products Co. Ltd.
Share on (60690164573):
Product Overview
Description
Product Description
high quality 1*7 1*19 High tensile ASTM A475 A498 wire strand ASTM strand wire
♦Our galvanized steel & strand products have excellent mechanical properties.
♦The vertical hot-dip galvanized technology ensures coating thickness.
♦We employ the most experienced, talented, licensed engineers in the industry to design solutions for your application.
♦ 20 production lines for zinc coating and 34 lines for stranding wire ,with Independent test and research center, plus manufacturing facilities in Germany, Poland and Japan, give our customers unparalleled support and global reach.
♦Galvanized steel strand is used for prestressed concrete structure reinforced, such as large-span bridges on railway and highway, overhead crane beam, rock-soil anchoring Project, multi- storey industrial buildings, stadiums, coal mines and etc.
♦Available size and type
(1)Galvanized steel :Φ0.30-4.77 mm
(2)Galvanized strand:3 wires,4wires,5wires,7wires,19wires,37wires
(3)Armoring steel wire 0.9mm and above
♦Our galvanized steel & strand products have excellent mechanical properties.
♦The vertical hot-dip galvanized technology ensures coating thickness.
♦We employ the most experienced, talented, licensed engineers in the industry to design solutions for your application.
♦ 20 production lines for zinc coating and 34 lines for stranding wire ,with Independent test and research center, plus manufacturing facilities in Germany, Poland and Japan, give our customers unparalleled support and global reach.
♦Galvanized steel strand is used for prestressed concrete structure reinforced, such as large-span bridges on railway and highway, overhead crane beam, rock-soil anchoring Project, multi- storey industrial buildings, stadiums, coal mines and etc.
♦Available size and type
(1)Galvanized steel :Φ0.30-4.77 mm
(2)Galvanized strand:3 wires,4wires,5wires,7wires,19wires,37wires
(3)Armoring steel wire 0.9mm and above
Product Parameters
| Physical Properties of Zinc Coated Steel Wires Strand | ||||||||
| Nominal diameter of Strand. In (mm) | Number | Nominal diameter of Coated Wires in Strand. | Approximate Weight of Strand(kg/3 04.8m) | Minimum Breaking Strength of Strand (KN) | ||||
| Utilities Grade | Common Grade | Siemens Manin Grade | High Strength Grade | Extra High Strength Grade | ||||
| 3/16(4.76) | 7 | 1.57 | 33 | — | 5.115 | 8.452 | 12.677 | 17.748 |
| 7/32(5.56) | 3 | 2.64 | 40 | — | 6.228 | 10.409 | 15.569 | 21.796 |
| 7/32(5.56) | 7 | 1.83 | 44 | — | 6.850 | 11.387 | 17.126 | 24.020 |
| 1/4(6.35) | 7 | 2.03 | 55 | — | 8.452 | 14.012 | 21.129 | 29.581 |
| 9/32(7.14) | 7 | 2.36 | 74 | 20.462 | 11.432 | 18.905 | 28.469 | 39.812 |
| 5/16(7.94) | 7 | 2.64 | 93 | — | 14.234 | 23.798 | 35.586 | 49.820 |
| 3/8 (9.52) | 7 | 3.05 | 124 | 51.155 | 18.905 | 30.915 | 48.040 | 68.503 |
| 7/16 | 7 | 3.68 | 181 | 80.068 | 25.355 | 41.591 | 64.499 | 92.523 |
| 1/2 (12.70) | 7 | 4.19 | 234 | 111.206 | 32.917 | 53.823 | 83.627 | 119.657 |
| 1/2(12.70) | 1 | 2.54 | 229 | — | 33.895 | 56.492 | 84.961 | 118.768 |
| 9/16 | 1 | 2.87 | 289 | — | 42.881 | 71.616 | 107.202 | 149.905 |
| 5/8 (15.88) | 1 | 3.18 | 361 | — | 48.930 | 80.513 | 124.995 | 178.819 |
| 3/4(19.05) | 1 | 3.81 | 524 | — | 71.172 | 116.643 | 181.487 | 259.331 |
| Physical Properties of Galvanized Steel Wires | |||||
| Product Name | Wire Diameter | Standards | Tensile Strength | Zinc-coating | Wight |
| Galvanized Steel Wire For ACSR | Φ0.30--Φ4.77mm | GB/T3428-2012 | Gl,G2,G3,G4 (EST) | Class A | Φ1.44--Φ2.0 mm<200kg Φ1.44--Φ4.77 mm<260kg Φ1.44--Φ4.77 mm<350kg Single wire colleciion should be less then 300kg to avoid joints; wight by H wheel:350-800kg available |
| YB/T184-2000 | Level 1 zinc | ||||
| ASTM B 498-2016 | Class A | ||||
| EN50189-2000 | Gl,G2,G3,G4 (EST) | Class A Class C Class E | |||
| BS4565-1990 | Standard strength level 1550/1700/1800 strength level | BS443 | |||
RELATED PRODUCTS
Q: Are you trading company or manufacturer?
A: We are factory. Welcome to visit our factory at any time.
Q: How long is your delivery time?
A Generally it is 10-15 days as customer requirements.
Q: Do you provide samples is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: TT payment or LC terms
If you have another question, pls free to contact us.
