HUAWEI HG8242H 4GE 2POTS CATV Fiber ONT

Share on (60690214186):


Price:

Quantity:


Product Overview

Description

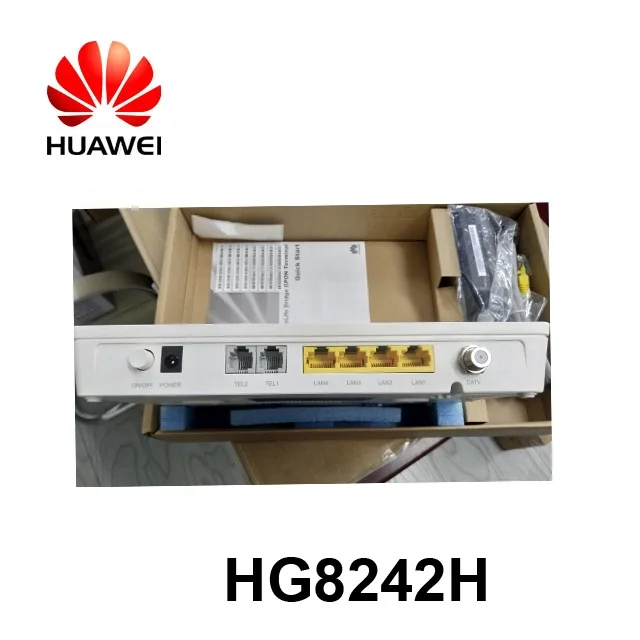

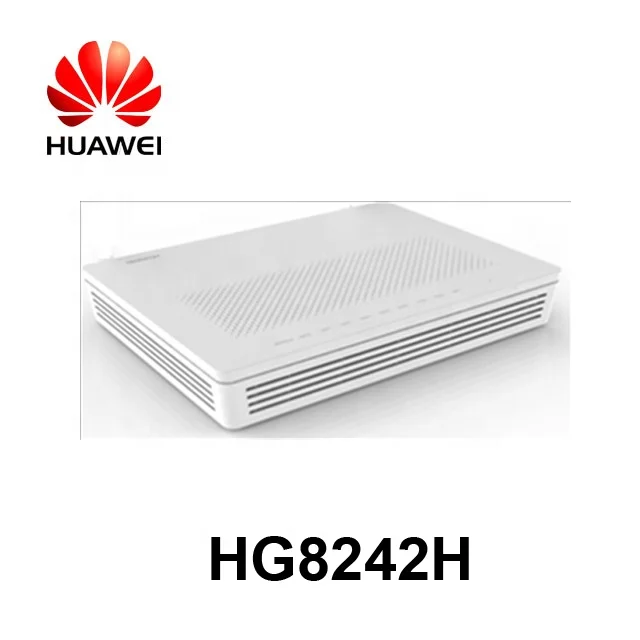

HUAWEI HG8242H 4GE+2POTS+CATV Fiber ONT





Product Description


The EchoLife HG8242H is an indoor optical network terminal (ONT) in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The HG8242H provides two POTS ports, four GE/FE auto-adapting Ethernet ports and one CATV port. The HG8242H features high performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the HG8242H provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.






Features






  • Plug-and-play (PnP): Internet, IPTV and VoIP services can be deployed by one click on the NMS and on-site configuration is not required.

  • Remote diagnosis: Remote fault locating is implemented by the loop-line test of POTS ports, call emulation and PPPoE dialup emulation initiated by the NMS.

  • Link monitoring: E2E link detection is achieved using 802.1ag Ethernet OAM.

  • High speed forwarding: GE line rate forwarding in the bridge scenario and 900 Mbit/s forwarding in the NAT scenario.

  • Green energy-saving: 25% power consumption is saved with highly integrated system on chipset (SOC) solution, in which, a single chip integrates with PON, voice, gateway and LSW modules





Specification

















































Specifications



HG8242H



HG8245H



Dimensions (H x W x D)



32 mm x 220 mm x 160mm



28 mm x 176 mm x 138 mm



Network-side Ports



GPON



GPON



User-side Ports



4GE+2POTS+CATV



2POTS + 4FE + 1USB + Wi-Fi



Specifications



HG8010H



HG8247H



Dimensions (H x W x D)



30 mm x 143 mm x 115 mm



34 mm x 268 mm x 213 mm



Network-side Port



GPON



GPON



User-side Port



1FE



2 x POTS + 4 x LAN + 1 x USB + 1 x CATV + Wi-Fi
