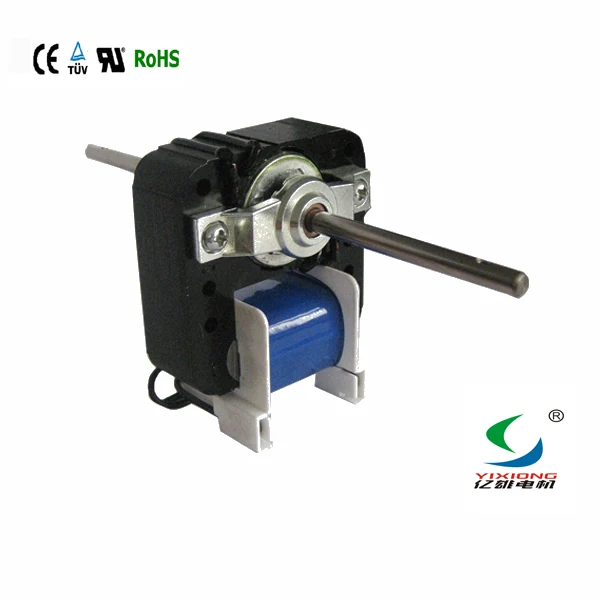

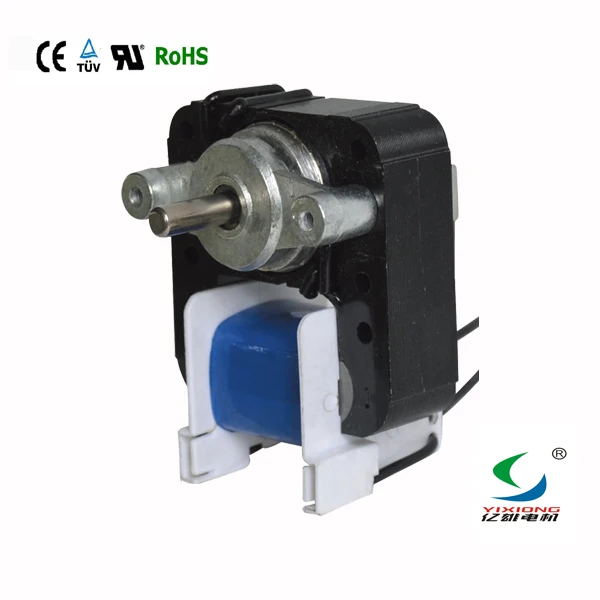

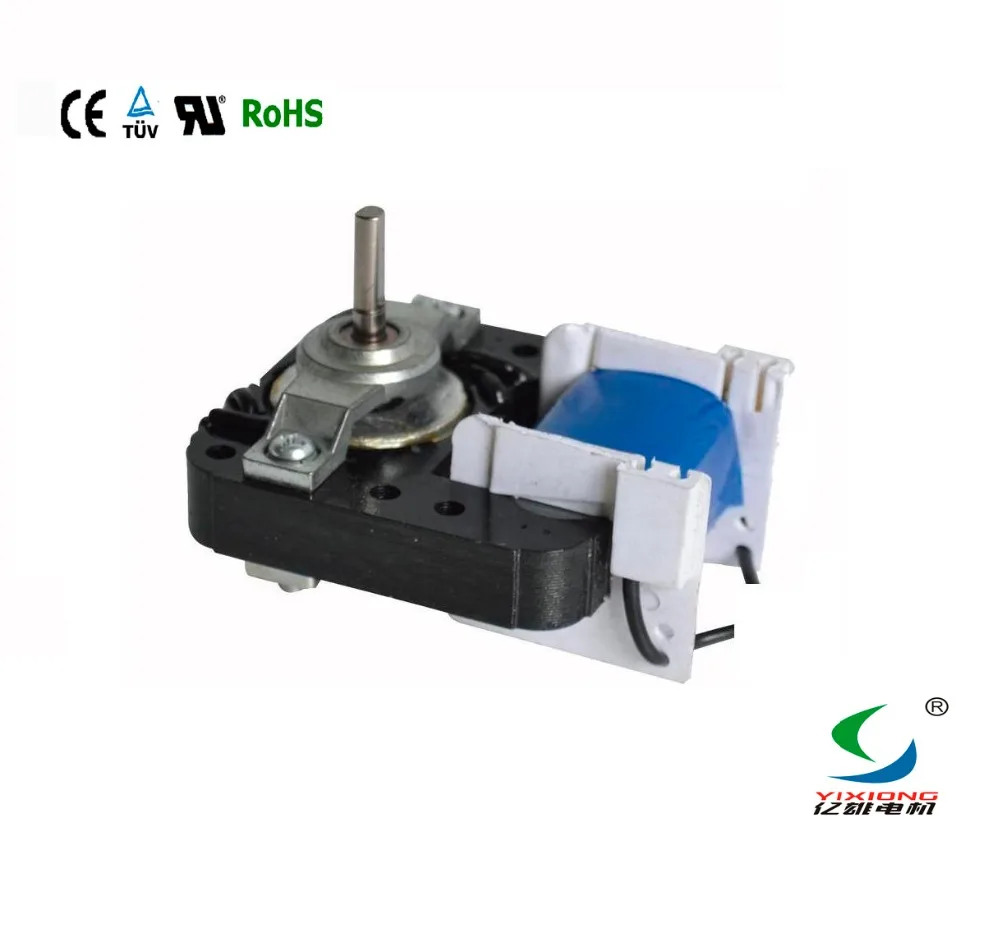

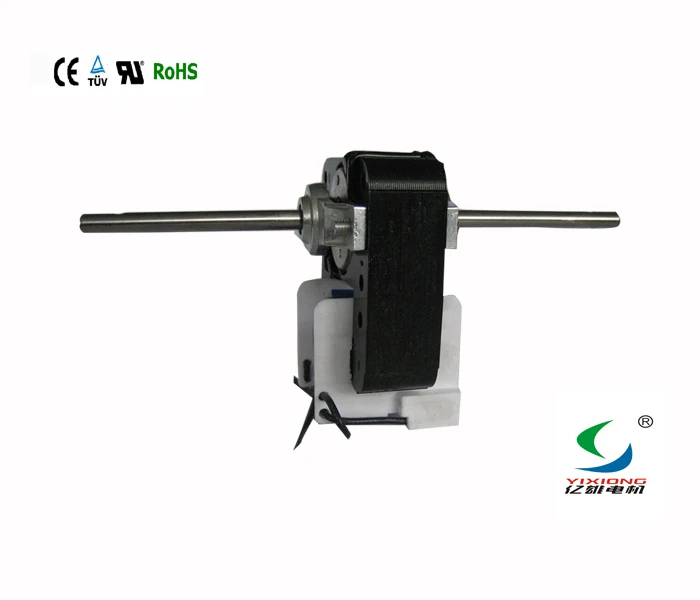

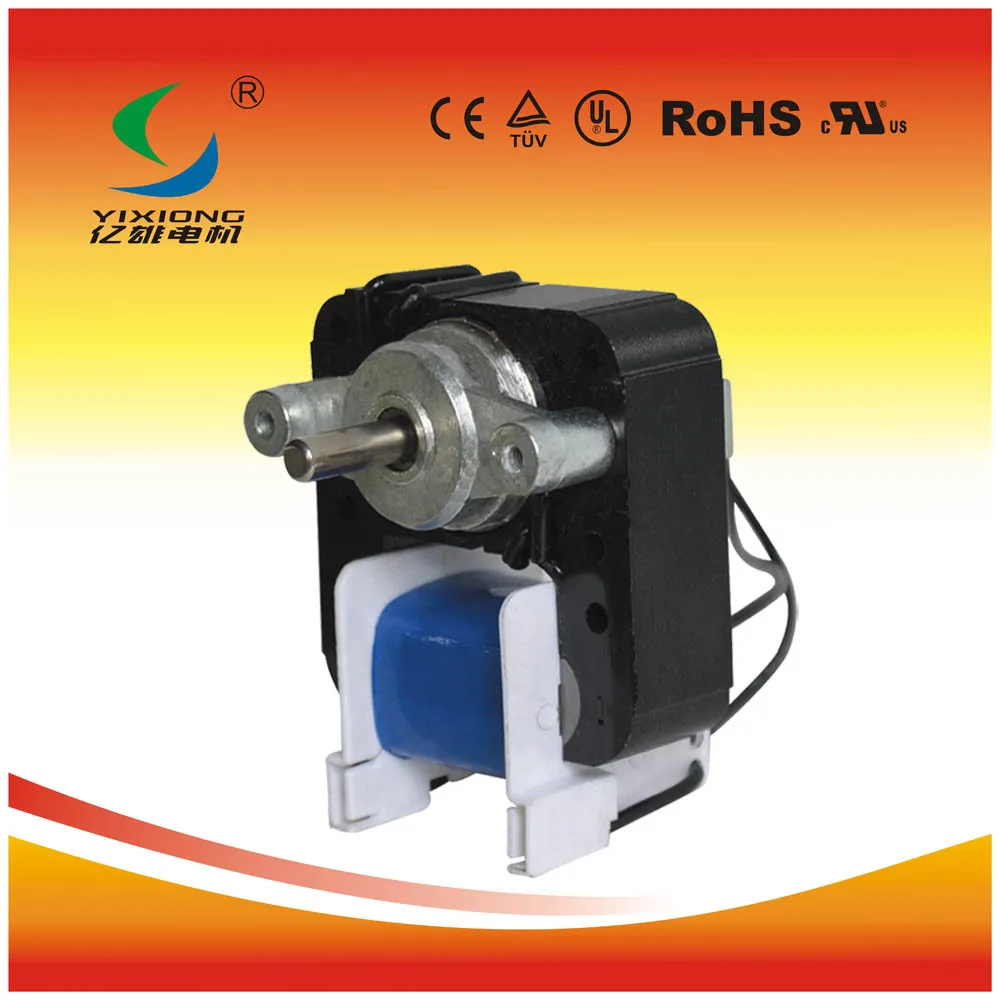

230V YJ61 Series Shaded Pole Motor
230V YJ61 Series Shaded Pole Motor
230V YJ61 Series Shaded Pole Motor
230V YJ61 Series Shaded Pole Motor
230V YJ61 Series Shaded Pole Motor

230V YJ61 Series Shaded Pole Motor

Share on (60690216494):


Price:RUB 118.07 - RUB 299.11

Quantity:


Product Overview

Description

61
ModelVoltageFrequencyCurrentPowerSpeedClass

YJ61-10

110/220 VAC

50-60 Hz

 0.18 A

 13.0 W

1850 RPM

E/B/F

YJ61-13

110/220 VAC

50-60 Hz

 0.20 A

 16.0 W

 1800 RPM

E/B/F

YJ61-16

110/220 VAC

50-60 Hz

 0.24 A

 25.0 W

 2500 RPM

E/B/F

YJ61-20

110/220 VAC

50-60 Hz

 0.28 A

 27.0 W

 2400 RPM

E/B/F

YJ61-25

110/220 VAC

50-60 Hz

 0.31 A

 30.0 W

 2480 RPM

E/B/F

YJ61-30

110/220 VAC

50-60 Hz

 0.35 A

 32.0 W

 2450 RPM

E/B/F

YJ61-40

110/220 VAC

50-60 Hz

 0.43 A

 36.0W

 2400 RPM

E/B/F



 61
61 0259
61ds
61 1
61-D1
contact us_meitu_1.jpg

Motor size:
1. Stator diameter: 61.5mm
2. Shaft diameter: 4.5/5/5.5/6mm
3. Shaft length: As your request
4. Lead wire: 2*300mm, also can be made according to your demands
5. Number of pole: 2 pole
6. Rotation: CW/CCW
7.Insulation class:E/B/F/H

Application:
1. This shaded pole motor could be used for Fan-heater, refrigerator, Air-Conditioner, Microwave oven, Blender, Air-cleaner, Fan, Exhaust fan, Humidifier, Dehumidifier and Medical, Household and industrial appliances;
2. It is safty and reliable, low noise, characteristics hard, good starting, long life, etc.
2. This AC motor can be designed and produced according to your request.


Delivery terms:

1,T/T in advance will be our popular payment terms.

2,We'd like to send you some samples for your close for your close inspectiong first.

3,We have detailed specifications. If you are interested in it, please write to me or talk me on TM.
