High speed shearing chemical glue make machine
High speed shearing chemical glue make machine
High speed shearing chemical glue make machine
High speed shearing chemical glue make machine
High speed shearing chemical glue make machine
High speed shearing chemical glue make machine
High speed shearing chemical glue make machine

High speed shearing chemical glue make machine

Share on (60690269693):


Price:

Quantity:


Product Overview

Description


Production

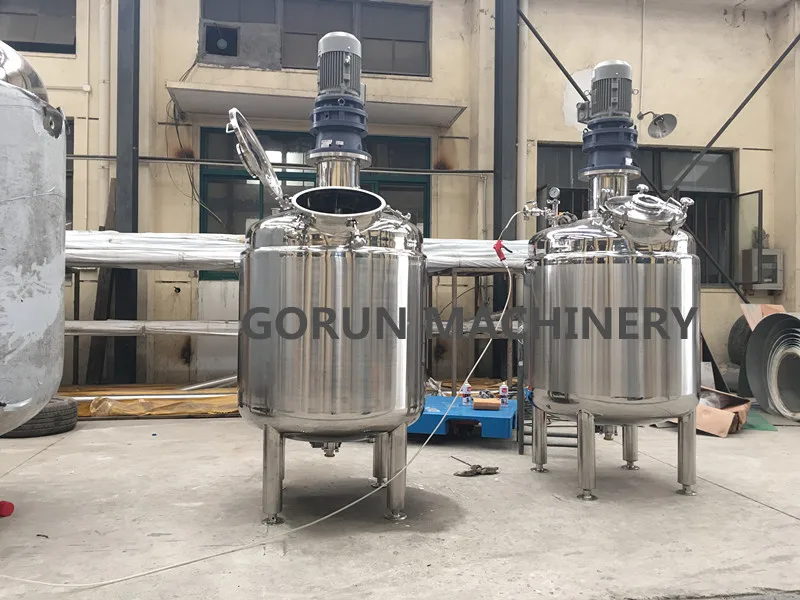

chemical glue make machine:
\t
chemical glue make machine
\t




Specification
\t
1.Matreial: ss304/316
2.Capacity:500L(Ø800*850)
3.Structure:three-layer , with agitator,    head top with manhole cover, with spray ball,inlet&outlet
4.Mixing type:scraper type
5.Surface:interior Ra0.3μm,     exterior matte polish
\t
Application
\t
paint,salad dressing,flavors,beverage,juice,liquid fertilizer, biological liquor,paint,etc.
\t
Cutomize
 service
\t
Can be totally customized,see below

Detailes Pictures:

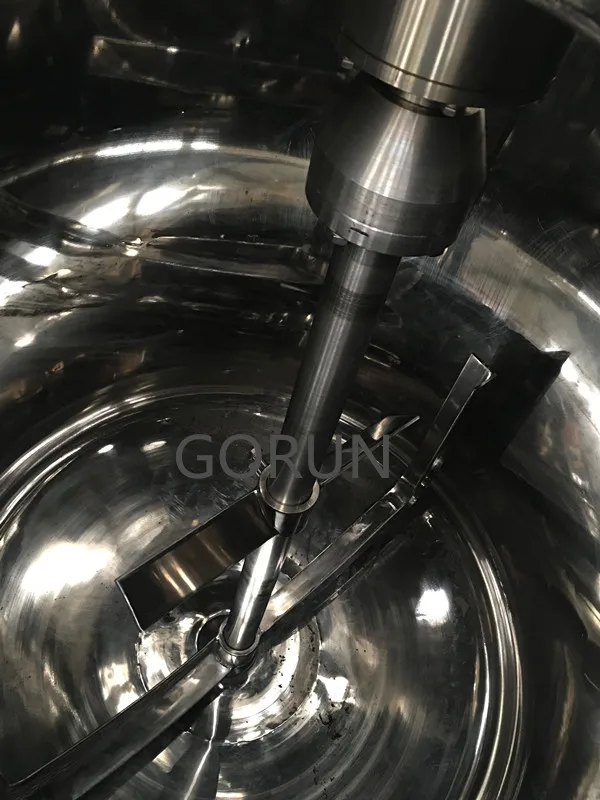

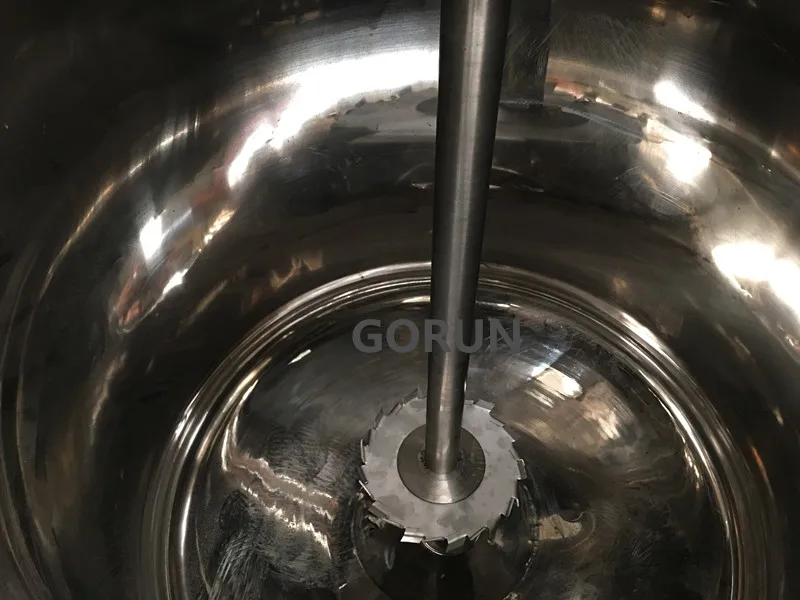

Disperser

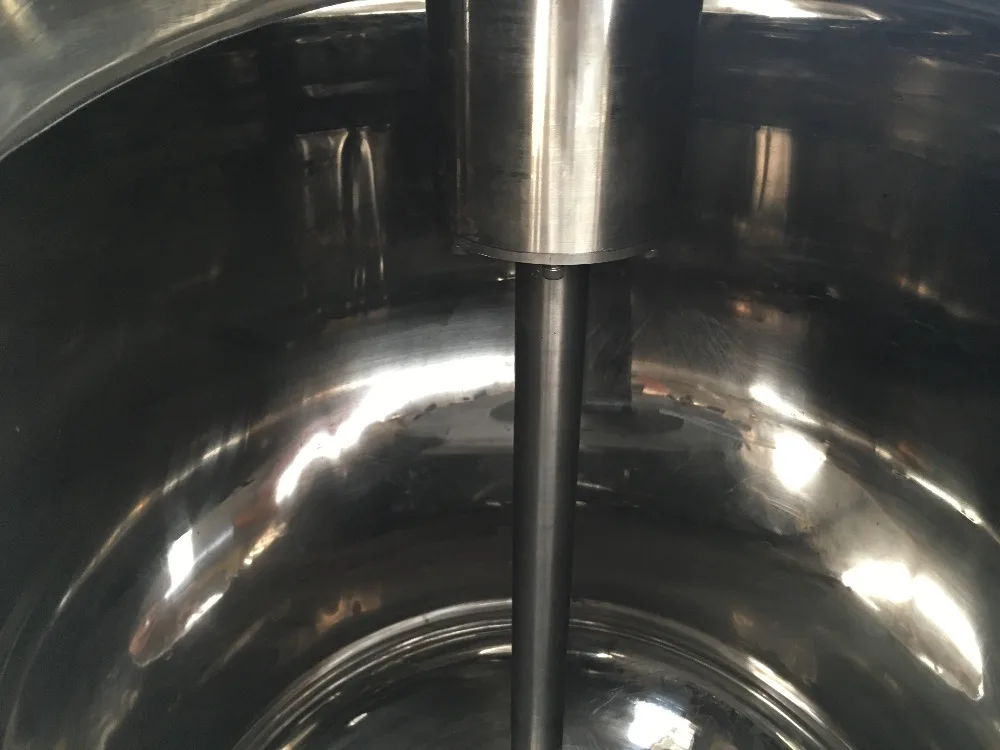

Mechanical sealing

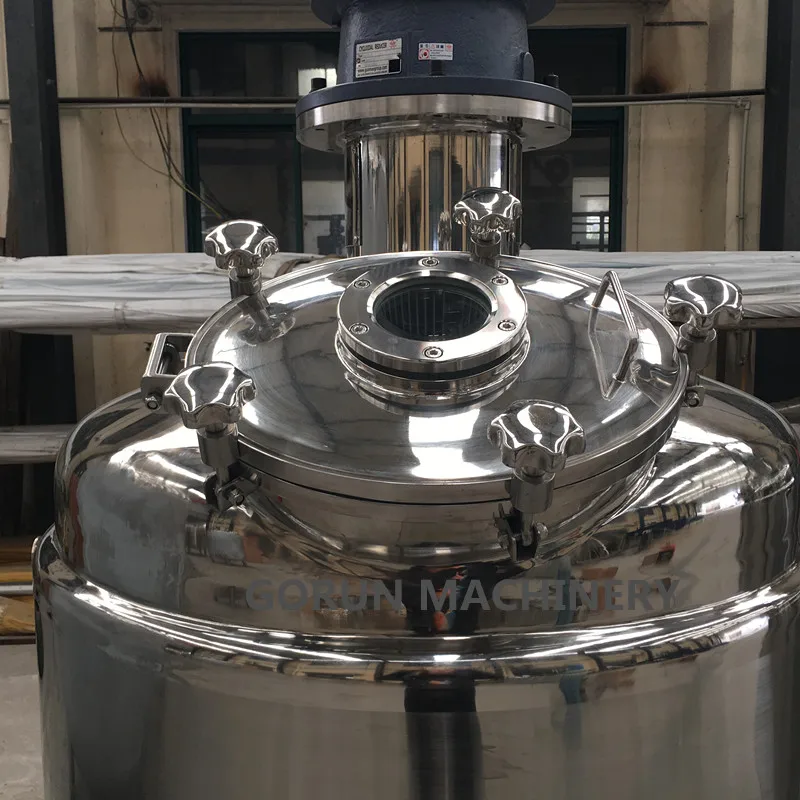

manhole cover

Slection guide:

\t
Custom Your Products
\t
Mterial
\t
Capacity
\t
Mixing
\t
Layer
\t
Working
Pressure
\t
Usage
\t



ss304/ss316
\t



50L-20000L
\t
Agitator:
Paddle
Anchor
Frame
Scraper
Disperser
Homogenizer
\t
Single layer

Double layer:insulation

Three-layer: heating/cooling jacket or coil+ insultaion
(Heating:steam/hot water/electric
Cooling:water/cooling unit)
\t

Vacuum

ATM

0-1Mpa
\t

Pharmaceutical
Food
Beverage
Cosmetic
Chemical
etc.

\t
Customize
\t
Customize
\t
Customize
\t
Customize
\t\t\t\t\t\t\t\t\tCase Introduction \t\t\t\t\t\t\t

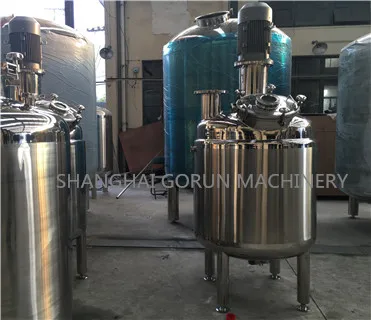

shampoo/daily chemical/ juice mixing tank:
with two motors,one for paddle type mixer,one for scraper type mixer;
two mixers with opposite direction;
ABB MOTORS，SIMENS REDUCER
Related Products

Kinds of stainless steel tank

Filter housing&cartridge

CIP system

Other products:
Water purification system:electronic water,food&beverage water,pharmaceutical use water
Tube and shell heat exchanger:using heat exchnage to cool down or heat up
Pumps: centrifugal pump/homogeneous pump/rotor pump/double screw pump
Accessories:pipes,valves,instruments etc.
Processing&Shipping

Raw Material:

Guaranteed stainless steel 304/316(Test acceptable)

Normal Thickness:1.5mm-16mm


Surface Treatment:

Interior Ra0.3µm,Exterior matte polish or mirror polish

Optional:Electrolytic polishing or Acid passivation


EVERY WELD JOINT WILL BE TREATED CAREFULLY.

STEP 1:

Rolling and welding

STEP 2:

Bottom welding

STEP 3:

Jacket making(jacket tank)

STEP 4:

Jacket welding

STEP 5：

Polishing

STEP 6:

Details treatment

Package&Delivery:

Filter cartridge(Few) and small accessories: Carton box

Tanks(50L-1500L) and big accessories: plywood case

Tank(1500L-50000L) and big system:Support and bubble film

YOUR PRODUCTS WILL BE PACKAGED CAREFULLY.
