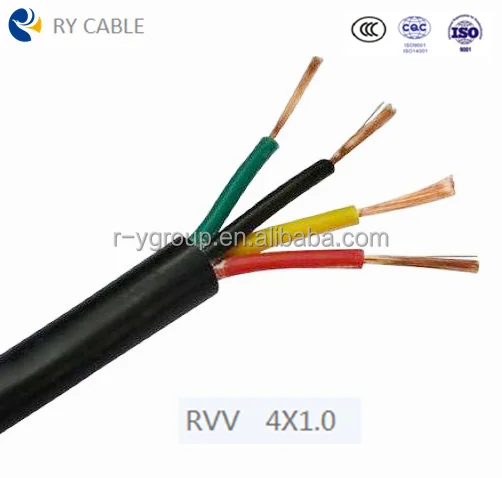

2021 Low voltage rvv insulated electric power cable 4x1.5mm2
- Category: >>>
- Supplier: Ruiyang Group Northeast Cable Co. Ltd.
Share on (60690314225):
Product Overview
Description

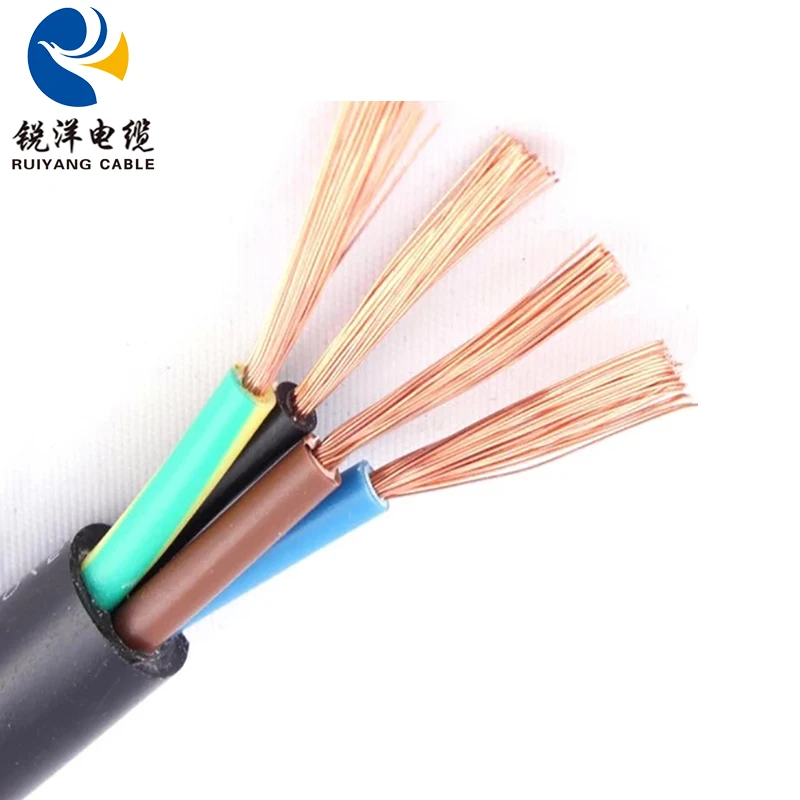

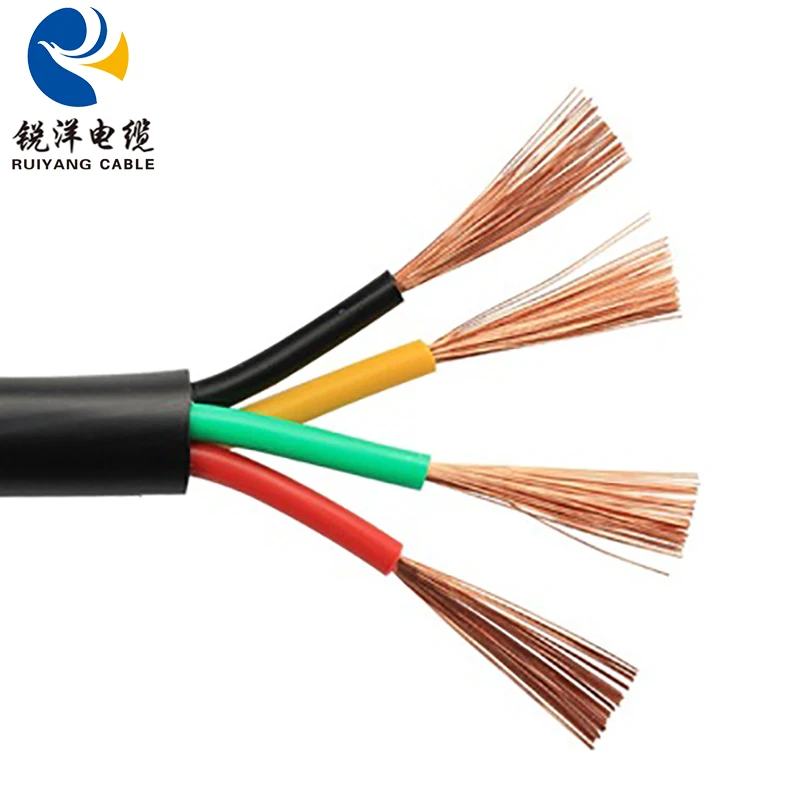

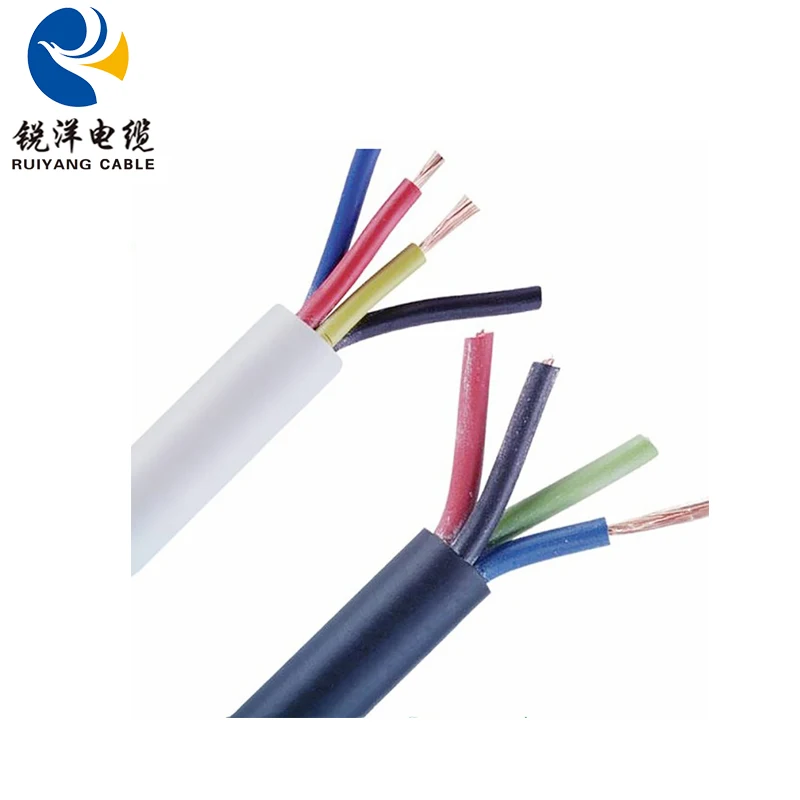

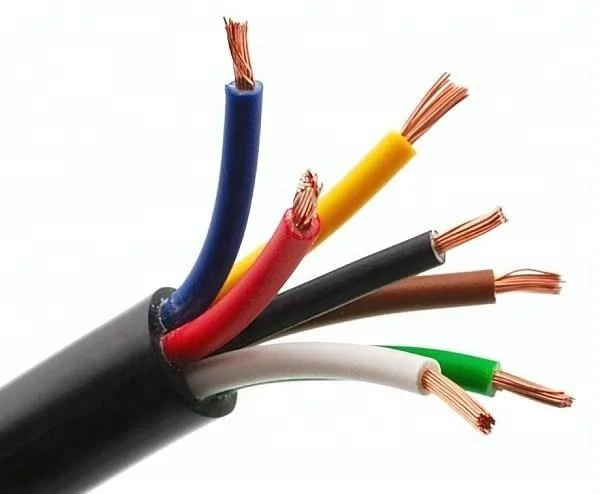

Low voltage rvv insulated electric power cable 4x1.5mm2
Product Description
The product is fit for a crated voltage 450/750V and below of domestic electrical appliances of smaller size electric tools,instruments,various meters and motorized lighting installations.
Working temperature:not more than 105℃for Rv-105 model.the other no more than 70℃.
1) If finished insulation core and finished power line is pot into warm water 20±5℃for an hour,they will be able to bear stipulated ac sohz,soaked voltage test .
2) Wire has excellent electric insulation property.mechanical property.non-inflammabillty.So it is safety and convenience in using the producer's name .The model and the voltage should be clearly printed on the surface of the finshed power line of the insulation and sheath delivery requirements.
| Model | Name | Voltage(V) | Nominal section(mm2) | Number/diameter of core (mm) |
| RV | Copper core PVC insulation jointed flexible line | 300/500 | 0.3 to 1.0 | 16/0.15 to 32/0.2 |
| 450/750 | 1.5 to 10 | 30/0.25 to 80/0.30 | ||
| RVB | Copper core PVC insulation paralled jonted flexible line | 300/300 | 2×0.3 to 2×1.0 | 2×16/0.15 to 2×32/0.20 |
| RVS | Copper core PVC insulation twisted joint flexible line | 300/300 | 2×0.3 to 2×0.75 | 2×16/0.15 to 2×32/0.15 |
| RVV | Copper core PVC insulation sheath paralled joint flexible line | 300/500 | 2×0.75 to 5×2.5 | 2×24/0.2 to 5×49/0.25 |
| RVVB | Copper core PVC insulation sheath paralled joint flexible line | 300/300 | 2×0.5 to 2×0.75 | 2×16/0.2 to 2×24/0.2 |
| RV-105 | Copper core heat-resistance 105℃PVC insulation joint flexible line | 450/750 | 0.5 to 6 | 16/0.2 to 84/0.30 |
Production Process
Company Information
Fair2016
Packaging & Shipping
Our Services
1.Quickly and professional response
2. China manufacturer with 8 years experience
3. Excellent quality with reasonable price.
4. Sufficient support for our tendering representatives.
5. OEM service available based on official & legal authorization.
6. Strict quality control system.
7. Faster lead time than our competitors.
8. Cable solutions to your particular requirements.
9. Free sample is available with economic express fee.
10.12 months quality guarantee after delivery.
Served Customers
FAQ
Q1: What kind of guarantee do you provide ?
A1: 1.100% high quality, all failed parts get free warranty within 30 days after received.
2.Accept 10 years warranty upon customer requirement.
3.Repairs parts are available within 10years; We will inform the EOL products to you from time to time.
Q2: What if the cable which we need have some differences on specifications from yours?
A2: Any difference, we can design and produce according to your requests, which include cable, color, material, processing requirement etc.
Q3: How can I get a sample to check your quality?
A3: After price confirmation, you can require for sample to check our quality. Sample is free, but the freight charge should be paid.
