Product Overview

Description







Item		Spec.
Display type		STN,Blue,Negative,Transmissive

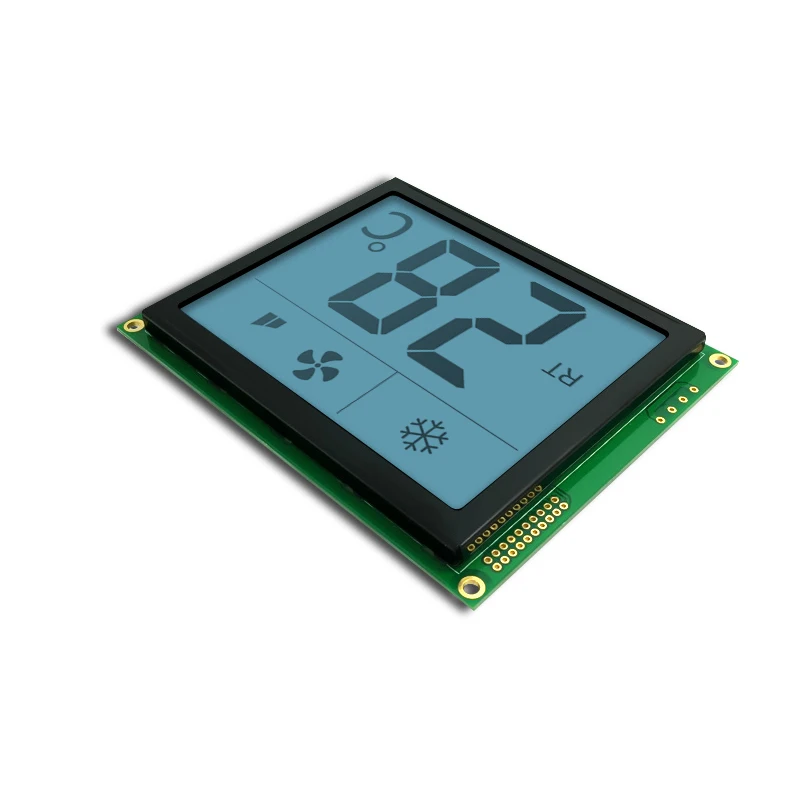

Description		160x128 graphic lcd module( TSM160128B)

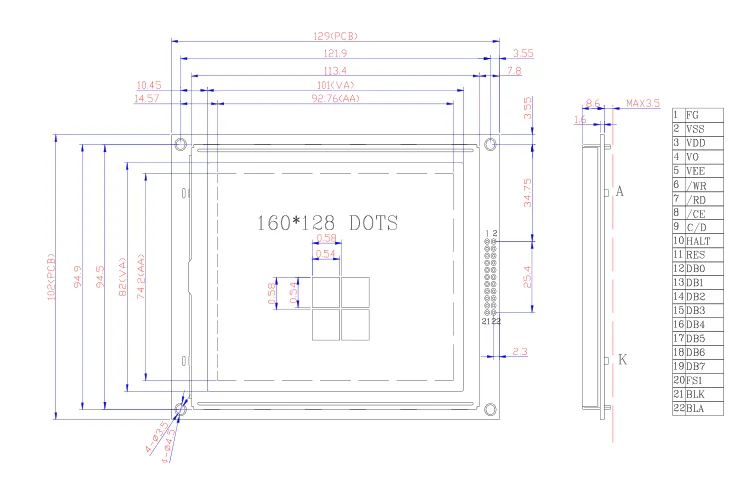

Outline(mm)		129.0x102.0x12.1max
View Area(mm)		101.0x82.0
Active Area(mm)		92.76x74.2
Dot size		0.54x0.54mm
Dot pitch		0.58x0.58mm
Controller IC		T6963C+NT7086
Viewing direction		6H
Operating temperature		-20°C-70°C
Storage temperature		-30°C-80°C
Drive Mode		1/128 DUTY, 1/12 BIAS, vop=15.0v
Backlight		White LED
Polarizer Type		Positive, Transflective















monochrome graphics lcd modules 160x128 dots	256x128 Transmissive Negative FSTN Lcd Cheap Graphic Lcd



1.We are professional LCD module manufacture in China with precise and advanced equipments.

 2.High quality Control with CE,ROHS and so on approved.

 3.More than 10 years of industry experience and involved main markets all over the world

 4.Dedicated and professional sales team will offer you 24 hours online and immediate service

 5.OEM and ODM support,12 months warranty for all of our products

 6.Our mission is to help our customers achieve success, then fulfill our both dreams



Pre-sales service :

1.Our team design and make solutions based on different requirements from different customers.

 2.We provide 24-hours service,and every message you quote inquiry will be replied within 12 hours.



After-sales services:

1. We provide customer service through Skype, phone or email, supply you video or drawing to solve problems.

 2. We provide remote control service through internet to achieve real time service, which will short time of solving problems.

 3. We have professional engineer  customer to keep fastly reply.
