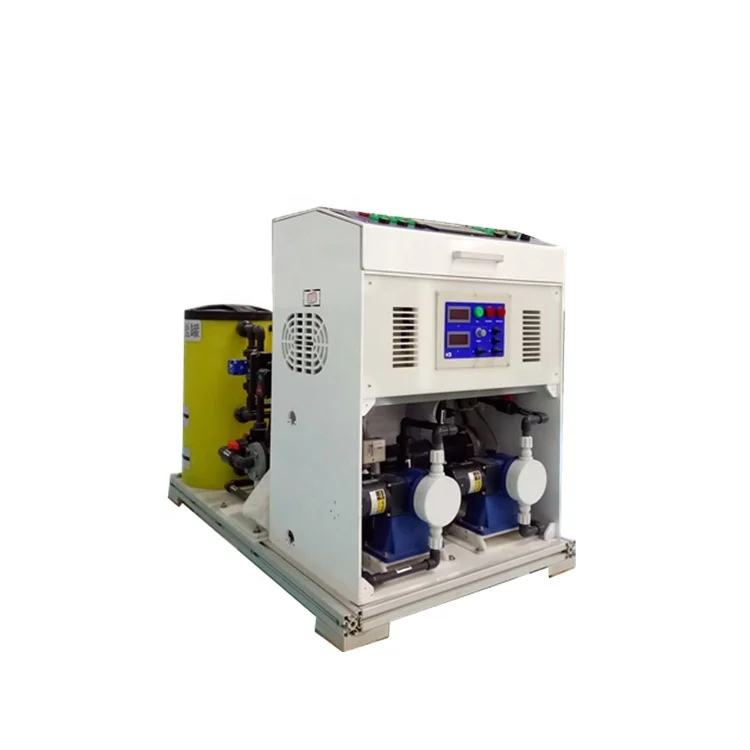

Salt water electrolysis 50g/h chlorine gas online generator

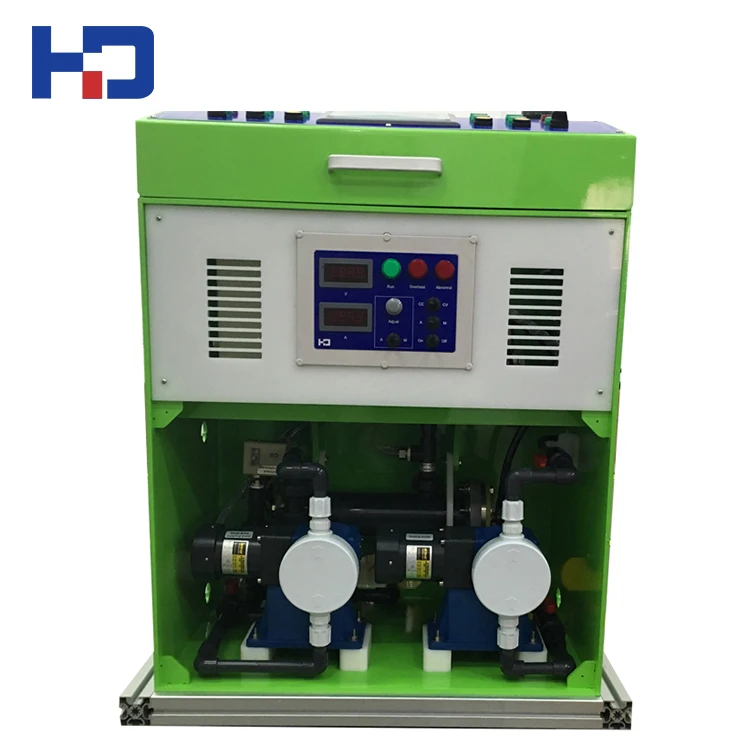

Compact-type Sodium Hypochlorite Generator

1.Sodium hypochlorite is widely applied in water treatment, it kills bacteria and virus in the water,and also use as a bleach to disinfect surface with low concentration.

The machine equipped with PLC system,Siemens touch screen with smart interface ,and it is easy to operate .

With 11 years experience of researching & developing, we have connected with many Local governmental water treatment plants , and earned lots of reputation from domestics and overseas customers.

2.. Chemical equation
    NaCl+H₂O = NaClO+H₂↑

  (Sodium hypochlorite)
    NaClO + H₂O = HClO + NaOH
  (Decomposition into hypochlorous acid )
    HClO → HCl + [O]
  (The new ecological oxygen precipitation )
3. The 3 weapons to kill virus:
    (1) The oxydation of HCl (Hypochlorous acid): break the balance of glucose metabolism;
    (2) O (new oxygen): Its strong oxidability will consume the protein of virus, make them lack of energy;
    (3) The Chloridion: disturb the metabolism of gen;
4. Main technical indicators (Only suitable for HADA's machine)
    Salt water concentration: 2.5%~3%
    Power consumption: < 4KW/Kg.Cl₂
    Salt consumption: <3.5Kg/Kg.Cl₂ (If sea water, no need salt)
    Effective chlorine concentration : 5000-8000ppm
    (1000~2000ppm for seawater system)
    Working mode: Fully automatic
    Anode coating life : >5 years
    Cathode life : >20 years
    Machine life: >15 years
