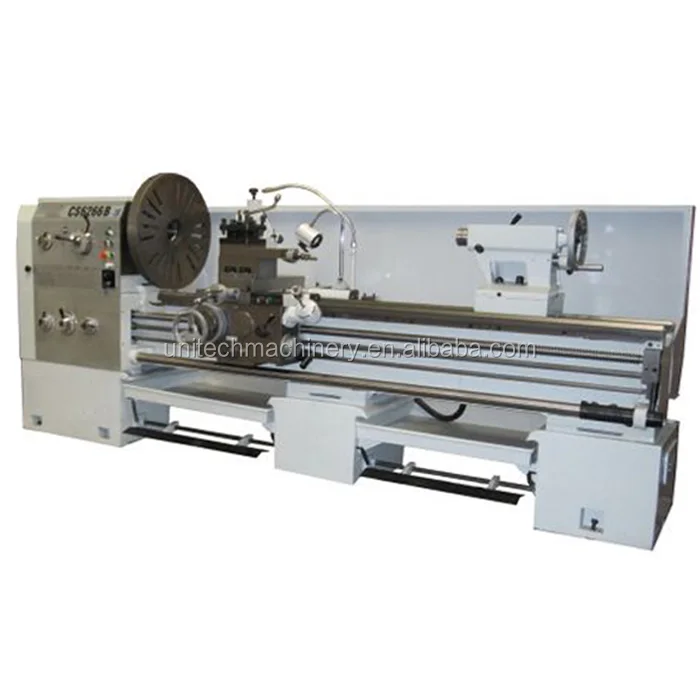

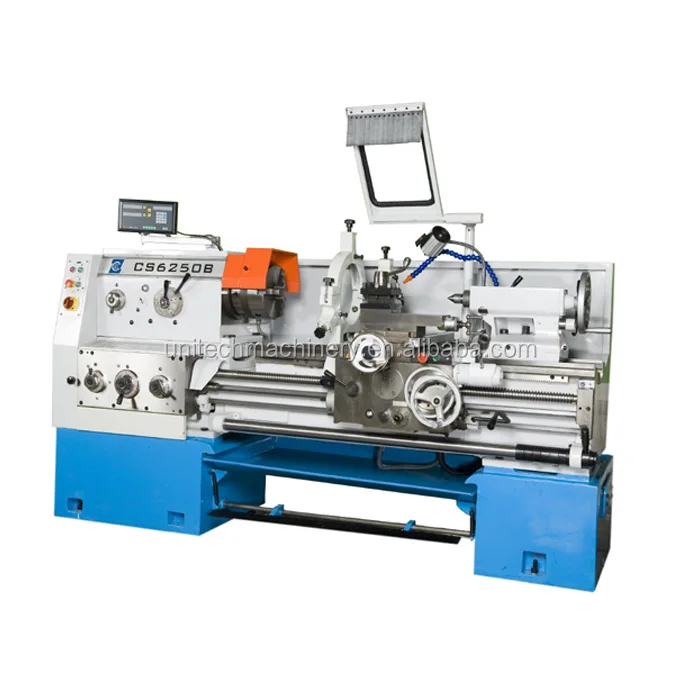

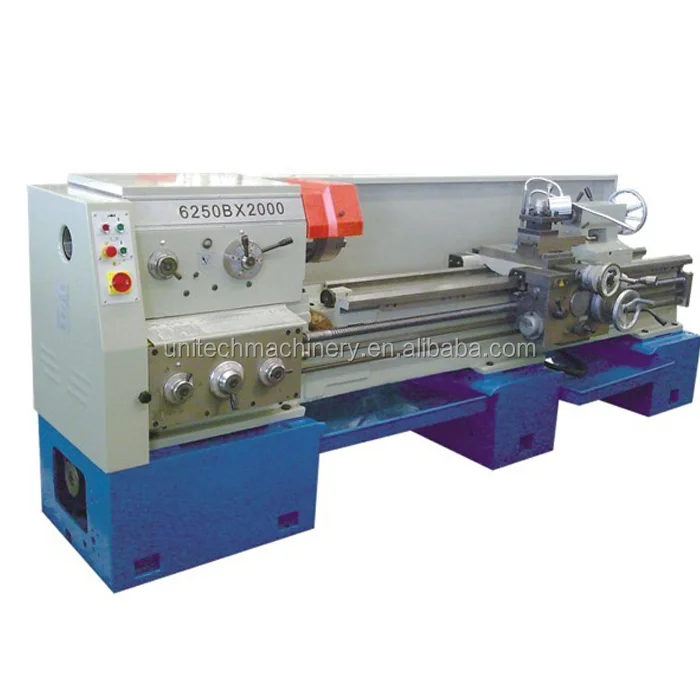

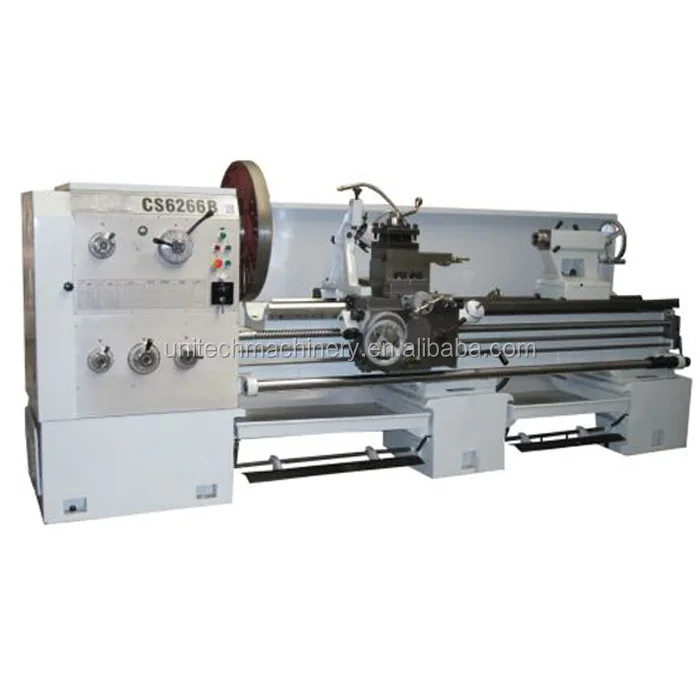

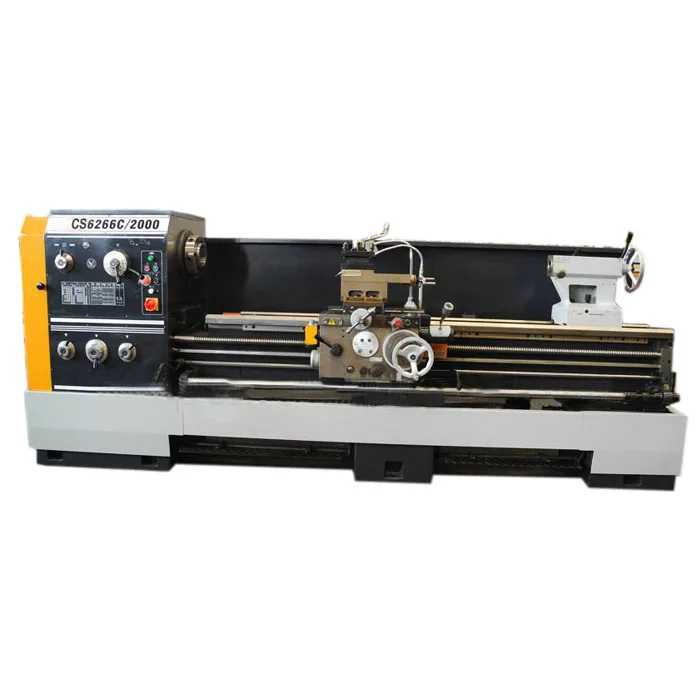

universal heavy duty horizontal lathe machine CS6266C
Product Description
Universal heavy duty horizontal lathe machine feature:
1. The manual Gap-bed turning lathe machine can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
2. Threading Inch, Metric, Module and D.P; Perform drilling, boring and groove broaching; hand brake and foot brake for users to choose;
3. The manual turning Gap-bed lathe machine can machining all kinds of flat stocks and those in irregular shapes;
4. Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters; Both Inch and Metric system are used on these lathes,
5. These series lathes operate on power supply of different voltages (220V; 380V; 420V) and different frequencies (50Hz/60Hz).
| Item | Unit | |||||||
| TORNOS 6250/B | TORNOS 6266/B | TORNOS 6280B | TORNOS 6250C | TORNOS 6266C | TORNOS 6280C | |||
| Capacity | Max swing over bed | mm | φ500 | φ660 | φ800 | φ500 | φ660 | φ800 |
| Max swing in gap | mm | φ710 | φ870 | φ1000 | φ710 | φ870 | φ1000 | |
| Effective length in gap | mm | 240 | ||||||
| Max swing over slide | mm | φ300 | φ420 | φ560 | φ300 | φ420 | φ560 | |
| Max workpiece length | mm | 750/1000/ /3000 | 1000/1500 /2000/3000 | 2000/3000 | 1000/1500 /2000/3000 | 2000/3000 | ||
| Spindle | Spindle thru-hole | mm | φ82 | φ82 | φ105 | |||
| Spindle nose | CS6140:ISO 702/Ⅲ No.6 bayonet type; Others: ISO 702/Ⅱ No.8 cam-lock type | |||||||
| Spindle speed | r/min | 24 step 9-1600 | 24 step | 12 step 36-1600 | 12 step | |||
| 8-1400 | 30-1400 | |||||||
| Spindle motor | kW | 7.5 | ||||||
| Tailstock | Quill dia./travel | mm | φ75/150 | φ90/150 | φ75/150 | φ90/150 | ||
| Taper of center | MT | 5 | ||||||
| Tool post | Number of station/ | 4/25X25 | ||||||
| Tool section | ||||||||
| Feed | Max X-axis travel | mm | 145 | |||||
| Max Z-axis travel | m/min | 320 | 310 | 320 | ||||
| X-axis feed | mm/r | 93 sorts 0.028-6.43 | 65 sorts 0.063-2.52 | |||||
| Z-axis feed Z-axis feed | mm/r | 93 sorts 0.012-2.73 | 65 sorts 0.027-1.07 | |||||
| Metric thread | mm | 48 sorts 0.5-224 | 22 sorts 1-14 | |||||
| Inch thread | t.p.i | 48 sorts 72-1/4 | 25 sorts 28-2 | |||||
| Module thread | πmm | 42 sorts 0.5-112 | 18 sorts 0.5-7 | |||||
| DP thread | t.p.i. π | 42 sorts 56-1/4 | 24 sorts 56-4 | |||||
| Others | Coolant pump motor | kW | 0.06 | |||||
| Machine length | mm | 2382/2632 /3132/3632 /4632 | 2632/3132 /3632/4632 | 3365/4365 | 2632/3132 /3632/4632 | 3365/ 4365 | ||
| Machine width | mm | 975 | 1050 | 1340 | 975 | 1340 | ||
| Machine height | mm | 1230 | 1350 | 1490 | 1270 | 1450 | 1490 | |
| Machine weight | kg | 2050/2100/ 2900 | 2400/2600 /2800/3000 | 3300/3700 | 2100/2300/ 2500/2900 | 2200/2400 /2600/3000 | 3000/3200 | |
Standard accessories
1.3-jaw chuck and 4-jaw chuck
2. Center sleeve and center
3. Tools
4. Oil gun
5. Operation manual
6. Drive plate
7. Steady rest
8. Follow rest
9. Thread chasing dial
10. Foot brake
11. Coolant system
12. Light system
Optional accessories:
1. Chip guard
2. Big steady rest
3. Big follow rest
4. Taper turning attachment
5. Automatic feed stop
6. Quick change tool post
7. Tool cover and chuck cover
8. Protection for leadscrew
9. Digital read out
