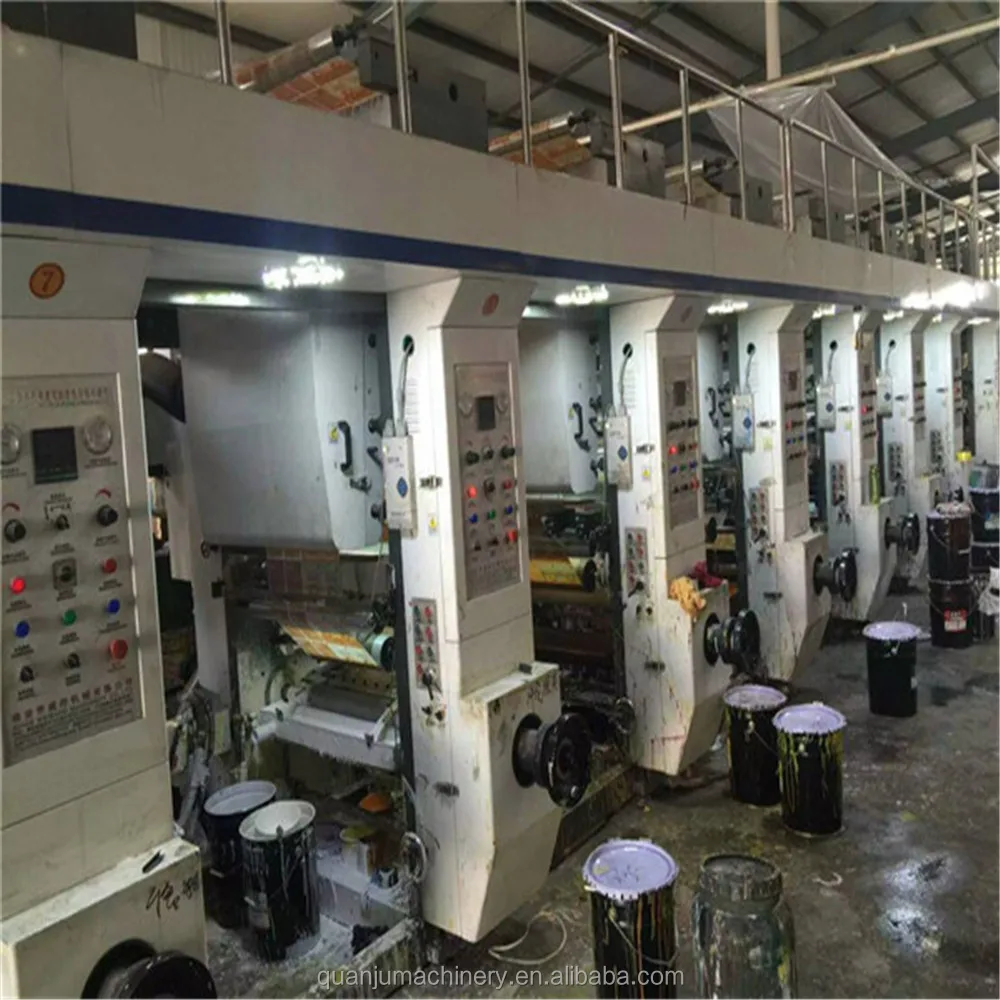

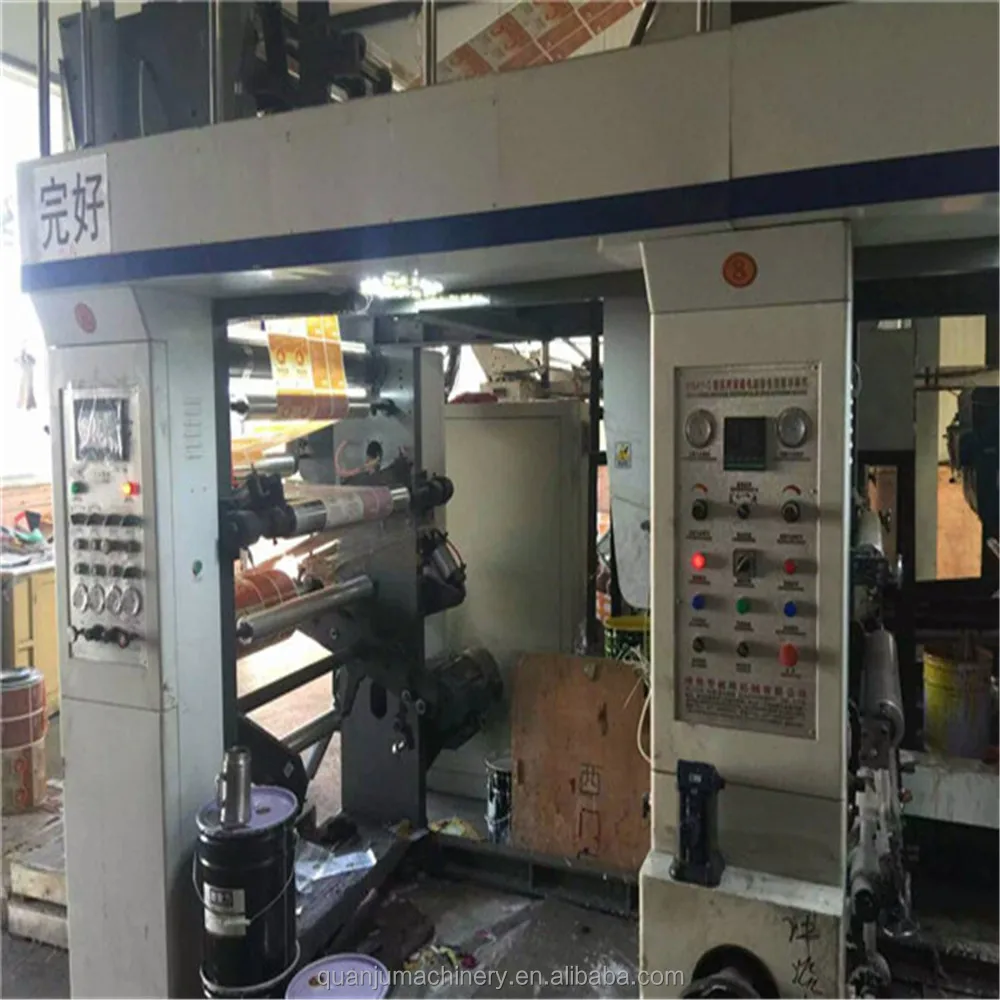

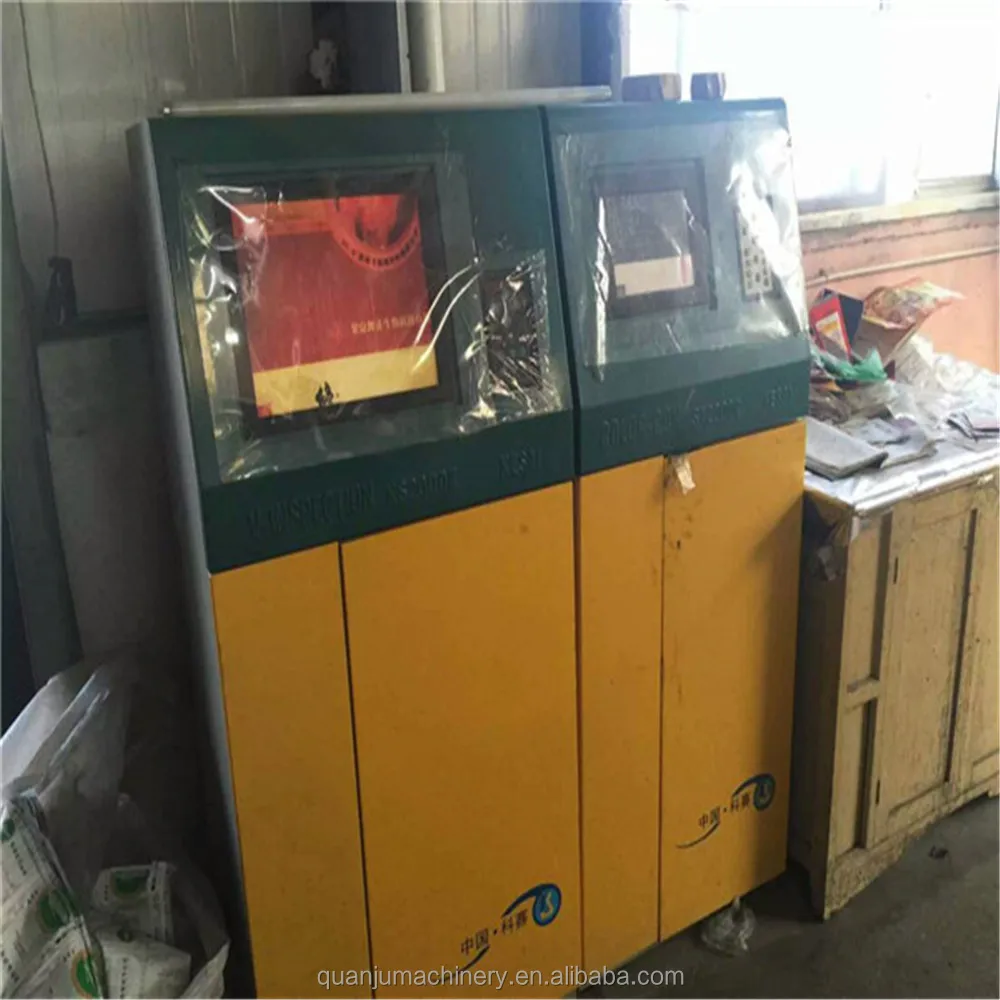

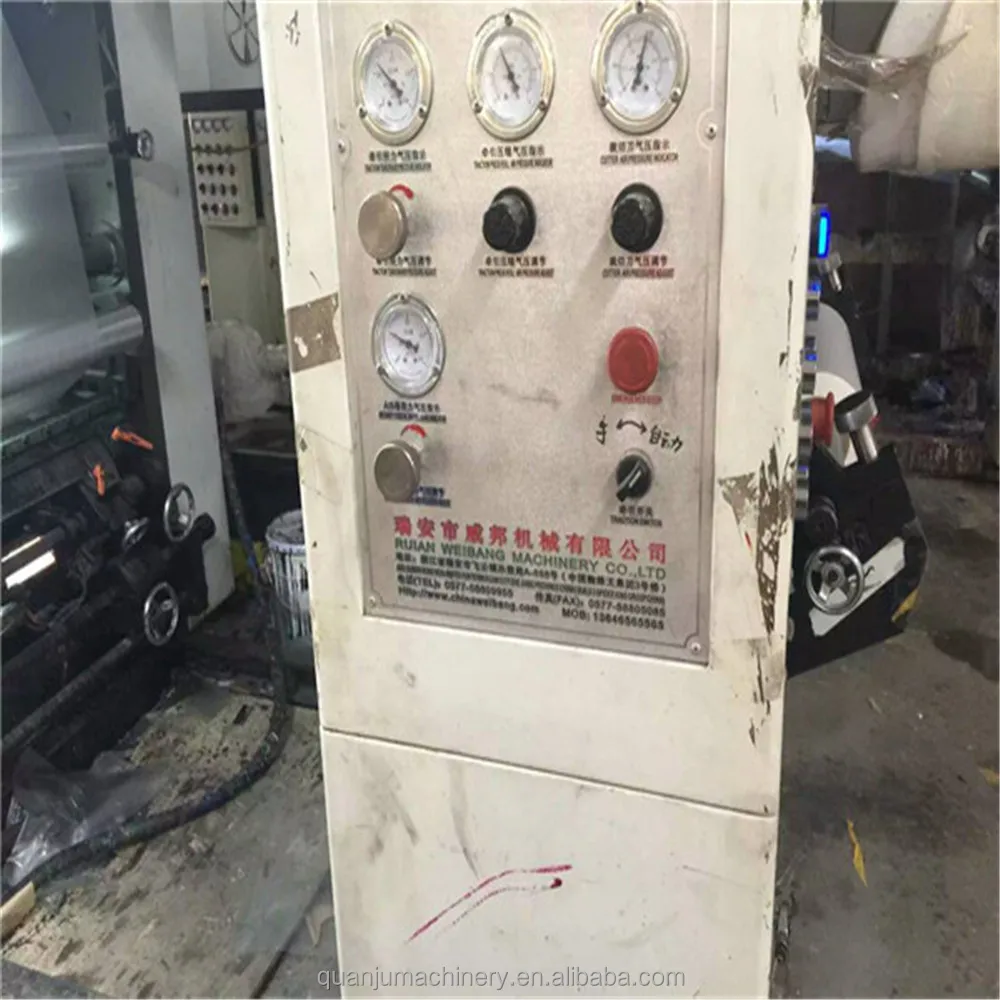

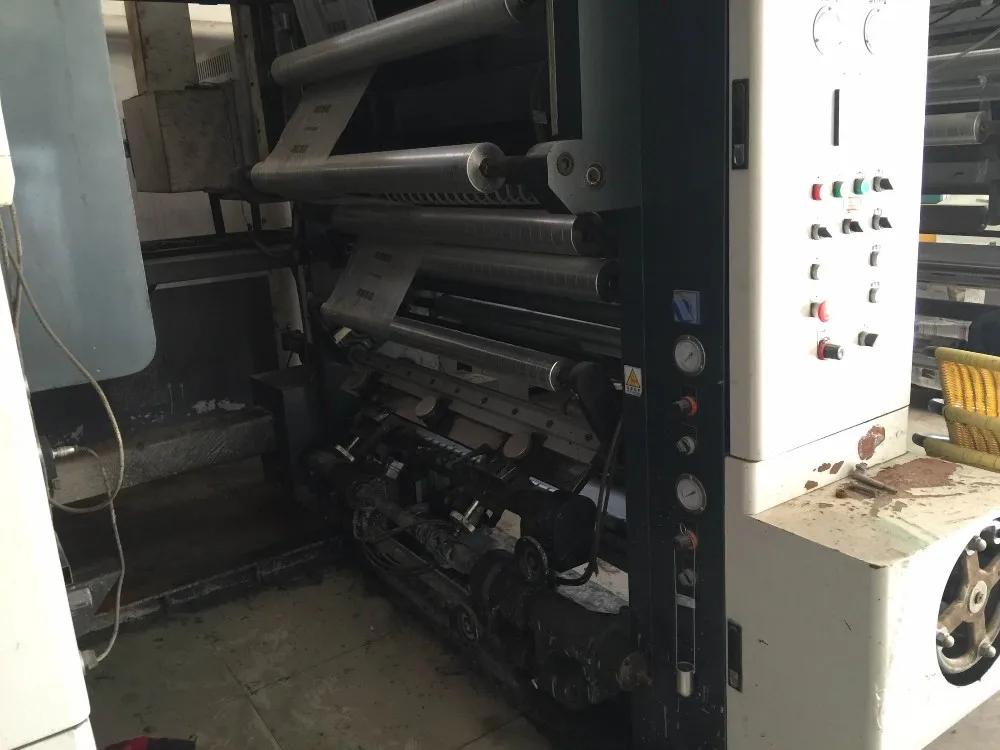

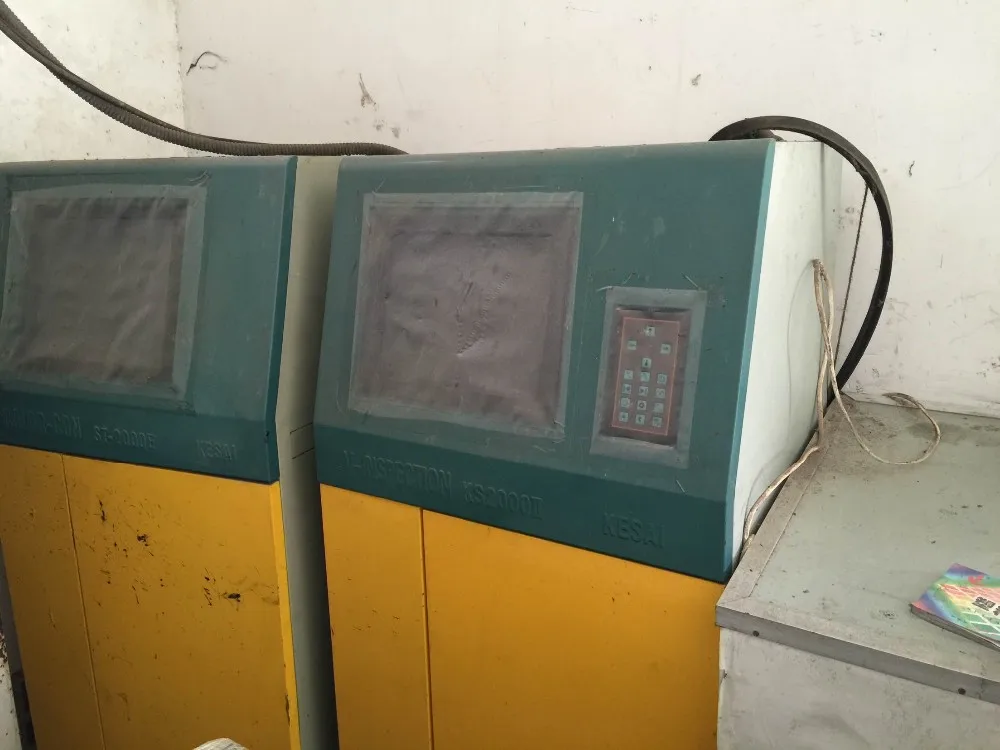

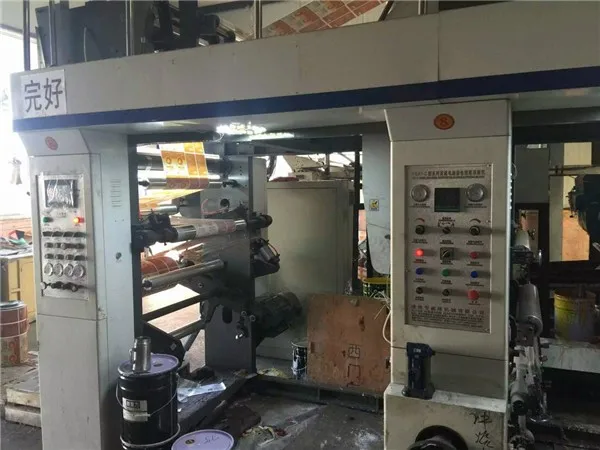

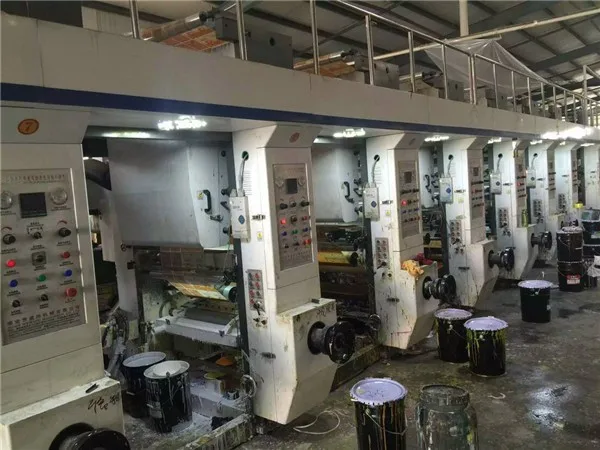

Used 800mm width 8 color PLC 7 motors control Rotogravure Printing Machine

Model SAY-A-R rotogravure printing press is a high performance machine. It is composed of unwinding unit, in-feed drive unit, printing units, drying units, out-feed drive unit, rewinding unit, electrical control section and control gauges, etc.

Outstanding features of this machine

1.1 Main features

a. Max printing speed: 180m/min

b. Drying hoods: nozzle type hot air recycle fast air discharge arc shape structure

c. Shaftless printing cylinder fixed with air chuck, working with printing cylinder loading trolley, ensures quick printing cylinder exchange.

d. Automatic flying splicer on the unwinder and the rewinder, motions of tape detection, Splicing nip roller’s move on, cutting knife’s breaking web, tension alteration and restoration are executed automatically.

e. Unwinding, in-feed drive, out-feed drive and rewinding adopt AC vector frequency inverter for control.

f. Adopts standard configuration for high class rotogravure press: four-section dancing roller tension control system, unwinding, in-feed drive, out-feed drive and rewinding are all by means of supper low friction cylinder dancing roller for detection, featured with high precision tension control.

g. Rewind applies nonlinear tapered tension control, resolving deform problem of central area of bobbin.

h. Low torque integral guide roller, to satisfy the requirement of printing on sensitive materials.

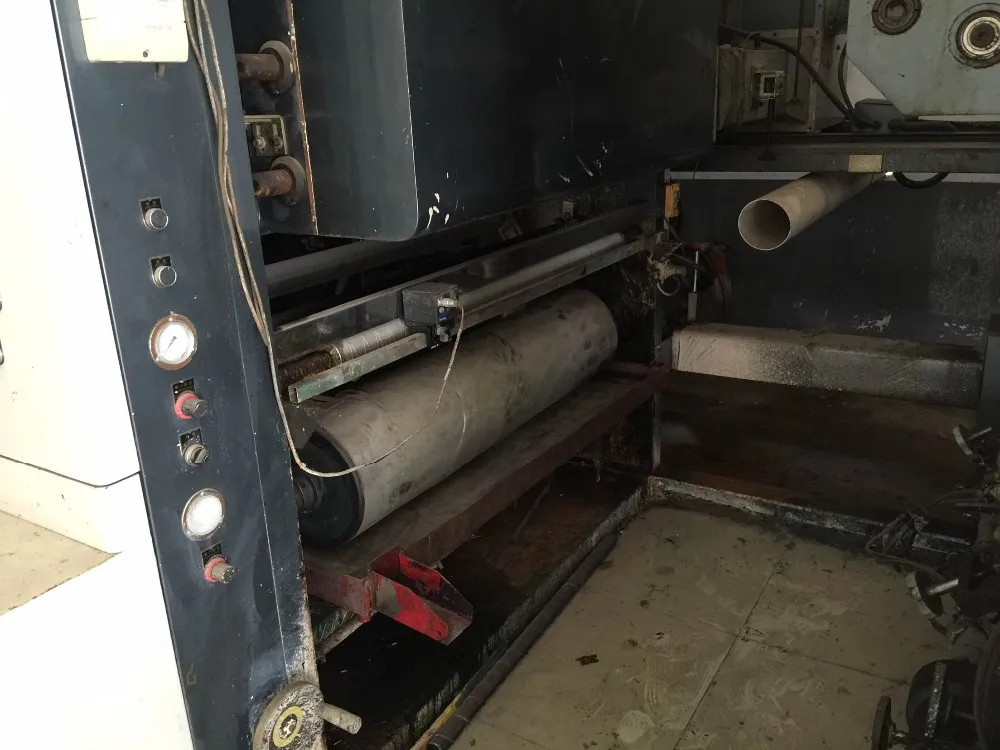

i. Doctor blade mechanism with dual cylinders counter pressure with linear bearing moves more flexible and stable, to meet high speed printing.

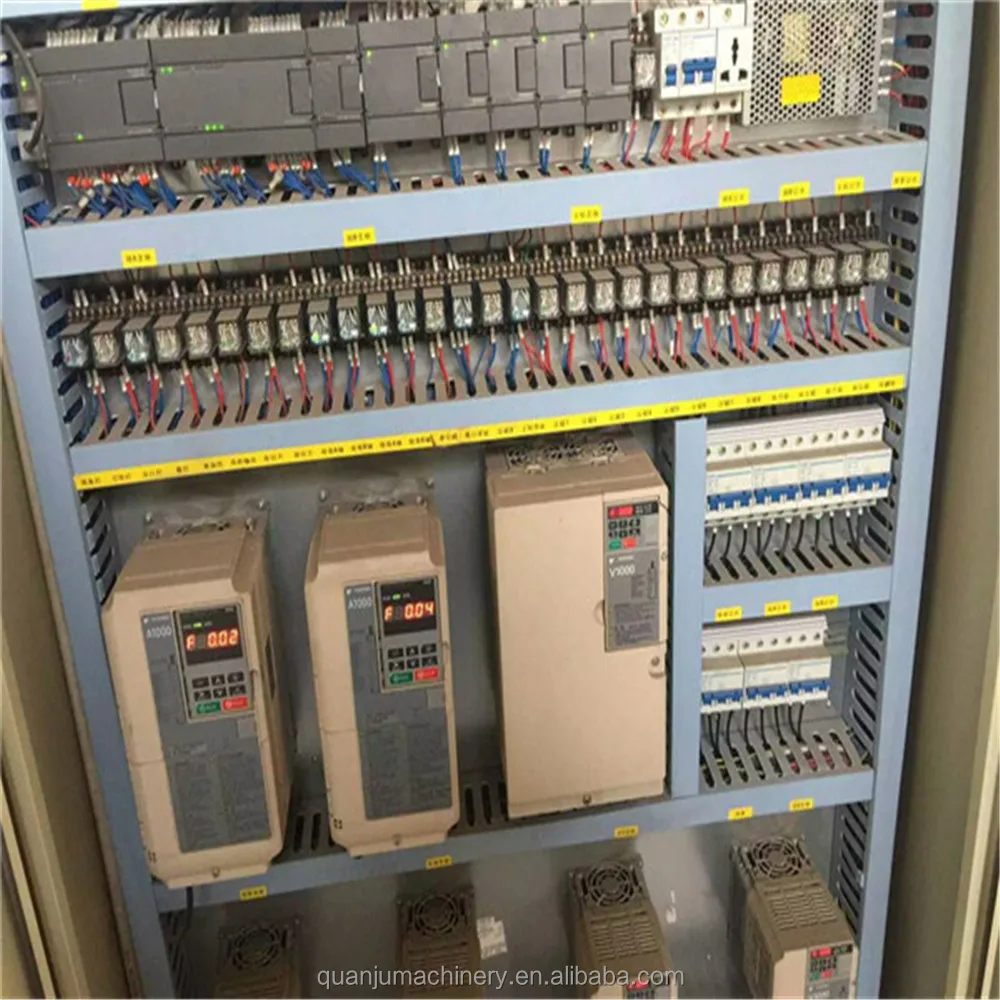

j. Whole machine adopts PLC for centralized control, touch-screen for operation and monitoring work states, being integral design integrated with mechanics, electrics, and pneumatics.



1.2 Main technical specifications

1.2.1 Work direction: from left to right. (While facing to operation side, the unwinder is at left side.)

1.2.2 Printing unit number: 8

1.2.3 Applicable substrate:

PET 12-60µm

BOPP 15-60µm

CPP 25-60µm

BOPA 15-50µm

1.2.4 Applicable substrate width range: 800-1050mm

1.2.5 Max printing speed: 180m/min (actual speed is determined by substrate’s feature and thickness homogeneity, solvent’s feature, inking deepness of printing cylinder, ink’s feature and others.

1.2.6 Longitudinal automatic color registration(with pre-registration), accuracy: ±0.10mm (under stable speed)

Lateral color registration by manual, accuracy ±0.10mm (under stable speed)

1.2.7 Printing cylinder diameter: 130-270mm

1.2.8 Printing cylinder width range: 850~1150mm

1.2.9 Guide roller width: 1100mm

1.2.10 Internal width of machine frame: 1400mm

1.2.11 Unwind and rewind O.D.: 600mm

1.2.12 Tension control range: 3-25kg/full web width

1.2.13 Max impression pressure: 274kg/full web width

1.2.14 Main drive motor: 11kW AC vector frequency invertible motor.

1.2.15 Installed power: motor 60kW, electrical heating 198kW, total 258kW

1.2.16 Total water consumption: max 5T/h (pressure 2-4kg/cm2)

1.2.17 Compressed air source: purified air after filtering oil and water (pressure 6-7kgf/ cm2)

1.2.18 Machine weight: about 33,000Kg

1.2.19 Machine dimension: 16500(L)*3800(W)*3200(H) mm

1.2.20 Machine main color: Ivory white

1.2.21 Main extractor location: at drive side of the rewinder



1.2.22 Main electrical cabinet location: at drive side of the rewinder
