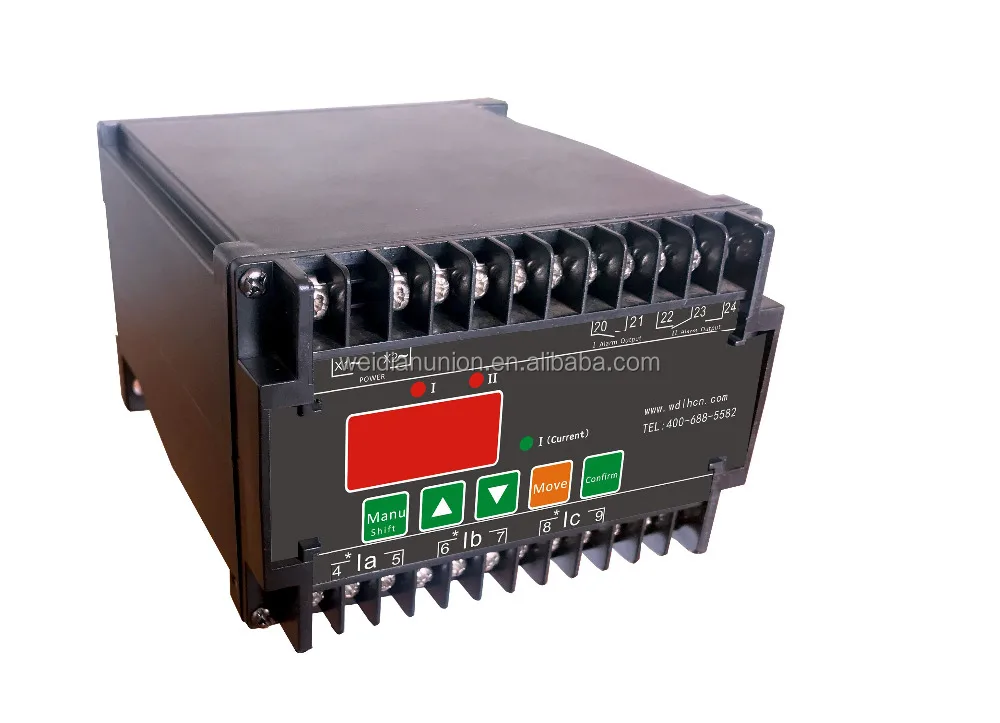

WD REA Generator Protective Current Relay
WD-REA Generator Protective Current Relay
WD-REA Generator Protective Current Relay

WD REA Generator Protective Current Relay

Share on (60690492312):


Price:RUB 4,377.15 - RUB 5,832.38

Quantity:


Product Overview

Description

Summary

   WD-REV is the relay module of built-in ARM microcontroller with two relay output, has free choices between normal open and normal close type,  and output type can also be set freely as over-current or under-current in accordance with the input quantity.

   Application: Used for protection of generators

Main Parameters
Product Name
Single phase current relay
Model
WD-REA
Operation Mode
NC/NO
Measurement Range
0-5A-10A
Dimension
110*75*120
Connection Way
AC220V/DC24V, AC65-600V
Remarks

  1. Have 2 groups of contacs output, alarm value can be setted,  0-30s time-delay to be adjustable once over preset value;

  2. Power consumption:  Less than 3VA

  3. Auxiliary power: AC: Un±15%（Un: 100V, 100V, 220V,380V,440V）; DC24V±25%

  4.  Mounting: 35mm DIN rail installation or ∅5  screw vertical installation
