220V, 3.5KW Air Cooling Spindle Motor in China

Product Overview

Description

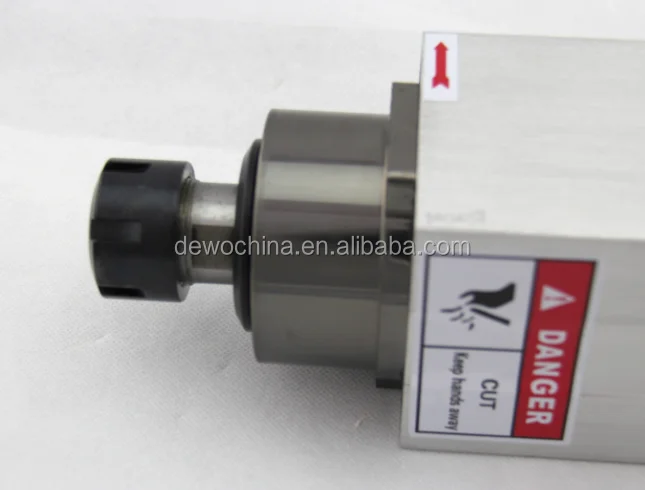

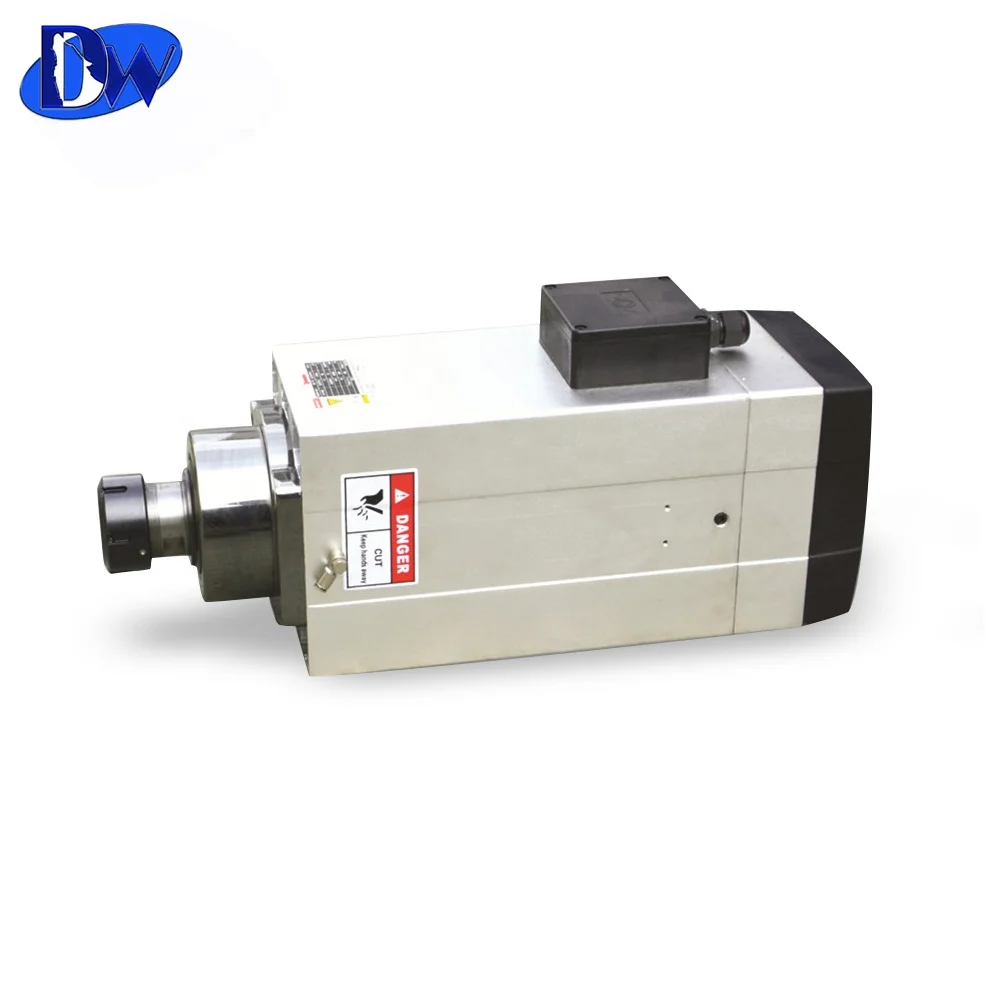

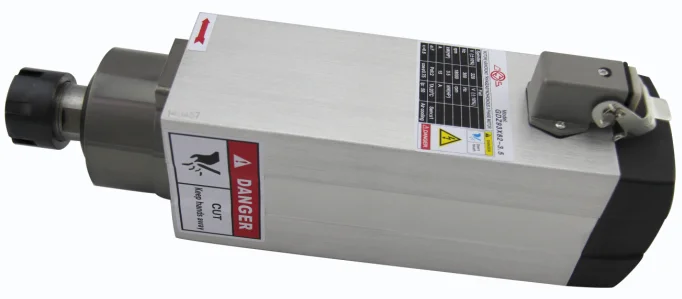

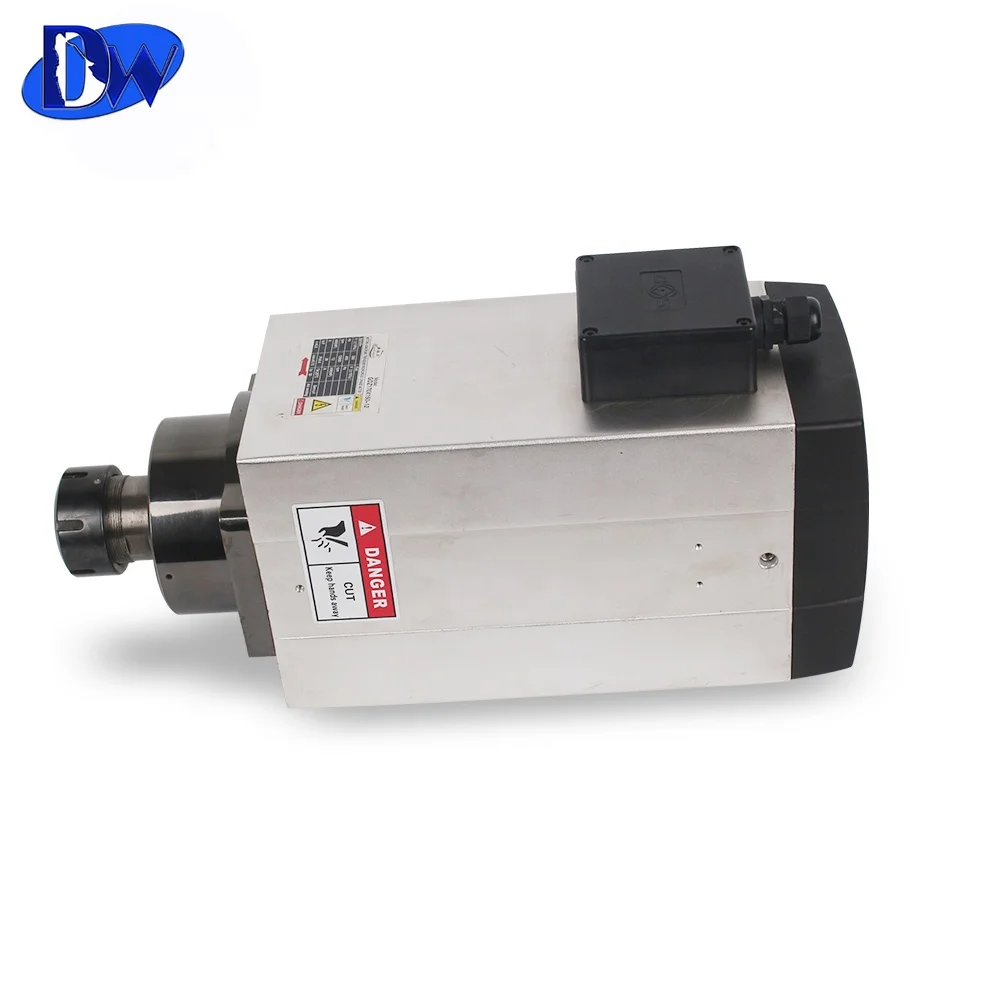

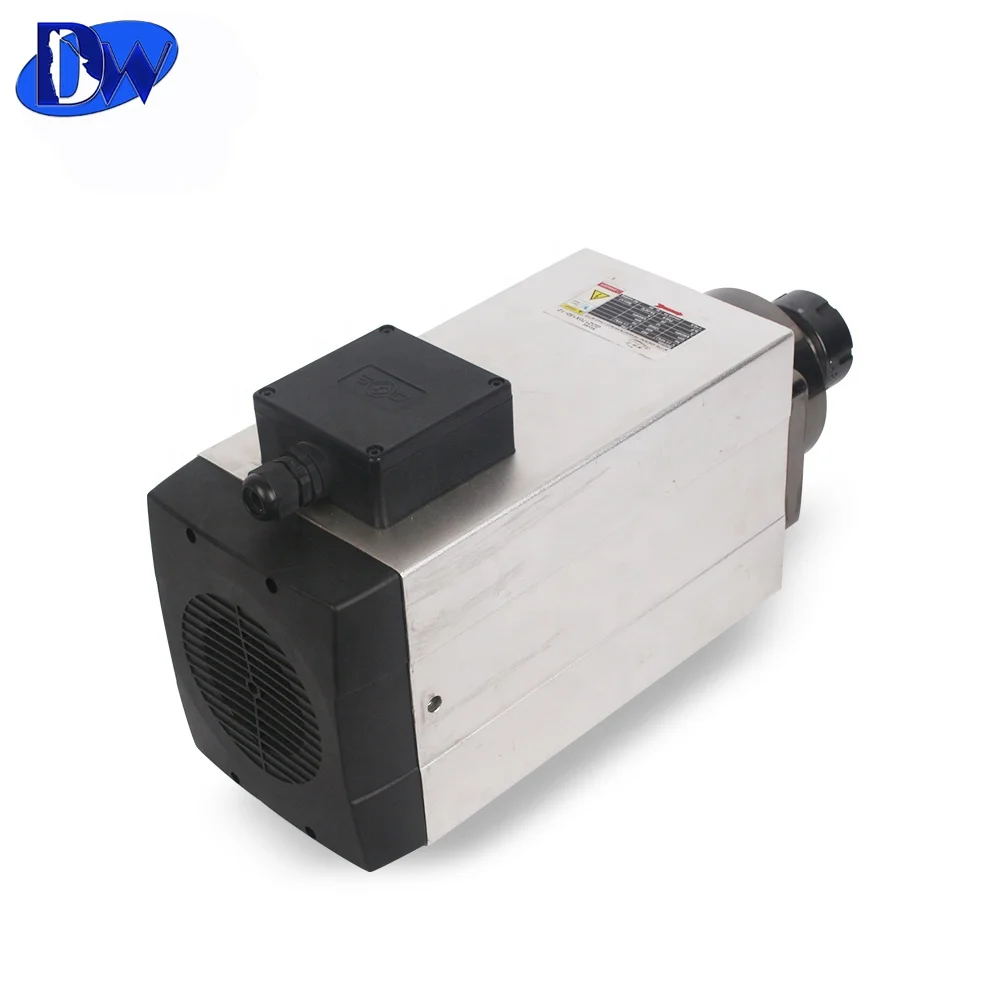

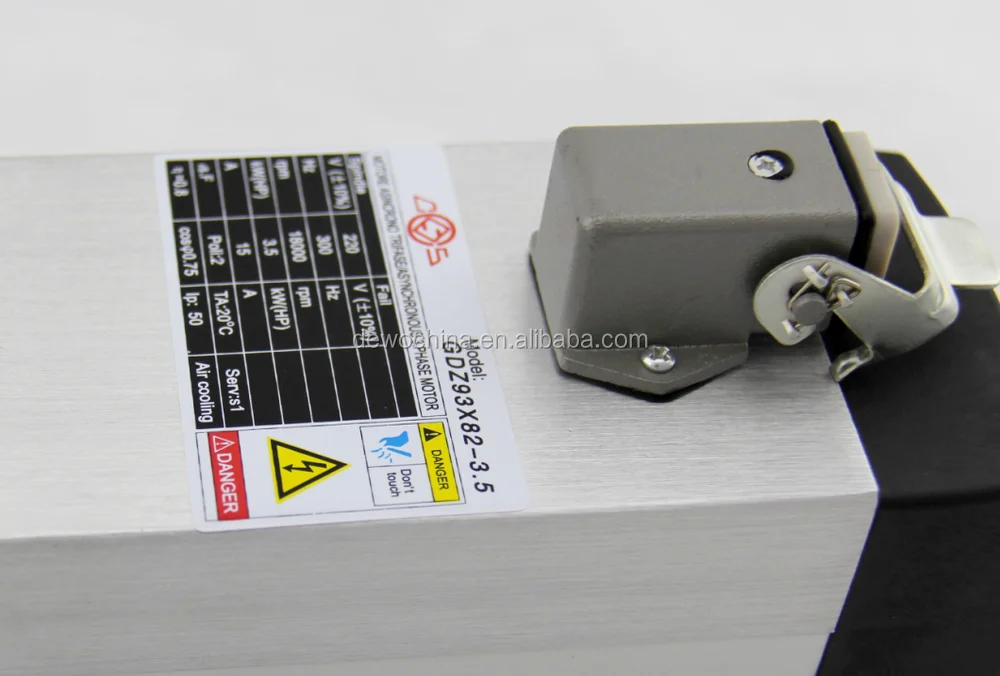

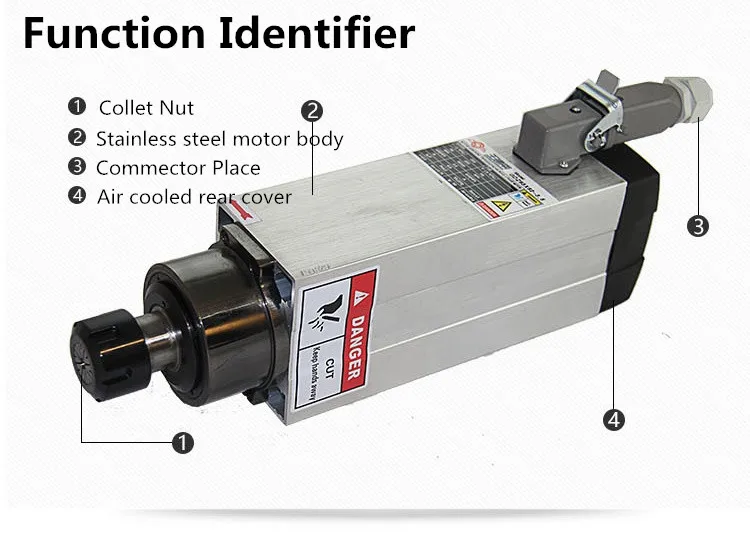

3.5KW square air cooling spindle motor ( GDZ93*82-3.5)





Model:GDZ93*82-3.5	Dimension:45,30,37	Collet: ER25
Power: 3.5kW	Voltage:220V or 380V	Current:13A/7.5A
Frequency:300HZ	Speed: 18000rpm	Cool: Air Cooling
Lub:Grease	Torque:1.21Nm	Weight: 9.0kg
Warranty period: Bearings=half a year, other parts a year







The datasheet of our air cooling spindle motor



TYPE		speed  (rpm)	power  (kw)	voltage  (V)	current  (A)	frequency  (HZ)	dimension			collect	product size(mm)			Weight (kg)
							L4	L5	L6		L1	L2	L3
round	GDZ65F-800	24000	0.8	220	4	400	Φ65			ER11	182.5	15	28.5	3
	GDZ80F-1.5	24000	1.5	220	5	400	Φ80			ER11	193.5	9	26	4.4
	GDZ80F-2.2	24000	2.2	220	8	400	Φ80			ER16	193.5	19.5	31.5	4.5
	GDZ80F-2.2	24000	2.2	220	8	400	Φ80			ER20	193.5	19.5	31.5	4.5
square	GDZ93*82-1.5	18000	1.5	220	6.6	300	45	30	20	ER20	137	44.5	37	6
				380	3.8
	GDZ93*82-2.2	18000	2.2	220	8	300	45	30	37	ER25	173	48.5	37	8
				380	4.6

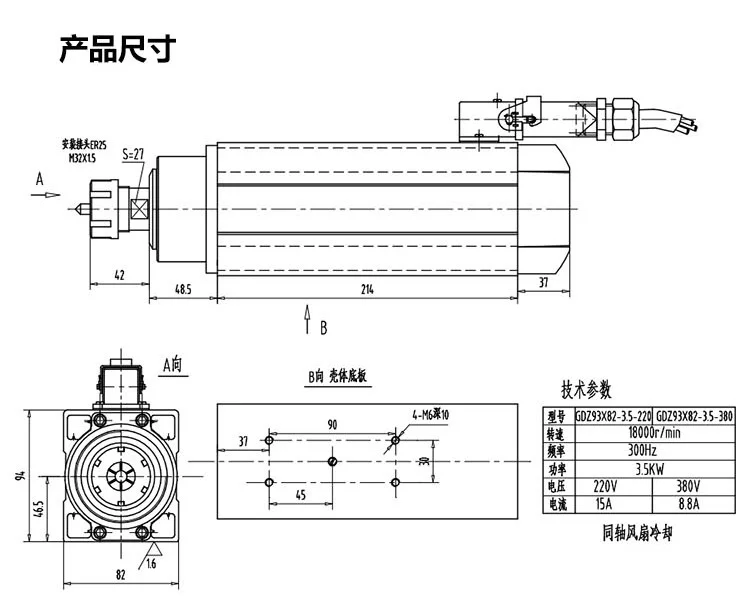

	GDZ93*82-3.5	18000	3.5	220	13	300	45	30	37	ER25	214	48.5	37	9
				380	7.5
	GDZ93*82-3.5D	18000	3.5	380	7.5	300	45	30	37	ER25,ER25	201.5	48.5	30.5	9.5
	GDZ120x103-4.5	18000	4.5	220	17.3	300	60	36	25	ER32	190	56.5	46.5	13
				380	10
	GDZ120*103-6	18000	6	220	20.8	300	60	36	40	ER32	233	56.5	46.5	15
				380	12
	GDZ120*103-7.5	18000	7.5	380	14.5	300	60	36	13	ER32	272	56.5	46.5	18
	GDZ170*150-12	18000	12	380	22	300	60	50	30	ER32orER40	279	67.5	41	28

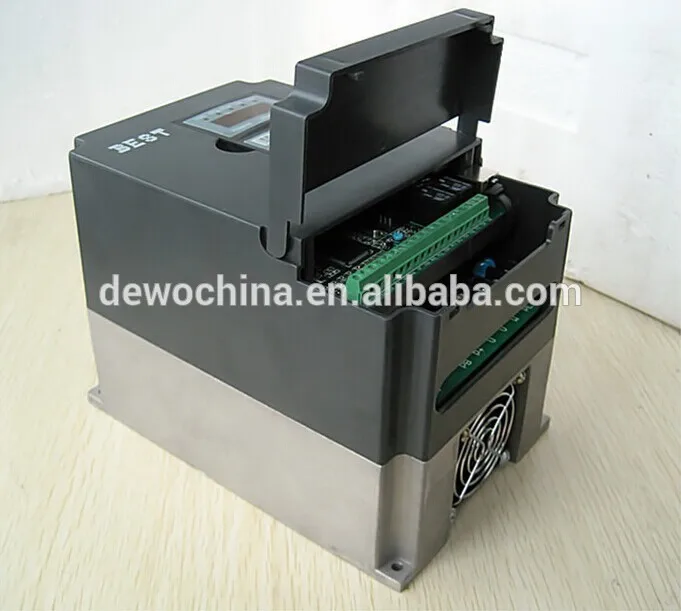

Suitable VFD (220VAC or 380VAC)

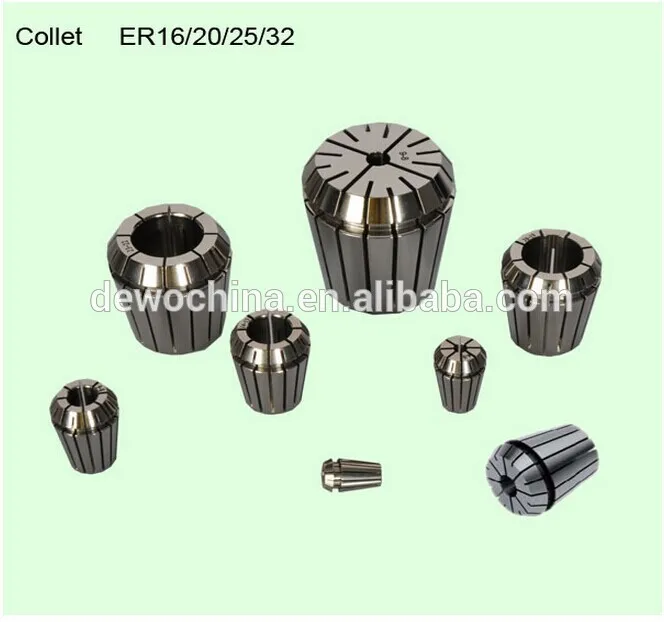

Suitable Collet (ER series)

Water Pump

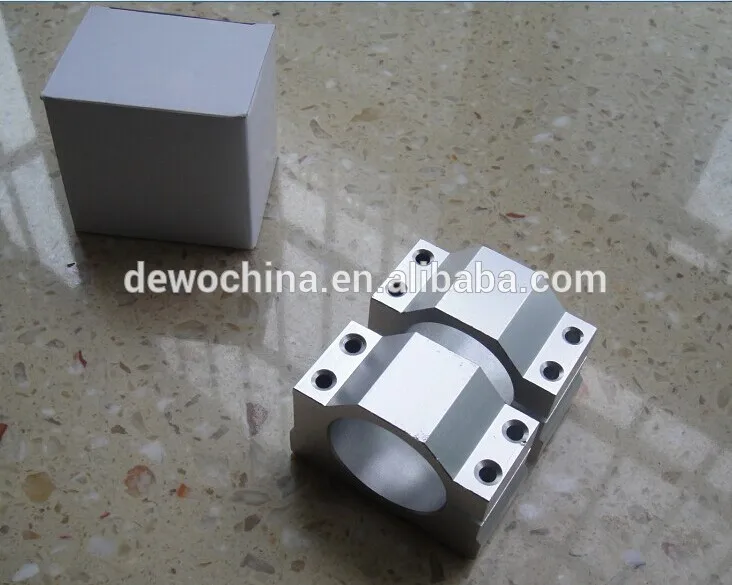

Bracket holder
