AIS GPS Buoy For Boat

FEATURE:

1. Long time battery, more than 240 house each time

2. Smart GPS antenna module allows an excellent GPS signal receiving

3. Stable and reliable RF performance

4. High-level waterproofing protection up to IPX7

5. Self developed AIS Fishing Net Tracking Buoy, allows you to get an accurate location at night, in rain, and fog.

Proved Performance

Up to 12nm from a ship with AIS A or B transponder

Application

Wanting for an accurate location of your fishing net? Wanting to save your time and fuel to find your net?

Self developed AIS Fishing Net Tracking Buoy, allows you to get an accurate location at night, in rain, and fog. Don’t worry about losing your fishing net anymore!

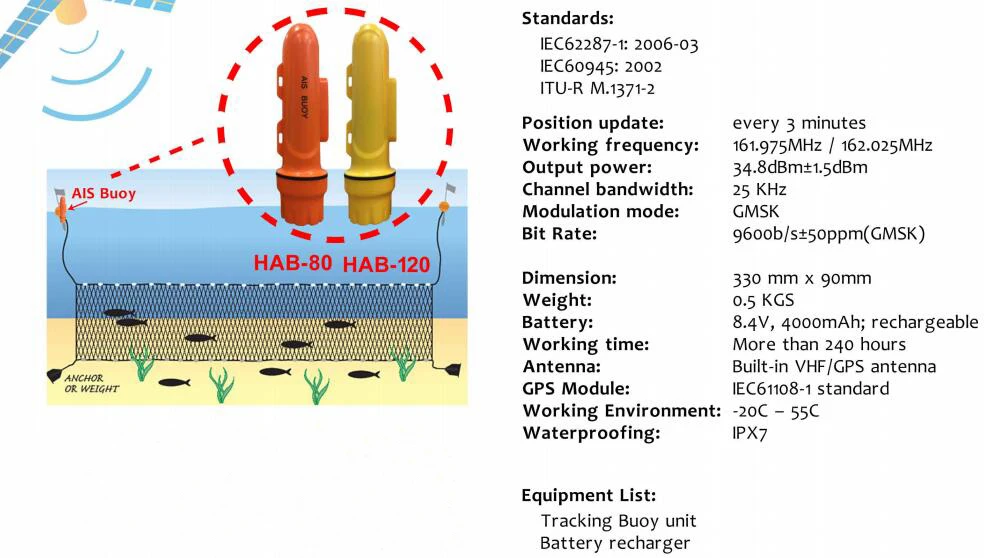

HAB-80 AIS Fishing Net Tracking Buoy unit uses advanced AIS technology to transmit the combined data that include the unique ID and the position of a net. And the data can be received effectively by the vessel equipped with AIS device, then easily recognized and find back the nets with HAB-80. Also it can avoid collision accidents by other boats.

Specification

Standards:

EC62287-1: 2006-03

IEC60945: 2002

ITU-R M.1371-2

Position update:                 every 3 minutes

Working frequency:          161.975MHz / 162.025MHz

Output power:                   34.8dBm±1.5dBm

Channel bandwidth:         25 KHz

Modulation mode:            GMSK

Bit Rate:                               9600b/s±50ppm(GMSK)

Dimension:                          330 mm x 90mm

Weight:                                0.5 KGS

Battery:                                8.4V, 4000mAh; rechargeable

Working time:                    More than 240 hours

Antenna:                             Built-in VHF/GPS antenna

GPS Module:                      IEC61108-1 standard

Working Environment:     -20C – 55C

Waterproofing:                        IPX7

Equipment List:

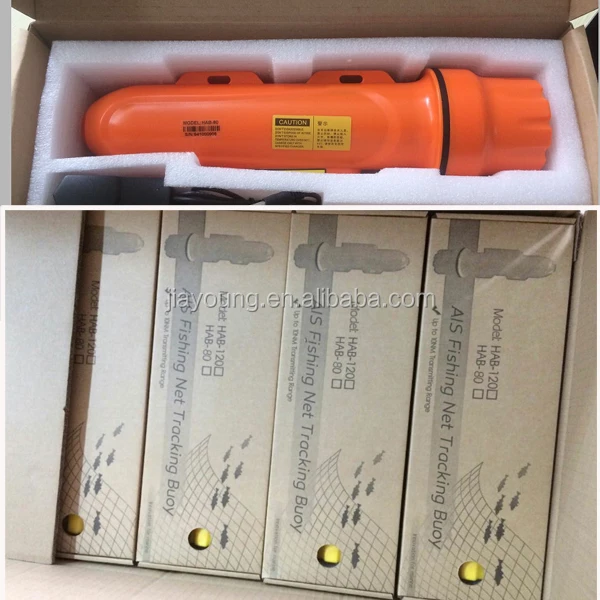

Tracking Buoy unit

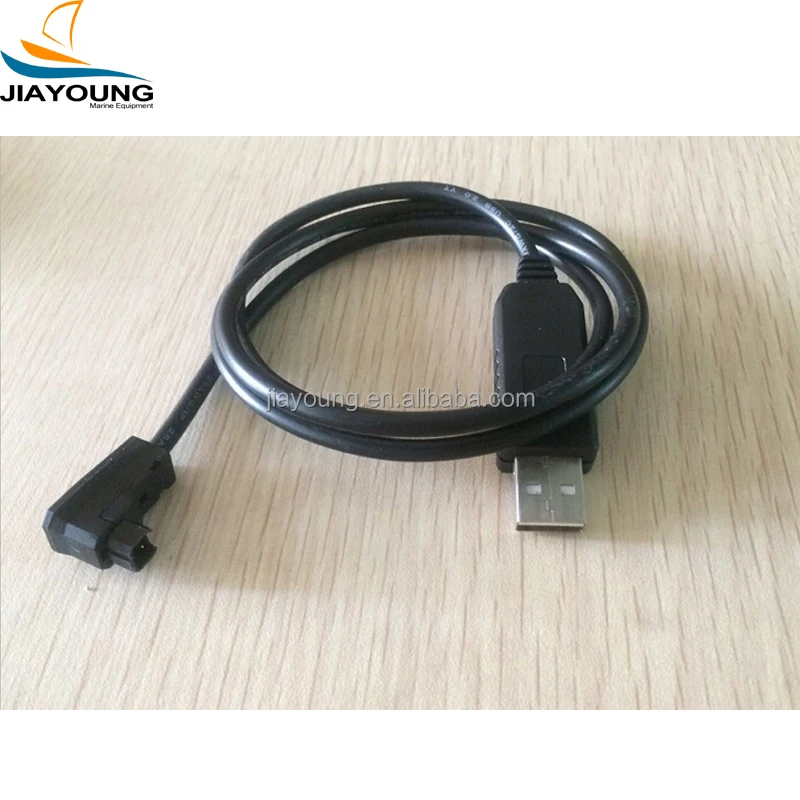

Battery recharger
