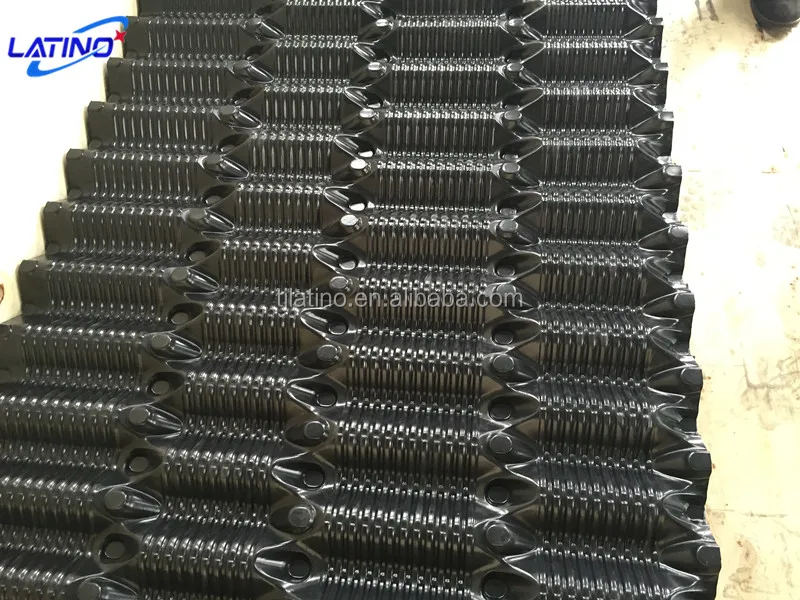

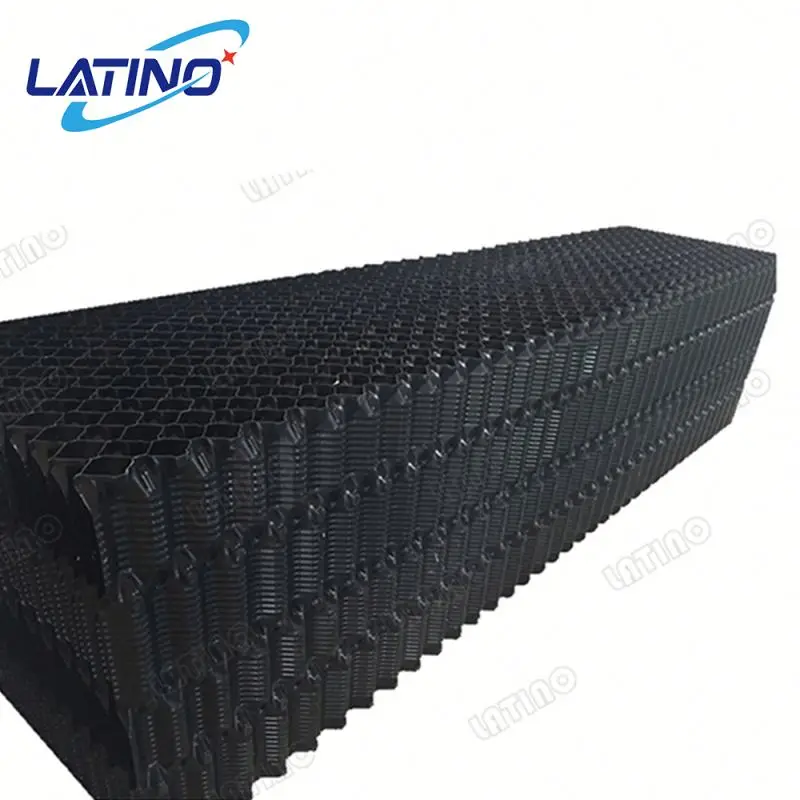

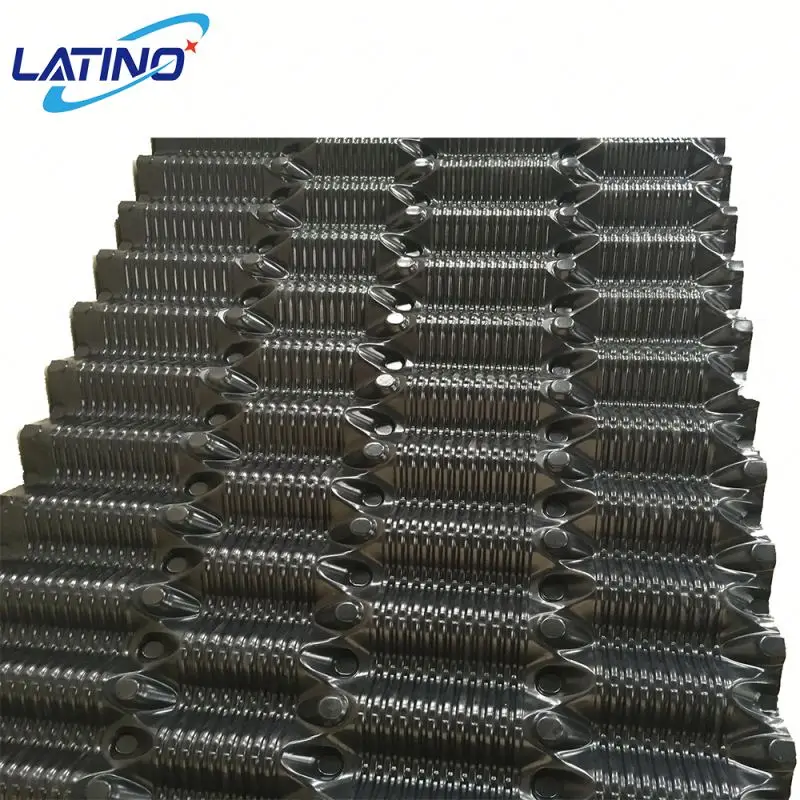

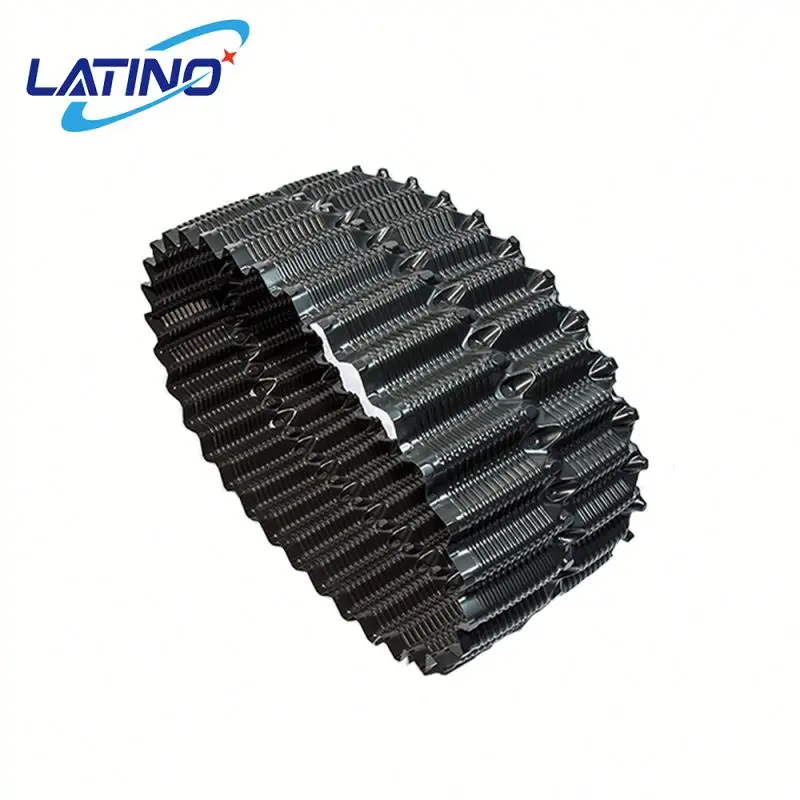

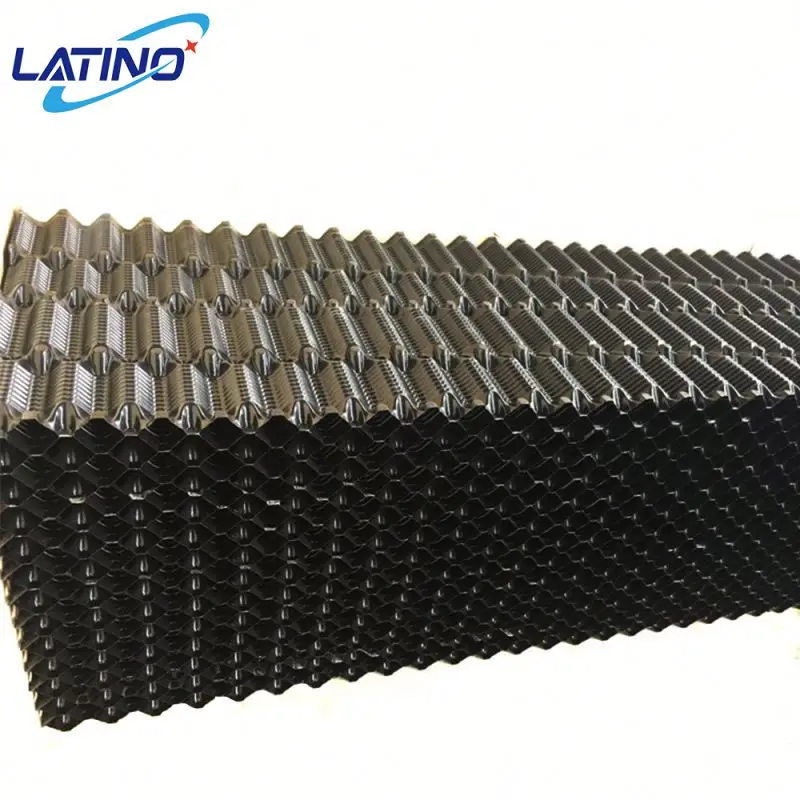

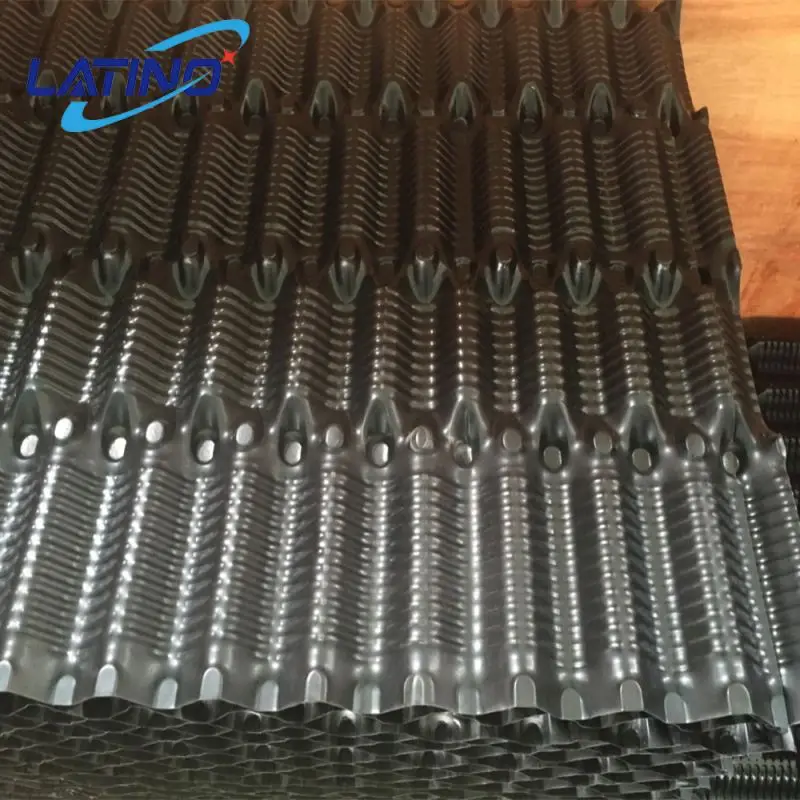

Пленка по лучшей цене, упаковка из ПВХ для охлаждающей башни

Product Overview

Description

Material	PVC	Colour	Dark gray to black
Fire Classification	M2	Typical module width (stacking)	1000 mm (or n*20 mm)
Typical module length	1998 mm (n*55.5 mm)	Typical module height	500 mm
Sheet thickness (before forming)	0.3 mm	Typical specific weight  (0.3 mm thick)	21.0 kg/m³ ± 5%
Sheet pitch	20 mm	Fouling rate coefficient	1.0 (base: SNCS=1.0)
Emptying factor	>95%	Specific heat exchange surface	149.0 m²/m³
Maximum debris size (Diameter)	17 mm	Maximum water temperature (continuous operation with fan on)	55°C
Maximum total suspended solid	50 ppm	Maximum salinity (sea water)	35 gr/l
Methods or support	Suspended or laid on beams



1. Other materials options are: U-PVC & ABS.

2. Sheet thickness of 0.35 to 0.6mm; varying module sizes; fire classification  (M1).

3. Temperature resistance (up to 80°C), Other colors may  be obtained.

4. The corrugated sheets are solvent welded (glued) together to form pack modules.

5. The gluing can be carried out on site to avoid large volume transportation.





1. Provide the inspection and expediting service if you’re also purchasing other items in China at the same time;

2. Special packaging design and loading optimization,if needed;

3. LATINO can also help customers to provide quality cost-effective sourcing agency service in dry cooling area and wet cooling area;

4. Quality guarantee is 12 months;



Q1. Are you a factory or a trading company?

A: We have our own factory, and separated the exporting business out as a separate company in the free zone of China.

Q2. How to define the product price?

A: PVC material is based on the thickness,vicat point, color, density,fire classification, packing and quantity.

Q3. Do you keep the stock of your products?

A: Yes, we maintain a certain amount of standard products inventory, in time to meet your needs.

Q4. Whether you have the ability to accept the product customization?

A: Products can be customized, we can make the new thermoforming or extruding mode based on your drawings and we can sign a confidentiality agreement about your patented product, pls contact us for any further information.

Q5. How to reassure those who doubt the product quality and actual situations?

A: A professional system can ensure the whole latest development which will be monitored by you through the reports in the diffferent stages.

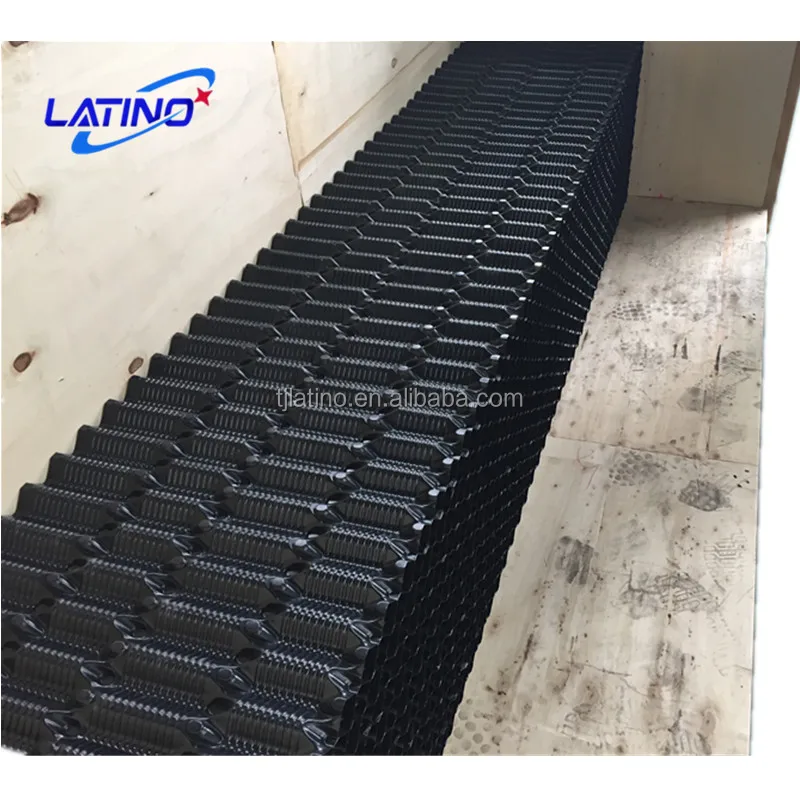

Packing Method:

Carton & Plastic Film, Pallet, Wooden Box or Crate, applicable to the container shipping.

Deliver Time:

Within 15days since receiving the deposit or according to the quantity of your need.

Transport Ways:

By sea, By air ,By express delivery.
