24W EMC Switching Power Supply module AC DC Converter 110V 220V ( 85V~265V) to 5V 6V 9V 12V 2A 15V 20V 24V 1A 26V 32V

Product Overview

Description





Bigger qty,better price.



Please contact with me!!!







24W EMC Switching Power Supply module AC - DC Converter 110V 220V ( 85V~265V) to 5V 6V 9V 12V 2A 15V 20V 24V 1A 26V 32V





We are factory! We produce MODULE ! CUSTOM-MADE module is OK! Our company produce your own board!





24W EMC Switching Power Supply module AC - DC Converter 110V 220V ( 85V~265V) to 5V 6V 9V 12V 2A 15V 20V 24V 1A 26V 32V

-----------------------------------------------------------------------------------------------------------------

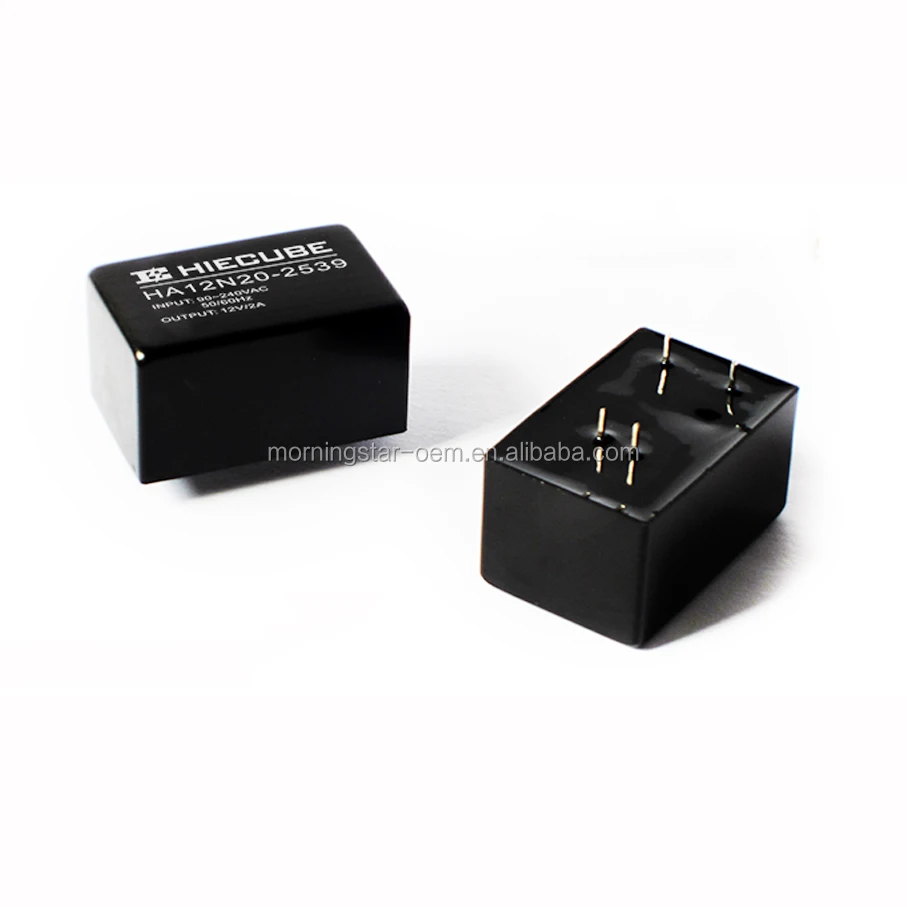

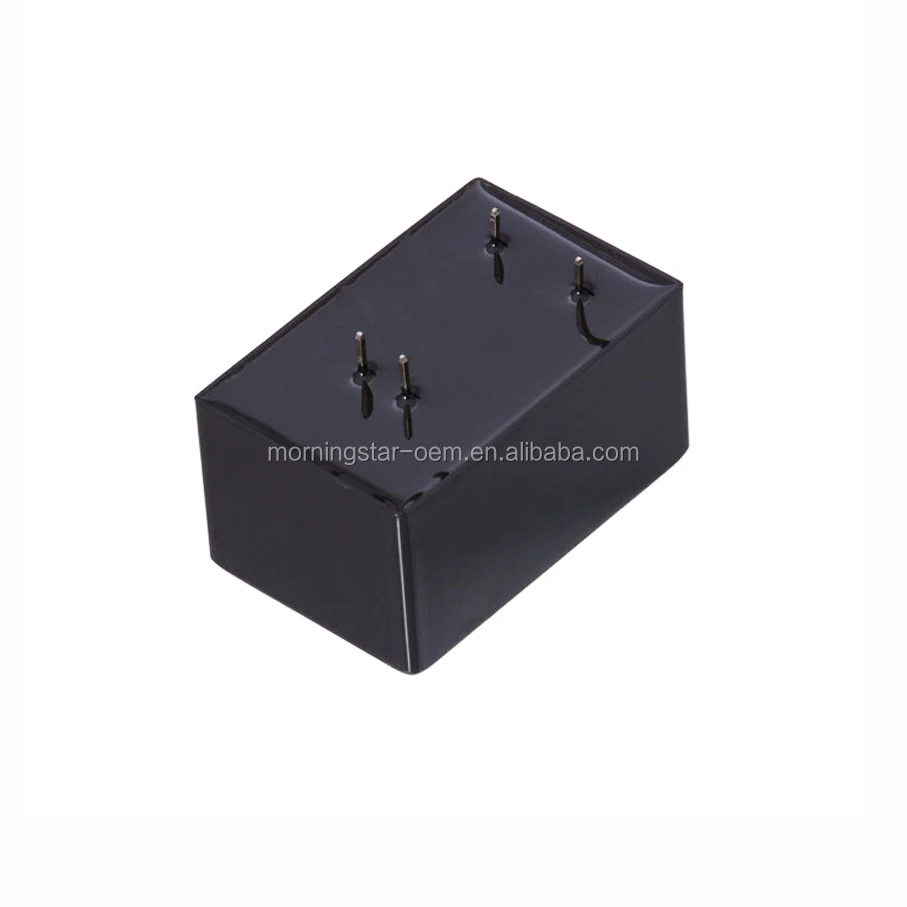

PRODUCT PICTURE





-----------------------------------------------------------------------------------------------------------------

PRODUCT FEATURE





Wide voltage input: AC65-285V / DC110V-385V
Overcurrent protection and output short circuit protection
High efficiency, high power density
Low power consumption, green environmental protection
Ultra small size: 25 * 39 * 22mm
Peripheral circuit design flexibility, reduce customer research and development issues
Meet CE RoHs certification

Weight: 47g
Shell material: Aluminum alloy
Cooling method: Natural cooling

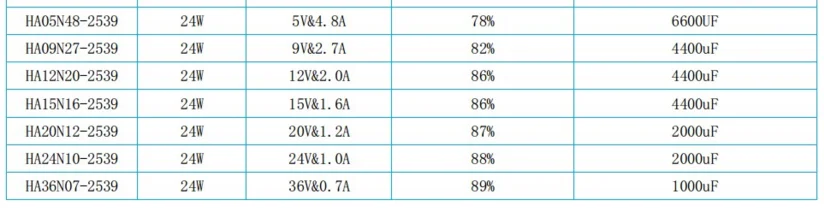

Optional:



        Part No.          Power             Output                 Efficiency                            Load

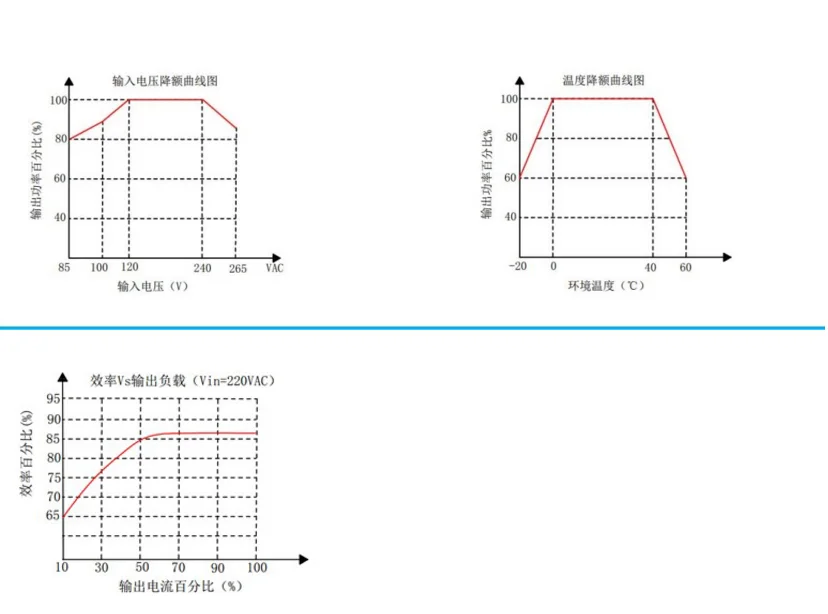

Product characteristic curve

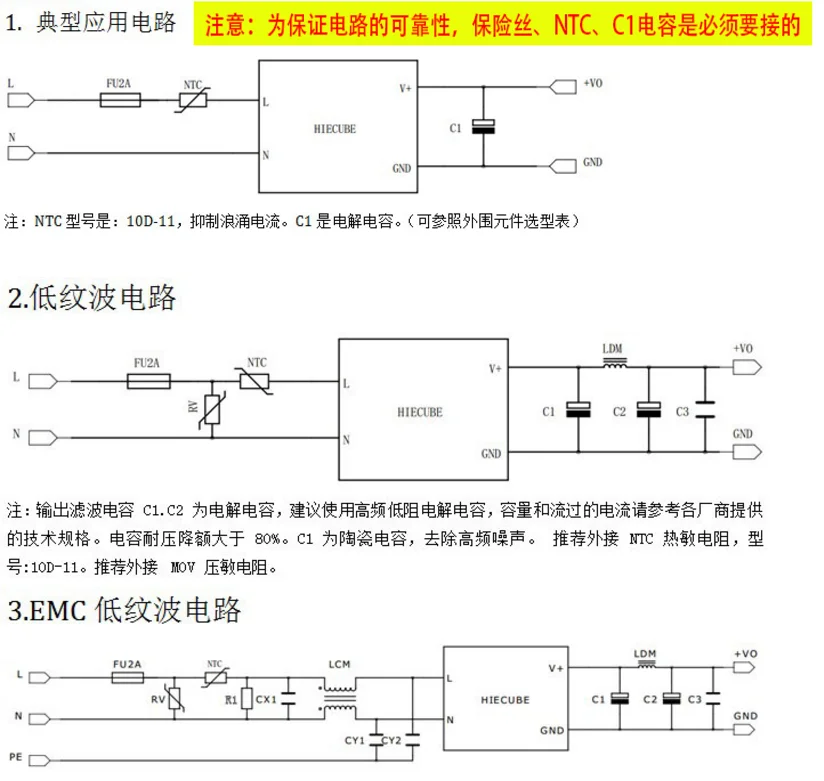

Reference design

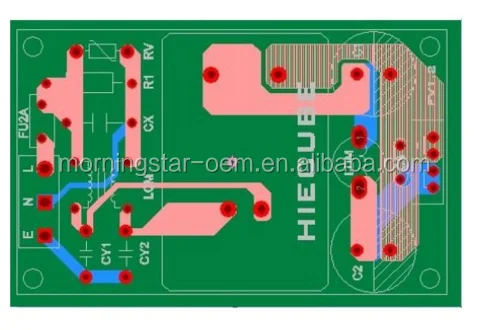

EMC Solution Recommended Circuit - DEMO Board

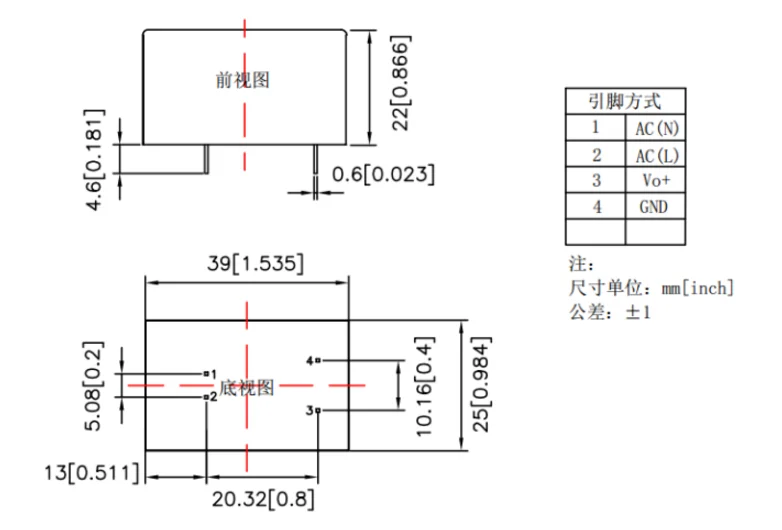

Peripheral appearance dimensions



-----------------------------------------------------------------------------------------------------------------
SHIPPING TERMS





1.Ship to whole world : DHL , UPS, FEDEX, EMS, HKPOST, SGPOST,SWPOST



2.Lead time:2days. If we don't have stock t that time, it takes 2-4days to produce it.



 ------------------------------------------------------------------------------------------------------------------
PAYMENT TERMS




1.We accept PAYPAL, TT, WESTERN UNION, ESCROW



2.Commission:
   *Paypal: total sum *0.041
   *Escrow: total sum *0.05
   *TT: $28-$45(according to amount)
   *Western union: $0



---------------------------------------------------------------------------------------------------------------------
GUARANTEE PERIOD





    3 Months, if the quality have any problems, We have a good after sale



service team will slove the quality problems for you.



1.If you test the products and it doesn't work, pls keep it and send it to us in



   1 month, we will send the good one to you with the following order.



2.If the product is already used by you, then no warranty.



3.If the product is broken by man-made, then no warranty.



----------------------------------------------------------------------------------------------------------------------
CONTACT US
