ELTH 009 thermostat for Electrolux Whirlpool refrigerator
- Category: >>>
- Supplier: Ningbo Lingtong Electric Appliance Co. Ltd.Ningbo Ltd.
Share on (60690640149):
Product Overview
Description

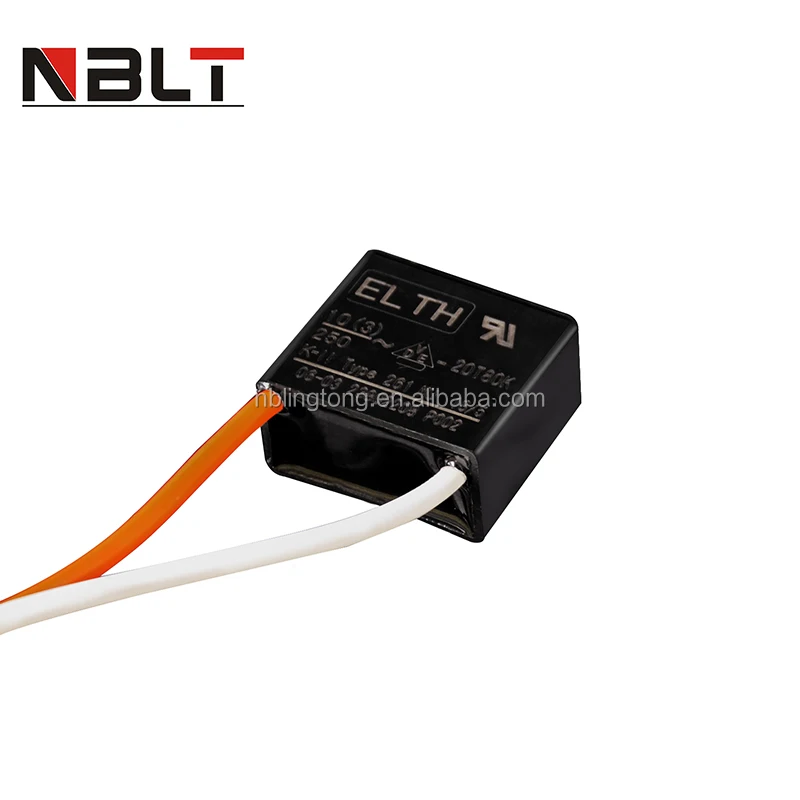

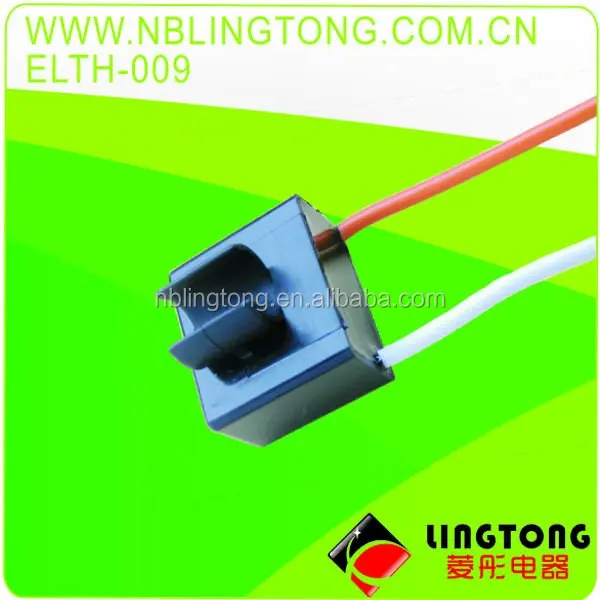

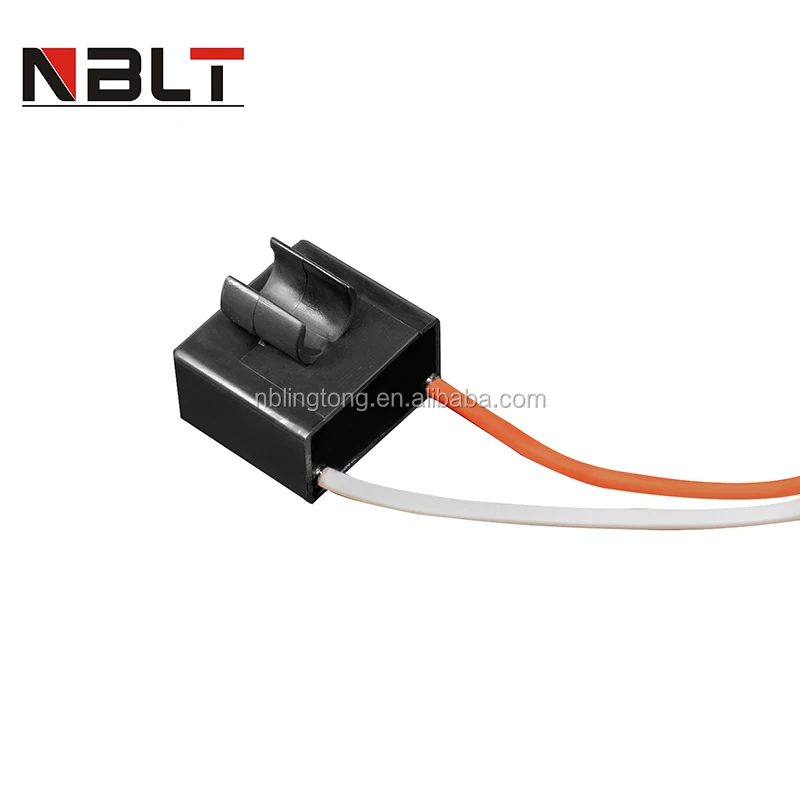

ELTH-009 thermostat for Electrolux Whirlpool refrigerator
Specification
ltem NO | ELTH-009 |
Use | Defrost/Temperature control/Protection |
Appliance | refrigerators, freezer |
Reset type | Automatic |
Basic material | Bakelite, Epoxy Resin, PA |
Electric rate | 125V 5A / 250V 10A |
Temperature | OPEN:11°C CLOSE:-2°C |
Differential | According to the requirement |
Insulation resistance | ≥100MΩ |
Tolerance | Refer to the regulation |
Contact material | Silver |
Dielectric Strength | Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC current, which is nearly sine wave, for one minute as bearing test. Resulted no breakdown, no flashover. |
Insulation Resistance | With a DC 500V megger, borne DC 500V, the tested value is over 10MW. |
Resistance Between Terminals | Below 50mW |
Temperature characteristics | Normal close, Normal open |
Maximum Ambient Temperature | 90°C |
Diameter of Bimetal Disc | F12.8mm(1/2″) |
Line | Color: white/brown/yellow/blue Length: customized |
Terminal type | Customized (Refer to our specification) |
Cover/Bracket | Customized (Refer to our specification) |
Sample Price | Free sample USD 50 freight charge, refund after mass order |
