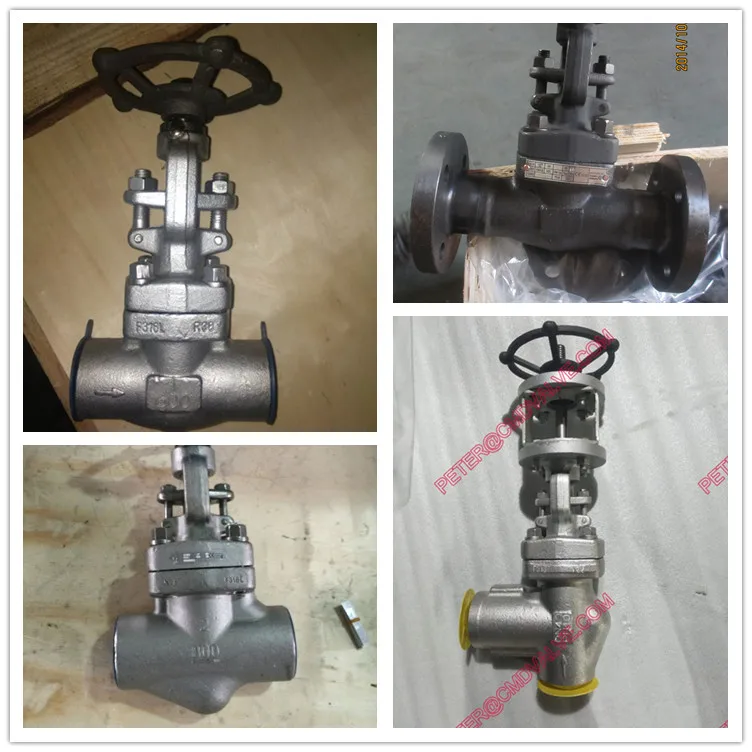

API Class 800 Threaded Both Ends 1 2 3/4 inch 304 316L Gate Valve

Product Overview

Description

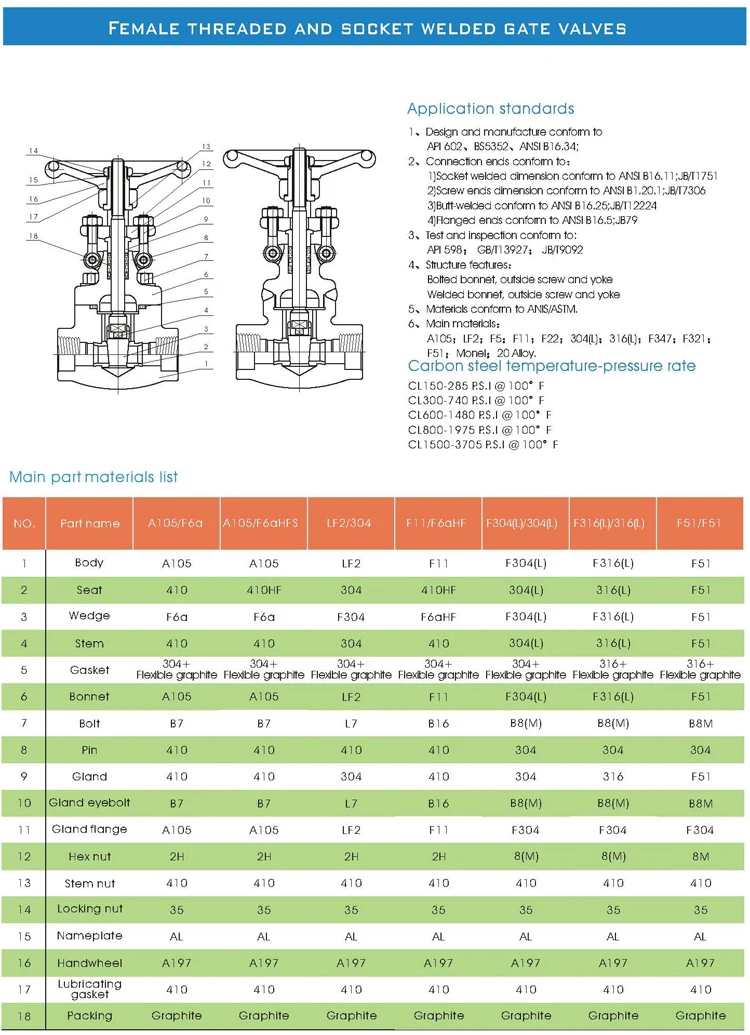

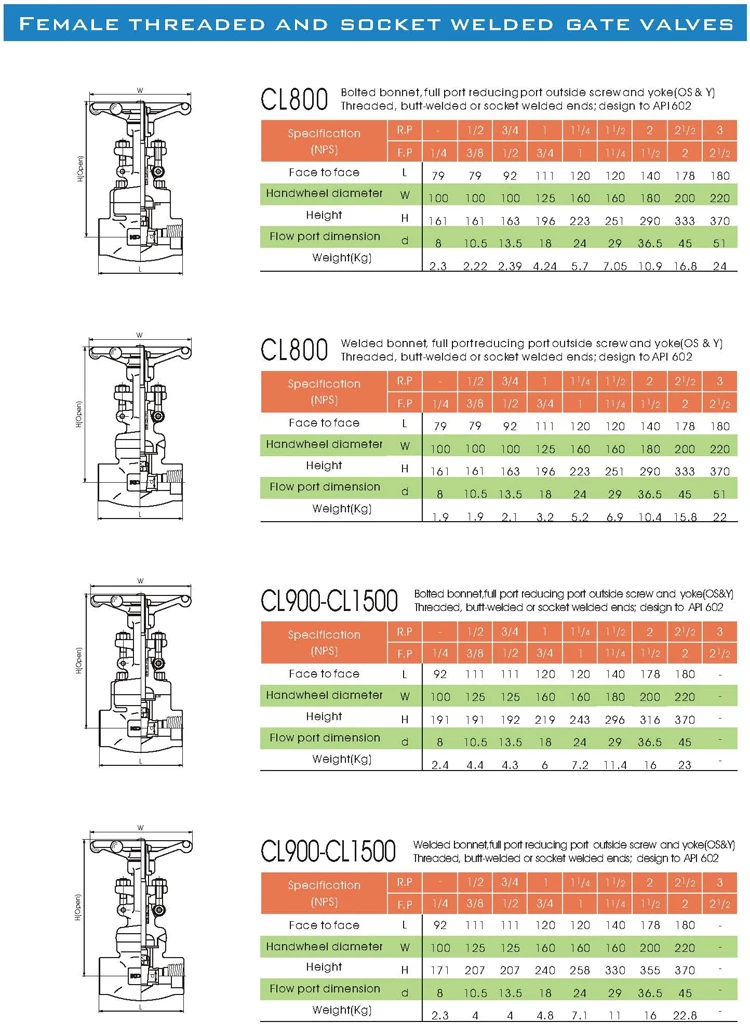

SPECIFICATIONS FOR FORGED STEEL GATE VALVES
Pressure rating and size:	150LB - 2500LB
	DN8 to DN50
	1/4"~2"
Material:	Body : A105,LF2,F11+HF,F304(L),F316(L),F51
	Disc  : F6a,F304,F304(L),F316(L),F51GG2
	Stem : 410,304,304(L),316(L),F51
	Bonnet : A105,LF2,F11+HF,F304(L),F316(L),F51
Operated type	Handwheel, Gear, Electric, Bare shaft and etc.
Structure:	Rising stem or non-rising stem
Flange connection:	EN1092, ANSI B16.5, BS4504, JIS B2212
Medium:	Water
Temperature:	80°C
