Product Overview
Description
Waterproof Brass Cable Gland Metal Compression cable connector
Product Description:
Type: PG, M, NPT, G
Material: Brass with nickel plated
Clamp jaw: Nylon PA(UL File NO: E240925). UL94-V2
Sealing element: NBR
Thread type: Metric according to EN 60423
Test standard: EN50262/ EN62444
Advantage: Waterproof, Dustproof, Oil-Proof, Fixed
Protection degree: IP68/IP69K(the wire/cable is in clamping range, and assemble O-Ring on the groove.)
Operating temperature: -40ºC to +100ºC
Application: Suitable for all sealing, fixed, non-slip, the occasion of high temperature requirements.
Note: If you need other material of sealing element, such as Silicone, EPDM, etc. Plz feel free to contact us!
| PG Type | ||||||
| Type | Cable range (mm) | Thread O.D.L2(mm) | Thread length L1(mm) | Spanner size A&E(mm) | ||
| YF-PG7 | 3-6.5 | 12.5 | 6 | 14 | ||
| YF-PG9 | 4-8 | 15.2 | 7 | 18 | ||
| YF-PG11 | 5-10 | 18.6 | 7 | 20 | ||
| YF-PG13.5 | 6-12 | 20.4 | 7.5 | 22 | ||
| YF-PG16 | 10-14 | 22.5 | 7.5 | 24 | ||
| YF-PG21 | 13-18 | 28.3 | 8 | 30 | ||
| YF-PG29 | 18-25 | 37 | 9 | 40 | ||
| YF-PG36 | 22-33 | 47 | 9 | 50 | ||
| YF-PG42 | 32-38 | 54 | 10 | 57 | ||
| YF-PG48 | 37-44 | 59.3 | 11 | 64 | ||
| M Type | ||||||
| Type | Cable range (mm) | Thread O.D.L2(mm) | Thread length L1(mm) | Spanner size A&E(mm) | ||
| YF-M12×1.5 | 3-6.5 | 12 | 6 | 14 | ||
| YF-M16×1.5 | 4-8 | 16 | 7 | 18 | ||
| YF-M18×1.5 | 5-10 | 18 | 7 | 20 | ||
| YF-M20×1.5 | 6-12 | 20 | 7.5 | 22 | ||
| YF-M22×1.5 | 10-14 | 22 | 7.5 | 24 | ||
| YF-M25×1.5 | 10-14 | 25 | 9 | 30 | ||
| YF-M32×1.5 | 18-22 | 32 | 10 | 36 | ||
| YF-M40×1.5 | 18-25 | 40 | 10 | 50 | ||
| YF-M50×1.5 | 32-38 | 50 | 10 | 57 | ||
| YF-M63×1.5 | 37-44 | 63 | 11 | 68 | ||

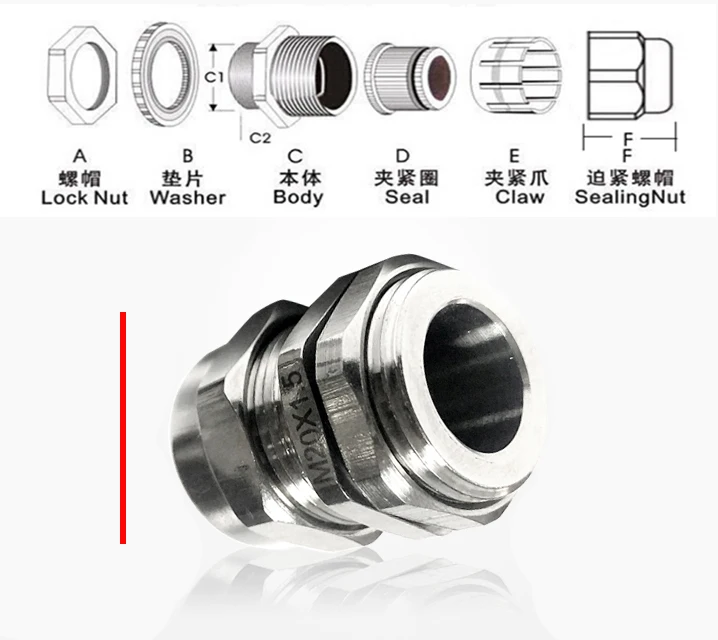

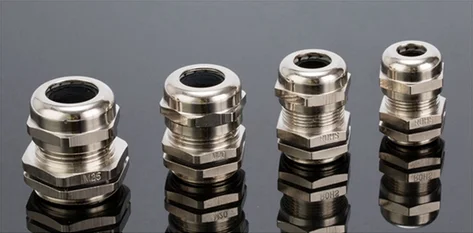

Products detail picture:
Other
•Common Packing:100Pcs+Polybag+Label+Export Carton
•Customized Packing:Header card packing,Blister with card packing,Double Blister packing,Canister packing,other packing can be supplied according customers requirement.
•Provide professional sales person to communicate with you before the order.
•Provide optimum system solution based on each client's export.
•Provide strict check for each part and each process before export.
•Provide post-sale service, including installation, technical guide and training.
1.Are you factory or trading company?
Yes,we are manufacturing in Zhejiang ,China. We can give you the competitive price & after sale service.
2. How many days will it take to delivery the goods?
It denpends on your order quantity,small quantity will delivery the goods in 1-7days,if your order is big enough ,it make take 10~15 days.
3.Could I print my own logo on the bag?
Yes,your logo can be printed as your demand, we offer OEM service.
4. How many days will it take to delivery the goods?
It denpends on your order quantity,small quantity will delivery the goods in 1-7days,if your order is big enough ,it make take 10~15 days.
