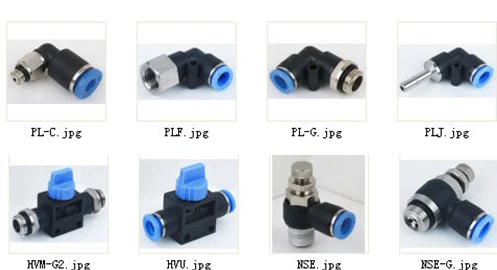

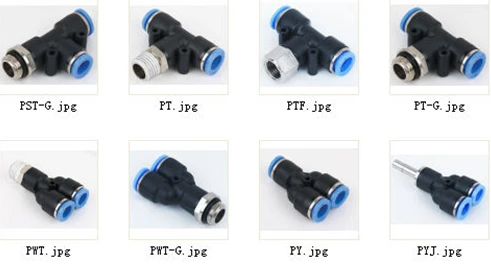

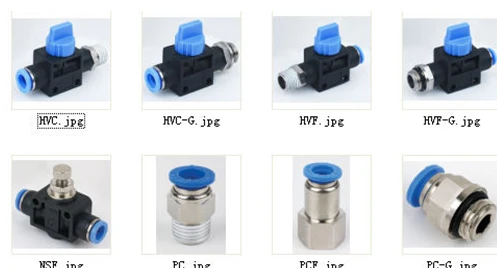

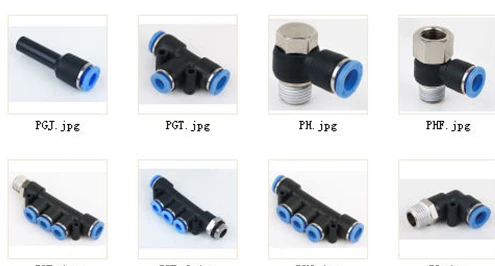

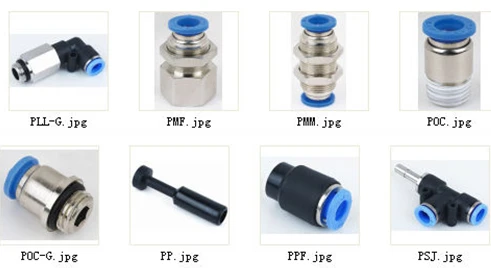

Pneumatic Kailing Pipe Fitting Plastic Pneumatic Air Hose Connector for PU Tube
- Category: >>>
- Supplier: Ningbo Kailing Pneumatic Co. Ltd.
Share on (60690651209):
Product Overview
Description
Specifications:
Fluid: Air(No other type of gas or fluid)
Working Pressure: 0-150PSI
Negative Pressure: -750mm Hg
Working Temperature: 0-60'C
Fluid: Air(No other type of gas or fluid)
Working Pressure: 0-150PSI
Negative Pressure: -750mm Hg
Working Temperature: 0-60'C
Description:
· Designed for Polyurethane or Nylon tubing.
· Made from nickel plated brass for corrosion resistance.
· Even after installation, the direction of the tube can be changed freely.
· Elliptical release ring help to connect tube easily by manual, no special tools required.
· Outside (and Inside where applicable) hexagonal wrench tightening.
(2) Tube Out Diameter
| Metric Tube Size | ||||||
| Code | 04 | 06 | 08 | 10 | 12 | 16 |
| Size | 4mm | 6mm | 8mm | 10mm | 12mm | 16mm |
(3)Thread Size
| Thread Port Size | ||||||
| Code | M5 | M6 | 01 | 02 | 03 | 04 |
| Size | M5*0.8 | M6*1.0 | R1/8'' | R1/4'' | R3/8'' | R1/2'' |
We will give you a reply within 24 hours after receiving your inquiry.
