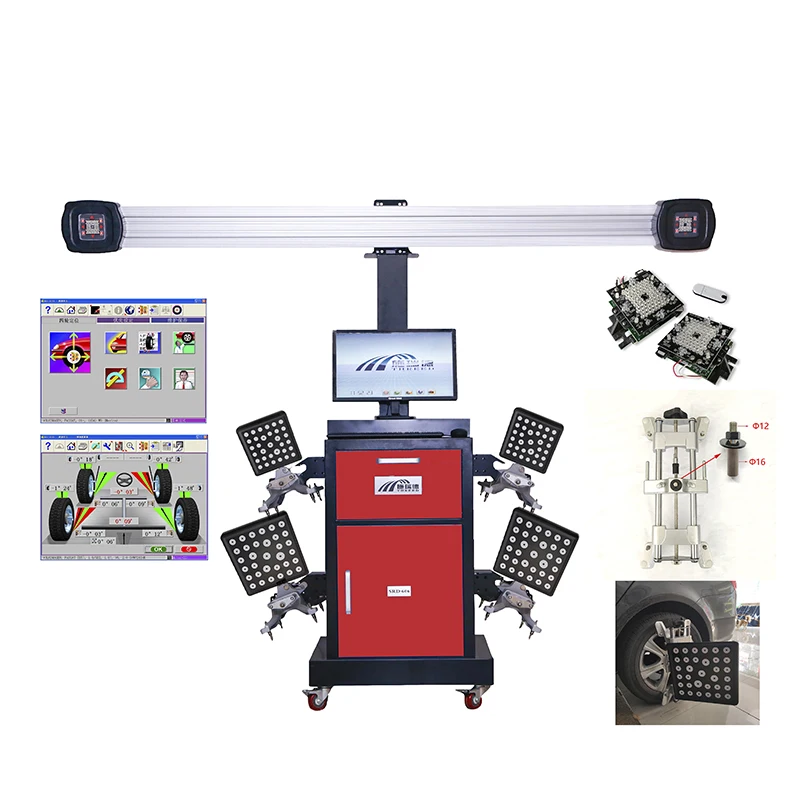

3D wheel alignment machine SRD606 good CIF price directly order

Share on (60690674531):


Price:$2,500.00 - $2,800.00

Quantity:


Product Overview

Description


Special Notice:


The price is CIF price,means the shipment way is by sea,and it need to be confirmed the nearest sea port to your city ,if the destination sea port is available,we can offer the CIF price as the website show.If you choose other shipment way,please contact us to discuss and confirm the destination air port,and we will quote you the final price including the air shipment cost.

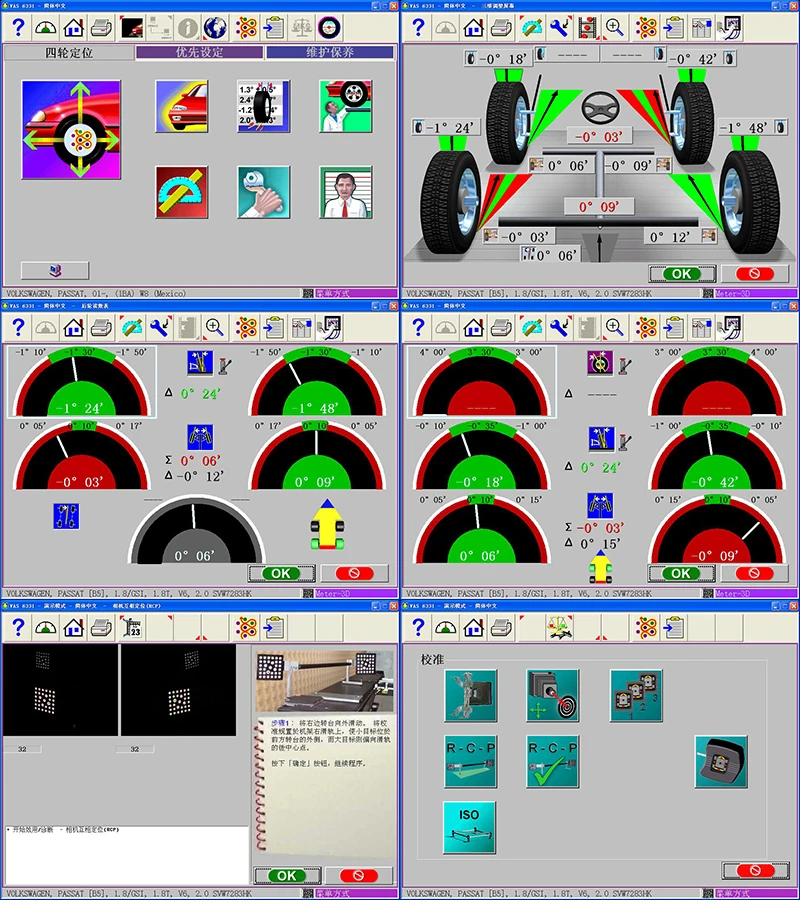

English,Russian,Spanish,Portuguese ,Korean,Thai language was available to the software interface.




Product Description






PRODUCT FEATURE:
• Min installation distance: 1.2m
• Max installation distance: 4m
• Measurement time: 12 seconds
• Measurement accuracy: 1'
• No affected from the unlevel of lift and the parking position of the vehicle.

CORE COMPONENT:
• 5 million pixel 3D camera technology, the display precision 0.01°.
• High precision target plate, made of imported materials, durable.

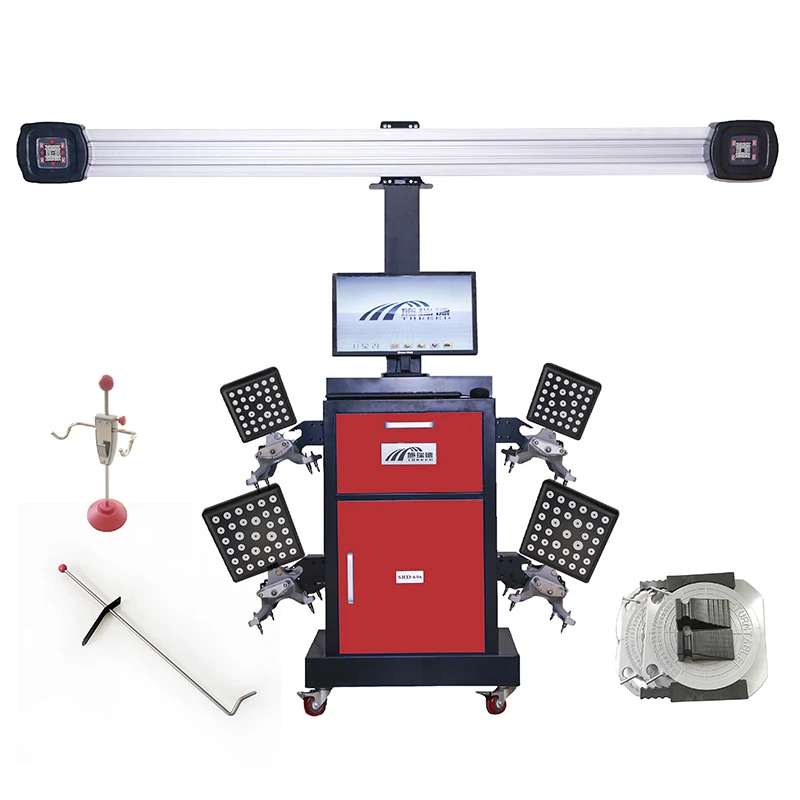

STANDARD CONFIGURATION:

































































 Part description SRD-606
 Camera beam assy 1 set
 Software dongle 1 pc
 Mounting pole assy 1 set
 Trolley cabinet 1 set
 Target 1 set (4pcs)

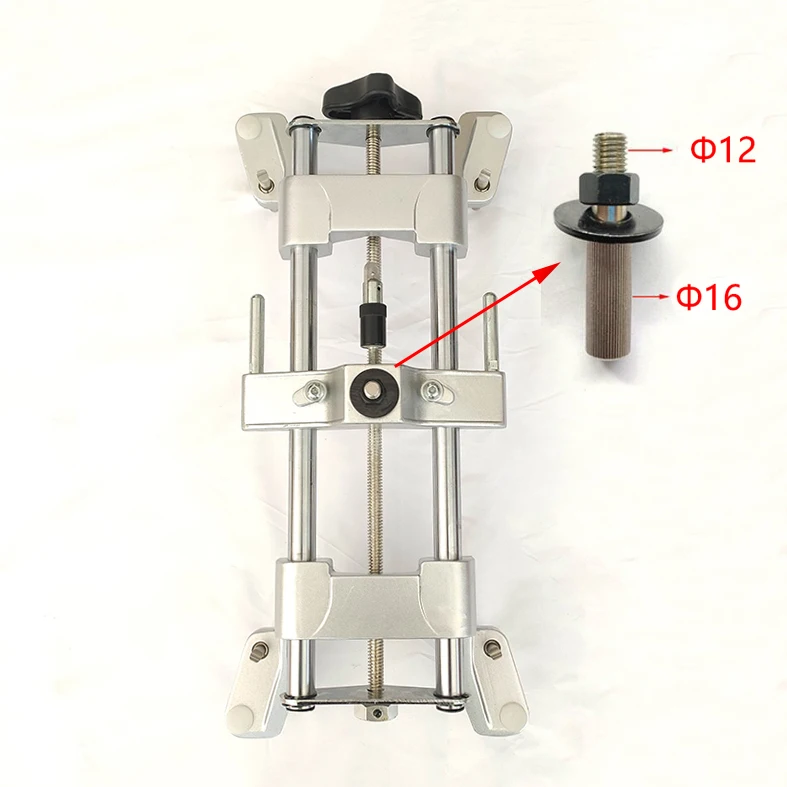

 Wheel clamp 1 set (4pcs)
 Turntable 1 set (2pcs)
 Steering lock 1 pc
 Brake lock 1 pc
 Wheel chock 2 pc
 Computer 1 set
 monitor 1 pc
 Mouse keyboard 1 set
 Electrical grounding stick 1 pc




MEASUREMENT PARAMETERS:



















































































 ParametersAccuracyRange
 Front wheel total toe±1′±40°
 Front wheel single toe±1′±20°
 Rear wheel total toe±1′±40°
 Rear wheel single toe±1′±2
 Front wheel camber±1′±2
 Rear wheel camber±1′±2
 Caster±1′±2
 Kingpin inclination±1′±2
 Thrust angle±1′±2
 Steering forward angle±1′±2
 Wheel base1mm1000-4000mm
 Wheel distance1mm800-2500mm
 Axle offset1mm≤50mm
 Computing cycle12 seconds
 Maintenance beat≤5 minutes


Quality control


 wheel aligner 3d

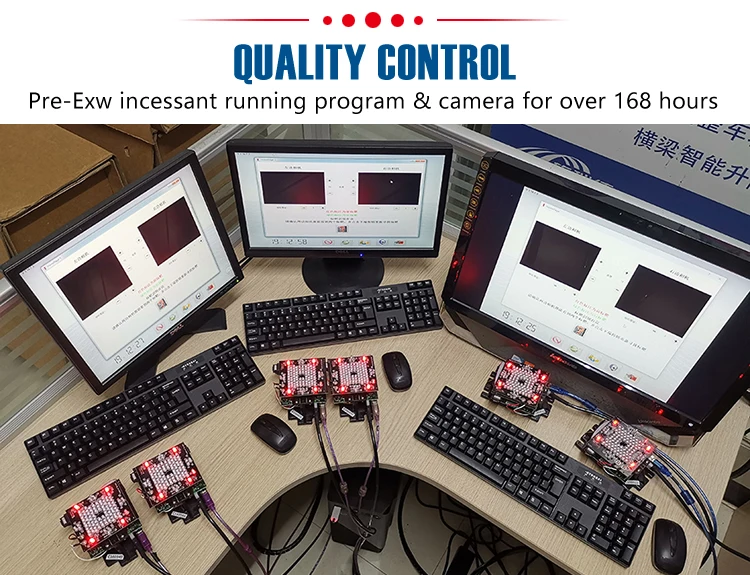

Camera testing procedure


Pre-Exw incessant running program & camera for over 168 hours.

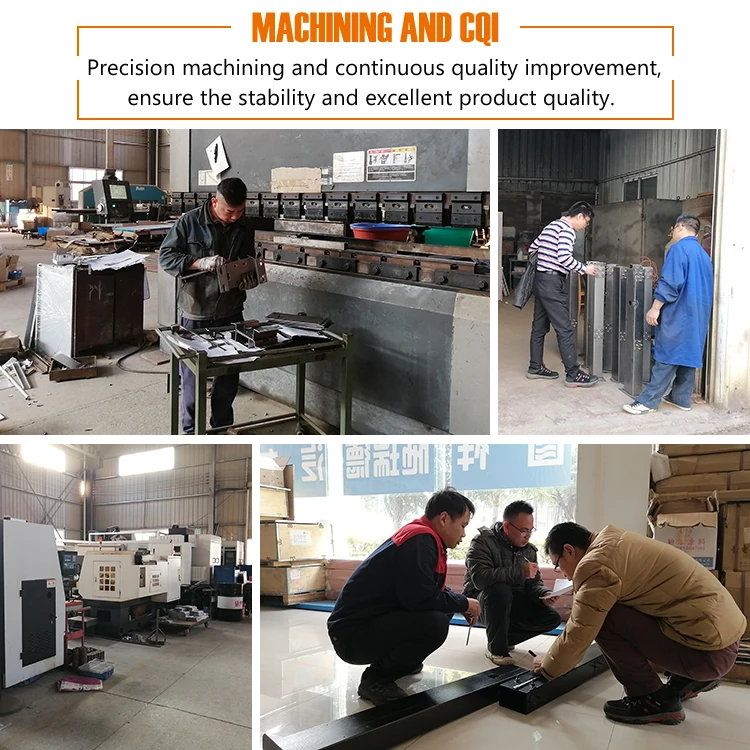

wheel aligner machining and CQI
Precision machining and continuous quality improvement, ensure the stability and excellent product quality.
3d wheel aligner


.jpg


 The machine's outstanding performance and stable quality is appreciated.





Packaging & Shipping


 wheel aligner machine


Export standard package, professional forwarder shipment,goods transportation safety.
Packing dimension:  2930*340*330 mm; 550*310*550 mm;  1170*680*770mm
Volume: 1.08CBM





Certifications


 wheel aligner equipment


 The company possess a number of independent intellectual property rights, products have passed the CE certification of the EU.





Our customer


 wheel alignment


wheel alignment


Sinomake 3D car wheel alignment machine had exported to all over the world, including USA, EU, Russia, Brazil, India, South Africa, Korea, Middle East and ASEAN.





Company Information





wheel aligner


 SINOMAKE R&D CenterGUILIN SINOMAKE SCI-TECHNOLOGY DEVELOPMENT CO., LTD
SINOMAKE is a professional manufacturer of 3D wheel alignment and other vehicle equipment in china, with over 18 years manufacturing experience and servicing over 3000 end user all over the world.

Main products including:
-- Wheel alignment;
-- Car lifting machine;
-- Wheel balancer;
-- Tire changer;
-- Target;
and other auto repair and maintenance equipment.
Our products are extensively used in automobile maintenance and repair industry,
With high quality supplier, advanced technology, and factory price.





FAQ


Q: How do you control your production quality?
A: We have an independent QC team. Our QC teams do inspections during each manufacture process, camera manufacture process, target manufacture process, and complete machine assemble process. Furthermore, we require 100% final inspection before each shipment.
Q: Can I have a visit to your company before placing an order?
A: Sure, welcome to visit Sinomake. Our factory lacates in Guilin, Guangxi province, a very beautiful landscape city,South China.
Q: What kind of support can I get if I am Sinomake agent?
A: Bottom price, free catalog and gift for marketing, on site training.
Q: May I know the Lead time?
A:The lead time of our machine is 7 to 15 days.
Q: What is your payment terms?
We accept Alibaba Trade Assurance, TT, LC, etc.
Q: How long is the warranty?
A: For the main parts, such as camera, target, we offer warranty 18 months, we will send free parts for replacement in warranty, supply spare parts for lifetime.
Q: Are you a manufacturer?
A: Of course, Sinomake is really manufacturer of 3d wheel aligner, with 18 years professional manufacturing experience in 4 wheel alignment, specializing in software R&D, we also offer OEM to wheel aligner factory both in domestic and oversea.
