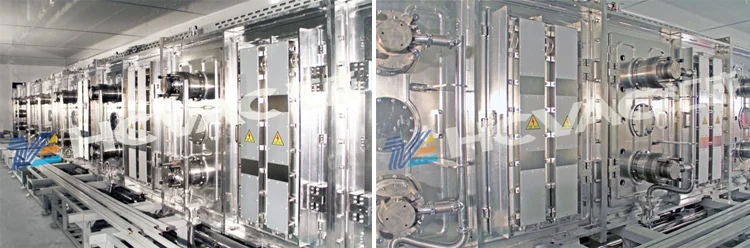

magnetron sputtering coating line for aluminum and silver mirror

Product Overview

Description



Continuous Magnetron Sputtering Coating production line of HC company is the industry's striking vacuum coating technology production lines, high performance, high efficiency and reliable stability.



Whether it be architectural glass for facades, large display screens or special coatings, in all these cases large substrates are coated and millions of square meters receive highly complex functional layers which ultimately provide the desired properties. Piece by piece and with the highest precision and repeatability.

HCVAC provides the equipment to master the challenges of large-area coating for the applications mentioned above and many more. Modular design, optimized processes, energy efficiency, high throughput and accurate quality control are just some of the features you can expect from us.



Whatever your large-area application may be, HCVAC has the solution: from giant architectural glass coaters via precision display coating machines to sophisticated laboratory equipment.













Breakthrough Innovation and Technology

1. Coating based on the world's most popular rotating cathode, sputtering rate greatly increased, while usage of target has increased by 200% or more. Effectively reducing the production cost.



2. Using the most advanced infrared heating system in the world, the system can achieve short heating time,fast heating up, energy consumption is less than 1/3 of conventional heating pipe. The ordinary heat pipe vacuum chamber evenly heated to 400 °C need 2-3 hours at least with constantly heated.However, because of the special circumstances of the vacuum chamber and infrared heating tube targeted design, you can complete vacuum chamber preheating process within 1-1.5 hours.













HCVAC Continuous Magnetron Sputtering Coating production line is mainly used in touch screen, acrylic, glass, ceramics, mobile shell, computers, PET, etc.. Coated high-quality, high-performance metal film, electromagnetic shielding film, reaction film, composite film, the transparent conductive film, radiation (AR), the reflection-increasing film, LOW-E film, etc.. The company can provide the design in demand of customer.At present, products and process throughout the country and overseas.











The coating experts of your own company:Full set solution for the coating production.

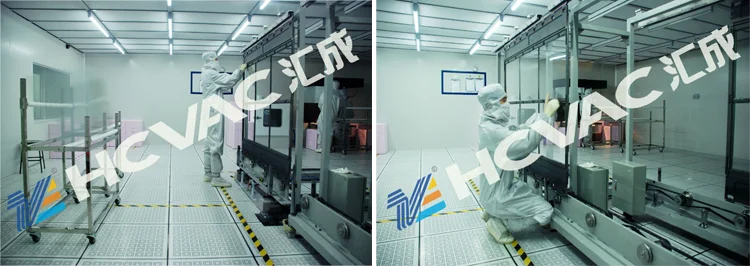

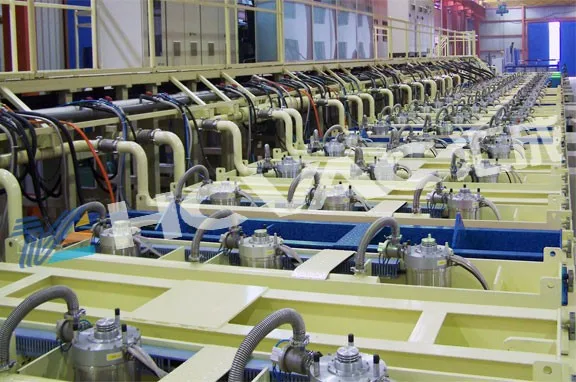

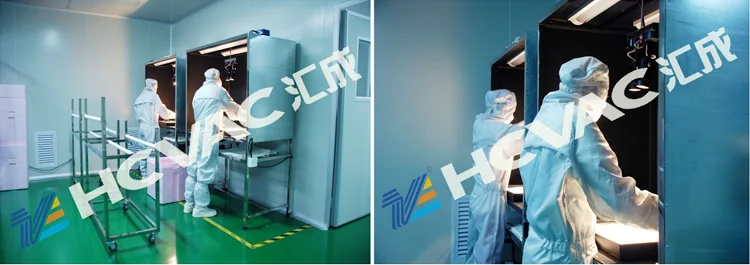

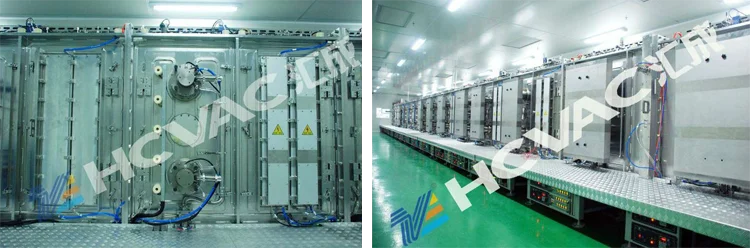

Factory workshop:













Why Choose HCVAC system?



·         Over 3000 plants installed worldwide

·         Quick cycle times

·         High production capability with low energy consumption

·         More up time due to ease of loading/unloading and low maintenance

·         High productivity with only a single operator

·         Steel process chambers, built to last

·         Eco-friendly

·         Space saving design

·         PVD option available on all plants

·         1 year component warranty and 25 years minimum guaranteed working life

·         Complete global network of consulting, engineering and renowned after sales service



We developed a complete after-sales system and effective service measures. Company now owns a professional after-sales service team with more than ten experienced engineers.



HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.



We will make the full set special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.



ISO 9001 standard to ensure the quality can meet the customer’s requirements.



Easy to implement : To many people unfamiliar with the process, PVD coating technology seems complicated. However, with the right investments and a good support, it is easier than expected. HCVAC has developed a turnkey coating process that makes a PVD coating centre easy to implement. A complete coating process consists of several steps: stripping (depending on the part’s history); pre-treatment; quality control; cleaning & drying; fixturing & visual inspection; PVD coating; quality control & thickness measurement and post-treatment (depending on the application). These steps are all available from one partner: HCVAC Technology, including mature technics and coatings.





Please feel free to contact us for further information!
