kama 1104 4WD agriculture tractor for sale
- Category: >>>
- Supplier: Weifang Champion Farm Machinery Co. Ltd.
Share on (60690680493):
Product Overview
Description
Product Description
Main Features of kama tractor:
1. Strong Power:
1) Match the YTO four cylinder engine, large torque reserve , powerful;
2) Optional Perkins engine, increase the matching power to meet the needs of different users.
2. Working more efficient
1) Adopt 10 +10 shuttle shifts, reasonable speed match, high operating efficiency;
2) Rear wheel stepless adjustable, can meet the needs of different operations;
3) Dual-speed power output, according to job requirements can choose 540 / 720r / min
and 540 / 1000r / min.
3.Technology more advanced
1) The hydraulic lifter uses an external dispenser for easy maintenance.
SPECIFICATIONS
kama tractor Basic Configuration:
| Model | CPM1104 | CPM1204 | ||
| Wheeled type | 4WD | |||
| Overall dimension(mm) | Length | 4530(to front ballast) | ||
| Width | 2050 | |||
| Height | 2810 | |||
| (to the exhaust vent) | ||||
| Tread | Front | 1610-1950(usual 1610) | ||
| (mm) | Rear | 1608-1996(usual 1608) | ||
| Axle base(mm) | 2195 | |||
| Min. ground clearance(mm) | 405 | |||
| Type | Vertical,6cylinder, water cooled and 4 stroke | |||
| water cooled and 4 stroke | ||||
| Rated power(Kw/hp) | 80.9/110 | 88.2/120 | ||
| Rated rev.(r/min) | 2300 | |||
| Fuel | Diesel oil | |||
| Tyre | Front | 12.4-24 | ||
| Rear | 16.9-34 | |||
| Clutch | 12" Dual-stage clutch | |||
| Steering | Hydraulic steering | |||
| Transmission box | 16F+8R | |||
| Suspension type | Post-positioned, Tri-point suspension | |||
| Tri-point suspension | ||||
| PTO | Type | Semi-indenendent type | ||
| Rev.(r/min) | 760/1000 | |||
| Spline size | F35 rectangle spline | |||
| with 6 teeth | ||||
Detailed Images

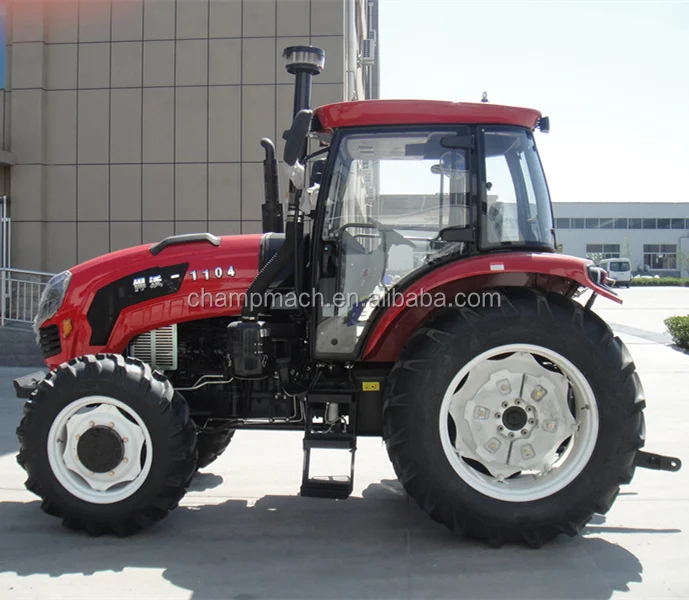

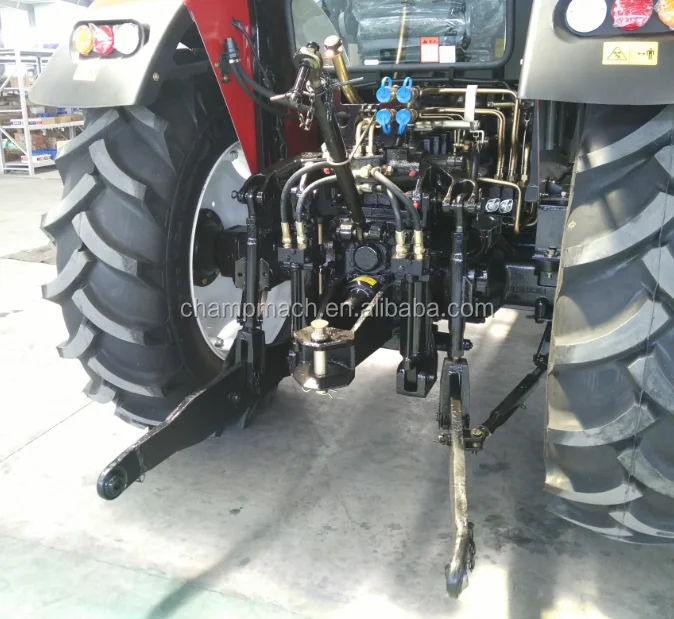

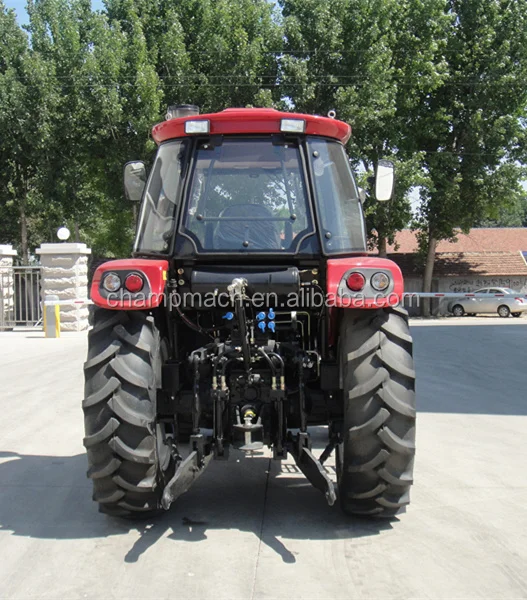

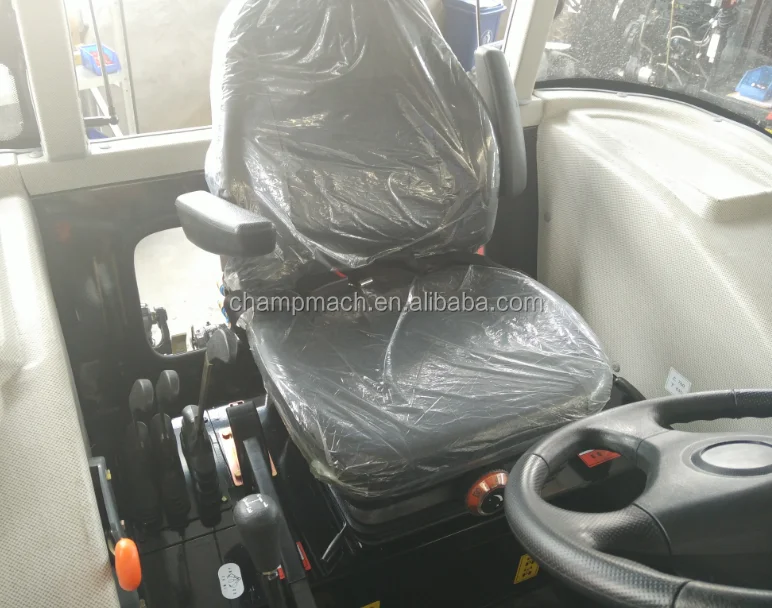

kama tractor Detailed Images:
Packaging & Shipping
kama tractor You can choose assembly .
QC
kama tractor Quliaty control
