Alibaba price zinc slat rain water aluminum ogee K gutter cold roll forming machinery made in China

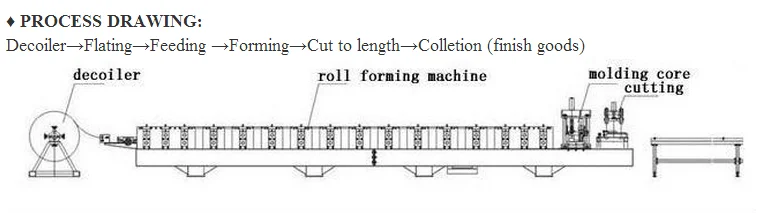

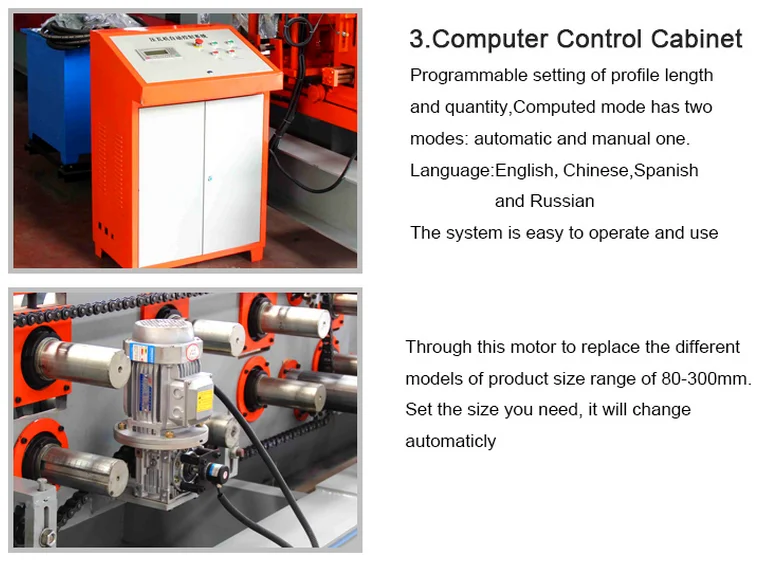

Equipment components: Man-made uncoiler, Roll forming machine, computer control system, hydraulic control system, cutting Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.
Main parameters
1.Echnical parameters
Name
Alibaba price zinc slat rain water aluminum ogee K gutter cold roll forming machinery made in China
Suitable to process
Color steel plate, galvanized sheet, aluminum coils and etc.
Width of the feeding material
100-160mm
Roller station
15-26 rows
Thickness of feeding material
0.3-0.8mm
Power Supply
380V, 3-Phase,50Hz
Productivity
10-20m/min
Rollers' material
45# steel
Diameter of shaft
75mm
Roller Diameter
50mm
Wall thickness of main forming machine
14mm steel plate
Main forming machine body
300 mm H steel
Motor power
4+3kw

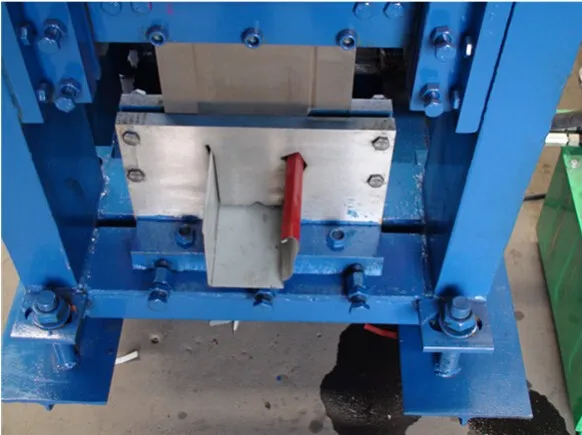

Cutter Standard
GCr12
Size
7500*1500*1600mm
Weight
About 4 T
Custom
According to customer's requirements

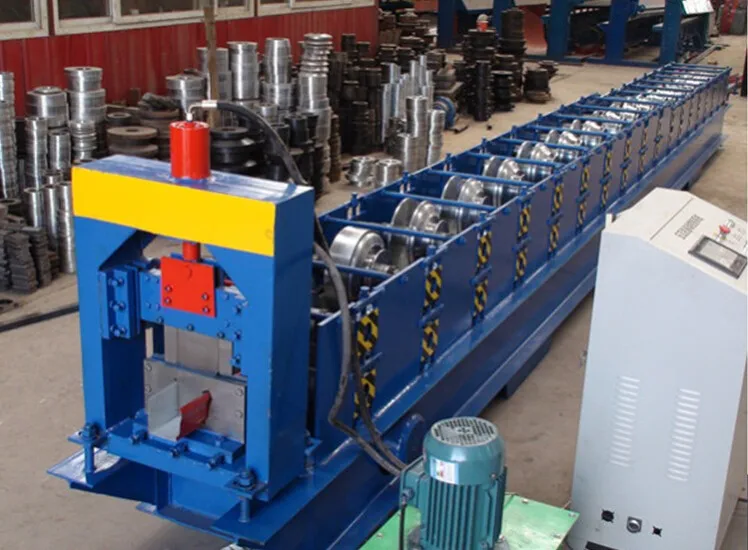

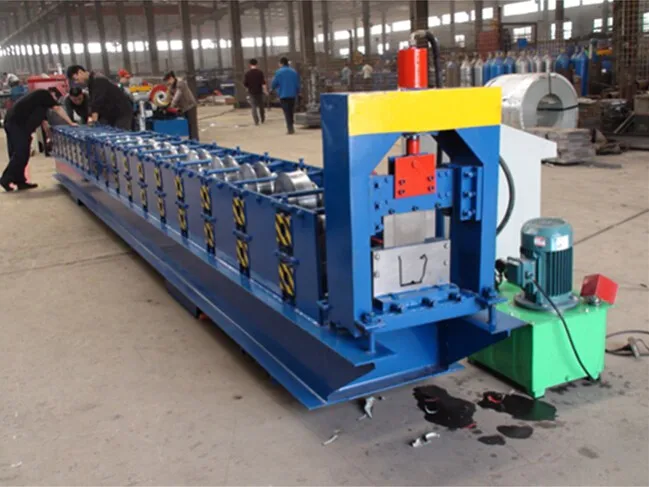

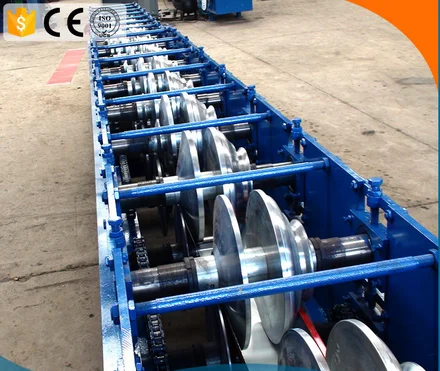

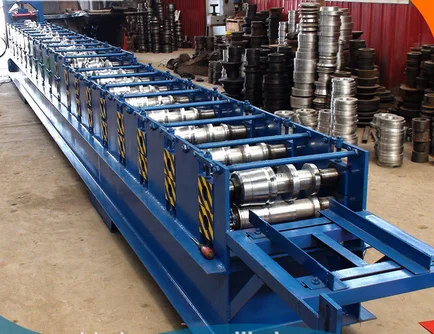

Detailed Image
Certifications
Packing & Delivery
Our Service
Pre-Sales Service * Inquiry and consulting support. * Sample testing support. * View our Factory.
After-Sales Service * Training how to instal the machine, training how to use the machine. * Engineers available to service machinery overseas.

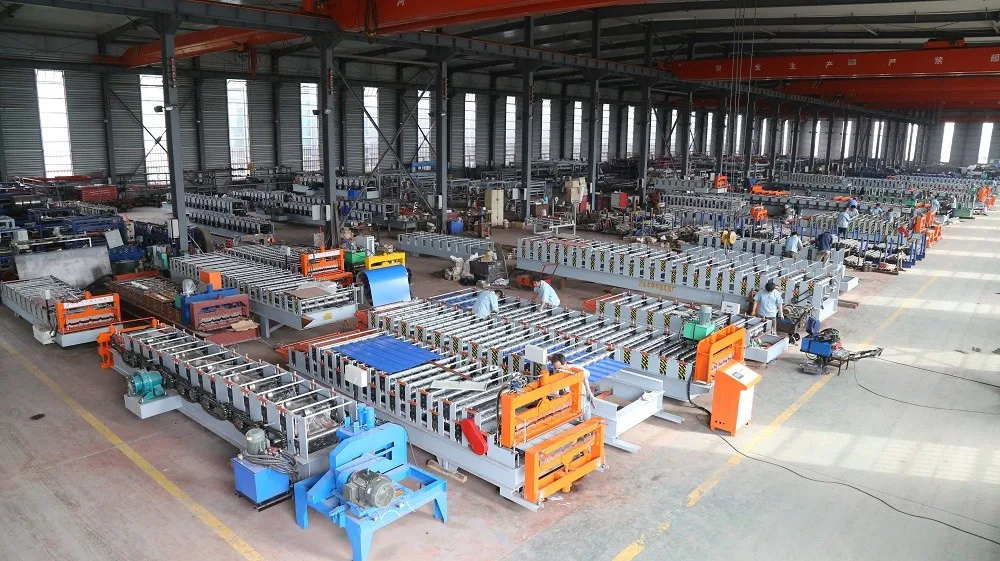

Our Company
Established in 1998. Kexinda has accumulated rich experience in producting tile roll forming machine. Near 20 years' development has made Kexinda the most powerful roll forming equipment supplier in Northern China. We are now staffed by over 200 people.The two production regions in Kexinda span an area of 50 thousand m2. We have established 5 large workshops, including plants for spare parts machining, machine welding, assembly, andsurface treatment.
