power conductor types of current collector metal cable rail by KYEC
- Category: >>>
- Supplier: KUNYEE INDUSTRIAL LTD.
Share on (60690716464):
Product Overview
Description
left click this photo see more Product.... or see our website : //www.kyec-mit.com.tw/index.php/en/
Product Description

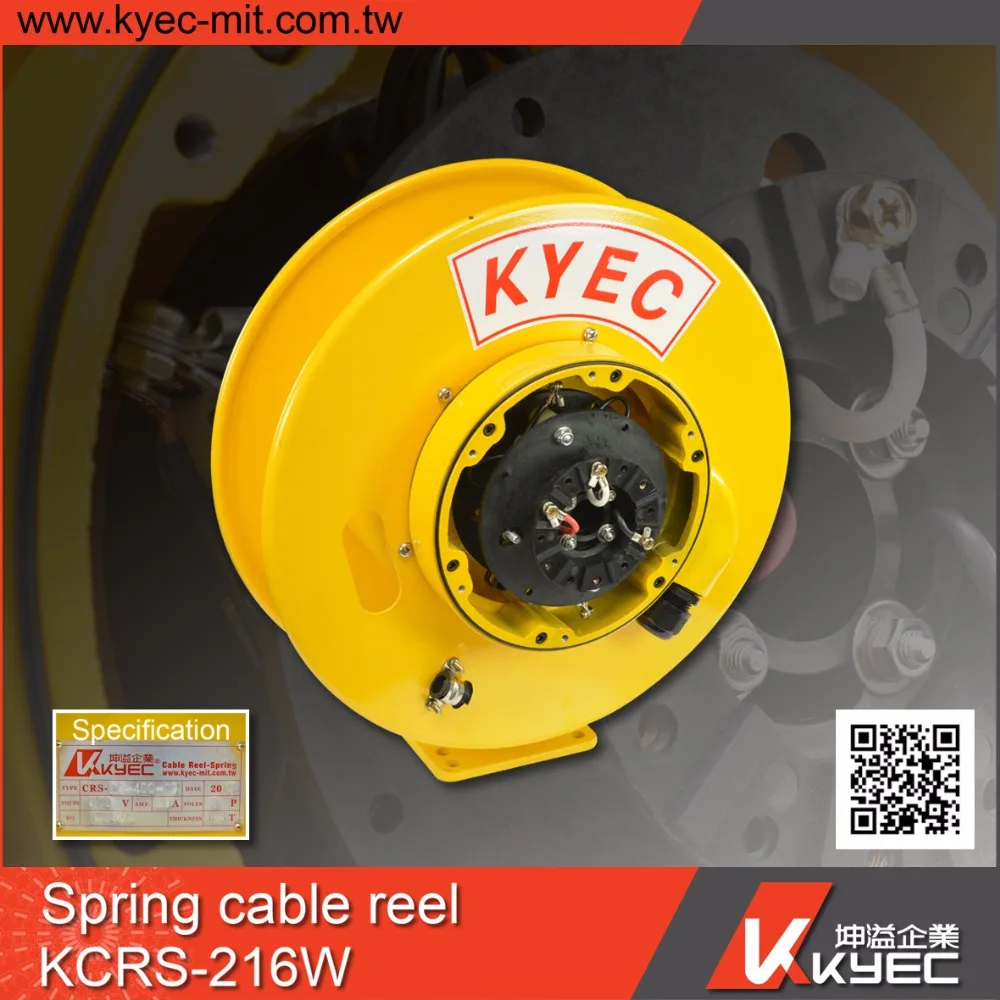

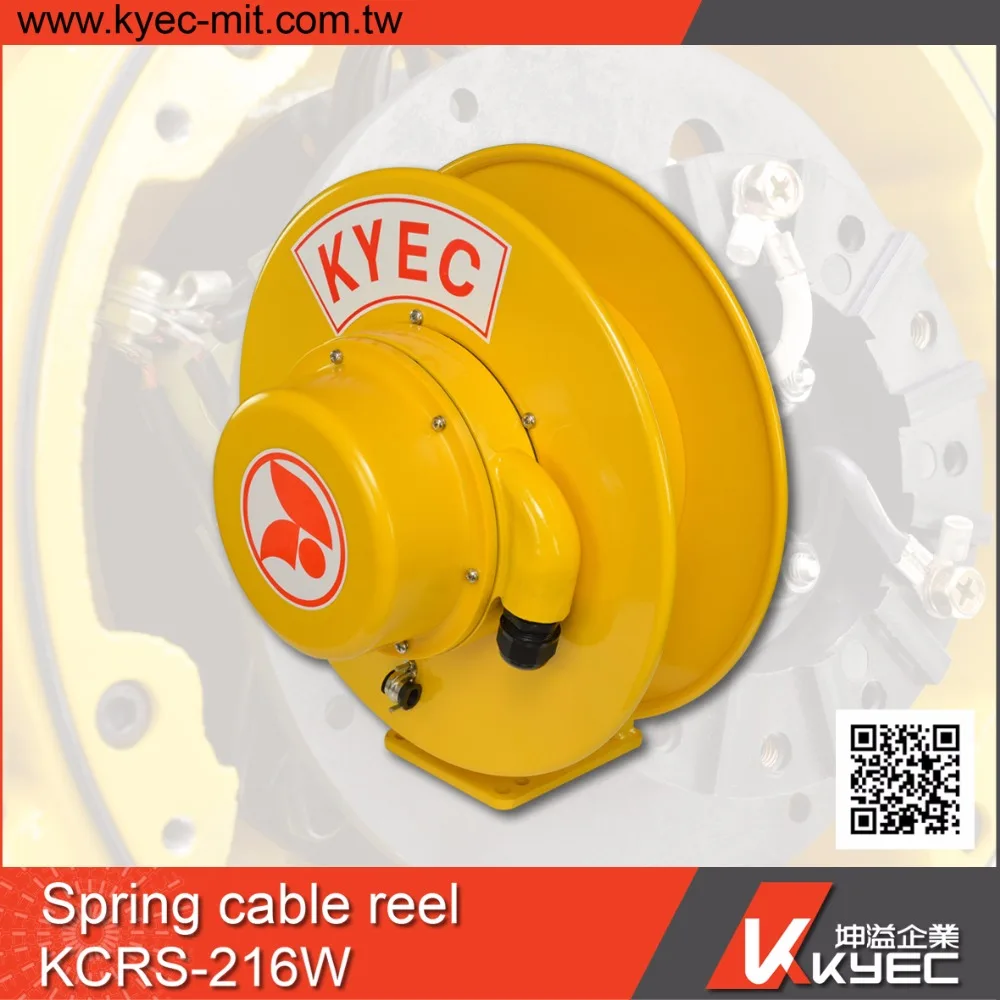

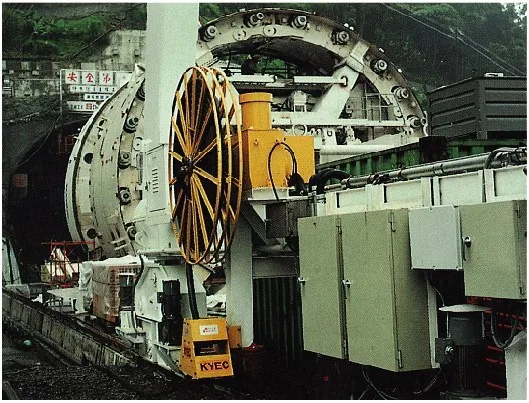

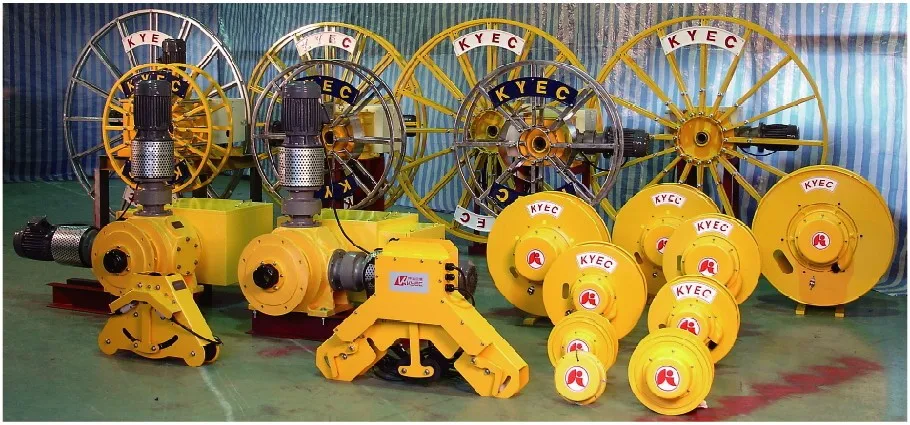

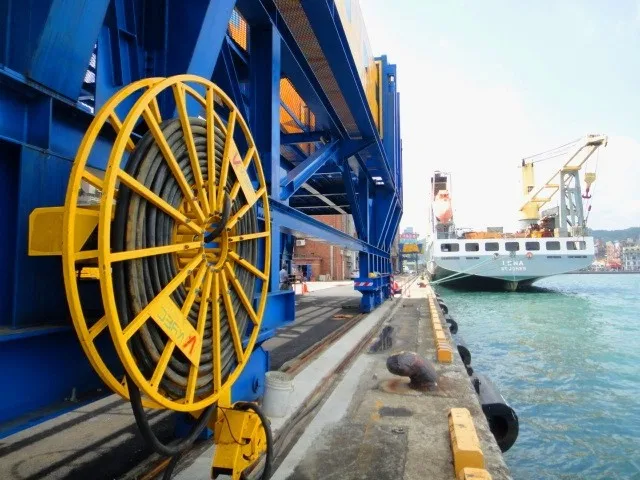

Option - Reelable cable for Spring Cable Reel
Reelable cables for spring and motorized cable reel
Construction
- Conductor : bare copper strands acc. to IEC 60228 EN 60228, VDE 0295, class 5
- Insulation : special polymer
- Color Code : coloured acc. to HD 308 (VDE 0293 part 308);
from 6 cores black cores with consecutive numbers acc. to EN 50334; green-yellow earth wire from 3 cores
Stranding : specially adjusted layering around central suspension unit
- Inner Sheath : PUR
- Supporting screen : high-tech yarn
- Outer sheath : PUR
- Sheath color : black
Outstanding Features
- path feed rate up to 120 m/min
- high winding and unwinding strength
- small outer diameter
- small cable weight
corresponds to low voltage guideline 73/23/EWG CE
Technical data
| Nominal Voltage | 0.6/1 kV |
| Testing Voltage | core/ core 4000V |
Current-carrying capacity | acc. to DIN VDE 0298-4 |
| Min. bending radius: | |
For laying and installation (fixed laying) | <12 mm 3 x d / > 12 mm 4xd |
For repeated winding action (flexible) | 6 x d |
Guided on deflection pulleys (flexible) | 7.5 x d |
| Temperature range | |
| Fixed laying: | -50/+90 °C |
| Flexible application: | -40/+90 °C |
| Halogen-free | Acc. to DIN VDE 0472 part 815 and IEC 60754-1 |
| Oil resistance | Very good - TMPU acc. to DIN VDE 0282 part 10 + HD 22.10 |
| Chemical resistance | Good against acids, alkalines, solvents,hydraulic liquids, etc. |
| Fire performance | Flame retardant and self-extinguishing acc. to IEC 60332-1-2 and EN 60332-1-2 |
| Weather resistance | Very good |
| Sunlight resistance | Very good -enhanced due to black sheath colour |
| Tensile strength | Acc. to DIN VDE 0298-3 section 7.1 |
Mechanical characteristics | The main mechanical characteristics accomplished by the PUR outer sheath are: |
Absence of harmful substances | Acc. to RoHS directive of the European Union |
No. of cores x cross section n x mm^2 |
Outer diameter (mm) | Copper figure (kg/ km) | Cable weight (kg/km) | Min breaking load of suspension unit (N) |
| 4G 1.5 | 9 | 57.6 | 119 | 1340 |
| 5G 1.5 | 9.8 | 72 | 142 | 1690 |
| 7G 1.5 | 11.8 | 100.8 | 204 | 2150 |
| 12G 1.5 | 16.6 | 172.8 | 359 | 2600 |
| 18G 1.5 | 16.4 | 259.2 | 430 | 2600 |
| 4G 2.5 | 10.4 | 96 | 170 | 1345 |
| 12G 2.5 | 19.6 | 288 | 531 | 2900 |
| 18G 2.5 | 19.7 | 432 | 641 | 3450 |
| 24G 2.5 | 23.8 | 576 | 879 | 2700 |
| 30G 2.5 | 26.6 | 720 | 1099 | 4200 |
| 50G 2.5 | 32.4 | 1200 | 1739 | 6750 |
| 4G 4 | 12.4 | 153.6 | 255 | 1690 |
| 12G 4 | 24 | 460.8 | 835 | 5000 |
| 4G 6 | 14.8 | 230.4 | 369 | 1860 |
| 4G 10 | 18.2 | 384 | 592 | 2300 |
| 4G 16 | 22.7 | 614.4 | 915 | 2800 |
| 3G 25 + 3G 6 | 24.3 | 892.8 | 1188 | 3300 |
| 4G 25 | 26.9 | 960 | 1351 | 3300 |
| 3G 35 + 3G 6 | 28.1 | 1180.8 | 1577 | 3300 |
| 4G 35 | 31.5 | 1344 | 1893 | 3300 |
| 3G 50 + 3G 10 | 31.9 | 1728 | 2264 | 3800 |
Company Information
Our Services
Packaging & Shipping
Packing
1. For small parts, the goods will be packed in carton box. When the quantity is large, the carton boxes will be with pallet.
2. For large parts / machinery , long track or conductor bar, the goods will be packed with wood crate.
3. For continuous type of power rail, the rail will be packed in wooden reel.
4. If the goods are enough for container, we can pack them in 20 feet or 40 feet container.
Shipping
1. We have solid inland freight transportation subcontractors which provide fast and secure delivery sevices
to the export airport and sea port on time.
2. For regular mass production, SEA Freight (FOB/ CIF) sercvices are available to meet your desired
deadline and budget.
3. For small quantity and urgent orders, UPS/ FEDEX/ DHL/ TNT/ EMS/ SF EXPRESS Air shipment can
be arranged to meet your requirement. (Normally we adopt TNT because of lower cost by contract)
4. For large quantity and urgent orders, Air Freight services (To Airport or Door to Door) are also available.
