Jinan Fish Feed Pellet Processing Machines Production Line Equipment Machinery Producing Animal Feeds Pellets Wheat Bran 2 Years

100% factory direct sales, look forward to building cooperate with you wholeheartedly!

Video Links On Youtube: https://www.youtube.com/watch?v=47yWQzq136g&t=19s

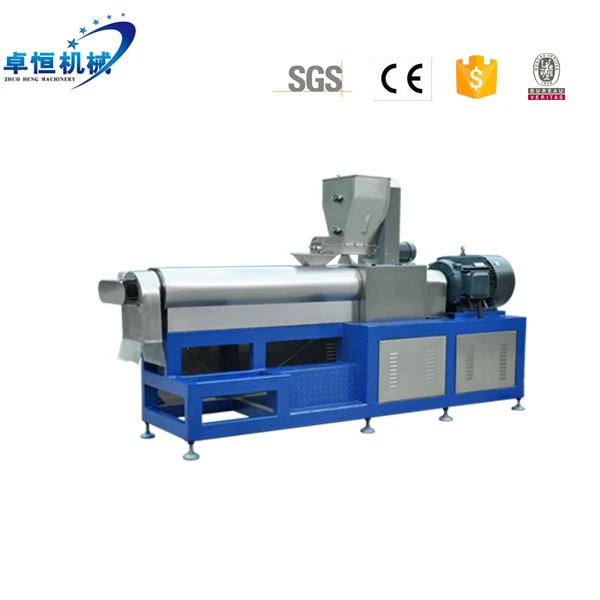

Floating fish feed extruder is widely used for producing variety materials into high-grade aquatic feed pellets for fish, catfish, shrimps, crab etc. The final products have unique shape and good taste, high nutrition and smooth textures. For feeds of fish and shrimp, the floating time in water can be adjusted by the extrusion degree adjustment. This dry type floating fish feed machine is an ideal for small and medium fish farm holders or feed processing plant.

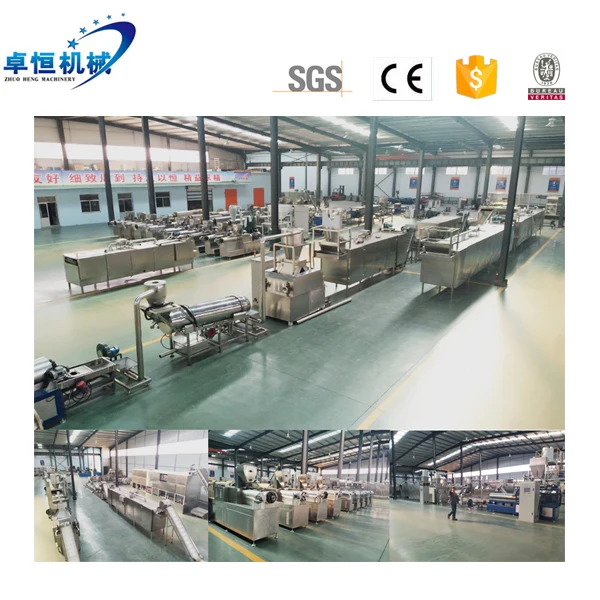

Mixer → Screw conveyor → Extruder → Conveyor → Oven → Cooling → Packaging

1. This extruder equipment adopts the auto-controlling speed feeding tool to produce the feed material evenly.
2. Electric heating device is adopted which can improve the feed expansion rate and pellets floating time.
3. High temperature and high pressure cooking process can kill the salmonellosis and bacterial infections and also makes the pellets easily to digest.
4. The cutting knife adopts the frequency controlling speed in order to change the material size.
5. The floating time can be controlled by the puffing degree adjustment.
6. Auto-temperature control system makes the temperature controlling more direct viewing and the parameter more precise.

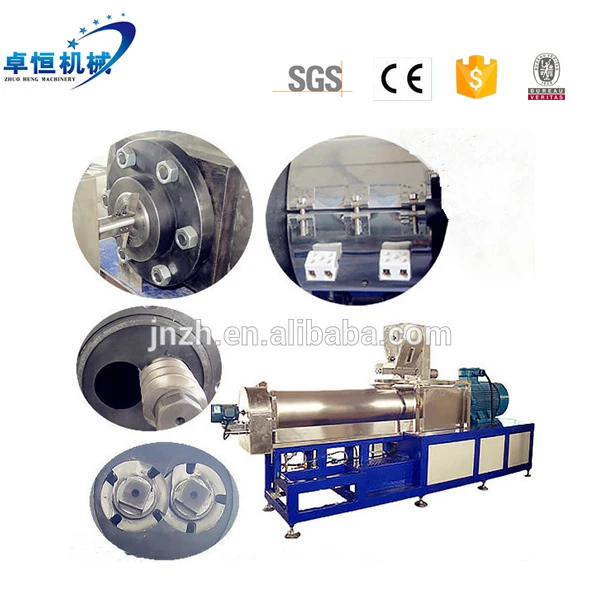

Twin-Screw Extruders

In order to create a design with greater operating flexibility and with greater operational control, twinscrew machines were developed. Twin-screw extruders can be co-rotating, counter-rotating, intermeshing or non-intermeshing in terms of basic designs. Co-rotating, intermeshing screw designs have dominated that scene as far as these extruders are concerned. This is because of relative ease of design and manufacture compared to counter-rotating designs.The screw design of twin-screw extruders can

affect operating efficiency and machine capability. Screw components in the feed section of the barrel can be single, double or even triple flight arrangements. With more flights intertwined on the shaft, the conveying capacity of the screw is reduced but the residence time distribution is lower. This promotes a first-in, first-out movement of the extrudate. However, double- and triple flighted screws produce more shear across the screw channel and therefore, improved processing uniformity.

1) This fish food extruder is widely used for producing floating feed pellets of all kinds of aquatic animal.
2) Advanced technology and humanized design ensures easy operation and reliable performance.
3) High efficiency, low power consumption
4) Screw sleeve of this small fish food extruder adopts enchase alloy steel strip structure, which guarantees long service life.
5) Different moulds can be chosen to make pellets with different diameters and shapes.
6)Feed pellets dia. Is 0.8-20mm.
7) Capacity:0.1-10T/H

It can higher the materials temperature, make flour materials softer, lower the materials’ friction . Thus reducing the extrusion power consumption, increasing the output, improving the stability of the extruder operation, prolonging life of t the whole extruder unit. To ensure the materials completely curing and pasting, extruder adopted double screw synthetic rotary extrusion technology( double screw diameter ratio is 19.58)The double screw of the extruder is designed as the 38CrMoAl modular sectional screw, easy to adjust the different screw functional sections. Then it can be accurate to adjust the quality of different products. The screw has higher wear resistance longer service life with nitrogen treatment.
