CYT27 Low Cost ASK/FSK 433.92/315MHz 433mhz Wireless Transmitter RF Module

Product Overview

Description





DESCRIPTION:

CYT27 ASK/OOK/FSK wireless transmitter module gets excellent performance with ISM frequency band. With the adoption of branded industrial RF wireless data transmission chipsets, it has the advantages at strong transmission power, low voltage and easy to pass FCC/CE certificates. It can do wireless signal input to the data signal output without any external circuit. Users only need to decode the data plus a simple circuit and then any wireless products development can be easily achieved.





FEATURES:

• Frequency: 240 MHz – 960 MHz (ASK/FSK);
• High output power: +14dBm;
• Low operation voltage: VCC = 1.8 to 3.6V;
• Static current: <20nA; 50% duty ratio transmitting current: 18.5mA;
• Freq deviation: ±30KHz;
• FSK deviation: ±35K
• Circuit shape: PLL (10PPM), stable working frequency;
• Temperature Range: -20℃ ~ 70℃
• The range can be up to 500m in the open space when matching with CY68
• Dimension: 17.9*12.7*5.5mm



APPLICATION:

• Remote Gate Controls, brake
• Remote Keyless Entry
• Mechanical and electrical control of strong interference;
• Wireless Industrial Remote Control
• Wireless Data Transmission
• Remote Control Curtain

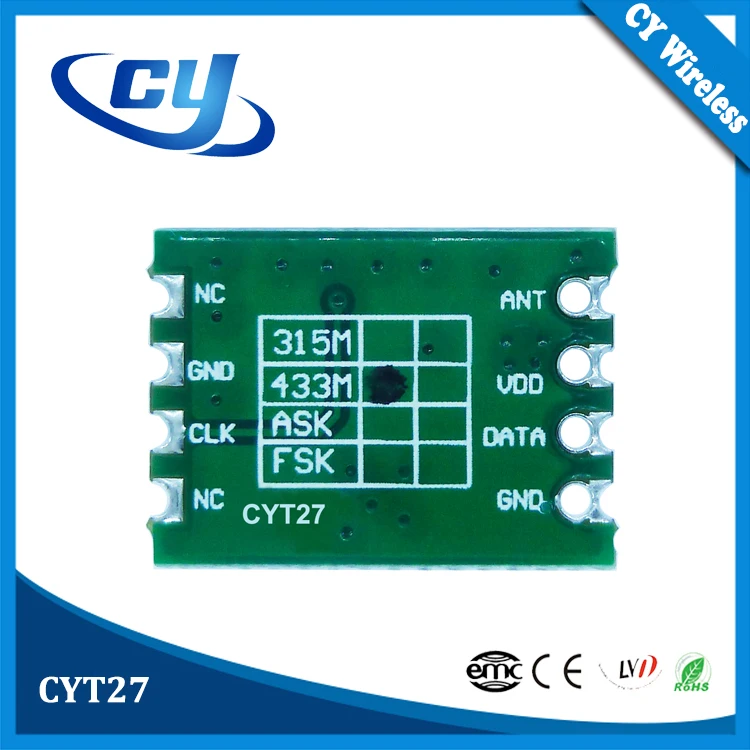

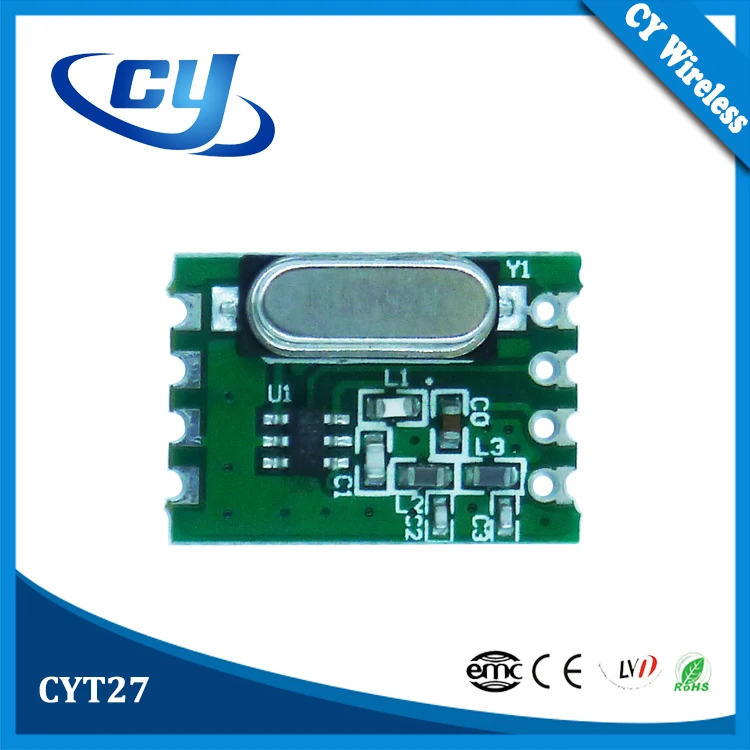

PIN DEFINITION:



Pin Name	Pin Definition
ANT	Antenna Out
VDD	Connect to positive power supply
DATA	Data In
GND	Ground
NC	Empty
CLK	Empty (only for interior collocation )
GND	Ground
NC	Empty































ELECTRICAL CHARACTERISTICS:

Condition: Ta=25℃ Vcc=1.8V-3.6V VDD-GDN

Characteristics	Value			Unit	Condition
	Min.	Typ.	Max.
Frequency	240	433.92	960	MHz
Modulation Mode	ASK/OOK/FSK
Output power		14		dBm	3.6V/50Ω
Modulation Freq.	0.5	2.4	30	KHz
Working Voltage	1.8		3.6	V
Supply Current		18.5		mA
Frequency Deviation		±30		KHz
Working Temperature	-20		+70	℃









































MECHANICAL SIZE: (unit: mm)
