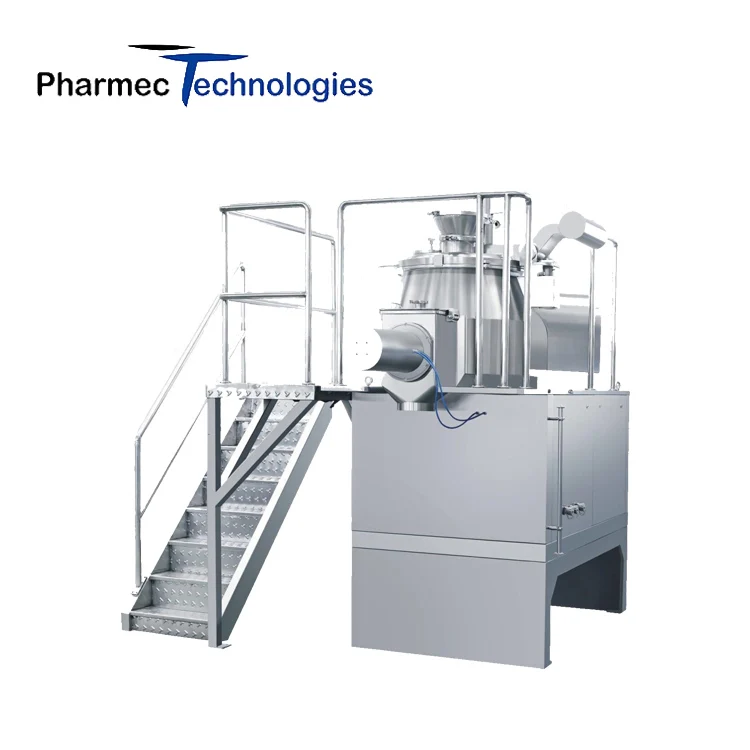

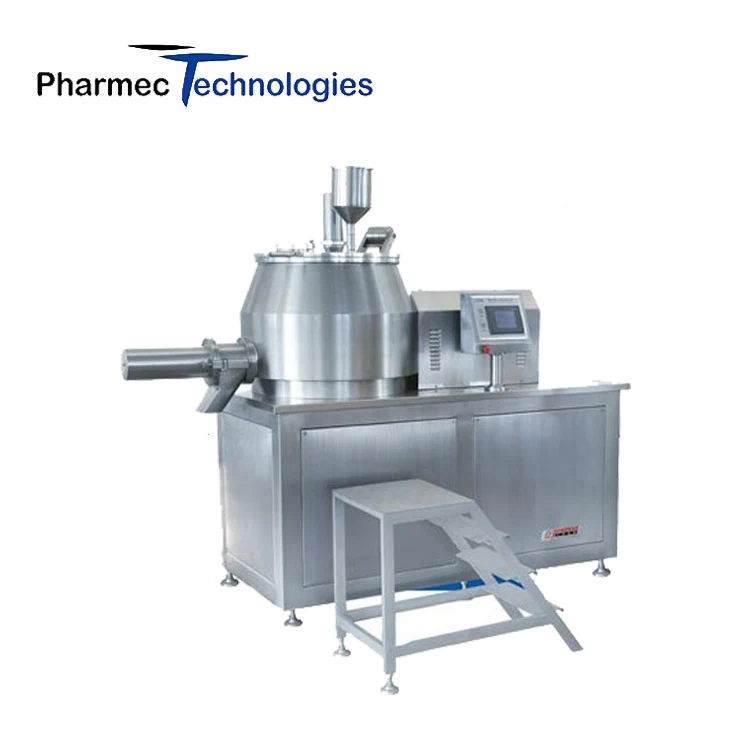

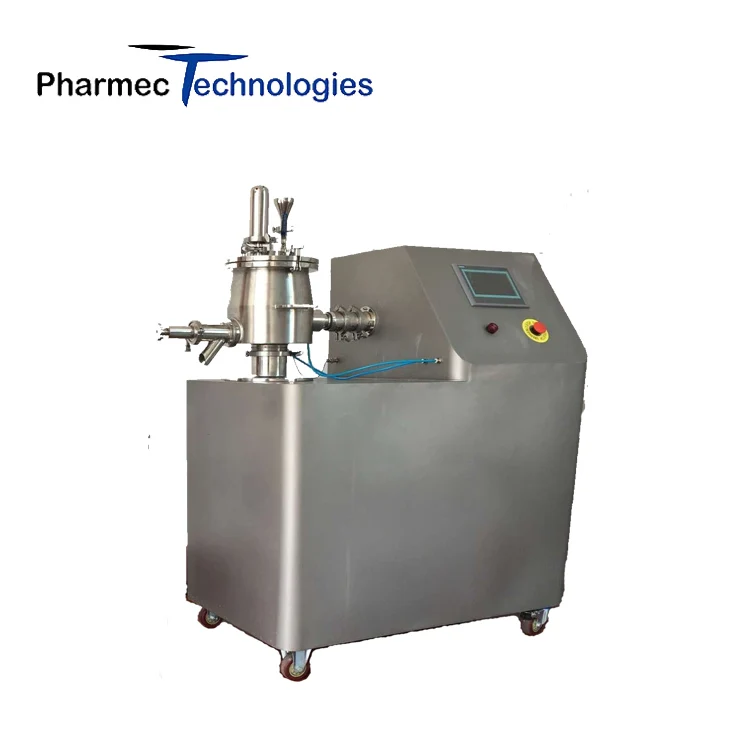

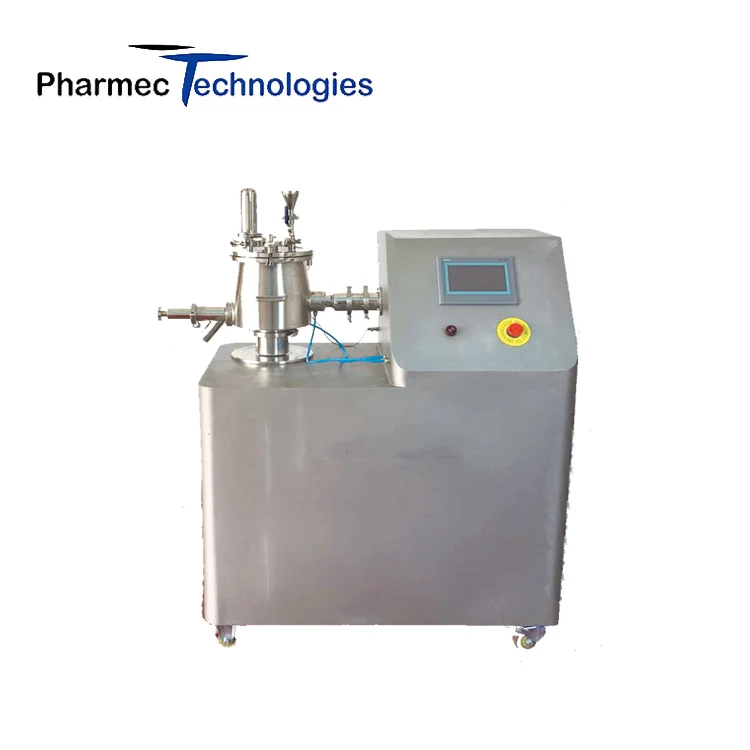

GM 500 Series High Speed Mixing Granulator Wet Mixing Granulating Machine

Product Overview

Description

GM Series High Speed Mixing Granulator  Wet Mixing Granulating Machine

Introduction

GM series wet granulator, As an important process equipment for production of solid preparation in pharmaceutical industry, mix the raw materials, or the production of soft material. PLC automatic control systems, equipment and technology in line with current GMP and national pharmacopoeia requirements.



Features

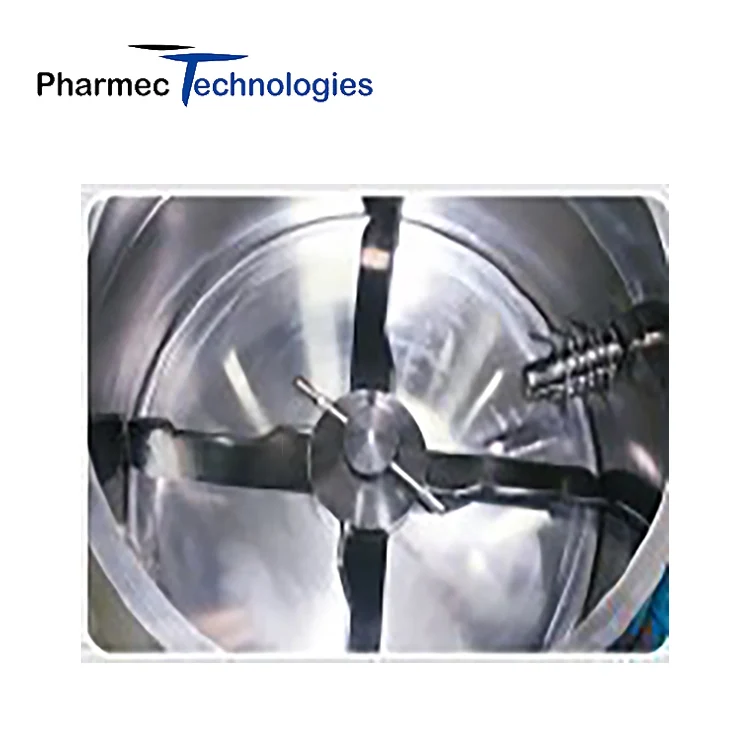

1. Cylinder & conical material container structure, Z shaped mixing impeller, together forms the perfect mixing and granulation performance with qualified wet granules.

2. Modular designed platform and on-line wet cone mill option satisfies with various process and facility conditions. 3. Pressured spray, manual or other requested binder loading sys option satisfies with various product & granulation requests.

4. Designed with granulation end-point detection function, satisfies with the process reproducibility request.

5. Designed with self-vent vacuum loading sys for raw material, reduce the labor and avoids dust and cross contamination, satisfies with the current GMP clean production request.

6. Compound mechanical & air sealing structure avoid any material leakage and cross contamination, satisfies with the current GMP clean production request.

7. Variable impeller & chopper speed controlled by VFD and setup from HMI, satisfies with various product mixing & granulation requests.



Working Principle

Since the material through a vacuum (such as the choice of the feeding mode), or other ways to feed into the bin, in the impeller under the action of mechanical force flow, forming trajectory, are mixed evenly in a silo, injecting adhesive, pelletizing knife open; material formed by adhesive bonding bridge formation in Masterbatch, mechanical energy conversion function, gradually grew up to meet the requirements of the wet particle.



Technical Parameters



Model	10	25	50	100	150	200	300	400	500	600	800	1000	1200
Container volume(L)	10	25	50	100	150	200	300	400	500	600	800	1000	1200
Working volume(L)	4-8	10-20	20-40	40-80	60-120	80-160	100-240	160-320	200-400	240-480	320-640	400-800	480-960
mixing power  (KW)	1.1	2.2	5.5	11	15	18.5	22	30	37	45	55	55	75
Mixing speed (rpm)	10-600	5-420	5-355	5-287	5-240	5-223	5-200	5-185	3-172	3-162	3-148	3-140	3-133
chopper power	0.75	1.1	1.5	3	3	4	5.5	5.5	7.5	7.5	11	15	15
choppr rpm	1000-2800	1000-2800	1000-2800	1000-2800	1000-2500	1000-2500	1000-2500	1000-2500	1000-2500	1000-2500	1000-2000	1000-1500	1000-1500
wet mill power (KW)	--	0.75	0.75	0.75	1.5	3	3	3	4	4	4	5.5	5.5
mill rpm	--	300-1400	300-1400	300-1400	300-1400	300-960	300-960	300-960	300-960	300-960	300-960	300-1400	300-1400
Compressed air  consumption m3/min	0.03	0.05	0.05	0.1	0.1	0.2	0.2	0.2	0.3	0.3	0.3	0.3	0.3
