LCD Monitors Plug and Play High Definition Monitor for Commercial and Industrial Use

Product Overview

Description

LCD Monitors Plug and Play High Definition Monitor for Commercial and Inductrial Use



Application Field:

SOHO Offices

Shopping Mall

School

Government Users

Economy Solution Feature:

HD Input

Video Input/Output:

Display CVBS Signal by BNC Connector

Resolution: SXGA (1280x1024 )

Built in 2D Comb Filter



I. Specifications:



Model No.	AKA-1702MA
Display	Screen Size	17" 5:4 TFT Color LCD
	Max. Resolution	SXGA (1280x1024)
	Pixel Pitch	0.264 mm
	Brightness	300cd/m²
	Contrast Ratio	1000:1 Typical
	Viewing Angle (U/D/L/R)	80/80/80/80
	Display Color	16.7Million
	Response Time	5ms Typical
	Power Consumption	Approx. 17Watts
	Video System	NTSC / PAL
Interface	Solution No.	M2 ( Economy Solution )
	Video 1 Input	CVBS Input (BNC type) x1
	Video 2 Input	CVBS Input (BNC type) x1
	Video 2 Output	CVBS Output (BNC type) x1
	PC-RGB Input	VGA (15Pin D-Sub) x1
	Audio Input	Stereo 3.5mm Input x1
	Audio Output	Stereo 3.5mm Output x1
	S-Video Input (Option)	1
	HD Input	1
	DC 12V Input	1
Features	Built in Comb Filter	2D
	Built in De-interlace	3D
	Source	VGA/VIDEO 1/VIDEO 2/HDMI
	Multi Language	English, Chinese, French, German, Spanish, etc
Audio	Built-in Speakers	2
Cabinet	Color	Black
	Material	ABS Plastic
	Wall Mount	VESA
	Base Stand	Desk Top Stand
Circumstance	Operating Temperature	0 ~ 50° C / 32 ~ 122° F
	Storage Temperature	-20 ~ 60° C / -4 ~ 140° F
Packing	Unit N.W./G.W.	Approx. 4KG/5KG
	Gift Box Dimension	430x155x415 mm (LxWxH )
Regulations	RoHs, FCC , CE, C-tick, and so on.
*Specifications are subject to change without notice.





II. Product Details:

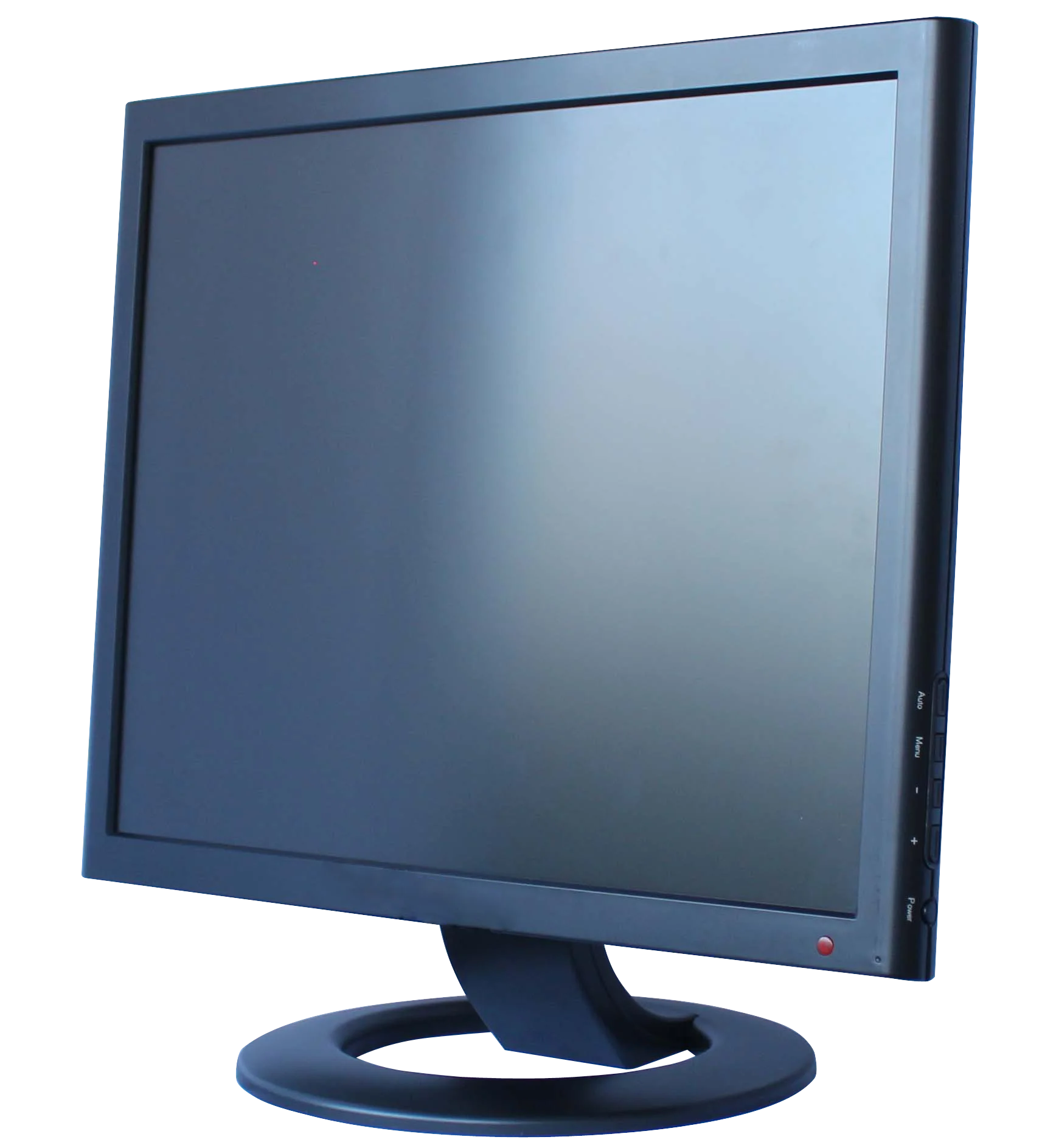

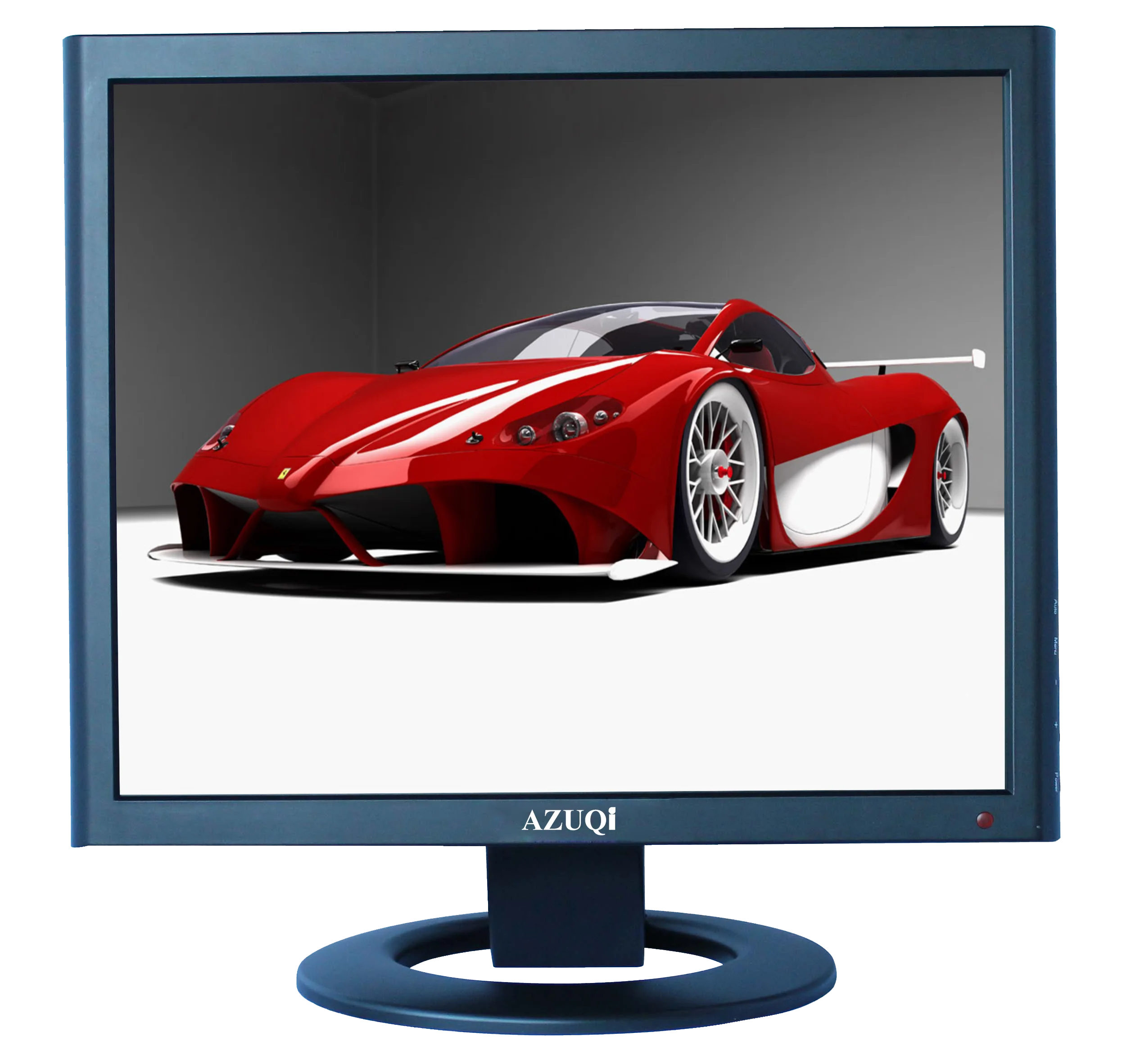

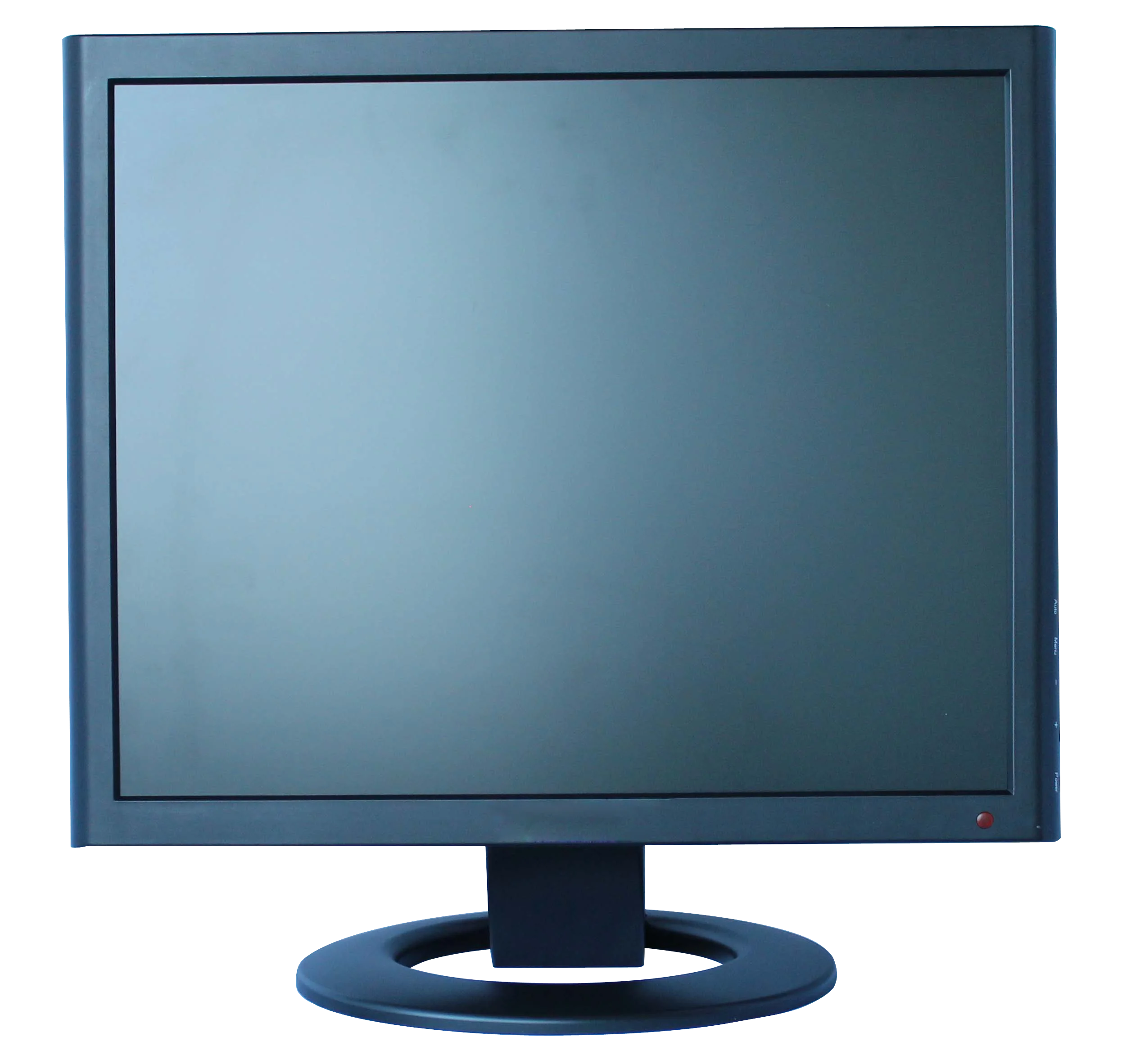

I. Front View

*There are 4 types physical appearances for options.

1. Empty Base + No Protection Glass





2. Empty Base + Protection Glass

3. Solid Base + No Protection Glass

4. Solid Base + Protection Glass

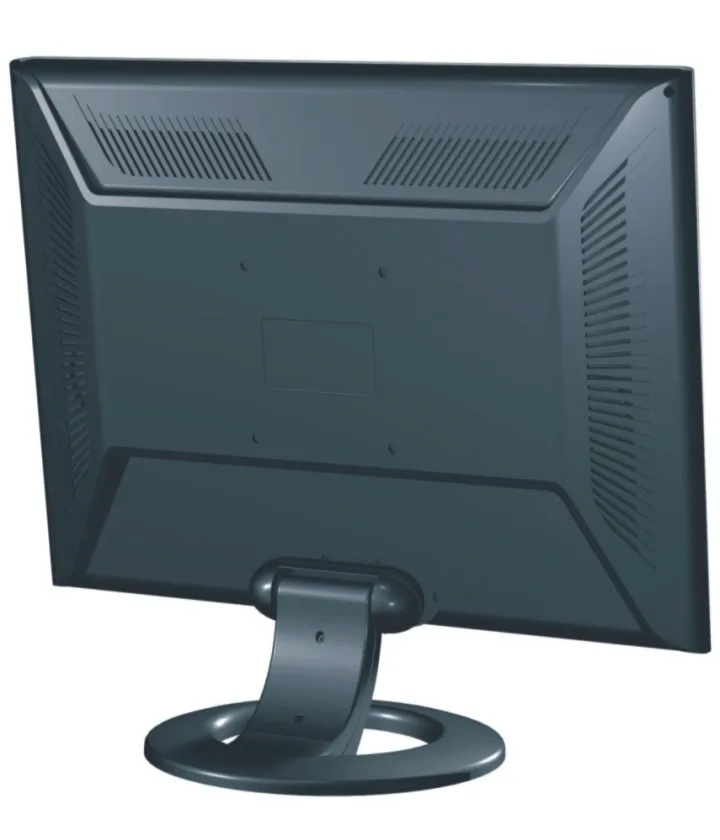

II. Back View with Empty Base





III. Interface (For Refence Only):





IV. Factory overview and certification:



V. Our Service

1. Inquiries would be replied within 48 hours

2. OEM/ODM service is available:

Silkprint OEM logo on the monitor; big quantities order would share customized gift box.

3. After-sale service:

All products have been strictly checked the quality and packed perfectly before shipping;

All products would share 1 year warranty after delivery according to our RMA policy;

4. Payment term:

T/T, L/C, Western Union, Trade Assurance.

5. Delivery

We have strong relationship with many express agents and logistic companies. And some of our forwarder partners as follows:









V. More products for you

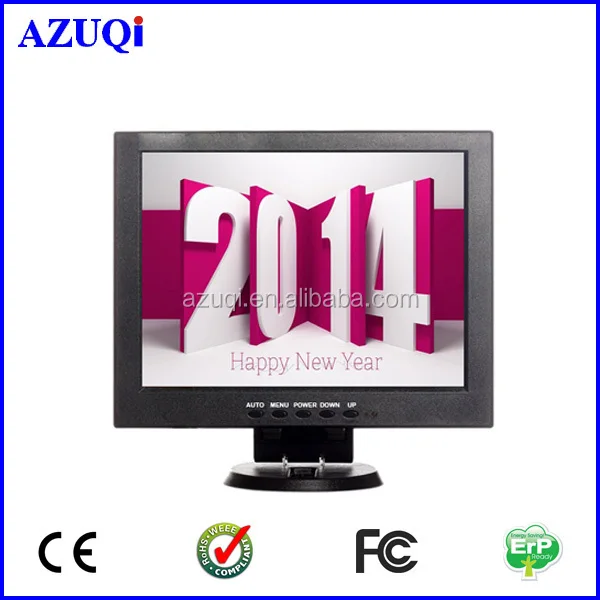

The Mini Camera Monitor 10.4"



Want to konw more details? Please contact me without hesitate.
