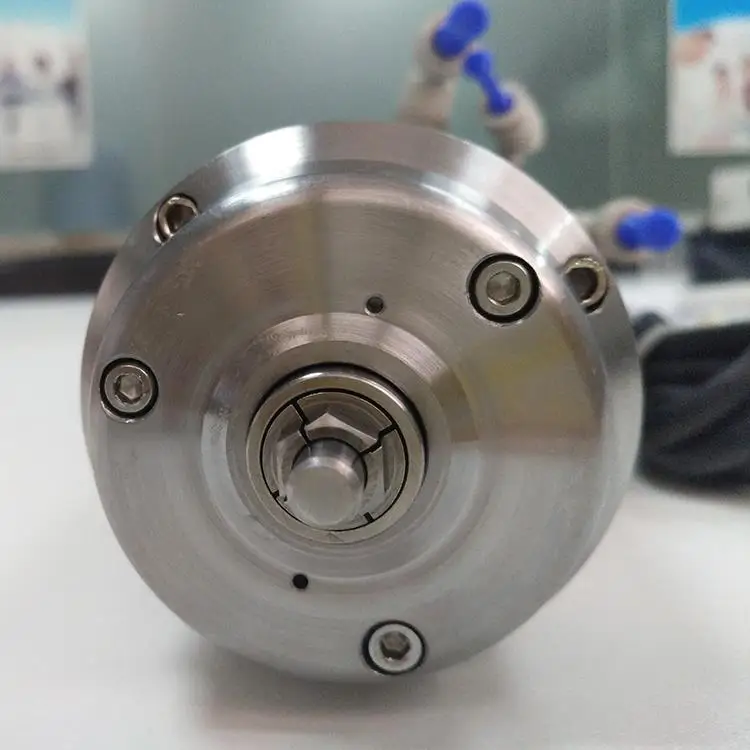

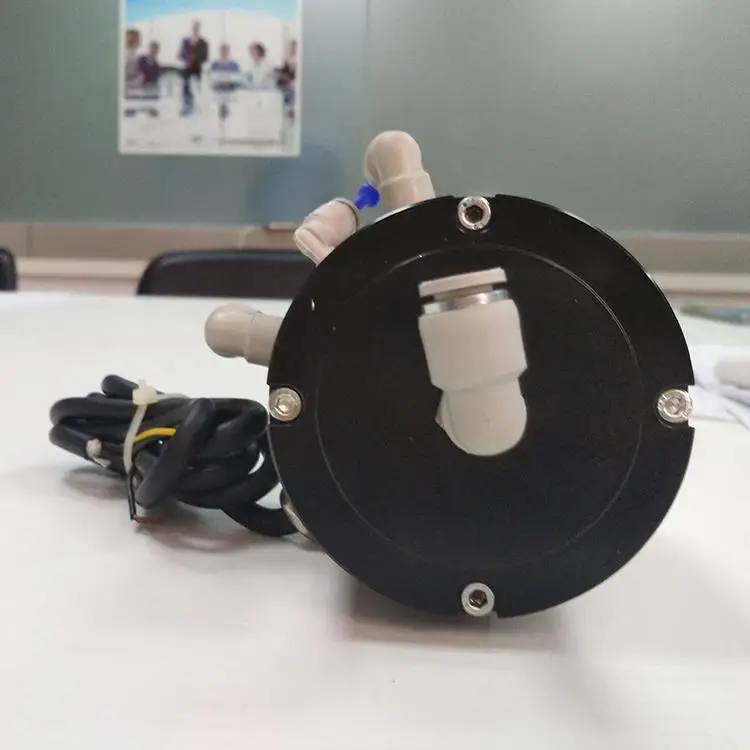

Hot New Design Professional engraving motorized spindle
- Category: >>>
- Supplier: Guangdong Xingtuo Machinery Co. Ltd.
Share on (60690979326):
Product Overview
Description
Product Description
Acrylic profile engraving CNC machine spindle motor is specially design to machining /engraving acrylic profiles. The CNC machine equipment with high speed spindle motor, can produce mirror surface, customized design easily. With high quality CNC machining requirement, machine with spindle motor is more and more popular.
Advance/Features :
· Reasonable structure desgin ,simple and compact configuration ,easy to take apart.
· High precision.high inflexibility ,high efficiency,long operation life.
· With high grade size .shape,.position precision,and quality of surface .
· Enough abrasive resistance ,vibration resistance,stable size.
· Work stable ,low noise,enough fatigue strength
· Special design for Acrylic CNC engraving machine .
· Easy to install and less maintance.
Advance/Features :
· Reasonable structure desgin ,simple and compact configuration ,easy to take apart.
· High precision.high inflexibility ,high efficiency,long operation life.
· With high grade size .shape,.position precision,and quality of surface .
· Enough abrasive resistance ,vibration resistance,stable size.
· Work stable ,low noise,enough fatigue strength
· Special design for CNC engraving machine .
· Easy to install and less maintance.
Usage of spindle motor :
Widely used in CNC drilling and milling equipment, precision carving, engraving and milling machinery bar, computer gongs precision grinding machines, CD profiling batch flower machine, optical processing equipment, watches and equipment.
Specificiations
EEJA 62F2 Specifications
| Parameters | |||
| Motor Power: | 1.8KW 1.5kw optional | Rated voltage: | 380v(3~) |
| Max rotate speed : | 60000Rpm/min | Max currency: | 17A |
| Max Frequency: | 1000Hz | Torque: | 1.19NM |
| Specification | |||
| Cone surface spring at shaft end: | ≤0.001mm | Tooling Releasing Air curtain: | 5.6-6.0 Kgf/cm² |
| Tooling Exchange Method: | ATC | Air curtain pressure at front end: | 2.5~3.0 Kgf/cm² |
| Tooling Pulling Force: | ≥1100 | Tooling Back Air Pressure: | - |
| Tooling Connection: | φ3-φ6 collect | Cooling: | Water |
| Encoder: | - | Coolant Pressure: | ≥2.5 Kgf/cm² |
| Approach Switch: | - | Bearing Lubrication Method: | Grease |
| Balance Level : | G1 | Tooling Instalation Method: | Mechanical Holding |
| Vibration Value: | ≤0.8 | Weight: | 3.9kg |

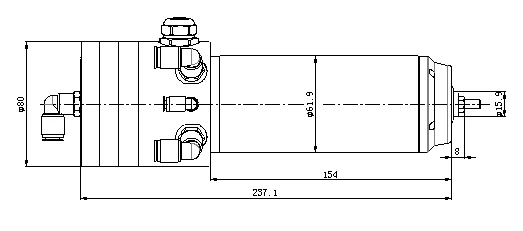

| Structure | |||
 | |||
| Motor property curves | |||
 | |||
| Applications | |||
 | |||
Why Choose Us
Why choose EEJA
100% REFUND IF SPINDLE MOTOR NOT WORK
ALIBABA TRADE ASSURANCE
AVAILABLEEUROPE QUALITY
CHINA PRICE Studer,TAKISAWA,DOOSAN,
SUNNEN CNC machines,
precision ±0.002mm professional team provide
one stop solution
help you reduce time All main parts come
from famous suppliers
FAG,GMN,SKFTOP 500 company supplier,
strong quality control
good cooperation service sense
EEJA spindle motor Properties  | |||
EEJA Patents & Certifications | |||
Company Information
EEJA Company Information
| Factory Profile | |||
 | |||
| Machinery In EEJA | |||
 |
Contact With us
Contact With EEJA
Want to locate EEJA ?
NO.1/2 LianHe Rood ,Luo Cun town,
Nanhai District, Foshan City, guangDong,china
- Tel: +86 757 81263106
- Mobile/Whatsapp/Wechat: +86 15180038849
- Name: Caroling,Ding
EEJA SPINDLE MOTOR LIST
| Engraving CNC machine spindle motor | |||||||||||
| Maximum Power | Operating Speed | Max Frequency | Tooling Exchange Method | Tooling Connection | Maximum Torque | Rated voltage | Max currency | Cooling Method | Weight | Remarks | |
| 0840A | 3.7 KW | 40000Rmp | 1333Hz | ATC | ISO20-ER16 | 1.19 N.M | 380(3~)V/AC | 17 A | Water Cooling | 7.8KG | |
| 0840A-HSK25E | 3.7 KW | 40000Rmp | 1333Hz | ATC | HSK25E | 1.19 N.M | 380(3~)V/AC | 17 A | Water Cooling | 7.8KG | |
| 80A | 3.7 KW | 40000Rmp | 1333Hz | ATC | φ10 CHUCK | 1.19 N.M | 380(3~)V/AC | 17 A | Water Cooling | 7.8KG | |
| 62F | 1.8KW/ 1.5K | 60000Rmp | 1000Hz | ATC | φ3-φ6 Chuck | 0.28 N.M | 200(3~)V/AC | 10 A | Water Cooling | 3.0 KG | Tool path smaller |
| 60B | 1.8KW/ 1.5K | 60000Rmp | 1000Hz | ATC | φ3-φ6 Chuck | 0.28 N.M | 200(3~)V/AC | 10 A | Water Cooling | 3.0 KG | |
| 60D1 | 1.8KW/1.5K | 60000Rmp | 1000Hz | ATC | ER11 | 0.28 N.M | 200(3~)V/AC | 10 A | Water Cooling | 3.0 KG | |
