Other designs of storage steel racking

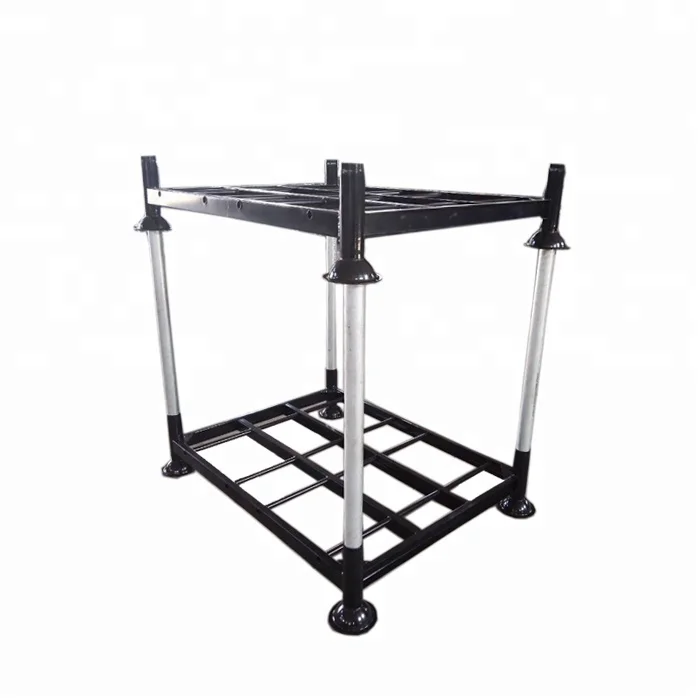

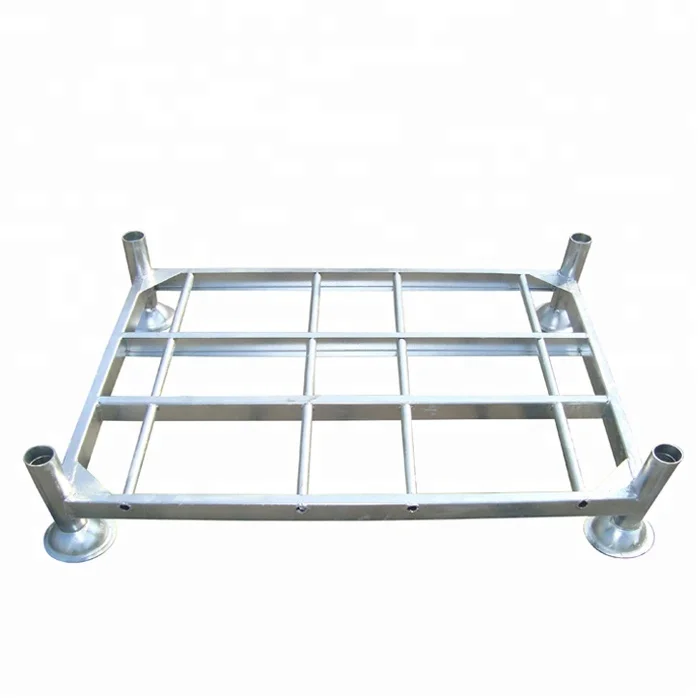

Detchable posts (assembled and disassembled within seconds)

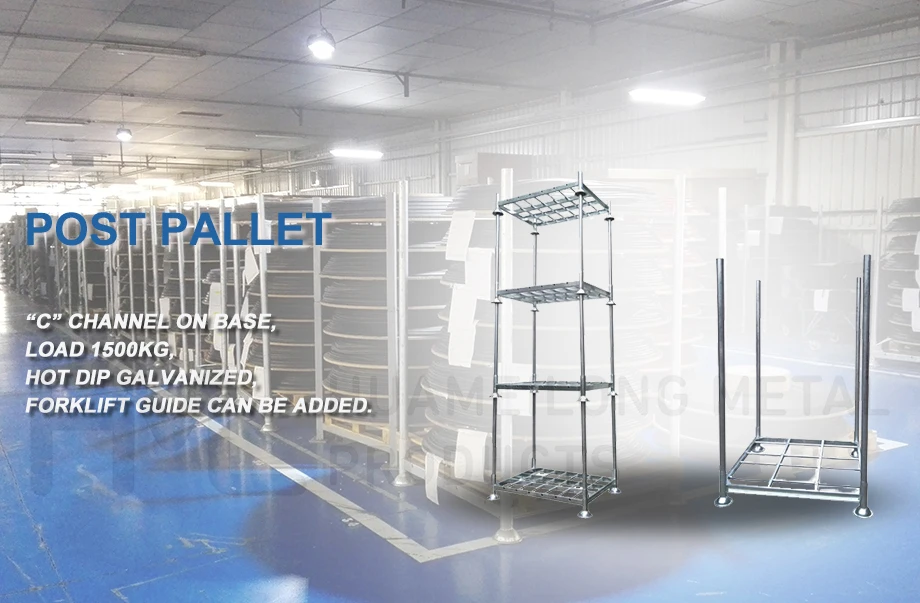

"C" channel on base, load 1500kg, hot dip galvanized, forklift guide can be added

Specification of storage steel racking
| Similar design, defferent sizes | |||||
| Model No. | Exterior Dimension | Loading Capacity | Finish | Quantities | Total container |
| LxWxH(mm) | kg | sets | |||
| M1-Base | 1395x1060x310 | 1500 | Hot dip zinc | 250 | 1x40'HQ |
| M1-Post | 1200x60x2.5 | Hot dip zinc | 1000 | ||
| M2-Base | 1875x1060x310 | 1500 | Hot dip zinc | 143 | 1x40'HQ |
| M2-Post | 1200x60x2.5 | Hot dip zinc | 572 | ||
| M4-Base | 1545x1050x310 | 1500 | Powder coating | 247 | 1x40'HQ |
| M4-Post | 1510x60x2.5 | Powder coating | 988 | ||
| M5-Base | 1200x1000x310 | 1000 | zinc | 255 | 1x40'HQ |
| M5-Post | 2000x60x2.5 | zinc | 1020 | ||
| M6-Base | 950x950x310 | 1000 | zinc | 160 | 1x40'HQ |
| M6-Post | 2100x60x2.5 | Hot dip zinc | 320 | ||
| Material | Mild steel Q235 | ||||
| Application area | Warehouse, logistic, recycling, etc. | ||||
| Remark | Costomized or OEM support | ||||

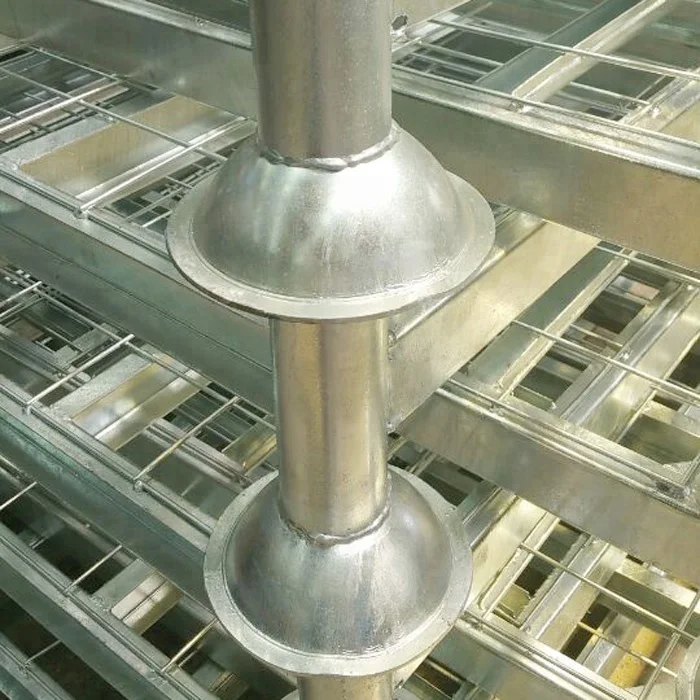

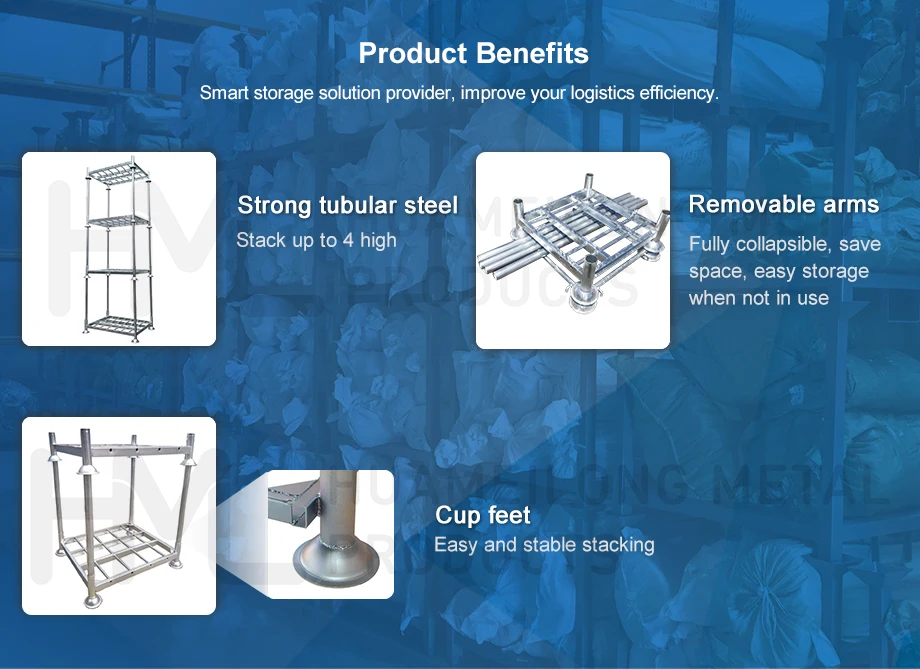

| Key Features | 1.Strong tubular steel - stack up to 4 high 2.Removable arms - fully collapsible, save space, easy storage when not in use 3.Cup feet - easy stacking 4.Hot-dip galvanized finish - corrosion resistant, suitable for outdoor use | ||||

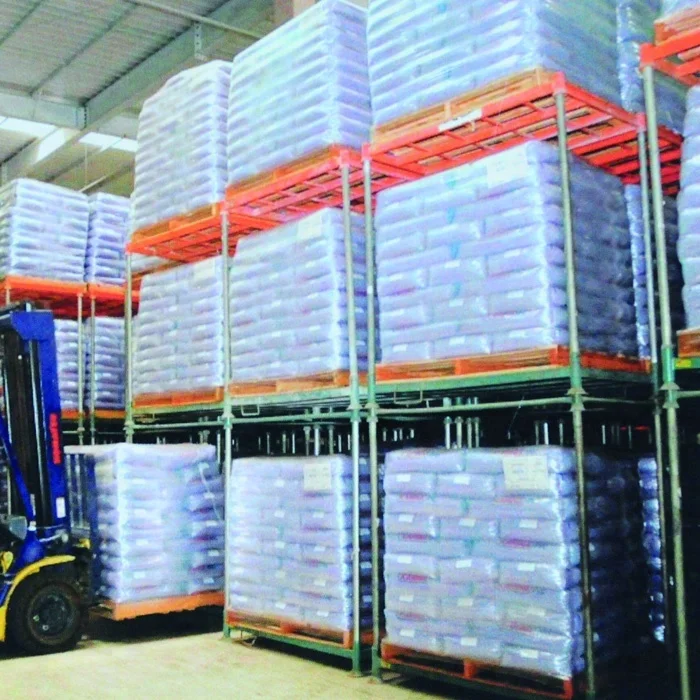

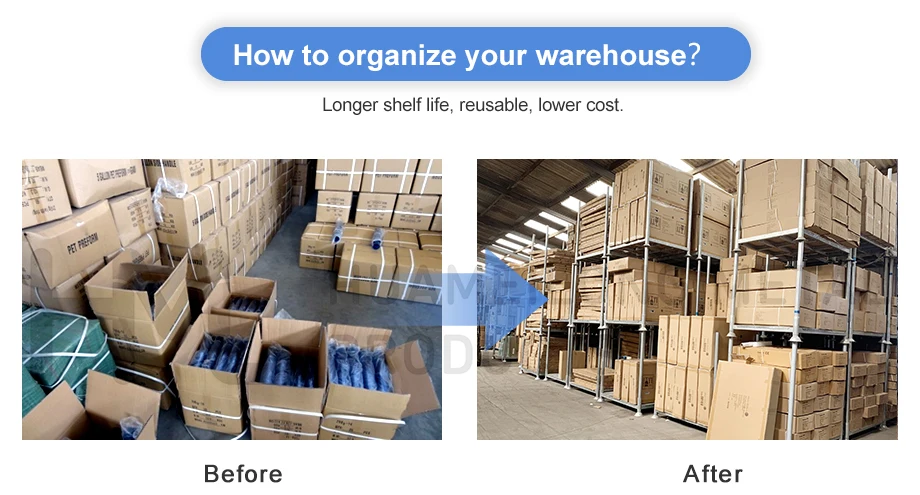

Storage steel racking will enable you to transform areas which are usually free into storage spaces.

Huameilong is a superlative provider of several metal material handling products including Wire mesh container, post pallet & nestainer, stillage, roll cage, cage pallet and much more at an economical price.
We provide top notch one-stop service to our clients which makes us the leading brand in this industry. With more than 20 years in this sector, we aim to achieve customer satisfaction and strive to be a step ahead by implementing innovative techniques and technology in our day to day business activity.
1, What is the material being used for your products?
---Mild steel Q235, Q195

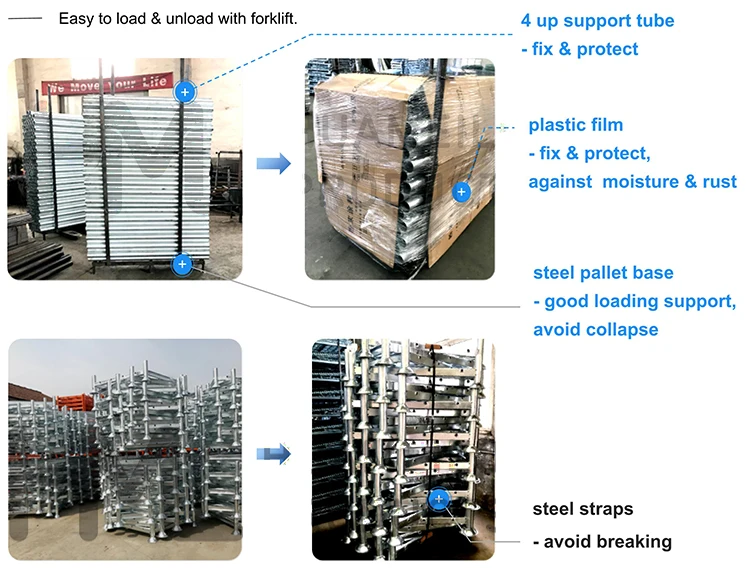

2, How is the goods being packed?
---Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with a standard forklift truck or pallet jack.
3, What is the payment terms I can get?
---TT or L/C at sight, DP, etc
4, What kind of finish do you provide for your goods?
---A.Electro-galvanized/Zinc plated: the zinc serves as a sacrificial anode( indoor storage)
B.Hot-dip galvanized: it forms a coating of corrosion-resistant zinc(indoor/outdoor and cold storage)
C.Powder coating: a type of coating that is applied as a free-flowing, dry powder(indoor/outdoor storage)
5, What is the loading capacity?
---In general, we have light duty(100~300kg) model,medium-duty(400~800kg) model and heavy-duty(1000~1700kg) model available for your choice.
6 Which product can be used in cold storage?
---Mobile rack, wire container, and roll cage are all widely used in cold storage.
7 I like your design, but couldn‘t find the right model from the products list, is custom size available?
---Yes, we do custom products and projects.
8 I would like to have my own design products and qty is not that big, is it ok?
---Yes, we can go with your custom design, no matter small or big qty, however, pls understand the cost will be different.
9 I don't have drawings or pictures available for the custom products, could you design it for me?
--Yes, we can make the best suitable design for you but do need to know the details, such as
a) dimension b) loading capacity c)stackability d)operation environment
10 What is the minimum quantity I can order?
--1x20'GP - quantity is variable depending on the size
11 What is your average production lead time?
--3-4 weeks against formal order and deposit.
12 Do I get any guarantee from your company?
-3~10 years warranty in the case that A) Proper handling during operation, correctly forklift handling while stacking/unstacking B) Overloading is prohibited
C) Environment request indoor, dry and not humid circumstance, do not contact with any corrosive chemical material (for zinc plated and powder coated products, no limitation for hot-dip galvanized)
