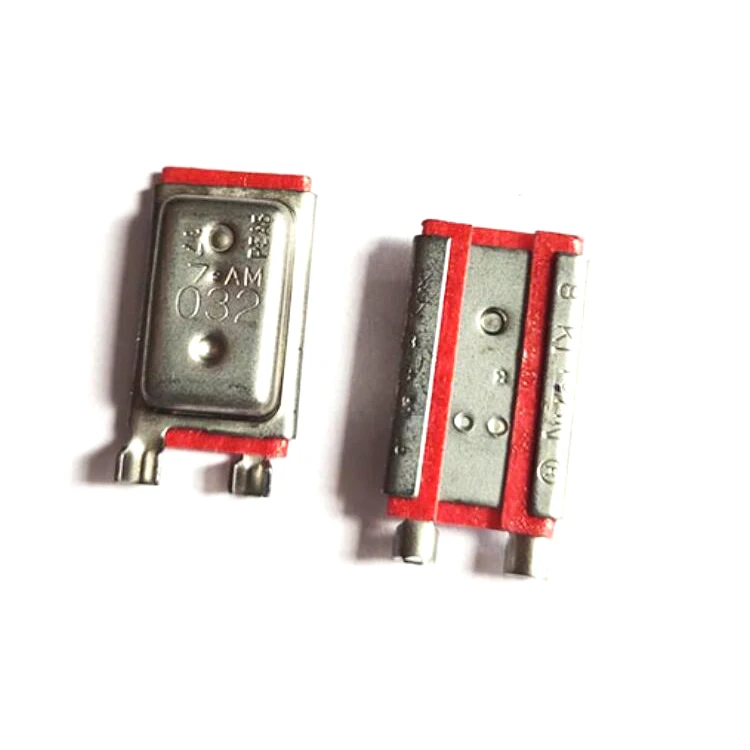

Sensata Bimetal Thermostat 7AM032 Thermal Motor Protector
- Category: >>>
- Supplier: Dongguan Reomax Electronics Technology Co. Ltd.
Share on (60691035678):
Product Overview
Description
Description
Features of 7AM thermal protector:
• Miniature size.
• Individually temperature calibrated and checked.
• Positive make and break with Klixon snap action disc.
• Repeatable temperature performance over life.
• Gasket steel case suitable for many impregnation processes.
• Current and temperature sensitivity for maximum design flexibility.

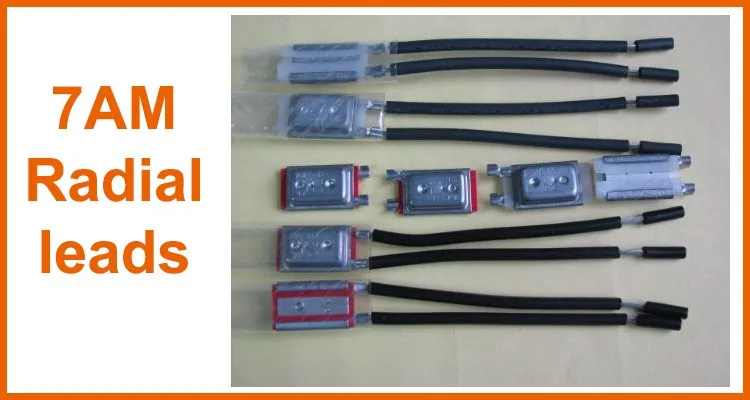

• Wide selection of leads and insulating sleeves.
• Same size and opposite side terminations.
• Cadmium free contacts.
Technical parameters of 7AM thermal protector:
Max Contact Rating:
16 VDC at 20 amps
120 VAC at 22 amps
277 VAC at 8 amps
600 VAC at 4 amps
Open temperature range: 70°C to 175°C in increments of 5°C
7AM032A5: 7AM 032 125C
Tolerance:±5℃
Dimension: 20.2 x 10.8 x 4.9 mm (including terminals)
Thermal Shock: -20°C / +150°C, each for 30 minutes / 5 cycles
Operation cycles: ﹥10000 Times
Maximum Ambient Temperature: Continuous: open-temperature +10°C
Applications:
• Shaded Pole Motor• Permanent split capacitor motor
• Fluorescent lighting ballasts
• HID ballasts
• Transformer
• Recessed lighting fixtures
• Battery packs
• Vacuum cleaners
• Automotive accessory motors, solenoids, PC boards
Thermal Protectors

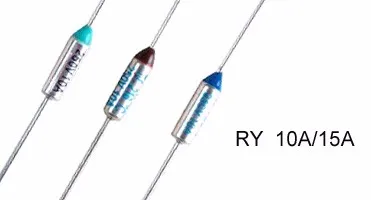

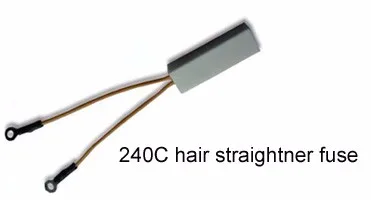

Thermal Fuses
