BEST owns unique patent for LED retrofit products which can directly replace traditional ones, including low pressure discharge lamps and HID.

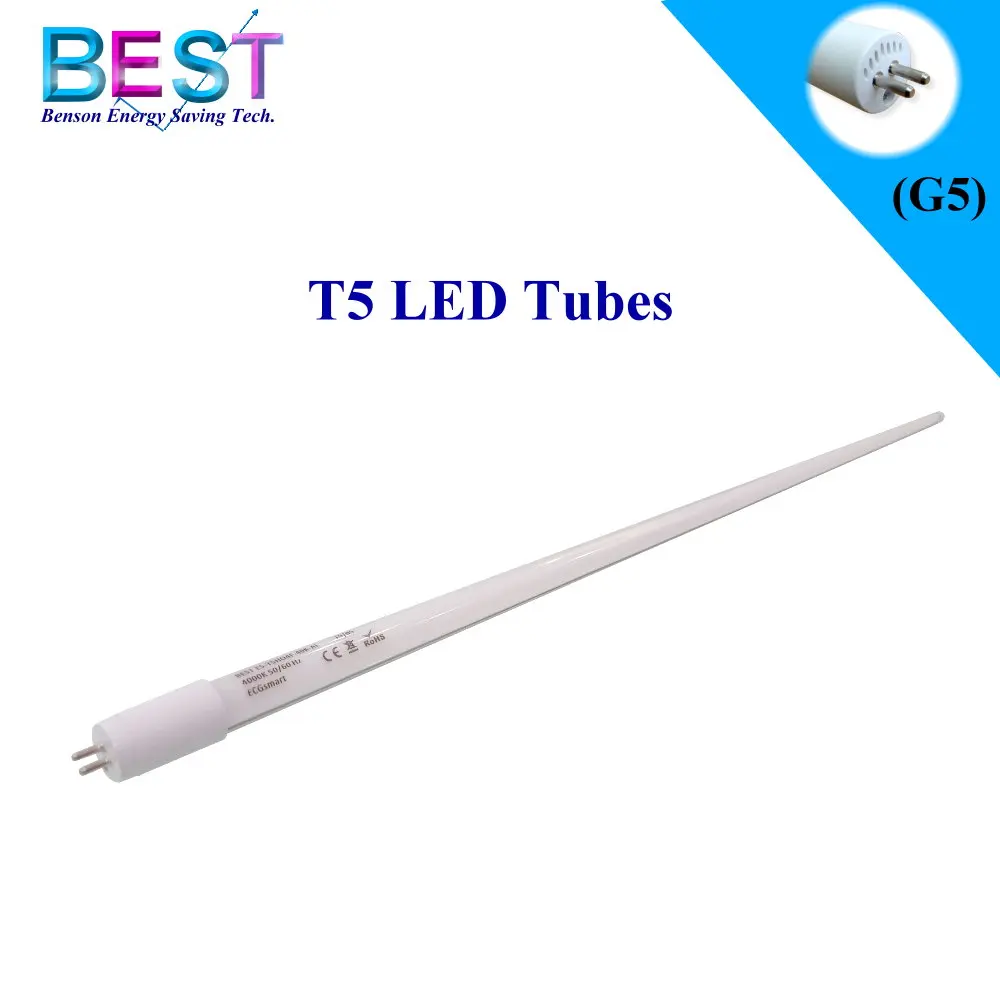

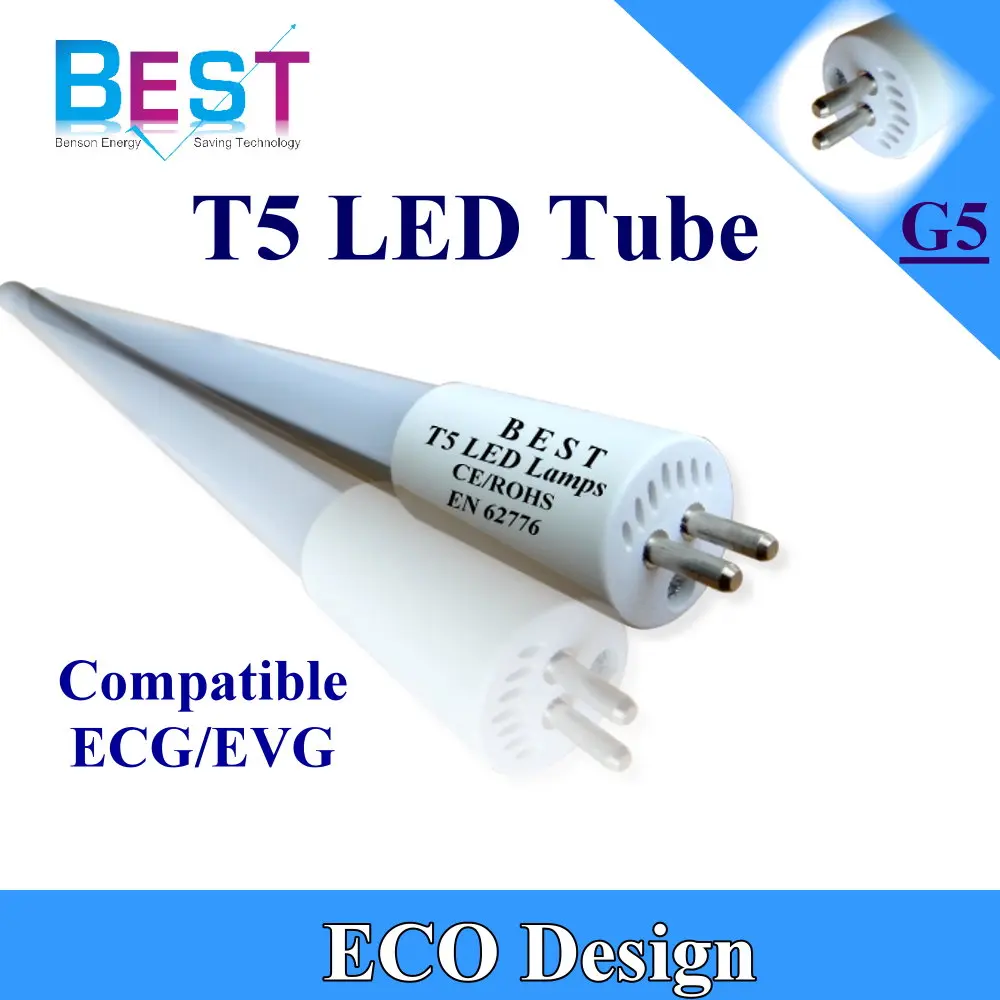

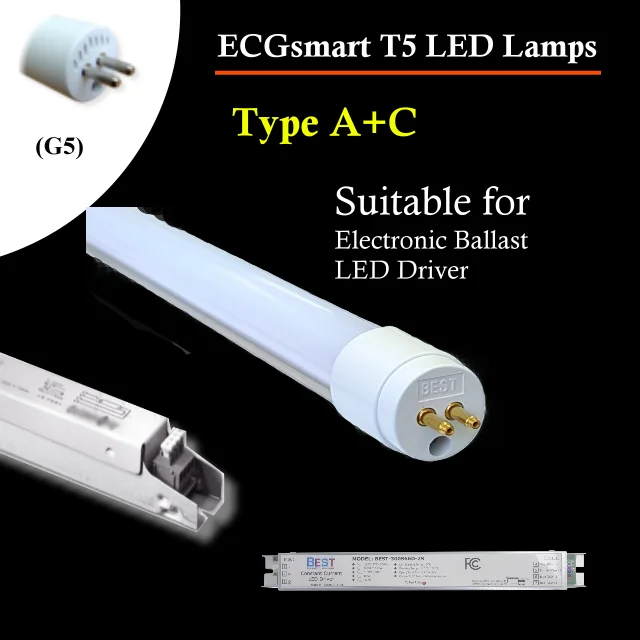

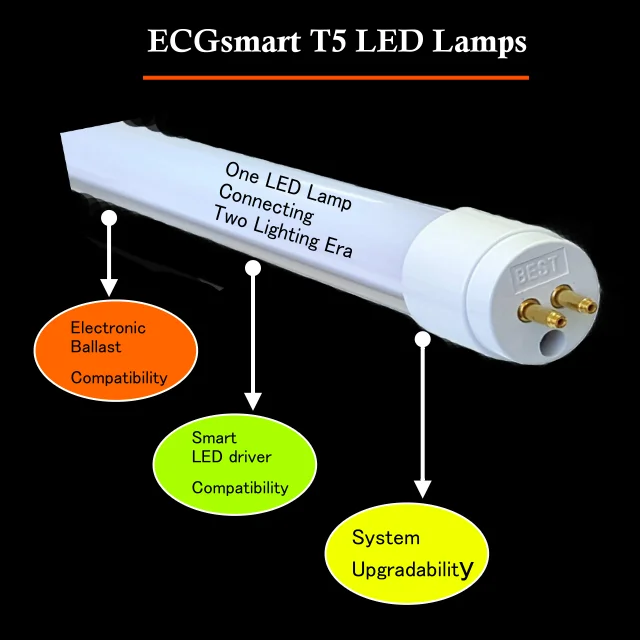

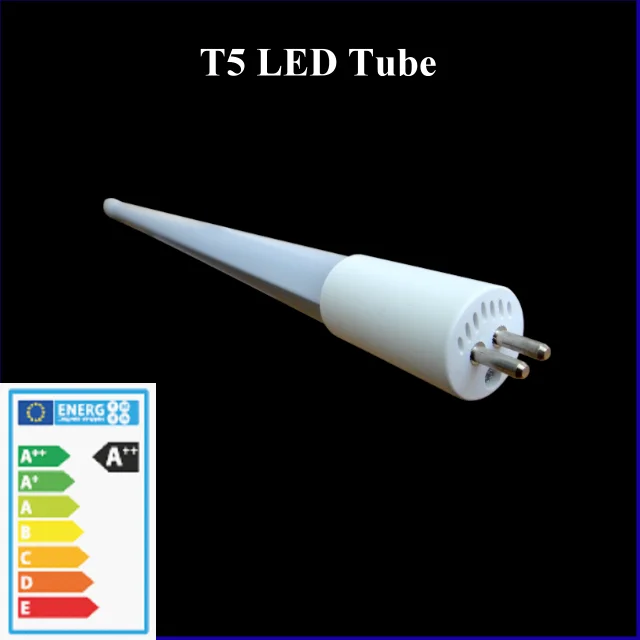

EB T5(Electronic Ballast/ECG) series has been fully completed worldwide and passed EU safety standard IEC/EN 62776 (LED lamps designed to retrofit linear fluorescent lamps) and Taiwan CNS 15829. EB T5 series cover Short series, HE(High efficiency), and HO(High Output). Comparing to conventional T5, the energy saving rate can reach more than 50% under condition of equivalent illuminance.
Safety in LED Tube:
Over-current and overheat fuse protection. Only passive electronic components on PCB. All of electronic parameters are the same as FL. Without built-in driver. No active components on PCB, such as capacitors or inductors.
Not cause for Electric arc/spark High temperature.
Reliability in LED Tube:
Manufactured with LM 80 qualified LED light engine only . Fig. 1,2 & 3 shows that LED chip at 55°C has the best performance and can be guaranteed 60,000 hours life time. The temp of LED chip in our design is lower than 55 °C to ensure 60,000 hours life time.
Reliability in LED Tube:
Our patented LED lamp No capacitor. No inductor. Fuse protection for overheat and overcurrent .
Luminaire total power consumption test
T5 LED retrofit
Ballast rated power(W)
6
Tube wattage(W)
18
2 tubes(W)
36
Total wattage(W)
42
Test result(W)
31.4
Test sample: one electronic ballast to 2 lamp luminaire
Energy-saving: Work with Electric Ballast Without increasing the power consumption.
Installation Process
Applications
Company Information
About us
The BEST owns unique patent for LED retrofit products which can directly replace traditional ones, including low pressure discharge lamps ,HID and relevant products. We will actively confront challenges and transform them into opportunities by devoting technology innovation in LED. In the future, our company will go for solar energy products.
