Single stage Chinese one year warranty mini russian submersible drainage pumps clean water intemal float switch

Product Overview

Description

Single-stage Chinese one year warranty mini russian submersible drainage pumps clean  water intemal float switch



Operating Limits:
-Fluid temperature up to 35℃
-Maximum ambient temperature 40℃



Motor:
-Build-in overload motor protector with automatic reset
-Insulation Class B/F
-Protection IP68



Materials:
-Pump body: PP
-Impeller: PP/stainless steel
-Shaft with rotor: 45# Carbon Steel/Stainless iron



Application:
-Hand-carry submersible automatic water pumps.
-Able to drain infiltrating water, cellars to reservoirs, clean or slightly dirty water and for garden irrigation.

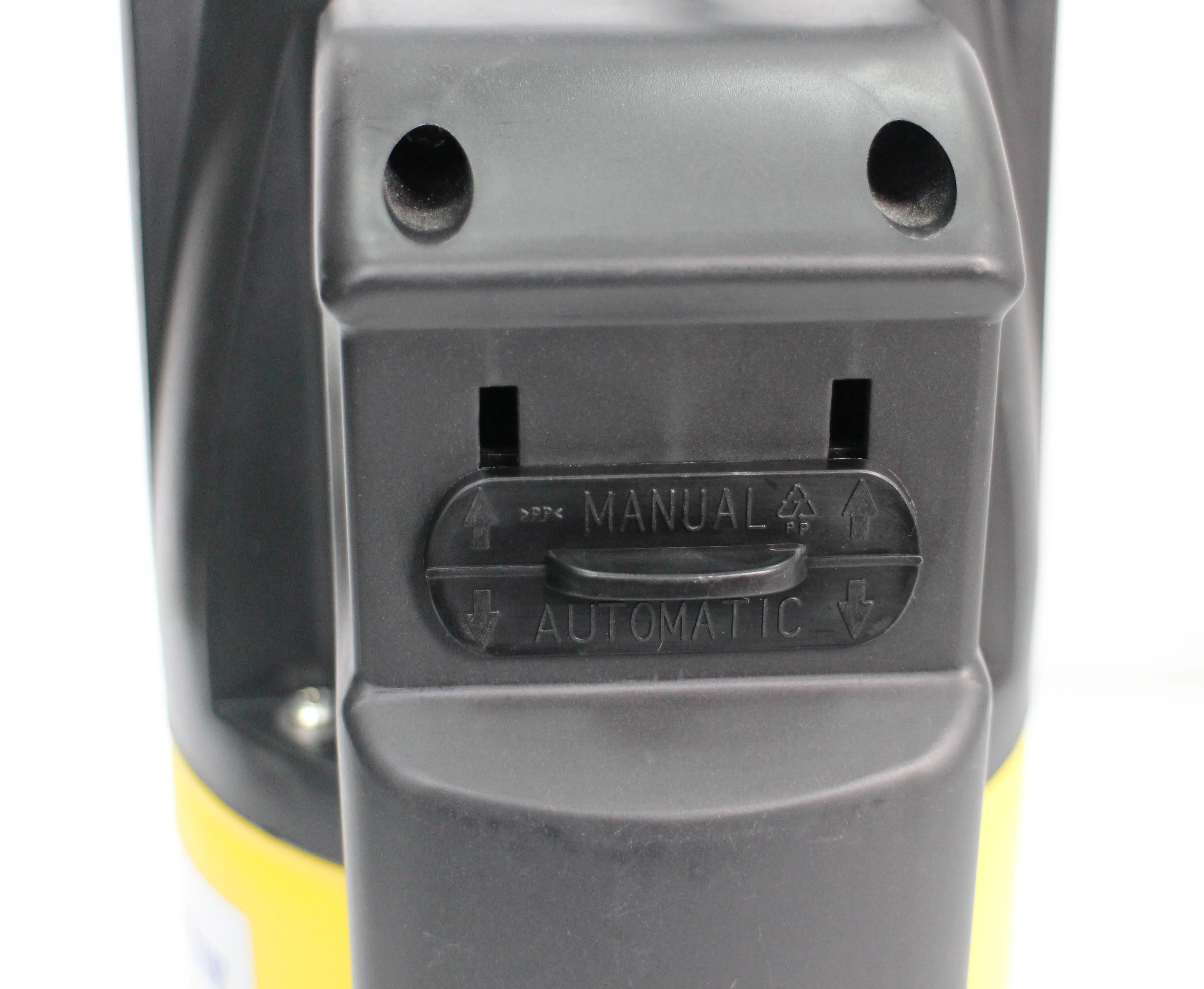

**Integrated float switch

**Submersible pump in special design with vertical pump outlet and integrated float switch which automatically cuts pump off when level has dropped



Specifications



MODEL	POWER (W)	MAX HEAD (M)	MAX FLOW (L/H)	MAX SUB. DEPTH (M)	MAX GRAIN SIZE	CABLE AND LENGTH (M)	QTY/20CTN (PC)
TP01450	250	5.5	6000	5	5MM	H05RN-F3G0.75mm2X10m	2300
TP01451	400	7.5	7000	5	5MM	H05RN-F3G0.75mm2X10m	2300
TP01452	550	8.0	11000	8	5MM	H05RN-F3G1.0mm2X10m	2040
TP01453	750	8.5	12500	8	5MM	H07RN-F3G1.0mm2X10m	2040
