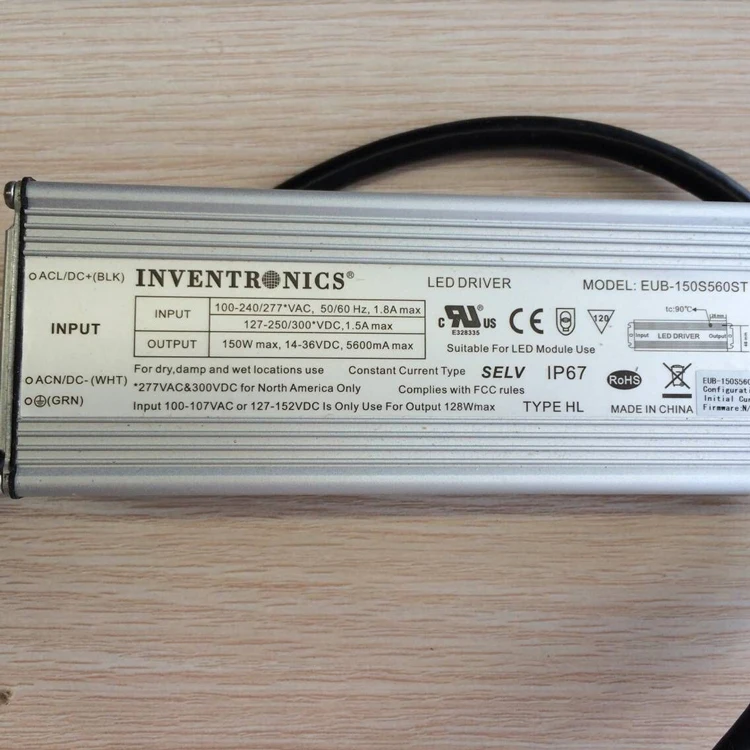

Canada Market EUB 150 Inventronics EUB 150 Series IP67 150W LED Driver AOC Controlador LED

Product Overview

Description

Canada Market EUB 150 Inventronics EUB-150 Series IP67 150W LED Driver AOC Controlador LED

220Vac CC LED Driver         26-320W CC LED Driver     Potentiometer AOC CC        Dip-switch AOC CC              Waterproof CV

220V 0-10V PWM Timer        220V 110V Dimmable          7 Years Warranty IP67         300W+ High Power CC        DALI LED Driver

  10 Years Guarantee         380Vac+ High Voltage Input  UFO Round Shape CC       Internal Use CC Dimmable  Programmer SPD

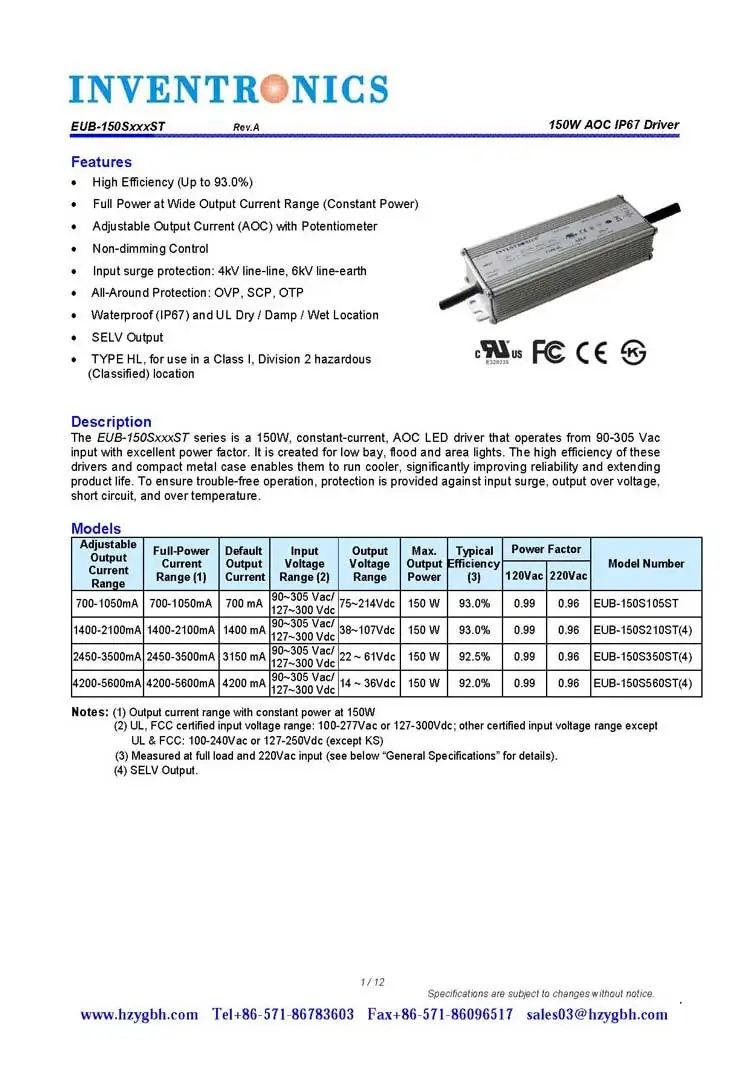

Features:

• High Efficiency (Up to 93.0%)
• Full Power at Wide Output Current Range (Constant Power)
• Adjustable Output Current (AOC) with Potentiometer
• Non-dimming Control
• Input surge protection: 4kV line-line, 6kV line-earth
• All-Around Protection: OVP, SCP, OTP
• Waterproof (IP67) and U* Dry / Damp / Wet Location
• SELV Output
• TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location



Description:

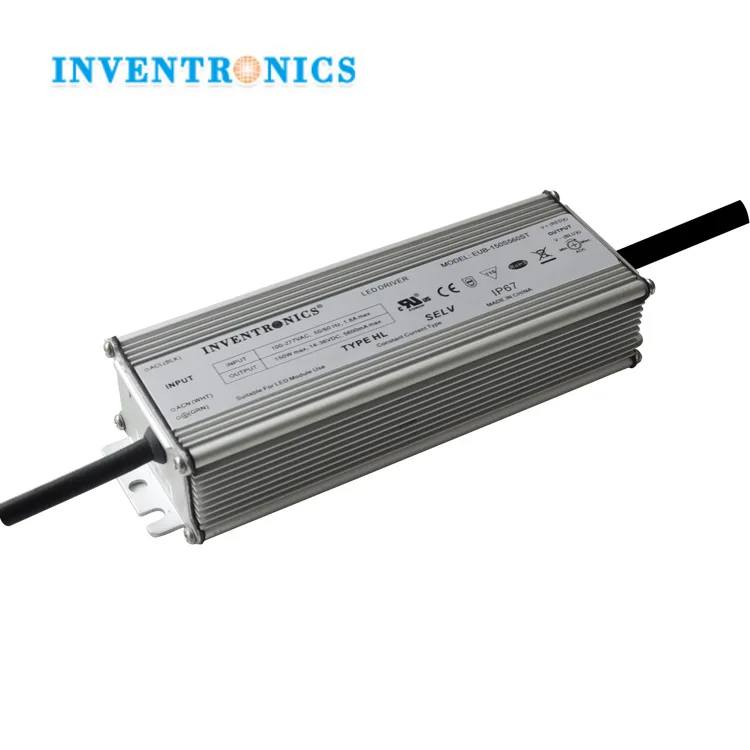

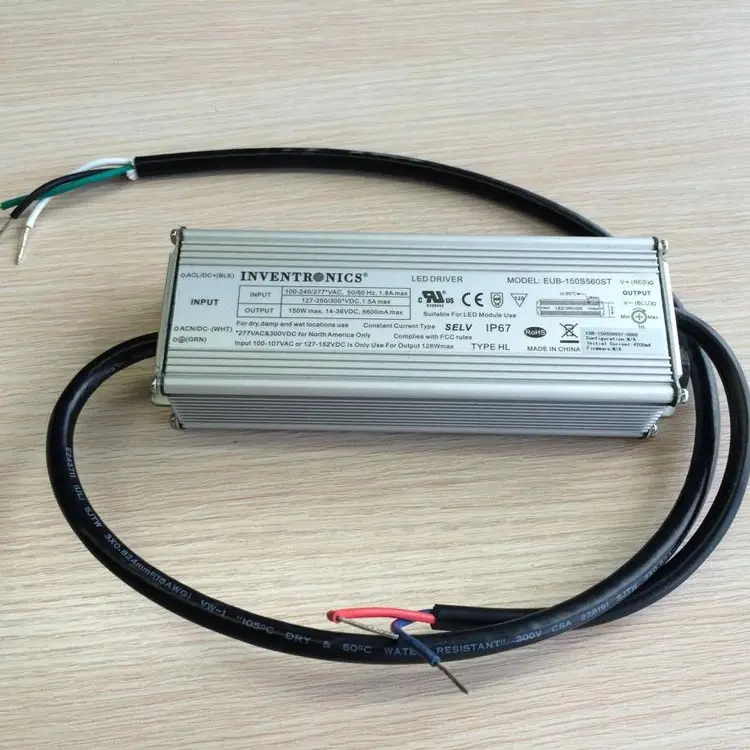

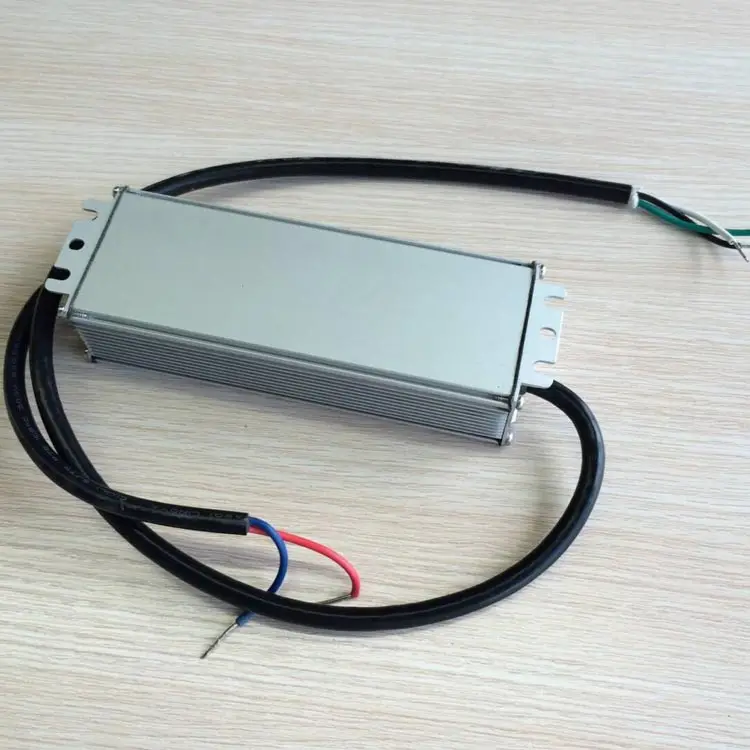

The EUB-150SxxxST series is a 150W, constant-current, AOC LED driver that operates from 90-305 Vac input with excellent power factor. It is created for low bay, flood and area lights. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature.



Adjustable Output Current Range	Full-Power Current Range (1)	Default Output Current	Input Voltage Range (2)	Output Voltage Range	Max Output Power	Typical Efficiency (3)	Power Factor		Model Number
							120Vac	220Vac
700mA-1050mA	700mA-1050mA	700mA	90-305Vac 127-300Vdc	75-214Vdc	150W	93%	0.99	0.96	EUB-150S105ST
1400mA-2100mA	1400mA-2100mA	1400mA		38-107Vdc		93%			EUB-150S210ST
2450mA-3500mA	2450mA-3500mA	3150mA		22-61Vdc		92.5%			EUB-150S350ST
4200-5600mA	4200-5600mA	4200mA		14-39Vdc		92%			EUB-150S560ST





See What Other Customers Say About Chela's Service:



(For more details, please contact Chela Chen for the datasheet.)



Models in EUB Series:

EUB-075SxxxSV	EUB-075SxxxST	EUB-096SxxxSV	EUB-096SxxxST	EUB-150SxxxSV	EUB-150SxxxST
EUB-075S105SV	EUB-075S105ST	EUB-096S105SV	EUB-096S105ST	EUB-150S105SV	EUB-150S105ST
EUB-075S175SV	EUB-075S175ST	EUB-096S210SV	EUB-096S210ST	EUB-150S210SV	EUB-150S210ST
EUB-075S280SV	EUB-075S280ST	EUB-096S350SV	EUB-096S350ST	EUB-150S350SV	EUB-150S350ST
				EUB-150S560SV	EUB-150S560ST
