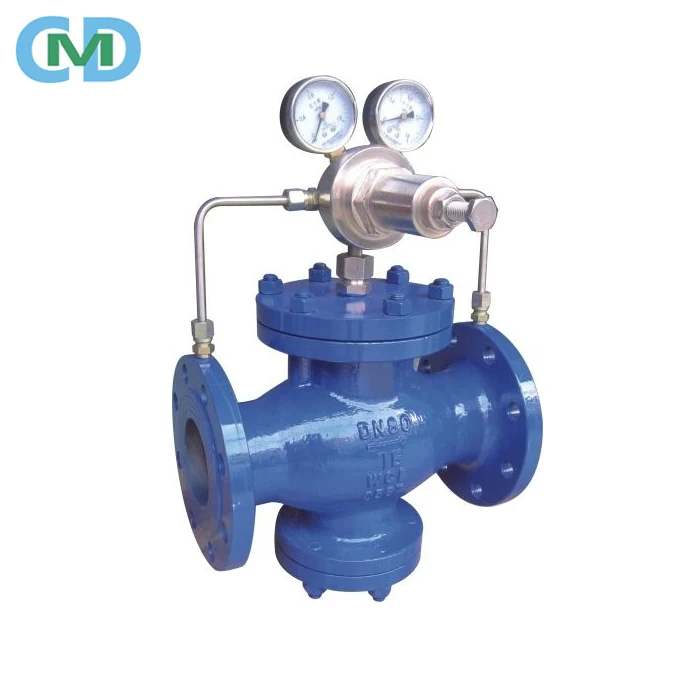

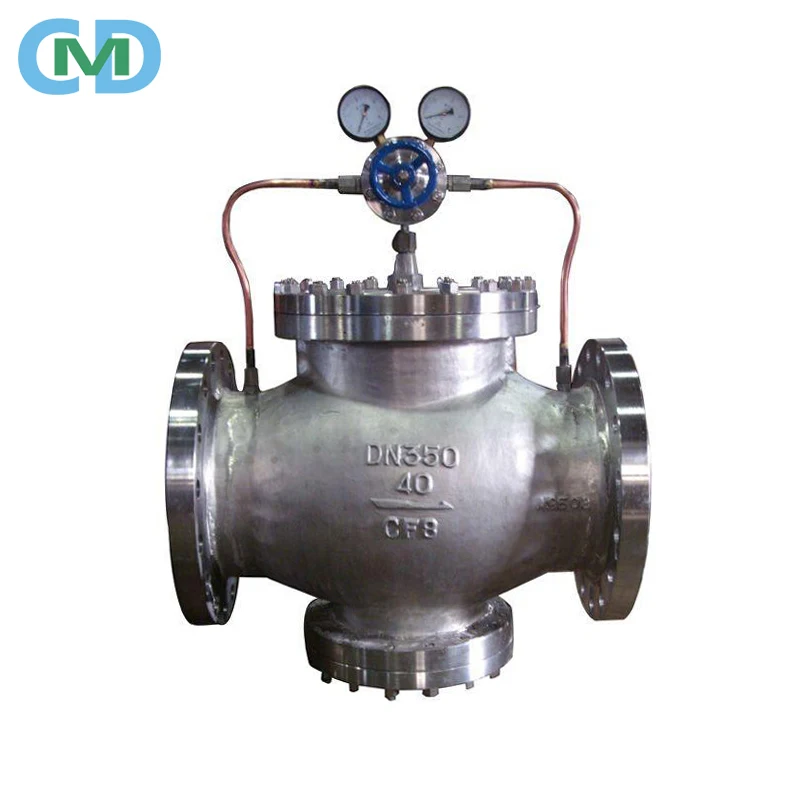

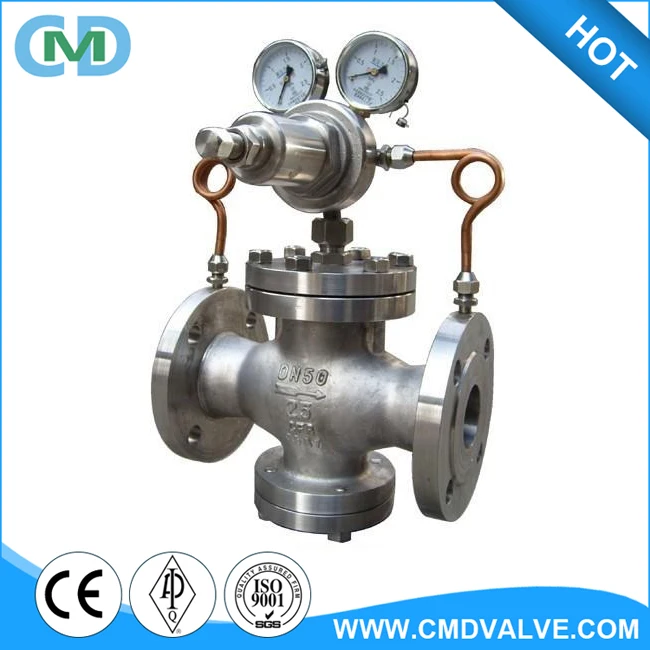

YK43 Stainless Steel CF8 CF8M Gas Pressure Reducing Valve

Product Overview

Description





SPECIFICATIONS FOR YK43 PRESSURE REDUCING VALVES
Pressure rating and size:	PN10 - PN160
	DN15 to DN500
	Output pressure range : 0.1 - 4.5 Mpa
Material:	Body : WCB, CF8, CF8M
	Disc  : 2Cr13, SS304, SS316
	Piston : 2Cr13, Brass
	Spring : 60Si2Mn
	Diaphragm : 1Cr18Ni9Ti
Flange connection:	ANSI B16.5, EN1092
Medium:	Oxygen/CO2/Natural Gas
