China supplier Composite fiberglass rock anchor bolts
- Category: >>>
- Supplier: Xsy Industries Co. Ltd.
Share on (60691185052):
Product Overview
Description

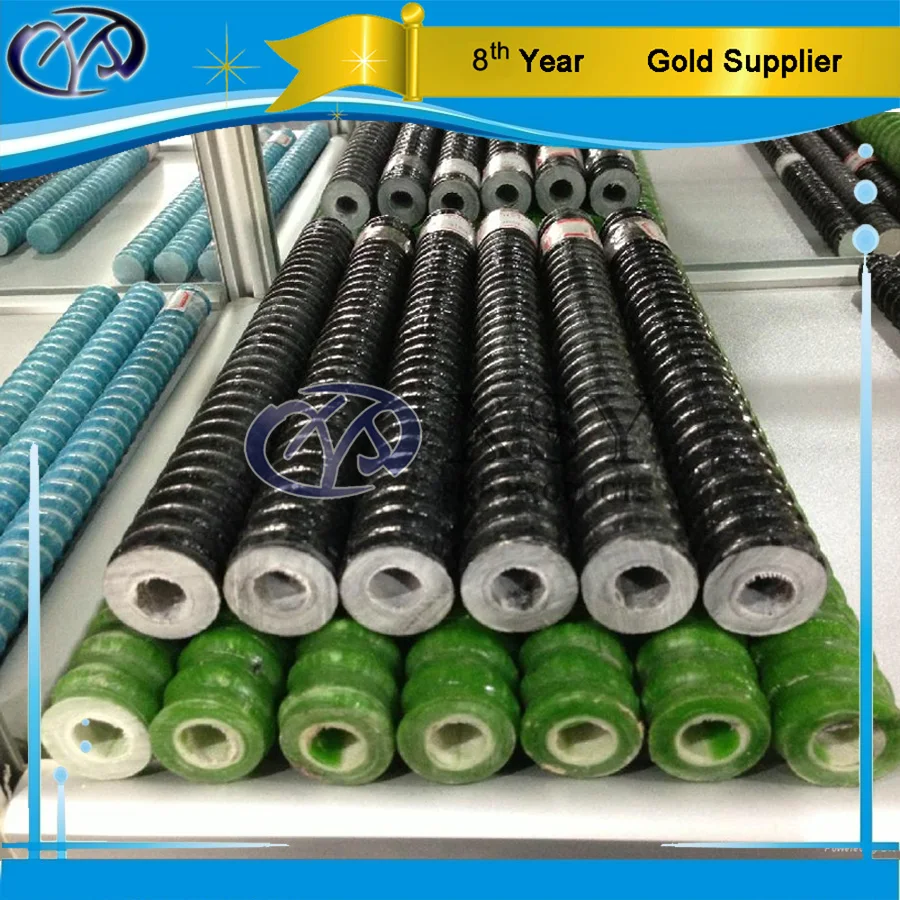

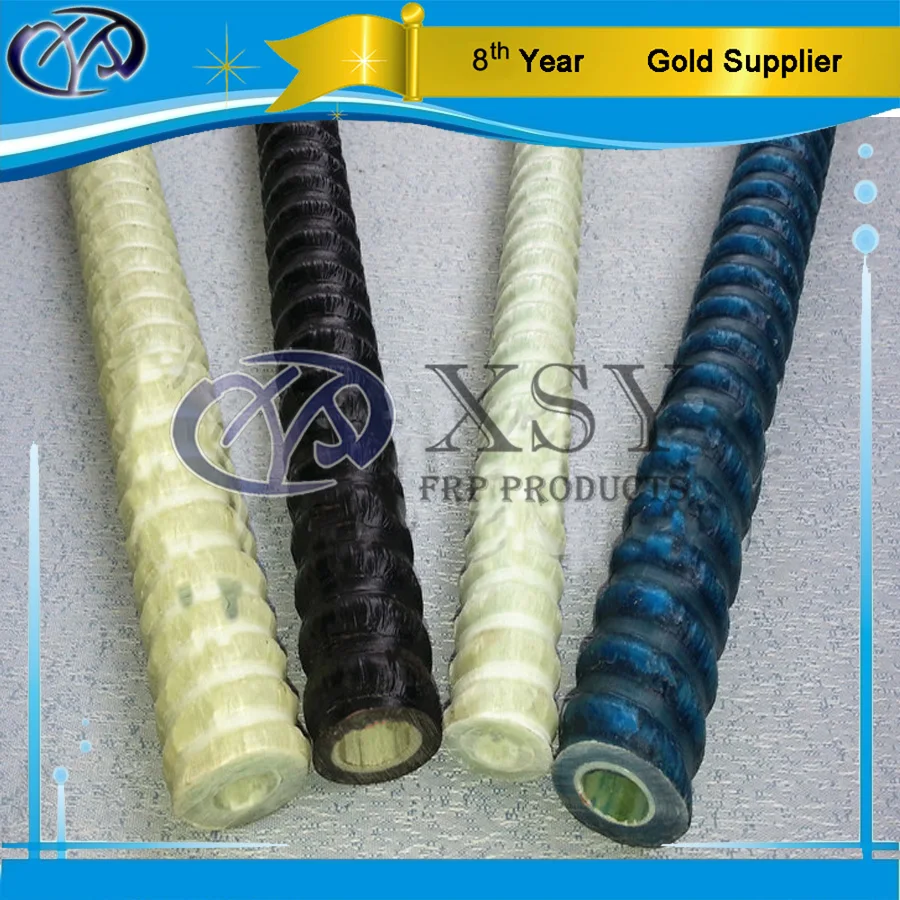

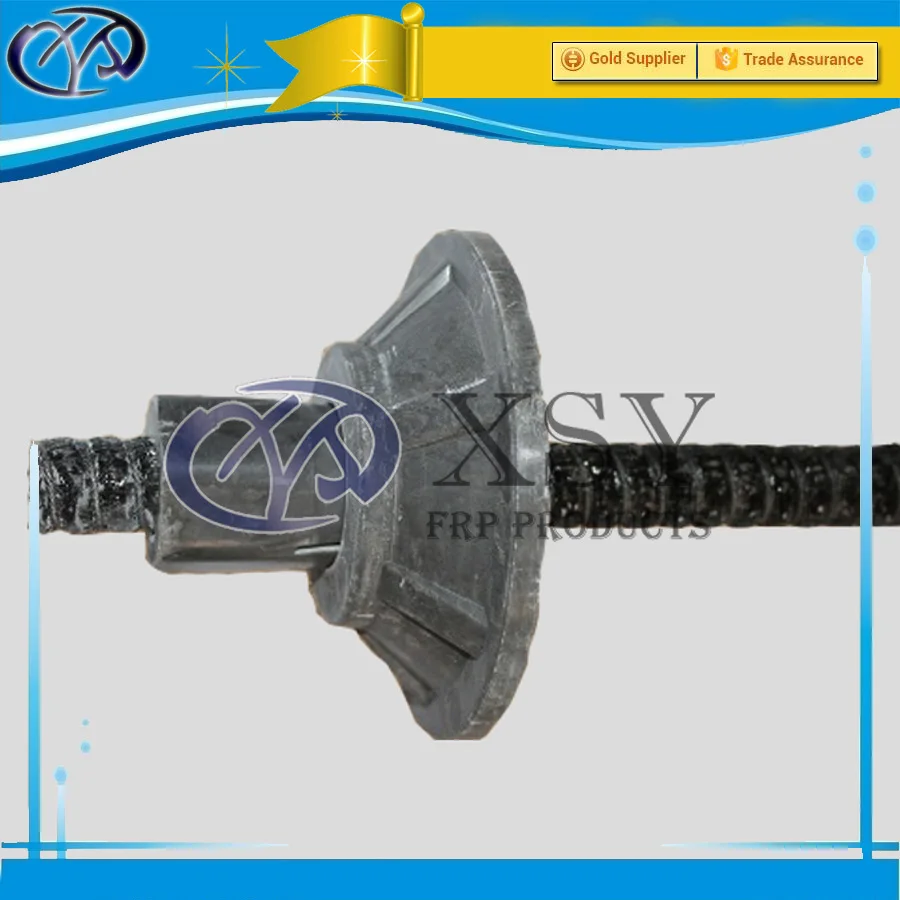

China supplier Composite fiberglass rock anchor bolts
Product Description

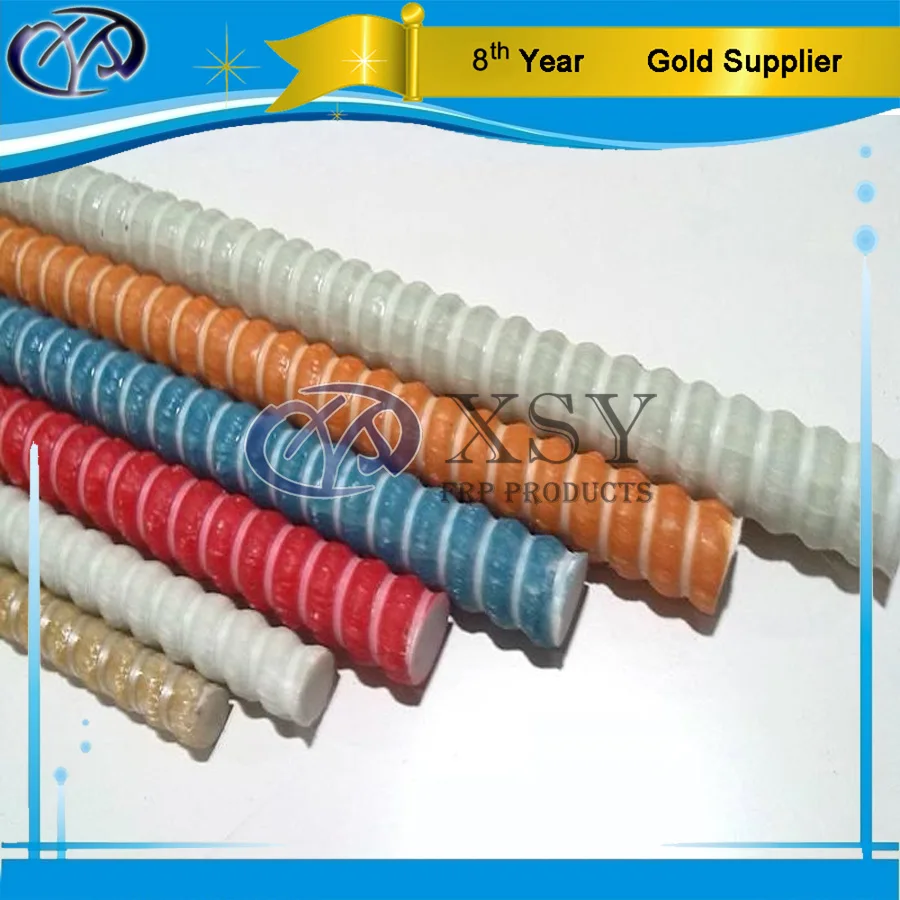

The fiberglass rock bolt is made from high strength glass fibers along with extremely durable resin.
All thread GFRP rockbolt series prst of support project, but also improve the safety and maneuverability.
| Advantages | 1) Non-corrosive |
2) Tensile strength is more than twice that of steel | |
3) Non-metallic and non-conductive | |
4) Consistent modulus of elasticity | |
5) Deformation patterns are the same as with steel | |
6) Four times lighter than steel | |
7) Pre-fabricated ACI standard angles and bends available | |
8) Coefficient of thermal expansion more similar to concrete than that of steel | |
9) Direct production costs lower than similar steel bolt |

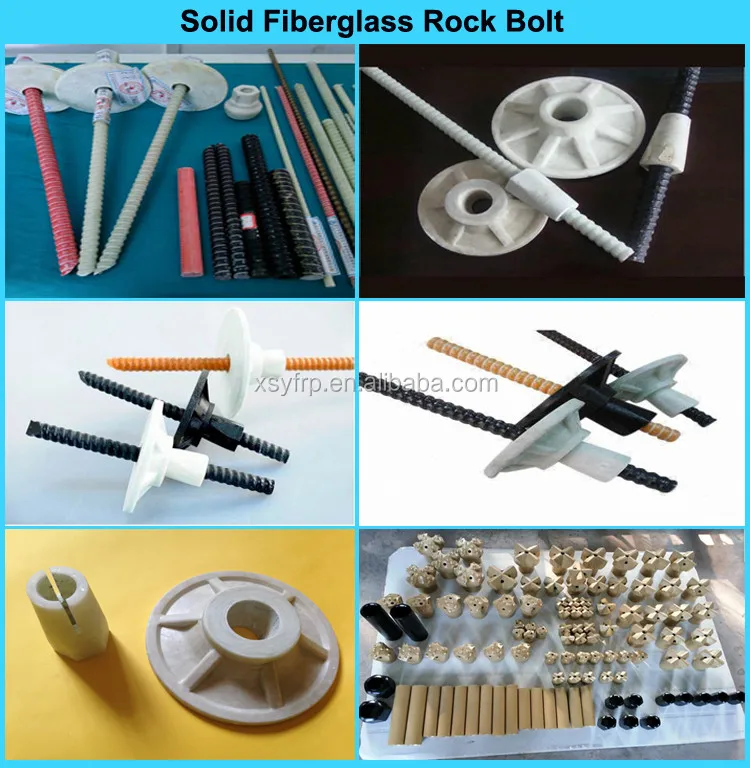

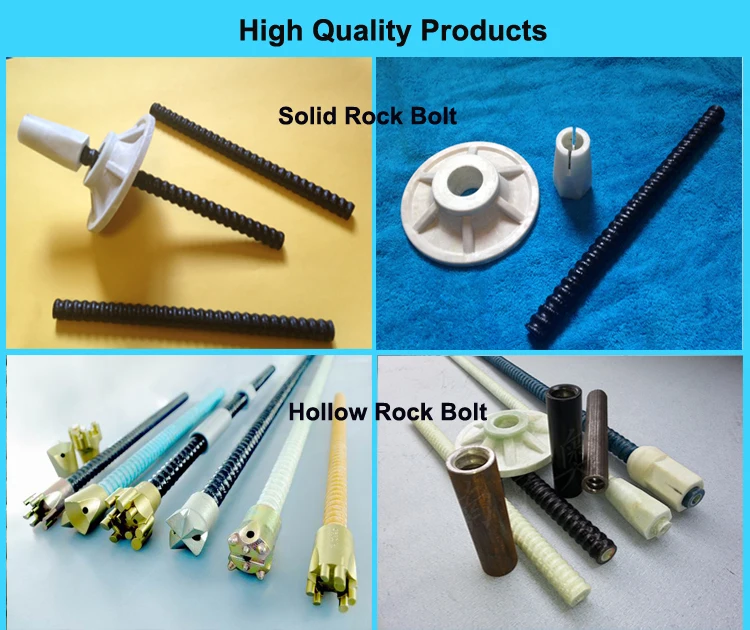

| Technical Data of Solid Rockbolt | ||||||||
| Test Unit | MGSL18 | MGSL20 | MGSL22 | MGSL24 | MGSL27 | |||
| Rod | Surface | Uniform appearance, no bubble and flaw | ||||||
| Norminal diameter (mm) | 18 | 20 | 22 | 24 | 27 | |||
| Tensile load (kN) | 160 | 210 | 250 | 280 | 350 | |||
| Tensile strength (MPa) | 600 | 600 | 600 | 600 | 600 | |||
| Shearing strength (MPa) | 150 | 150 | 150 | 150 | 150 | |||
| Torsion (Nm) | 45 | 70 | 100 | 150 | 200 | |||
| Antistatic (Ω) | 3*107 | 3*107 | 3*107 | 3*107 | 3*107 | |||
| Flame resistance | Flaming Combustion Time | 6 Total | ≤6 | ≤6 | ≤6 | ≤6 | ≤6 | |
| Largest Single Value | ≤2 | ≤2 | ≤2 | ≤2 | ≤2 | |||
| Flameless combustion time | 6 Total | ≤60 | ≤60 | ≤60 | ≤60 | ≤60 | ||
| Largest Single Value | ≤12 | ≤12 | ≤12 | ≤12 | ≤12 | |||

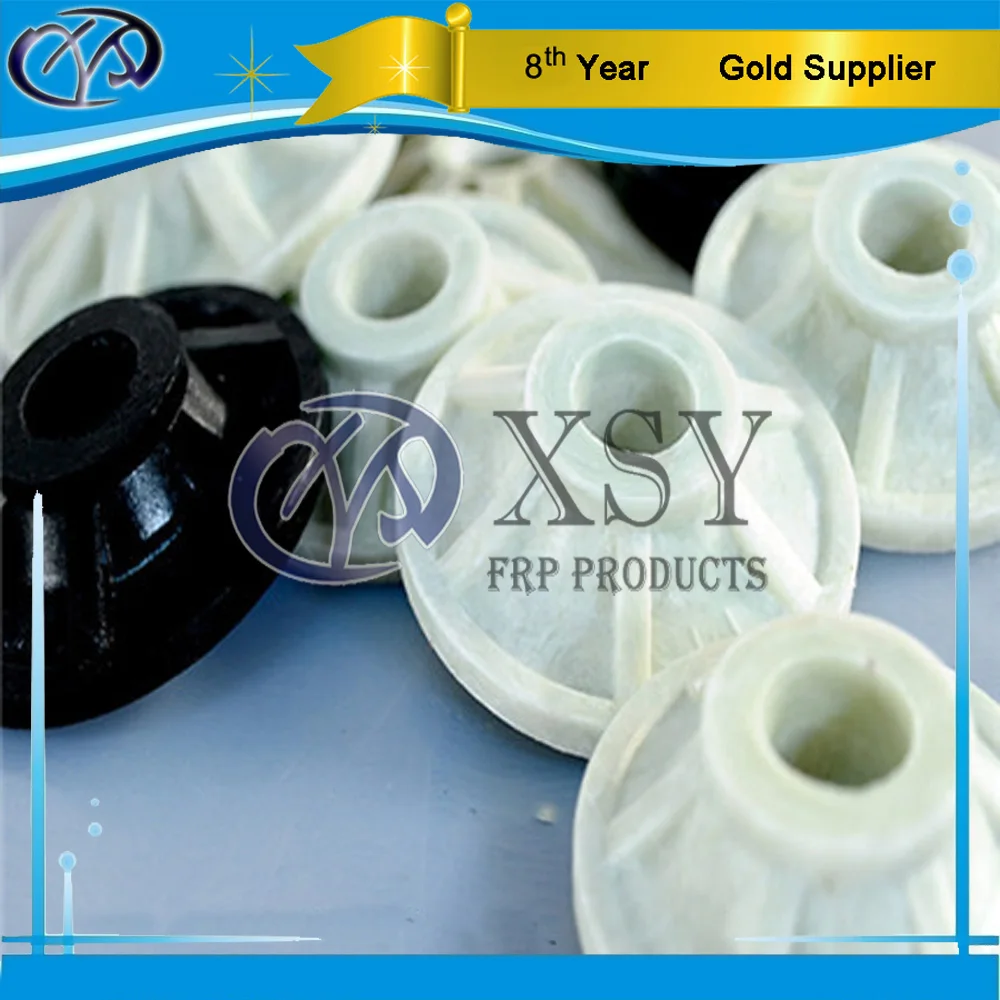

| Plate | Plate load strength (kN) | 70 | 80 | 90 | 100 | 110 | ||
| Central diameter (mm) | 28+1 | 28+1 | 28+1 | 28+1 | 28+1 | |||
| Nut | Nut load strength (kN) | 70 | 80 | 90 | 100 | 110 | ||

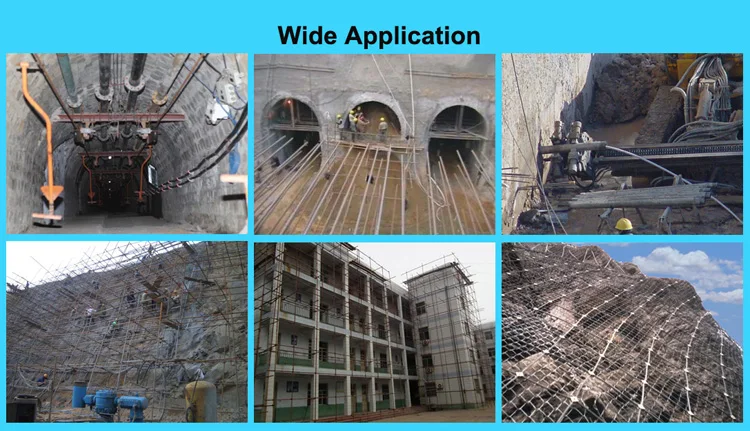

Application | 1) Tunnels and culverts |
2) Mine tunnel | |
| 3) Civil Engineering | |
| 4)Seawall dock | |
| 5) Military Engineering | |
| 6) Roads and Bridges | |
7) Airport Runway | |
8)Mountain slope suppot | |
9) Formwork and reinforced concrete work |

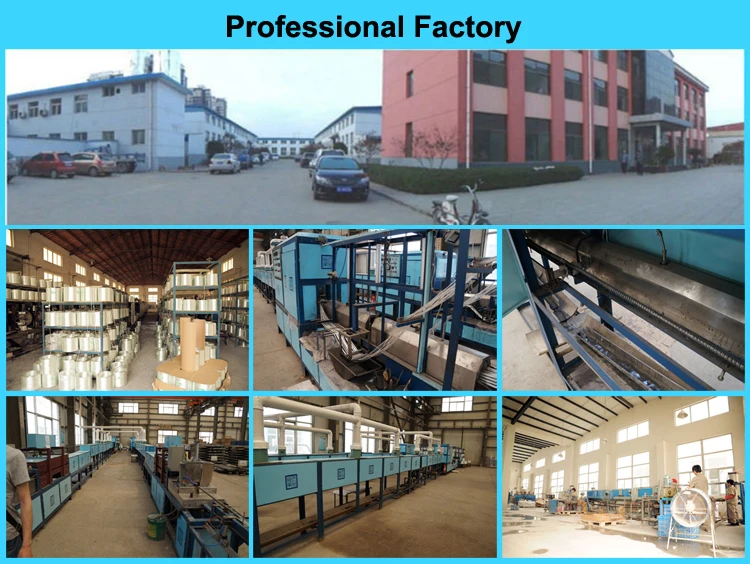

Professional factory
Our factory was founded in May, 2008
Technical support | Senior engineers | 2 |
| Engineers | 3 | |
| Assistant engineers | 4 | |
| Quality inspectors | 4 | |
| workers | 100 |

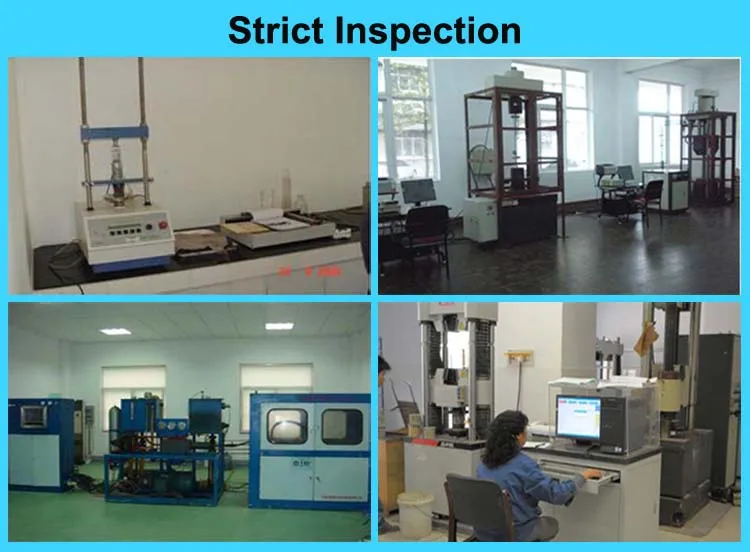

Strict Inspection
We are responsible for every products, every customer.
We can provide reports such as chemical, hardness, tensile strength if need.

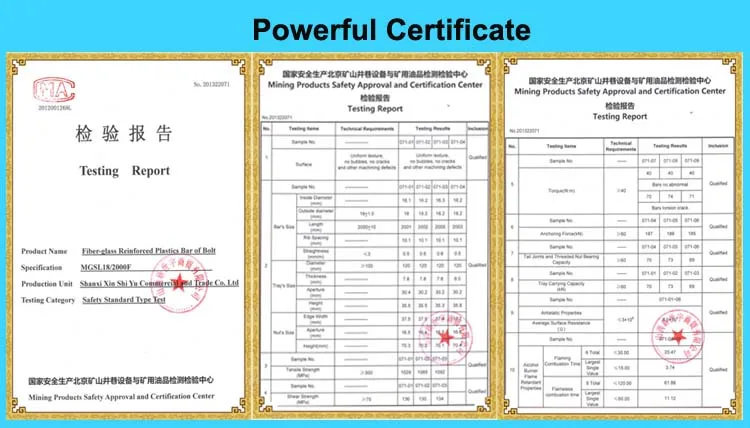

Powerful Certificate

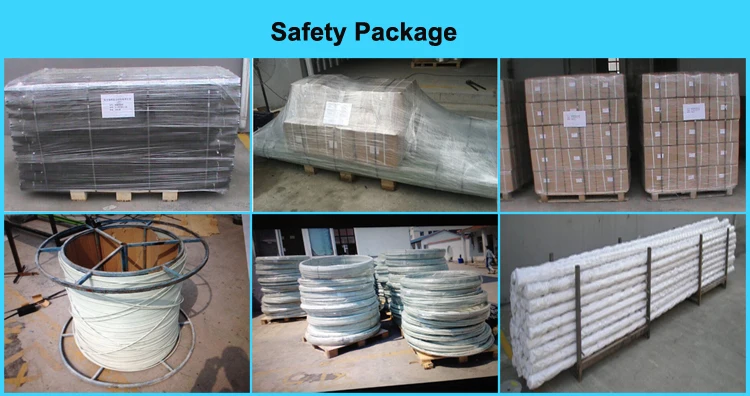

Packaging & Shipping
We provide well package for sea freight, such as strench film+ pallet...
We can also pack as per your requirements.
| Global express | DHL, FedEx, TNT, UPS, EMS… | |||||
| Air freight | EK, TG, TK, MH, ZA, AA, CA, SA | |||||
| Shipping | MSC,COSCO,HANJIN,YANGMING… | |||||
Anytime Contact
Please don't hesitate! Just contact us now! You could send me email directly as following.
Would you please tell us your need?
1. solid or hollow type? 2.which diameter? 3. how long of each pcs?

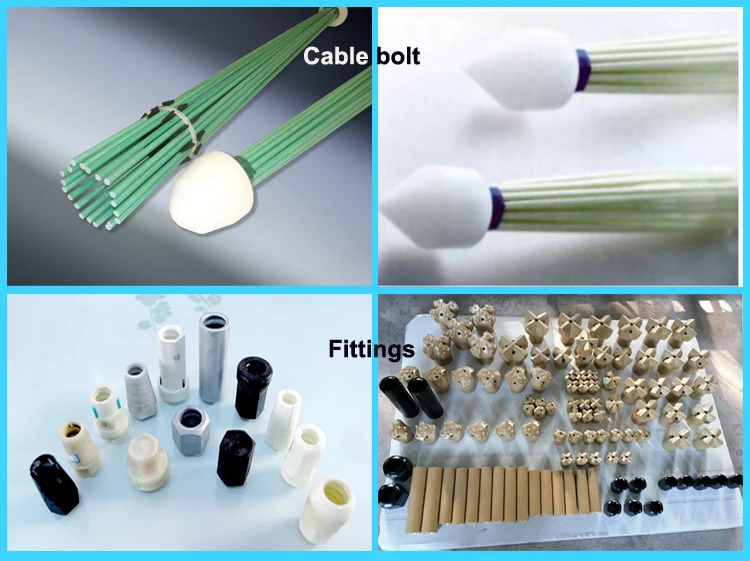

4.additional technical requirements? 5.do you also need fittings?
6.what's your application? 7.what's your quantity?
