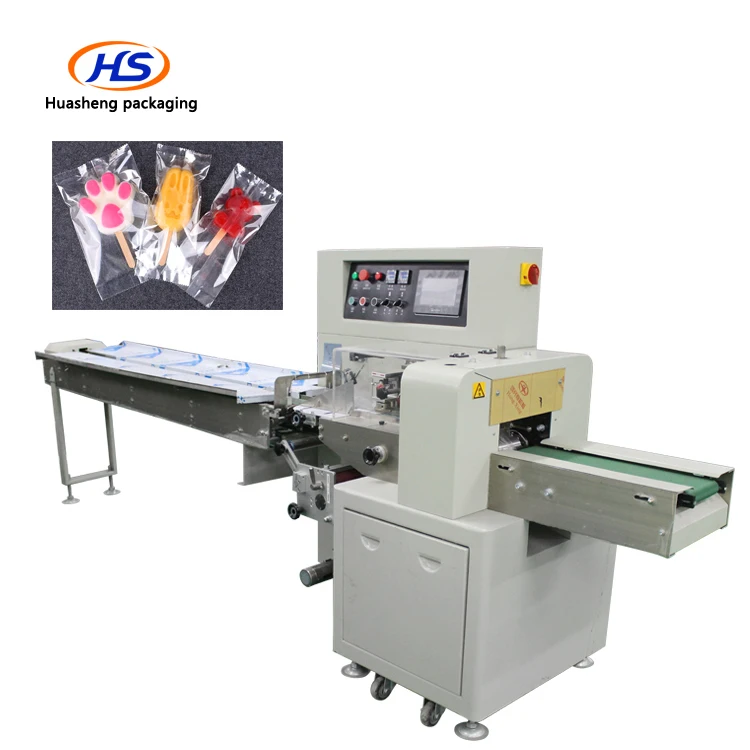

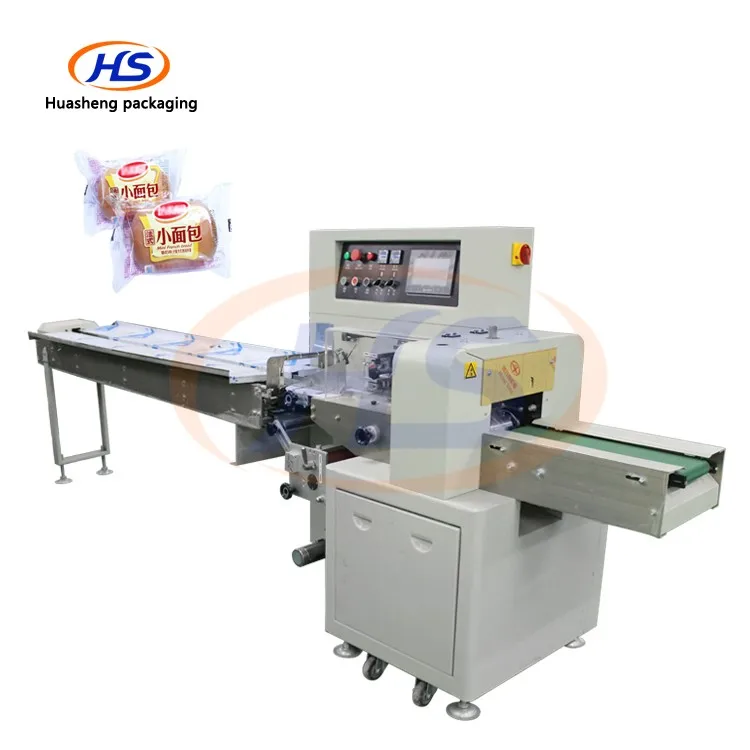

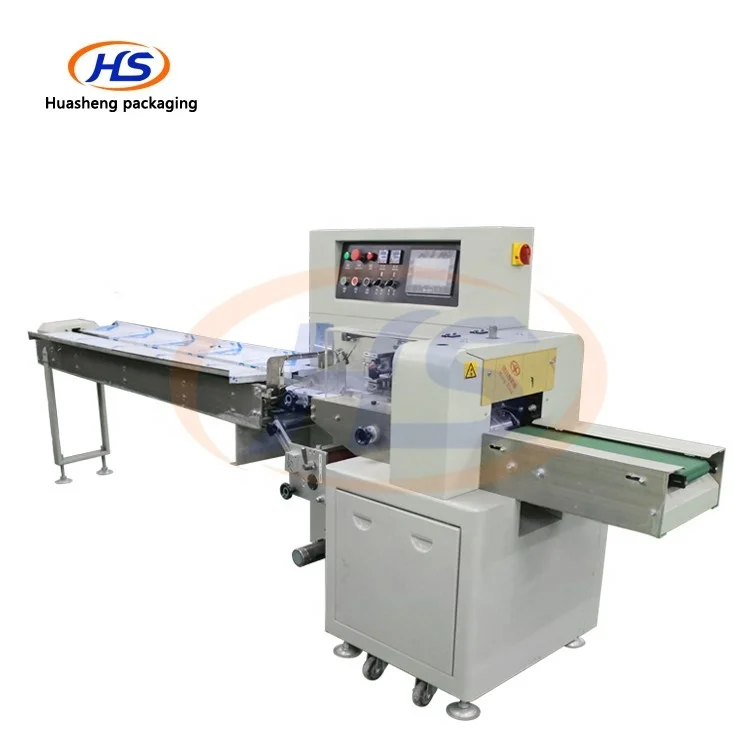

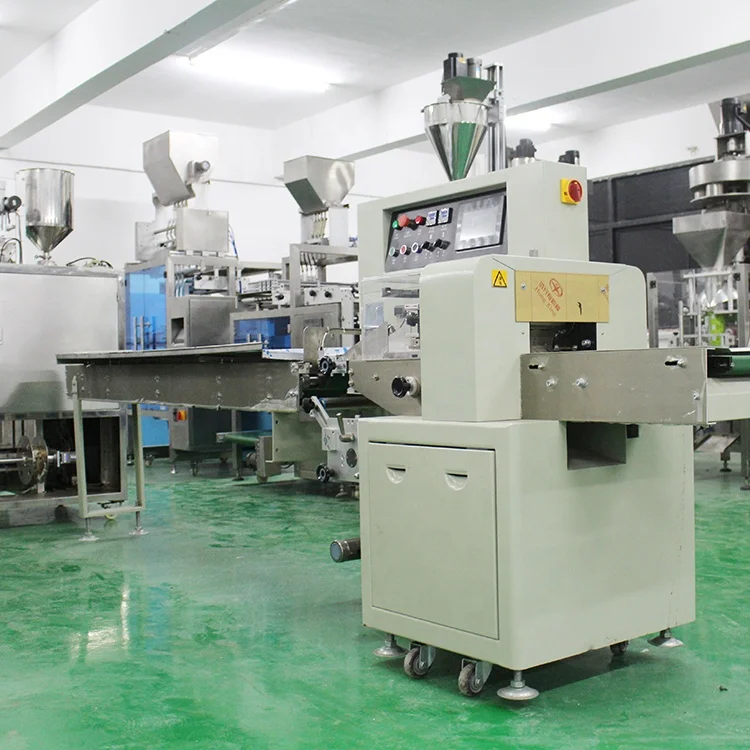

Automatic horizontal high efficient instant noodle/cakes/snack food pillow wrappe flow packing machine HS Z100
- Category: >>>
- Supplier: Guangzhou Huasheng Packaging Machinery Manufacturing Co. Ltd.
Share on (60691239838):
Product Overview
Description
Products Description
Machine name | Horizontal flow wrappe packaging machine |
Main Function | bag-making, filling, sealing, cutting, embossing, capacity counting |
Model no. | HS350 |
Packing speed | 30-150pcs/min (subject to person feed speed, common reasonable speed is 60-80pcs/min) |
Max film width | Max 350 mm |
Bag size | Usually within 200mm |
Sealing style | Pillow sealing |
Suitable for | Biscuits, pastries, cakes, candy, ice lolly, Instant noodles, plastic parts etc |
Product height | Common with 45mm |
Film roll | Max outer diameter: 320mm; Inner core diameter: 76-78mm |
Film roll request | Thickness: 0.03-0.05mm; Heat-sealable material, like OPP/CPP, PET/PE or 3 layer aluminum laminated roll; |
Voltage | 220V 50/60Hz single phase |
Power | 2.8 KW |
Compressed air supply | 0.65Mpa 240L/min |
Dimension(L*W*H) | L 3700 x W 970 x H 1500 mm |
Package | Two export standard plywood cases, estimate 4.5cbm; G.W 600KG; |
Optional | Nitrogen generator (when needs fill nitrogen air into bag, around 5cbm/hour) |

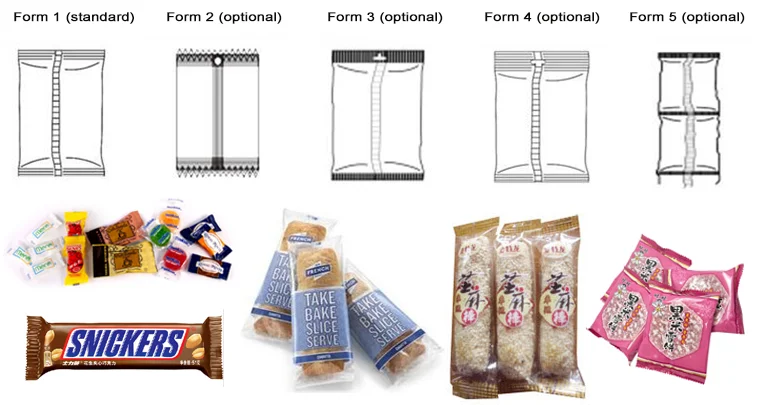

Bag tyle:
Make for pillow bag with different style, such as flat cut/zigzag cut, top with round hole/ Euro hole, seperately or in a chain.
Main specification:
1.Item feed by manual method, so most solid item are available on the machine.
2.Free to set the bag length within the max limited, Machine cut the length synchronously when changing the length.
3.Photoelectric sensor on machine for eye mark tracking, to keeping each bag same cutting position & same length.
4.Independent temperature PIDs control for horizontal and vertical sealing, flexible for various kinds of bag material.
5.Intelligent software control system, touch screen, convenient to operate;
2.Free to set the bag length within the max limited, Machine cut the length synchronously when changing the length.
3.Photoelectric sensor on machine for eye mark tracking, to keeping each bag same cutting position & same length.
4.Independent temperature PIDs control for horizontal and vertical sealing, flexible for various kinds of bag material.
5.Intelligent software control system, touch screen, convenient to operate;

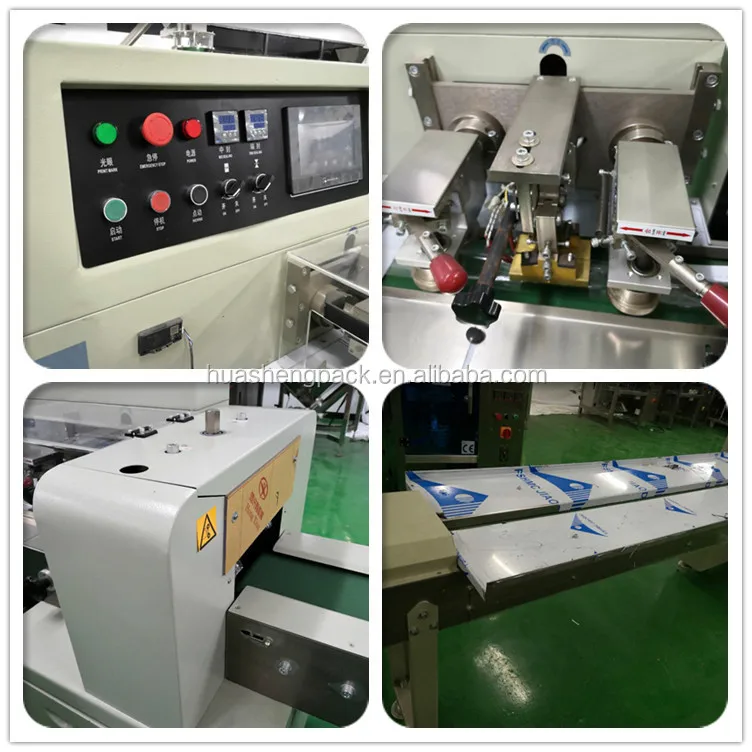

Details
Touch Screen Display
Easy operation and multiple language for choice
Imported PLC system
Machine performance is stable, convenient for parameters adjusting.
Conveyor Belt
304 stainless steel smooth transportion panel, health safety, long service life
Electric Control Box
Clean and neatly cable circuit box, with all the cables under wire slot cover

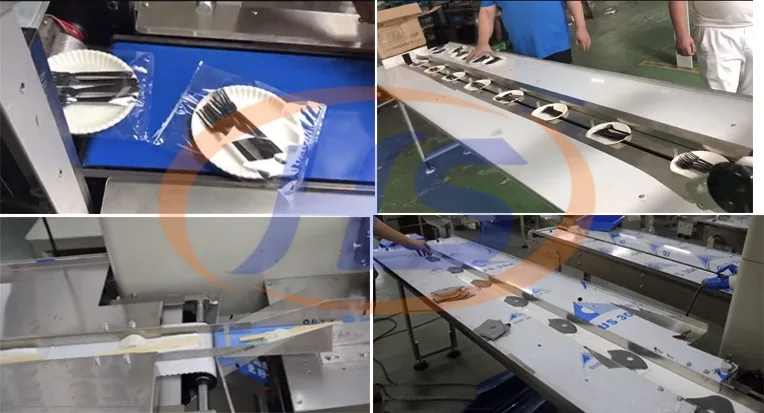

Machine operation steps:
Step 1: Person put item on conveyor
Step 2 : Machine auto transport item to bagging station
Step 3: Ready packet output
Step 4: Auto form bag, pack, seal and cut
Step 2 : Machine auto transport item to bagging station
Step 3: Ready packet output
Step 4: Auto form bag, pack, seal and cut
Product Applications
Application:
This pillow type packing machine set can be used for: cake, biscuits, instant nodeels, bread, soap, wet wipe, chocolate, candy etc.
Recommend Products
About us
Company introduction:
Guangzhou Huasheng Packaging Machinery Manufacturing Co.,ltd is professional factory for manufacturing automatic packing machine and filling machine. With more than 10 years of experience in packing machinery industry, we had developed several product series, such as granule VFFS machine, Powder VFFS machine, Liquid VFFS machine and irregular product VFFS machine.
We also had implemented a strict and complete quality control system, which ensures that each product can meet customer’s quality requirements. Besides, all of our products have been strictly inspected before shipment. And under this quality system, we are and we will always keep developing and producing new products for customers all around the world.
We also had implemented a strict and complete quality control system, which ensures that each product can meet customer’s quality requirements. Besides, all of our products have been strictly inspected before shipment. And under this quality system, we are and we will always keep developing and producing new products for customers all around the world.
Your Success, Our Glory: Our aim is to help customers realize their goals. We are making great efforts to achieve this win-win situation and sincerely welcome you to join us.
Our Service
Why choose us

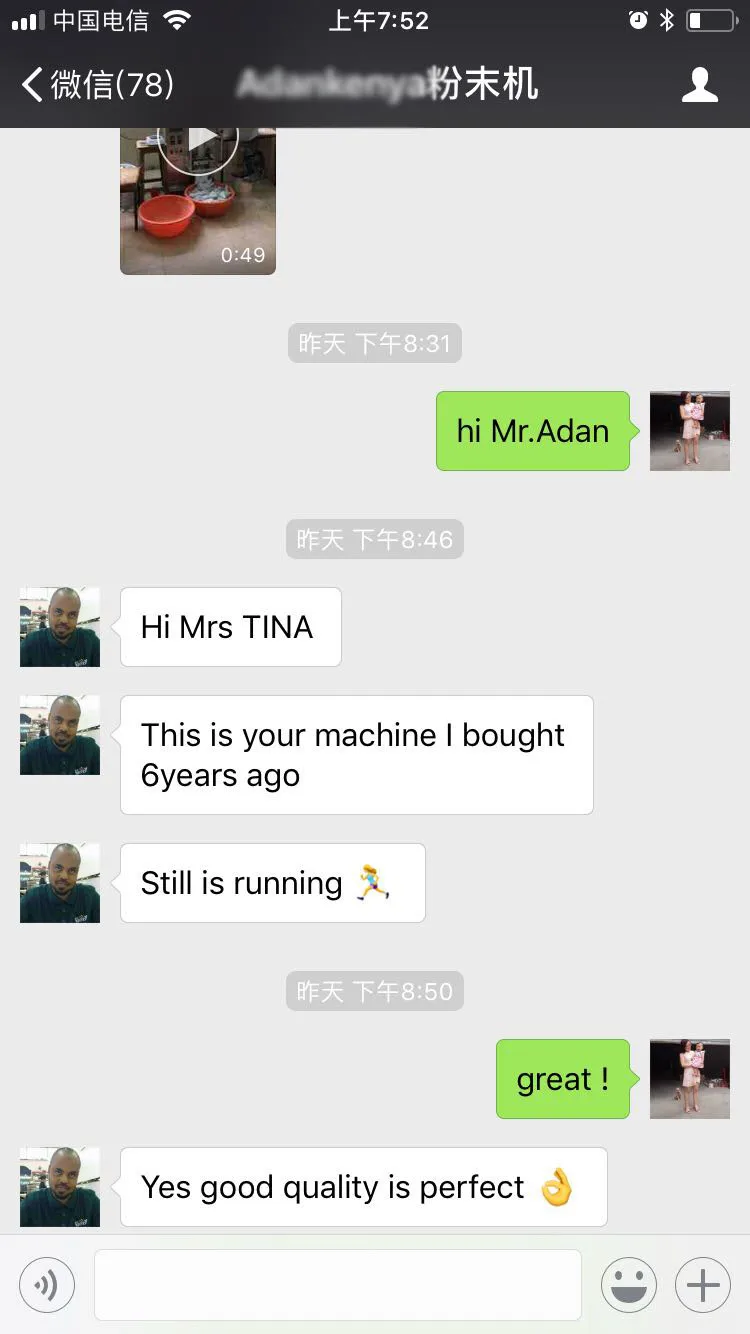

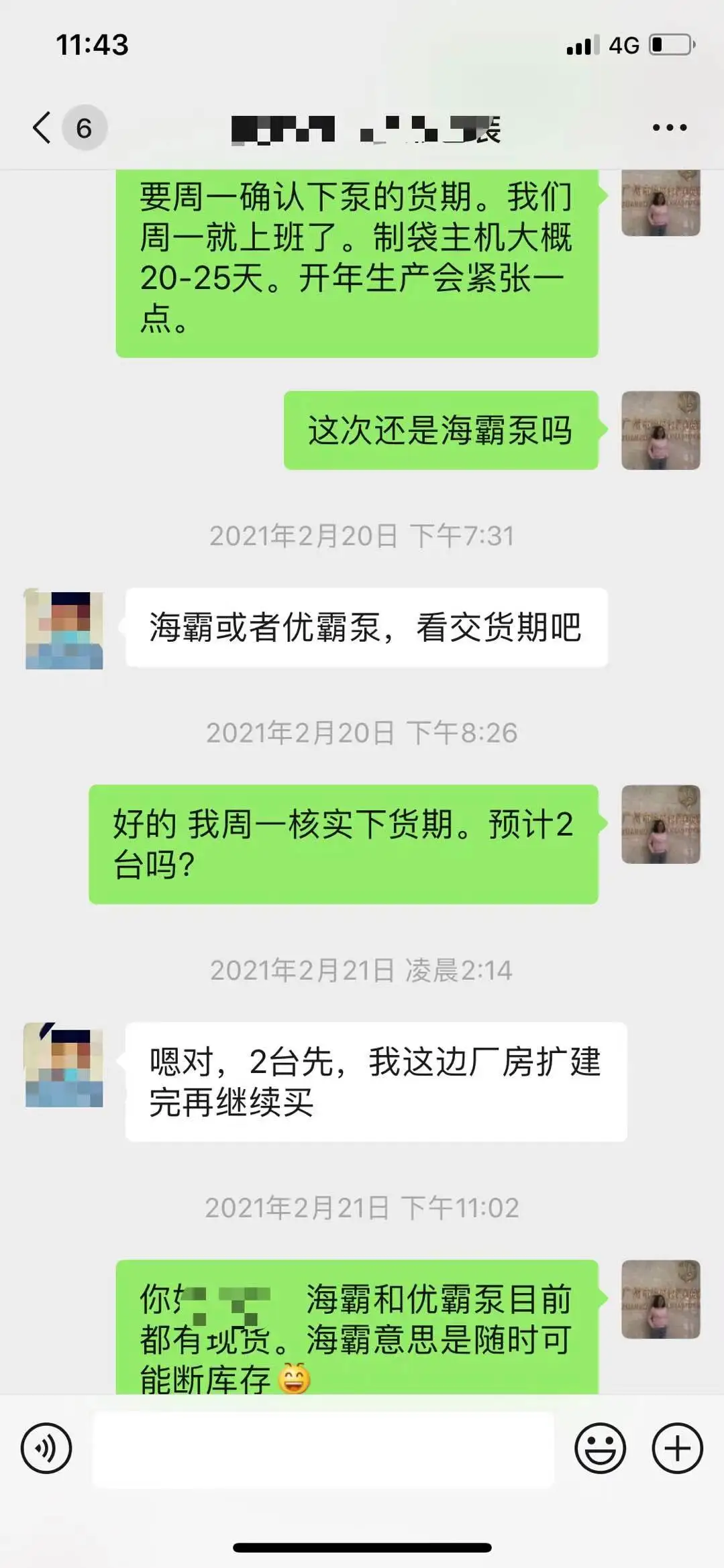

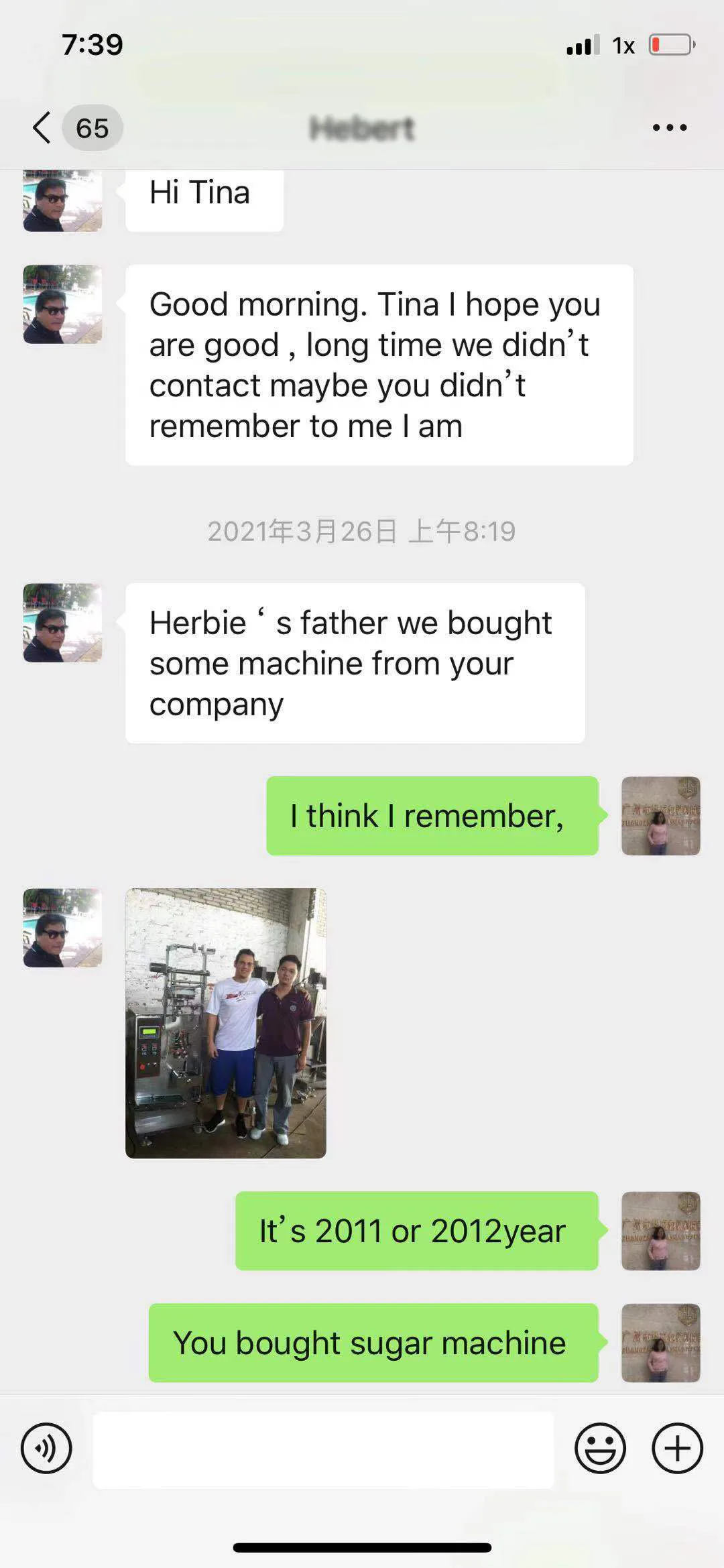

New customer feedback: Your service is very good!
Feedback from old customers: Your machine is of very good quality. After several years of use, the machine still runs normally, with very few failures.
Most of them will choose us again if they need to buy more machines!
Feedback from old customers: Your machine is of very good quality. After several years of use, the machine still runs normally, with very few failures.
Most of them will choose us again if they need to buy more machines!
Pre-sale service
1. Inquiry and consulting support.
2. Our Sample machine for client's product test.
3. View our Factory.
Other terms & condition:
1. Production time: 10-35 days after deposit and confirming details;
2. Payment term: 30% prepayment and 70% before delivery;
3. Payment method: T/T bank or Ali online order
After-sale service
1. Warranty period: 12month since on board date but no more than 13monthes.
2. Warranty range don't include damageable parts like heating tube, thermo-couple, temperature controller, photocell and blade;
3. Factory would provide all parts on the machine during the whole machine running time.
4. When needs go abroad to do on door service, buyer would be in charge of Visa, round tickets, living &commodity & traffic cost, salary USD120/day.
5. Manufacturer will provide machine testing video/ sample tear video /sample close view pictures, if need inspection report, inspection fee would be charged by buyer.
6. Online tech support: Wechat/ Whatsapp /Email/QQ
1. Inquiry and consulting support.
2. Our Sample machine for client's product test.
3. View our Factory.
Other terms & condition:
1. Production time: 10-35 days after deposit and confirming details;
2. Payment term: 30% prepayment and 70% before delivery;
3. Payment method: T/T bank or Ali online order
After-sale service
1. Warranty period: 12month since on board date but no more than 13monthes.
2. Warranty range don't include damageable parts like heating tube, thermo-couple, temperature controller, photocell and blade;
3. Factory would provide all parts on the machine during the whole machine running time.
4. When needs go abroad to do on door service, buyer would be in charge of Visa, round tickets, living &commodity & traffic cost, salary USD120/day.
5. Manufacturer will provide machine testing video/ sample tear video /sample close view pictures, if need inspection report, inspection fee would be charged by buyer.
6. Online tech support: Wechat/ Whatsapp /Email/QQ
Packing & Delivery
Shippment:
1. Upon receipt of payment , delivery date will be in 10-30 working days
2. First, the machine will be wrapped by the pretective film;
3. Then, put the machine into wooden box
4. Loading the box into the truck by forklift, delivery By Air, by Sea or by Express
5. Shipment cost will depend on the destination, ship way and the weight of the goods
2. First, the machine will be wrapped by the pretective film;
3. Then, put the machine into wooden box
4. Loading the box into the truck by forklift, delivery By Air, by Sea or by Express
5. Shipment cost will depend on the destination, ship way and the weight of the goods
Contact me
FAQ
Q:What is your Installation Services?
Installation Services are available with all new machine purchases.
We will provide the user manual and videos to support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
Q:What about your Guarantee of quality?
The machine is 1 year warranty, all machine part can be replaced for free within 1year if broken(not including man made).And offer lifetime after sale service
Q:How about the after-sale service?
(1)More than 12 hours after-sale online service one day.
(2) we have engineers available to service machinery overseas.The service charge, include: service fee USD120/day, VISA fee, board round-trip ticket, room and eat in are buyer's side.
Q: How about the spare parts?
After we deal down all the things , we will offer you a spare parts list for your reference.
Q:Do you also offer the material film?
Yes, we can offer you the plastic/paper roll film, we have a long term cooperated supplier for roll film and the price is favorable.
Q:If we have very special request for the production line,could you help me to do the design?
Experienced mechanical designer customized-design provided.
Q: If we have samples of new products, can you help to analysis and design the machine?
Yes, Our technical department can help to analysis, design and test the new products you offered.
Q:Can I visit your factory?
Sure, Our factory address : NO.2 Pingbu Avenue West, Huadu District, Guangzhou, China 510800
Installation Services are available with all new machine purchases.
We will provide the user manual and videos to support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
Q:What about your Guarantee of quality?
The machine is 1 year warranty, all machine part can be replaced for free within 1year if broken(not including man made).And offer lifetime after sale service
Q:How about the after-sale service?
(1)More than 12 hours after-sale online service one day.
(2) we have engineers available to service machinery overseas.The service charge, include: service fee USD120/day, VISA fee, board round-trip ticket, room and eat in are buyer's side.
Q: How about the spare parts?
After we deal down all the things , we will offer you a spare parts list for your reference.
Q:Do you also offer the material film?
Yes, we can offer you the plastic/paper roll film, we have a long term cooperated supplier for roll film and the price is favorable.
Q:If we have very special request for the production line,could you help me to do the design?
Experienced mechanical designer customized-design provided.
Q: If we have samples of new products, can you help to analysis and design the machine?
Yes, Our technical department can help to analysis, design and test the new products you offered.
Q:Can I visit your factory?
Sure, Our factory address : NO.2 Pingbu Avenue West, Huadu District, Guangzhou, China 510800
