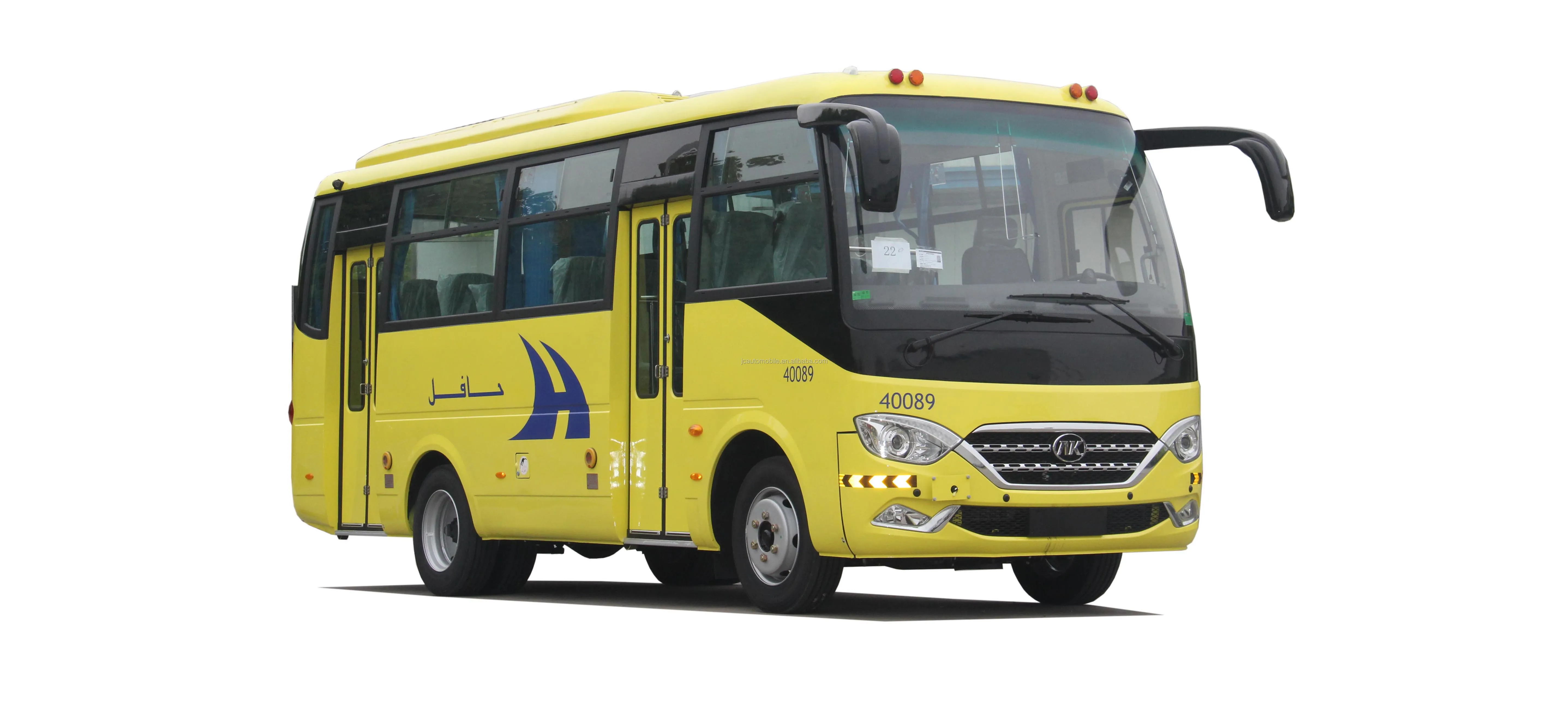

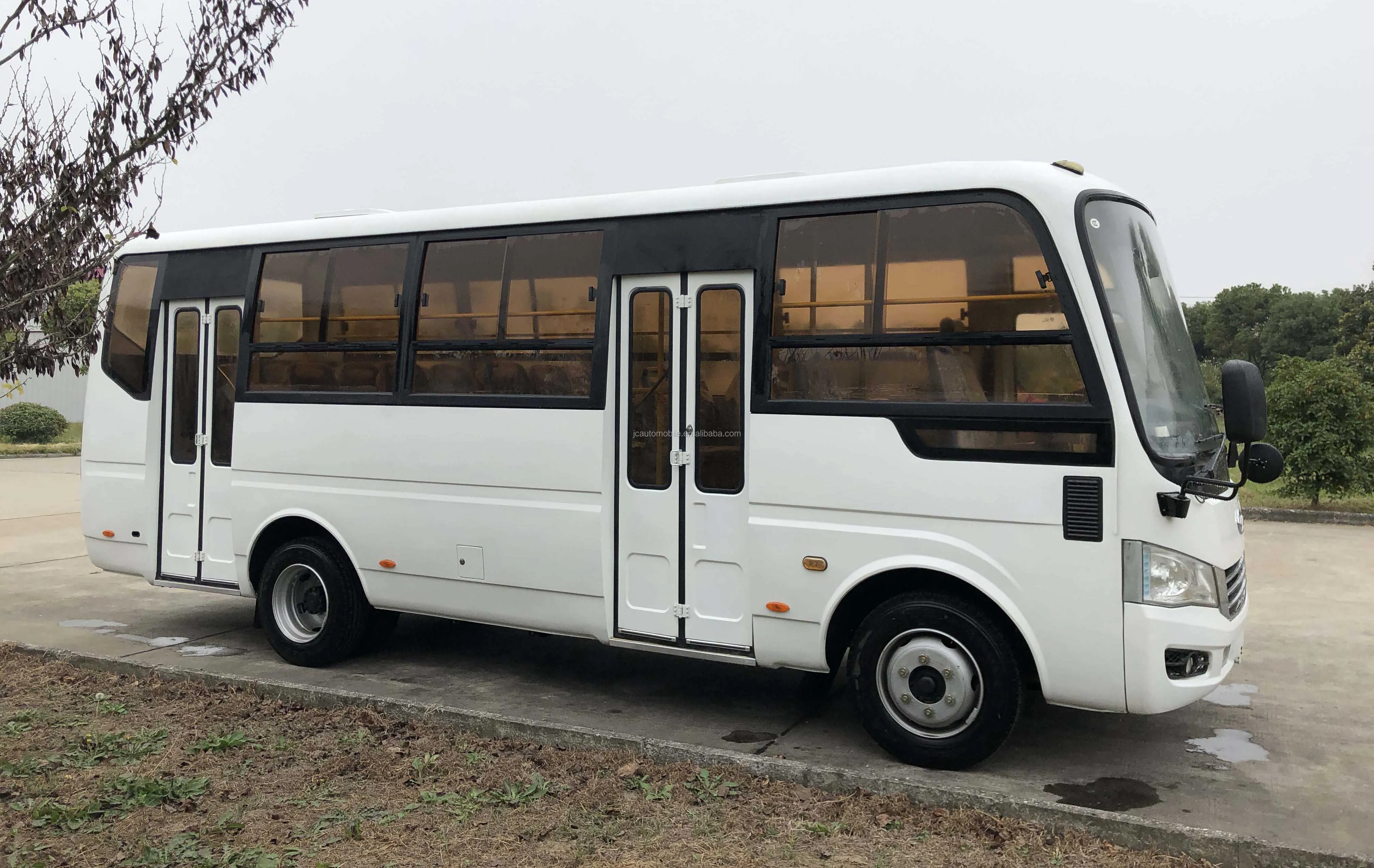

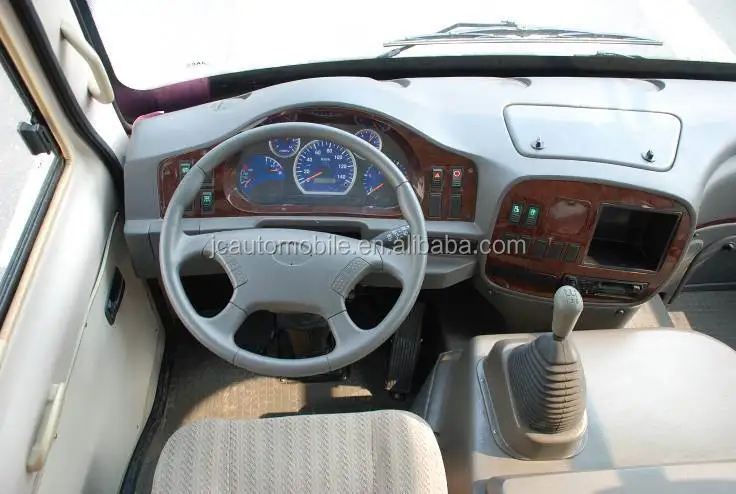

Popular 28 Seats China Mini Bus with Two Doors for Sale
- Category: >>>
- Supplier: JC Automobile Co. Limited (Shanghai)
Share on (60691279717):
Product Overview
Description
Product Description
| SPECIFICATIONS | |||||
| 1.Performance | |||||
| 1.2 | Seat capacity | 27+1 seats | |||
| 1.3 | Dimension L*W*H (mm) | 7280×2250×2840 | |||
| 1.4 | Approach/Departure Angle (o) | 16°/10° | |||
| 1.5 | Wheel base (mm) | 3800 | |||
| 1.6 | Track Fr/Rr (mm) | 1830/1680 | |||
| 1.7 | Overhang Fr/Rr (mm) | 1190/2290 | |||
| 1.8 | Kurb weight (kg) | 4750 | |||
| 1.9 | G.V.W (kg) | 7600 | |||
| 1.10 | Max. Speed (km/h) | 100 | |||
| 1.11 | Luggage trunk volume (m3) | 0.5 | |||
| 2.Chassis | |||||
| 2.2 | Engine | Engine Model | YC4FA130-40 | ||
| Engine Position & Type | 4-Cylinder , 4-stroke, water-cooled, turbocharged, inter-cooled |
||||
| Emission | EURO IV | ||||
| Displacement(L) | 2.982 | ||||
| Rated power (kw/rpm) | 95/3200 | ||||
| Max. torque (N.m/rpm) | 340/1600~2400 | ||||
| 2.3 | Gearbox | LC6T540 | |||
| 2.4 | Clutch | single dry disc, diaphragm spring(Φ325) | |||
| 2.5 | Suspension | Vertical semielliptic leaf spring suspension multiple-leaf spring 8/9 |
|||
| 2.6 | Front axle | Disc brake/3t | |||
| 2.7 | Rear axle | Drum brake/6.5t | |||
| 2.8 | Service brake | Air brake system | |||
| 2.9 | Parking brake | Energy storage spring | |||

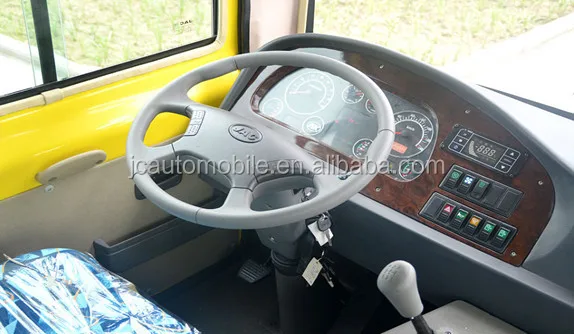

| 2.13 | Steering system | Power steering | |||
| 2.14 | Fuel tank capacity(L) | 85 | |||
| 2.15 | Battery/generator | 120A.hX2 / 70A | |||
| 2.16 | Tyre | 215/75R17.5 | |||
| 3.Body | |||||
| 3.1 | Trim | Regular trim | |||
| 3.2 | Defroster | Yes, 5000W | |||

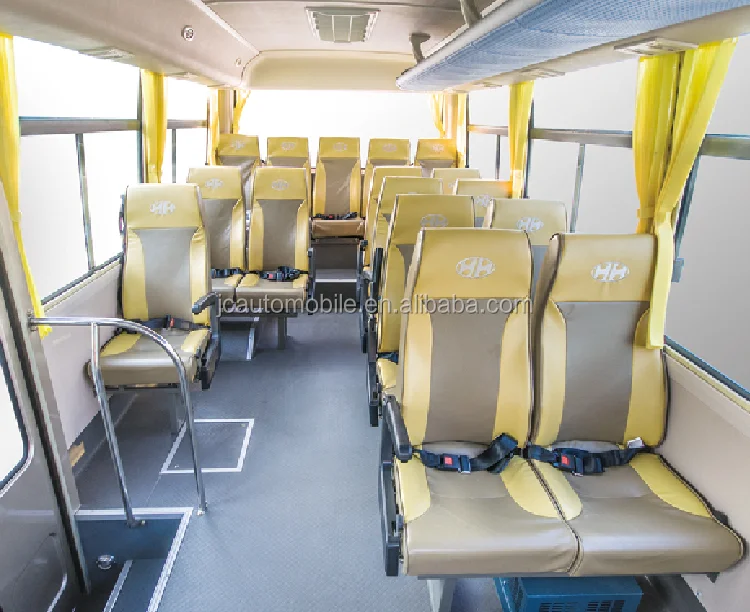

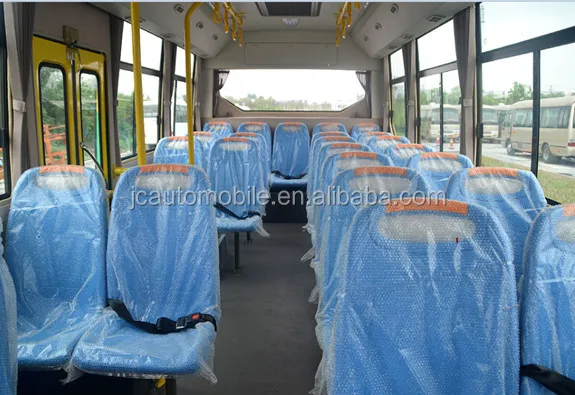

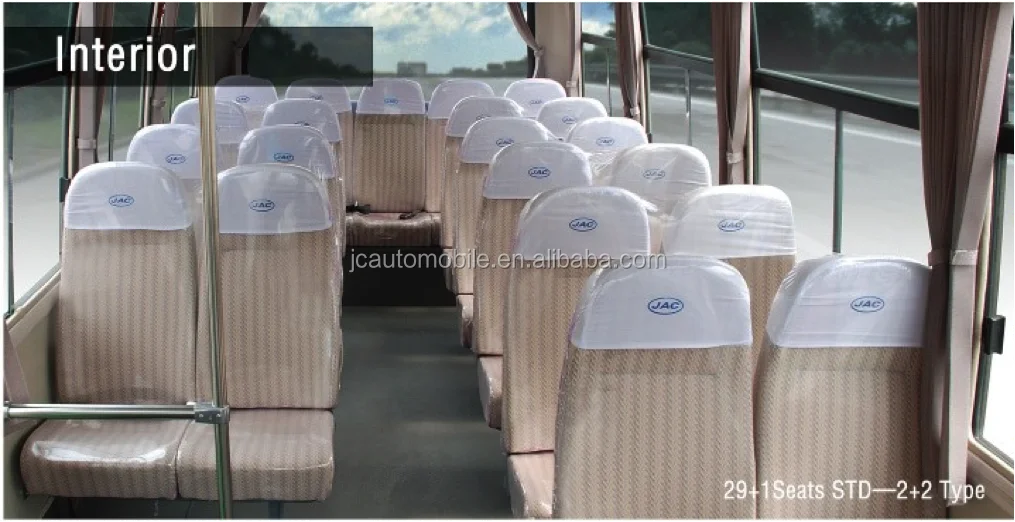

| 3.3 | Passenger seat | plastic seats with soft foam | |||
| 3.4 | Sunvisor(driver's) | Yes | |||
| 3.5 | Side Window | upper side: fixed,lower side: push-and-pull | |||
| 3.6 | Rear-view Mirror | Regular rod type (A) | |||
| 3.7 | Safety hatch | 1 pc of safety hatch without ventilator | |||
| 3.8 | Passenger door | middle and rear manual outward swing passenger door | |||
| 3.9 | Paint | Pure lacquer | |||
| 3.10 | Air conditioner | NO | |||
| 3.11 | TV | Optional: +USD500 | |||
| 3.12 | Fridge | Optional: +USD 600 and release 4 seats. | |||
| 3.13 | Others | Four steering wheel, co-driver guardrail, passenger door crosswise handle, speaker, wraparound sink, electric horn, vehicle electrophoresis | |||
