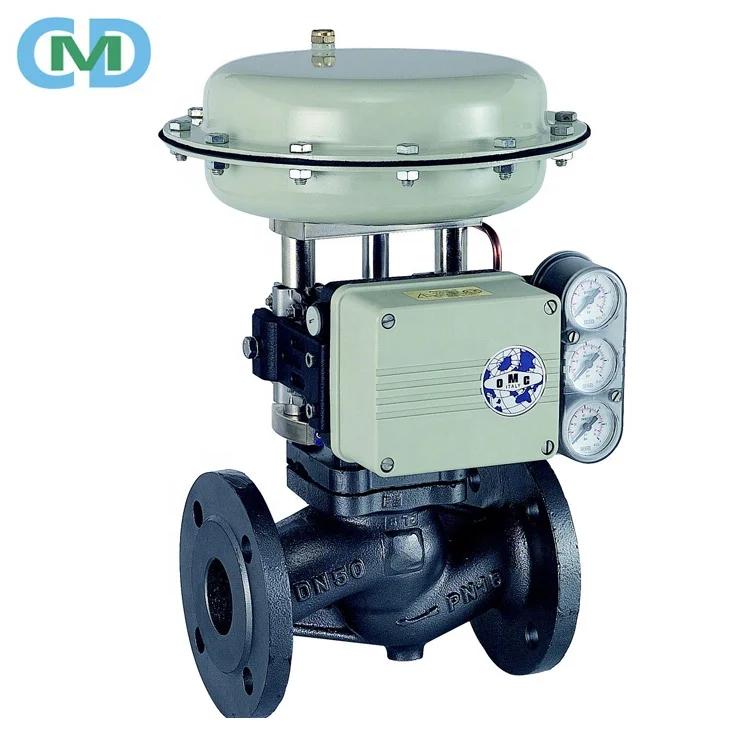

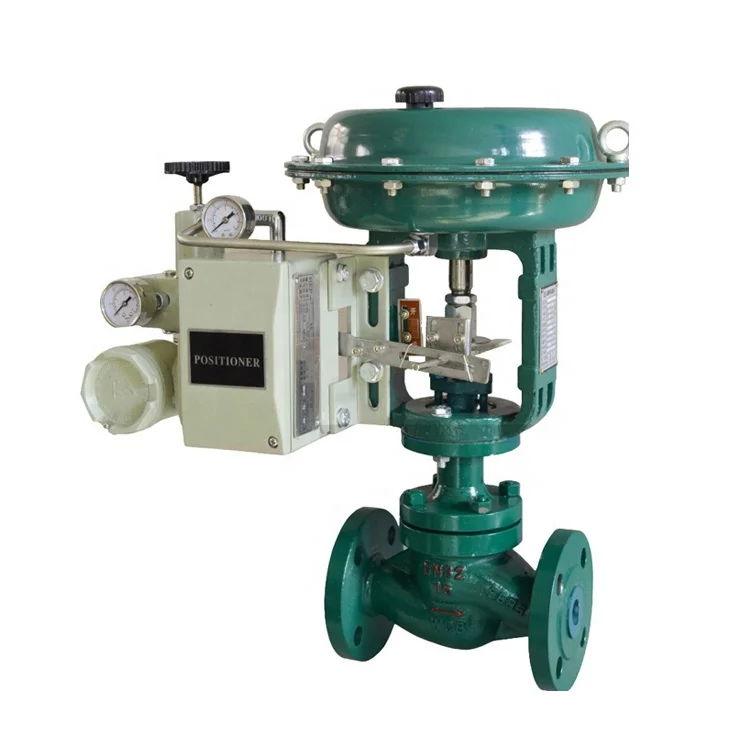

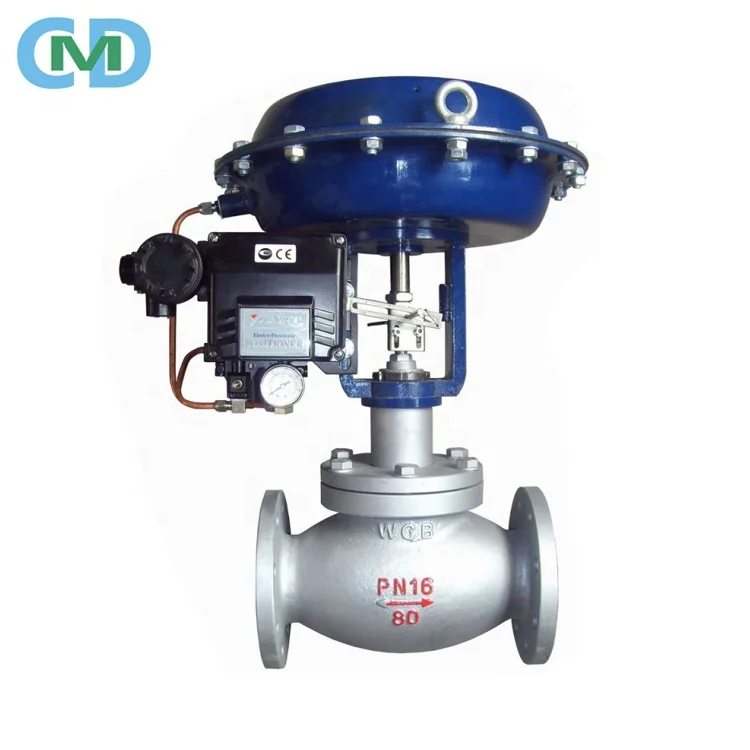

Water Steam Globe Type Remote Pneumatic Flow Pressure Control Valve with Price List
Water Steam Globe Type Remote Pneumatic Flow Pressure Control Valve with Price List
Water Steam Globe Type Remote Pneumatic Flow Pressure Control Valve with Price List
Water Steam Globe Type Remote Pneumatic Flow Pressure Control Valve with Price List
Water Steam Globe Type Remote Pneumatic Flow Pressure Control Valve with Price List

Water Steam Globe Type Remote Pneumatic Flow Pressure Control Valve with Price List

Share on (60691280468):


Price:

Quantity:


Product Overview

Description

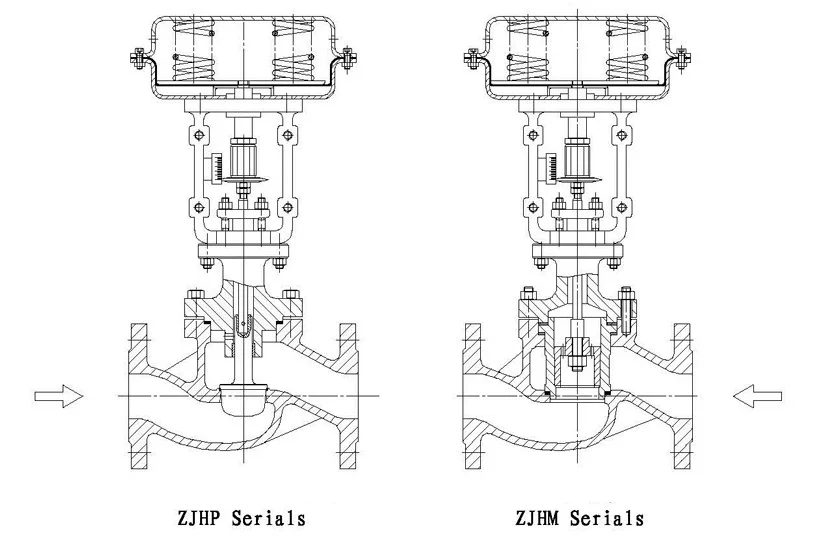

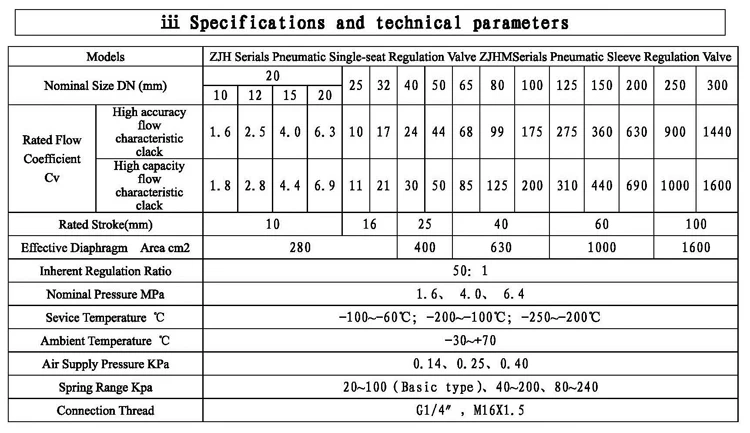

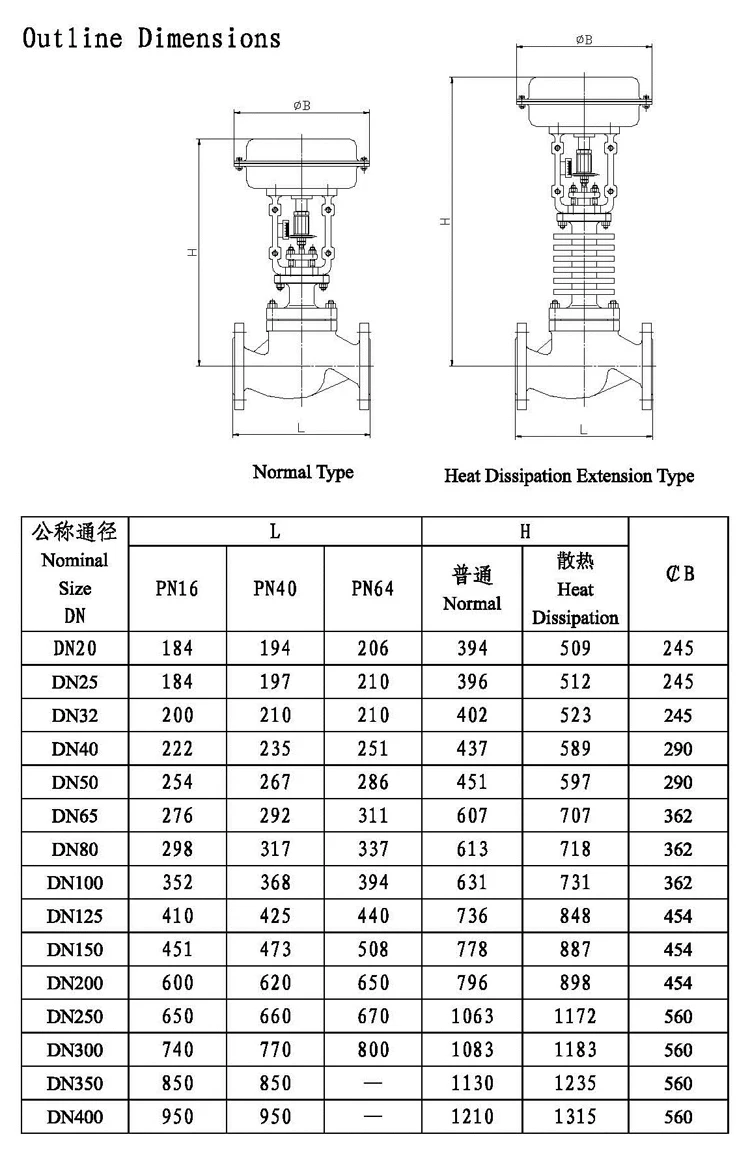

ZJHP __4.jpgZJHP __6.jpgZJHP __8.jpg


























































SPECIFICATIONS FOR CONTROL VALVES










Pressure rating and size:



PN10 to PN64,ANSI Class150 to Class 600


DN20 to DN400


1-3/4"~16"


20A~400A



Material:



Body : WCB, CF8, CF8M


Bonnet : WCB, CF8, CF8M


Trim : A105, SS304, SS316


Diaphragm : NBR, EPDM


Spring : 60Si2Mn


Special material on request.


Operated type


Handwheel, Pneumatic, Electric, Hydraulic, etc.


Structure:


Globe Type


Flange Connection


ANSI B 16.5, EN1092, GB/JB



Maximum working temperatures:



Nitril:80°C
NBR:110°C
EPDM:110°C
PTFE:150°C, Metal seat for high temperature
