Cable comando 12x1.5mm2 12x2.5mm2 PVC
- Category: >>>
- Supplier: Zhengzhou Hesheng Cable Co. Ltd.
Share on (60691308593):
Product Overview
Description
Product Description

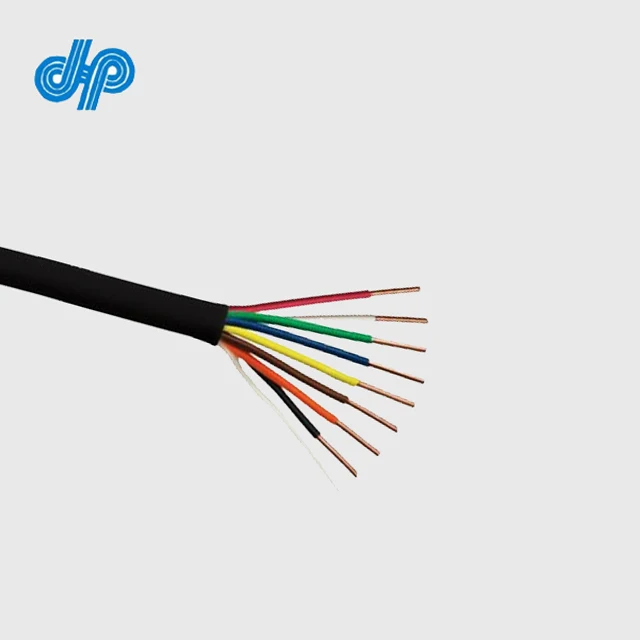

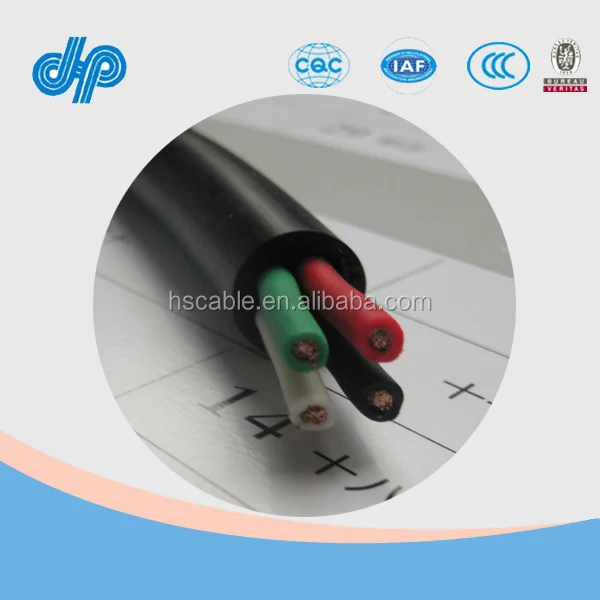

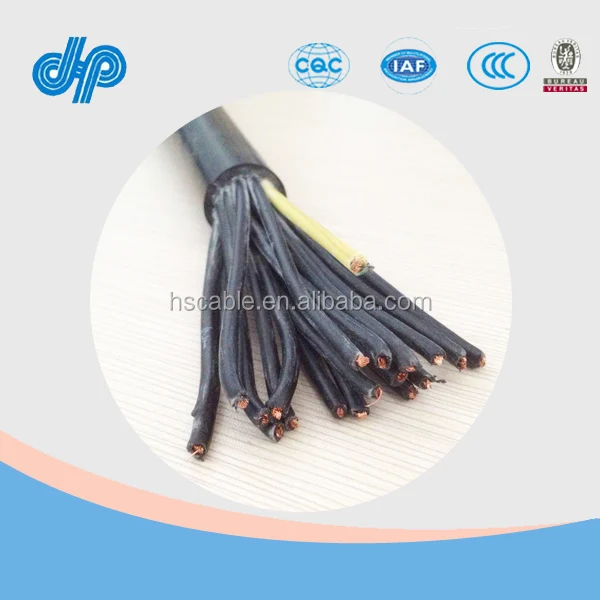

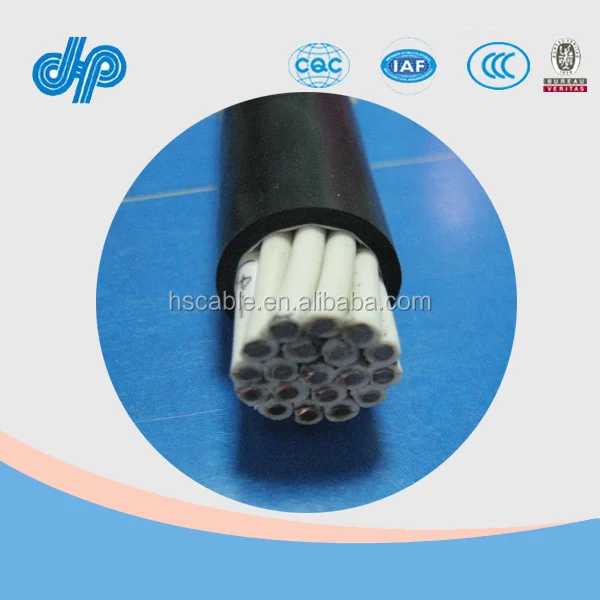

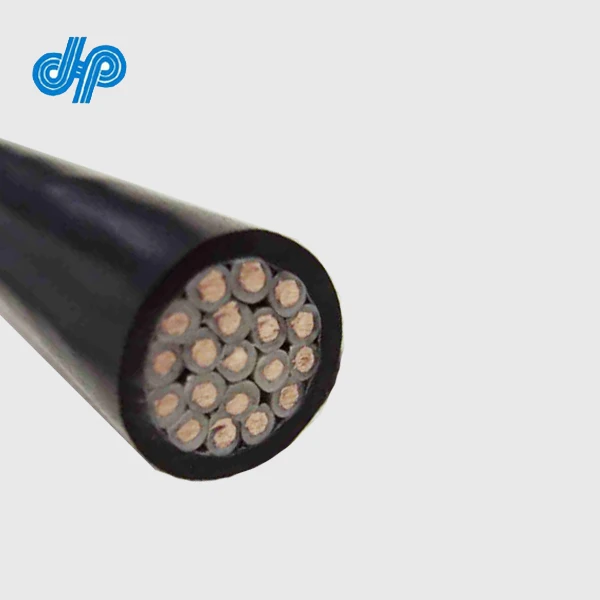

Cable comando 12x1.5mm2 12x2.5mm2 PVC
1. Conductor: Class 5 flexible plain copper conductors to BS EN 60228:2005 (previously BS6360),
DIN VDE 0295:1995-06 or IEC 60228
2. Insulation: PVC
3. Sheath: PVC
4. Voltage Rating: 300/500V, 450/750V, 660/1100V
5. Temperature Rating: Fixed: -30°C to +70°C Flexing: -5°C to +85°C
6. Minimum Bending Radius: 10 x overall diameter
7. Core Identification: Black with White numbers. (3 cores and above to include Green/Yellow). Coloured cores available.
8. Size: 0.5mm, 0.75mm, 1mm, 1.5mm, 2.5mm, 4mm, 6mm, 10mm etc.
9. Application: For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment. Used as interconnecting cable for measuring, controlling or regulation in control equipment for assembly and production lines, conveyors and for computer units. Suitable for fixed installations or for flexible use in conditions of light mechanical stress. Can be used outdoors when protected, and in dry or moist conditions indoors.
Type | Name | Section Area(mm2) | No. of Core | Application Site |
KVV | Copper Conductor,PVC Insulated and Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 2-16 | Permanent installation indoors,in cable ditches or pipes |
4 6 | 2-14 | |||
10 | 2-10 | |||

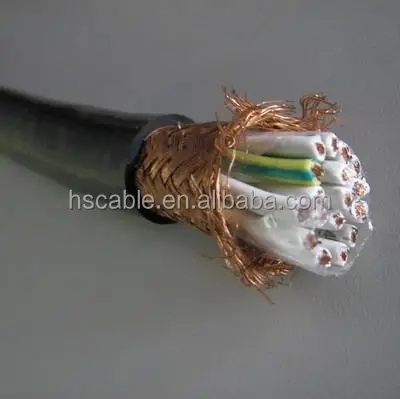

KVVP | Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded Control Cable | 0.75 1.0 1.5 2.5 | 2-61 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
4 6 | 2-14 | |||
10 | 2-10 | |||
KVVP2 | Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable | 0.75 1.0 1.5 2.5 | 4-10 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
4 6 | 7-61 | |||
10 | 4-10 | |||
KVV22 | Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable | 0.75 1.0 1.5 2.5 | 7-61 | Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force |
4 6 | 4-14 | |||
10 | 4-14 | |||
KVVR | Copper Conductor,PVC Insulated and Sheathed,Flexible Control Cable | 0.5-2.5 | 4-61 | Installation indoors where flexibility and movability are required |
KVVRP | Copper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable | 0.5 0.75 1.0 | 4-61 | Installation indoors where flexibility shielding and movability are required |
1.5 2.5 | 4-48 | |||
KYJV | Copper Conductor,XLPE Insulated and PVC Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 2-16 | Permanent installation indoors,in cable ditches or pipes |
4 6 | 2-14 | |||
10 | 2-10 | |||
KYJVP | Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 2-61 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
4 6 | 2-14 | |||
10 | 2-10 | |||
KYJV22 | Copper Conductor,XLPE Insulated,Steel-tape Armoured,PVC Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 7-61 | Permanent installation indoors,in cable ditches,pipes or underground Be cable to with stand stronger external mechanical force |
4 6 | 4-14 | |||
10 | 4-10 | |||
KYJVP2 | Copper Conductor,XLPE Insulated,Copper tape Screened,PVC Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 7-61 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
4 6 | 4-14 | |||
10 | 4-10 | |||
KYJVR | Copper Conductor,XLPE Insulated,PVC Sheathed Flexible Control Cable | 0.5-2.5 | 4-61 | Installation indoors where flexibility and movability are required |
KYJVRP
| Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Flexible Control Cable
| 0.5 0.75 1.0 | 4-61 |
Installation indoors where flexibility shielding and movability are required |
Packaging & Shipping
Cable comando 12x1.5mm2 12x2.5mm2 PVC
Our Services
Hesheng Brand, OEM, ODM Cable comando 12x1.5mm2 12x2.5mm2 PVC
Company Information
Cable comando 12x1.5mm2 12x2.5mm2 PVC
FAQ
Q: Why choose Hesheng? Any advantages?
A: The answer is Yes. There are 5 advantages.
(1) MUTUAL BENEFIT: Our offer will be reasonable, our price will be cheaper in the same quality.
(2) CUSTOMIZE: We can make the product as your request, Specification and Quality can meet your request.
(3) OEM: (1)Printing your Logo. (2)Designing your packing.
(4) MIX ORDER: We accept mix order, different model and small quantity order.
(5) AFTER SERVICE: 1 Years Guarantee.
Q: Can I order one piece for sample to test the quality?
A: Yes, We recommend to check the sample before order.
Q: If I want cheaper quality, can you produce?
A: Yes, just send us your quality details, such as the material, what cheaper parts instead etc, we will do that as your request and calculate the price.
Q: If I order big quantity, what's the good price?
A: Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.
Thank you for your visiting. Any questions, please feel free to contact us.
WhatsApp/Viber: 86 13803890503
WeChat: jedyuan
For Cable comando 12x1.5mm2 12x2.5mm2 PVC
....
